Kicker PTRTP10 Manual de usuario
1English
Contents
Overview........................2
Specifications........................ 3
Installation ......................5
Wiring ................................... 5
Mounting............................... 8
Operation.......................9
Remote Bass Installation...... 11
Troubleshooting............12
Warranty ......................13
International Warranty
Garantía | Garantie........51
49PTRTP-d-23
2English
Overview
IMPORTANT SAFETY WARNING
PROLONGED CONTINUOUS OPERATION OF AN AMPLIFIER, SPEAKER, OR
SUBWOOFER IN A DISTORTED, CLIPPED OR OVER-POWERED MANNER
CAN CAUSE YOUR AUDIO SYSTEM TO OVERHEAT, POSSIBLY CATCHING
FIRE AND RESULTING IN SERIOUS DAMAGE TO YOUR COMPONENTS
AND/OR VEHICLE. AMPLIFIERS REQUIRE UP TO 4 INCHES (10CM) OPEN
VENTILATION. SUBWOOFERS SHOULD BE MOUNTED WITH AT LEAST 1
INCH (2.5CM) CLEARANCE BETWEEN THE FRONT OF THE SPEAKER AND
ANY SURFACE. KICKER PRODUCTS ARE CAPABLE OF PRODUCING SOUND
LEVELS THAT CAN PERMANENTLY DAMAGE YOUR HEARING! TURNING UP A
SYSTEM TO A LEVEL THAT HAS AUDIBLE DISTORTION IS MORE DAMAGING
TO YOUR EARS THAN LISTENING TO AN UNDISTORTED SYSTEM AT THE
SAME VOLUME LEVEL. THE THRESHOLD OF PAIN IS ALWAYS AN INDICATOR
THAT THE SOUND LEVEL IS TOO LOUD AND MAY PERMANENTLY DAMAGE
YOUR HEARING. PLEASE USE COMMON SENSE WHEN CONTROLLING
VOLUME.
TO AVOID POTENTIAL INJURY OR POSSIBLE DEATH FROM FORWARD
MOVEMENT OF THE ENCLOSURE DURING ABRUPT STOPS OR ACCIDENTS,
THE ENCLOSURE MUST BE PROPERLY INSTALLED AND SECURELY
FASTENED TO YOUR VEHICLE. YOU ARE SOLELY RESPONSIBLE FOR
SECURELY FASTENING THE ENCLOSURE IN YOUR VEHICLE. MAKE SURE
THE MOUNTING SCREWS WILL NOT PUNCTURE THE GAS TANK/BRAKE
LINES/WIRING OR INTERFERE WITH ANY MECHANICAL PARTS ON THE
UNDERSIDE OF THE MOUNTING SURFACE.
The PTRTP builds on the overwhelming success
of our down-firing, thin-profile subwoofer enclosure
by adding a signature KICKER amplifier to power it.
Sporting a passive radiator and KICKER amplification,
this box has been perfectly tuned and engineered
from all angles, acoustic and electric, to be the
absolute best-sounding, most-efficient, and loudest
enclosure possible. Complete your system with a
pair of KICKER coaxial speakers and mulit-channel
amplifier for an uncompromising audio experience.
Use this manual to install and operate your PTRTP
Enclosure.
3English
Model: PTRTP10 PTRTP12
Woofer [in, cm] 10, 25 12, 30
Height [in, cm] 6, 15.2 6-1/2, 16.6
Width [in, cm] 25-5/8, 65 27-1/2, 70
Depth [in, cm] 13-1/4, 33.5 14-5/8, 37
RMS Power @ 14.4V 400 500
Specifications Common to All Models
Frequency response [Hz] 25–120
Electronic Crossover 12dB/octave Lowpass 50–120Hz;
12dB/octave Highpass @ 25Hz
Phase Switch 0° / 180°
Input Sensitivity Low Level 125mV-5V, Hi Level 1V-40V
KickEQ™ Bass Boost Variable to +6dB @ 40Hz
Signal-to-Noise ratio [dB] >90dB, A-weighted, re: rated power
Remote Bass Control Included
Specifications
4English
PTRTP10
PTRTP12
5English
Installation
Wiring
Disconnect the vehicle’s battery to avoid an electrical
short.
1. Make the ground wire as short as possible, 24”
(60cm) or less, and connect the ground wire to a
paint-and-corrosion-free, solid, metal area of the
vehicle’s chassis.
2. Connect the ground wire to the Quick-Connect
Power Plug.
3. Run power wire to the battery.
4. Install a fuse holder in-line with the power wire as
close as possible to the battery (within 18”), making
sure there is no fuse installed in the fuse holder.
5. Connect the power wire to the Quick-Connect
Power Plug.
6. Connect remote wire to the Quick-Connect Power
Plug (See Automatic Turn-On section to learn more).
7. Connect the Quick-Connect Power Plug to the
amplifier.
8. Install the recommended fuse into the in-line fuse
holder.
9. If you ever need to remove the enclosure from
the vehicle after it has been installed, please make
sure to remove the fuse from the fuse holder on the
power wire first before unplugging the quick-connect
power plug. The ground wire should be the last
wire disconnected – just the opposite as when you
installed it.
Model External Fuse (sold separately) Power/Ground Wire KICKER Wiring Kit
PTRTP10 1 x 40 Ampere 4 Gauge KMPK4, PK4, CK4
PTRTP12 1 x 60 Ampere 4 Gauge KMPK4, PK4, CK4
6English
fuse
quick-connect
power plug
ground
Remote Turn-On
(see page 9)
≤18”
(45cm)
7English
Connect the wiring pigtail to the amplifier’s audio
inputs, then connect the audio output from your
source unit to the RCA inputs.
If needed, cut off the RCA connections to use hi-
level input, or use the KICKER KISL Speaker-RCA
Converter.
quick-connect wiring
harness audio inputs:
White Left +
White/Black Left –
Grey Right +
Grey/Black Right –
8English
Mounting
Choose a structurally sound location to mount your
KICKER powered subwoofer enclosure. Make sure
the mounting screws will not puncture the gas tank/
brake lines/wiring or interfere with any mechanical
parts on the underside of the mounting surface.
Choose a location that allows at least 4” (10cm) of
open ventilation for the amplifier. If possible, mount
the enclosure in the climate-controlled passenger
compartment. A flat surface is required.
If the supplied mounting hardware is not applicable
to your installation, some other means of securely
attaching the enclosure to the vehicle must be used.
Mount the brackets to the
bottom of the enclosure
using the supplied smaller
screws. Securely attach
the enclosure to the
vehicle with the supplied
larger screws.
9English
Operation
Automatic Turn-On: KICKER powered enclosures
offer two different automatic turn-on modes; +12V
and DC Offset.
• Remote Turn-On: Run 18 gauge wire from the
Remote Turn-On Lead on your source unit to the
Remote Turn-On input of the quick-connect power
plug.
• DC Offset Turn-On: The DC Offset mode detects
a >2.5V DC offset from the HI-Level speaker outputs
when the source unit has been turned on.

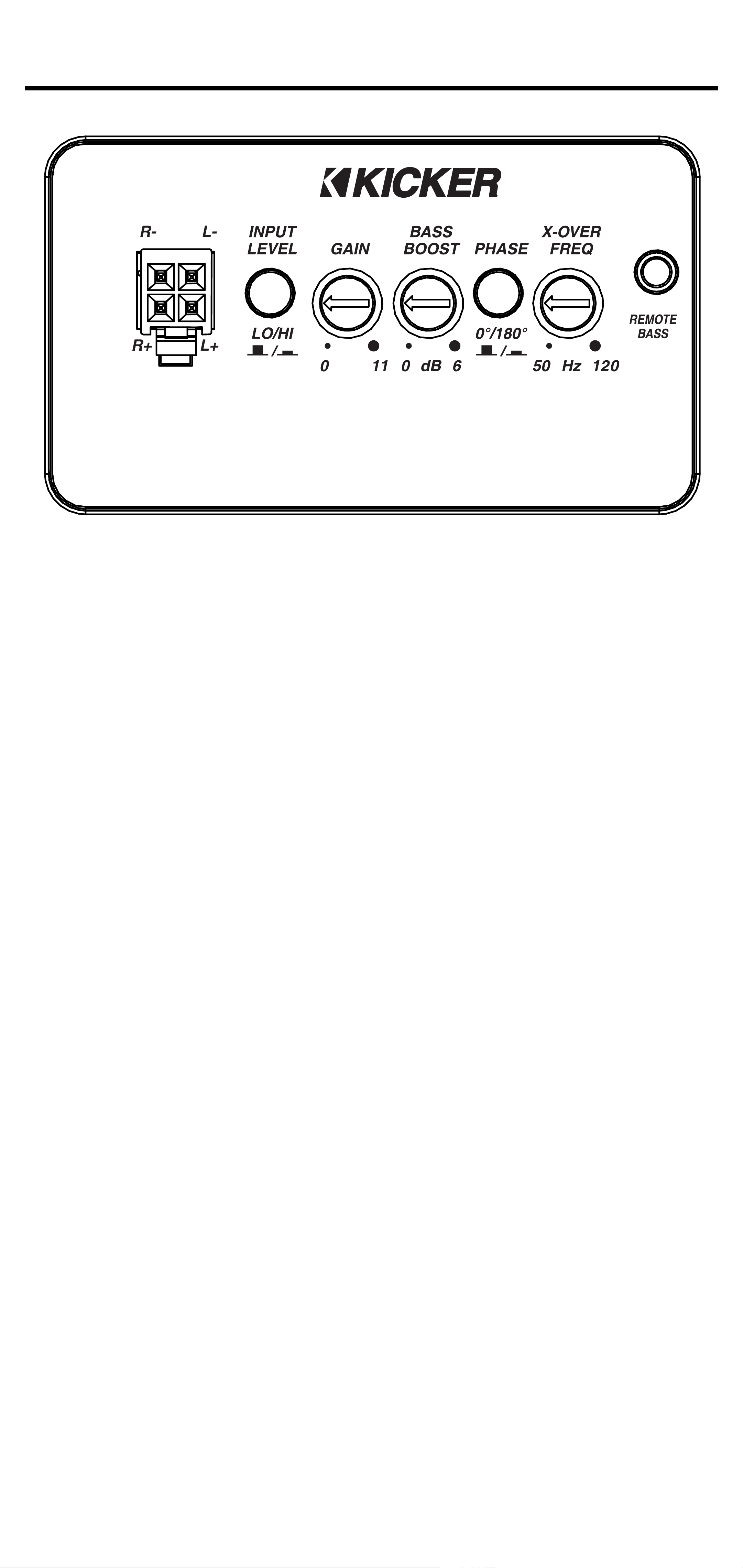

Input Level: The inputs on KICKER powered
enclosures are capable of receiving either Hi
(speaker-level) or Low-level (RCA) signals from your
source unit. Set the Input Level switch on the side
panel to match the outputs of your source unit.
Input Gain Control: The input gain control is not a
volume control. It matches the output of the source
unit to the input level of the amplifier. Maximum power
