52" True

INSTRUCTION MANUAL

Model# 310452READ AND SAVE THESE INSTRUCTIONS

2 | KICHLER.COM

TABLE OF CONTENTS

INSTALLING THE FAN BLADES..............................................14

INSTALLING THE DECORATIVE COVER...............................14

INSTALLING THE COOLTOUCH™ WALL PLATE.................15

INSTALLING THE TRANSMITTER..........................................15

OPERATING INSTRUCTIONS..................................................16

TROUBLESHOOTING................................................................19

FCC INFORMATION ...................................................................21

SAFETY RULES............................................................................ 3

TOOLS AND MATERIALS REQUIRED..................................... 5

PACKAGE CONTENTS................................................................ 5

MOUNTING OPTIONS................................................................ 6

HANGING THE FAN .....................................................................7

INSTALLATION OF SAFETY CABLE...................................... 10

ELECTRICAL CONNECTIONS................................................ 10

FINISHING THE MOTOR INSTALLATION .............................13

52" True | 3

fan support and may need to be replaced. Due to the

complexity of the installation of this fan, a qualified

licensed electrician is strongly recommended.

6. The outlet box and support structure must be

securely mounted and capable of reliably supporting

a minimum of 15.9 kg (35 pounds). Use only cULus

Listed outlet boxes marked “Acceptable for Fan

Support of 15.9 kg (35 lbs) or less”.

7. The fan must be mounted with a minimum of 2.1 m

(7 feet) clearance from the trailing edge of the blades

to the floor.

8. To operate the reverse function on this fan, press

the “Reverse” Button on the transmitter while fan is

running.

9. Avoid placing objects in the path of the blades.

10. WARNING: make sure the power is disconnected

before cleaning your fan.

READ AND SAVE THESE INSTRUCTIONS

SAFETY RULES

WARNING: FOR CANADA, THIS FAN MUST BE SECURED DIRECTLY TO THE BUILDING STRUCTURE / CEILING JOIST.

DON’T SECURE THIS FAN TO AN OUTLET BOX.

1. CAUTION – RISK OF SHOCK: Disconnect Power at

the main circuit breaker panel or main fusebox before

starting and during the installation.

2. WARNING: All wiring must be in accordance with the

National Electrical Code “ANSI/NFPA 70” and local

electrical codes. Electrical installation should be

performed by a qualified licensed electrician.

3. WARNING: To reduce the risk of electric shock, this

fan must be installed with a general-use, isolating wall

control/switch.

4. WARNING: Not suitable for use with solid-state speed

controls.

5. WARNING: To reduce the risk of fire, electric shock,

or personal injury, mount to outlet box marked

“acceptable for fan support of 15.9 kg (35 lbs.) or

less” and use mounting screws provided with the

outlet box. Most outlet boxes commonly used for

the support of light fixtures are not acceptable for

4 | KICHLER.COM

16. N.W. 7.82 KGS (17.24 LBS) / G.W. 8.75 KGS (19.29 LBS)11. To avoid personal injury or damage to the fan and

other items, be cautious when working around or

cleaning the fan.

12. Do not use water or detergents when cleaning the fan

or fan blades. A dry dust cloth or lightly dampened

cloth will be suitable for most cleaning.

13. After making electrical connections, spliced

conductors should be turned upward and pushed

carefully up into outlet box. The wires should be

spread apart with the grounded conductor and the

equipment-grounding conductor on one side of the

outlet box and the ungrounded conductor on the

other side of the outlet box.

14. Electrical diagrams are reference only. Light kits that

are not packed with the fan must be cULus Listed

and marked suitable for use with the model fan you

are installing. Switches must be cULus General Use

Switches. Refer to the Instructions packaged with the

light kits and switches for proper assembly.

15. All set screws must be checked, and retightened

where necessary, before installation.

SAFETY RULES (continued)

WARNING

TO REDUCE THE RISK OF PERSONAL INJURY,

DO NOT BEND THE BLADE BRACKETS DURING

ASSEMBLY OR AFTER INSTALLATION. DO NOT

INSERT OBJECTS IN THE PATH OF THE BLADES.

52" True | 5

TOOLS AND MATERIALS REQUIRED

PACKAGE CONTENTS

• Phillips Screwdriver

• Blade Screwdriver

• 11 mm Wrench

• Step Ladder

• Wire Cutters

Unpack your fan and check the contents . You should have the following items:

A. Fan Blades (3)

B. Canopy & Ceiling

Mounting Bracket

C. Ball/Downrod Assembly

D. Coupling Cover

E. Fan Motor Assembly

F. Decorative Cover

G. Receiver

H. Transmitter (371075) and Wall Plate

I. Part Bag Contents

1) Mounting Hardware:

Flat Washers (2), Wood Screws (2)

Star Washers (2), Wire Nuts (3)

Screws (2)

2) Blade Attachment Hardware:

Blade Screws (11), Fiber Washers (11)

3) Safety Cable Hardware:

Wood Screw (1), Flat Washer (1)

4) Balance Kit

6 | KICHLER.COM

Fig. 1

Outlet box

Fig. 2

Fig. 3

Recessed

outlet box ceiling Ceiling

Mounting

plane

Provide strong

support

ANGLED CEILING

MAXIMUM 18° ANGLE

Fig. 4

Outlet box

MOUNTING OPTIONS

If there is not an existing UL (cUL for Canadian Installation) listed

mounting box, then read the following instructions. Disconnect

the power by removing fuses or turning o circuit breakers.

Secure the outlet box directly to the building structure. Use

appropriate fasteners and building materials. The outlet box and

its support must be able to fully support the full weight of the fan

(up to 15.9kg (35 pounds)). Do not use plastic outlet boxes.

Figures 1, 2 and 3 are examples of dierent ways to mount the

outlet box.

NOTE: If you are installing the ceiling fan on a sloped (vaulted)

ceiling, you may need a longer downrod to maintain proper

clearance between the tip of the blade and the ceiling. A

minimum clearance of 12" is suggested for optimal operation.

NOTE: Depending on the location you have selected for

installation, you may need to purchase and install a “Joist

Hanger” for the support of the outlet box. Make sure the joist

hanger you purchase has been designed for use with ceiling

fans. (Fig. 4)

52" True | 7

Ceiling Mounting Bracket

HANGING THE FAN

CAUTION: To avoid possible electrical shock, be sure you have

turned o the power at the main circuit panel.

REMEMBER to turn o the power before you begin installation.

This is necessary for your safety.

WARNING: All set screws must be checked, and retightened where

necessary, before installation.

To properly install your ceiling fan, follow the steps below.

Step 1. Remove the canopy trim ring from the canopy by turning the canopy

trim ring counter clockwise. (Fig. 5)

Step 2. Remove the ceiling mounting bracket from the canopy by removing

and saving one of the two screws. Loosen the remaining screw by a half turn.

(Fig. 5)

Step 3. Pass the 120 volt supply wires from the ceiling outlet box through the

center of the ceiling mounting bracket. (Fig. 6)

Step 4. Attach the ceiling mounting bracket to the outlet box using the

screws and washers included with the outlet box. (Fig. 6)

Fig. 6

Fig. 5

Canopy

Washer

(Supplied with Electrical Box)

Canopy Trim Ring

Mounting Screw

(Supplied with

Electrical Box)

120V Wires

Washer

(Supplied with Electrical Box)

Mounting Screw

(Supplied with

Electrical Box)

Ceiling Mounting

Bracket

cULus

Electrical

Box

8 | KICHLER.COM

WARNING: All set screws must be checked, and retightened where

necessary, before installation.

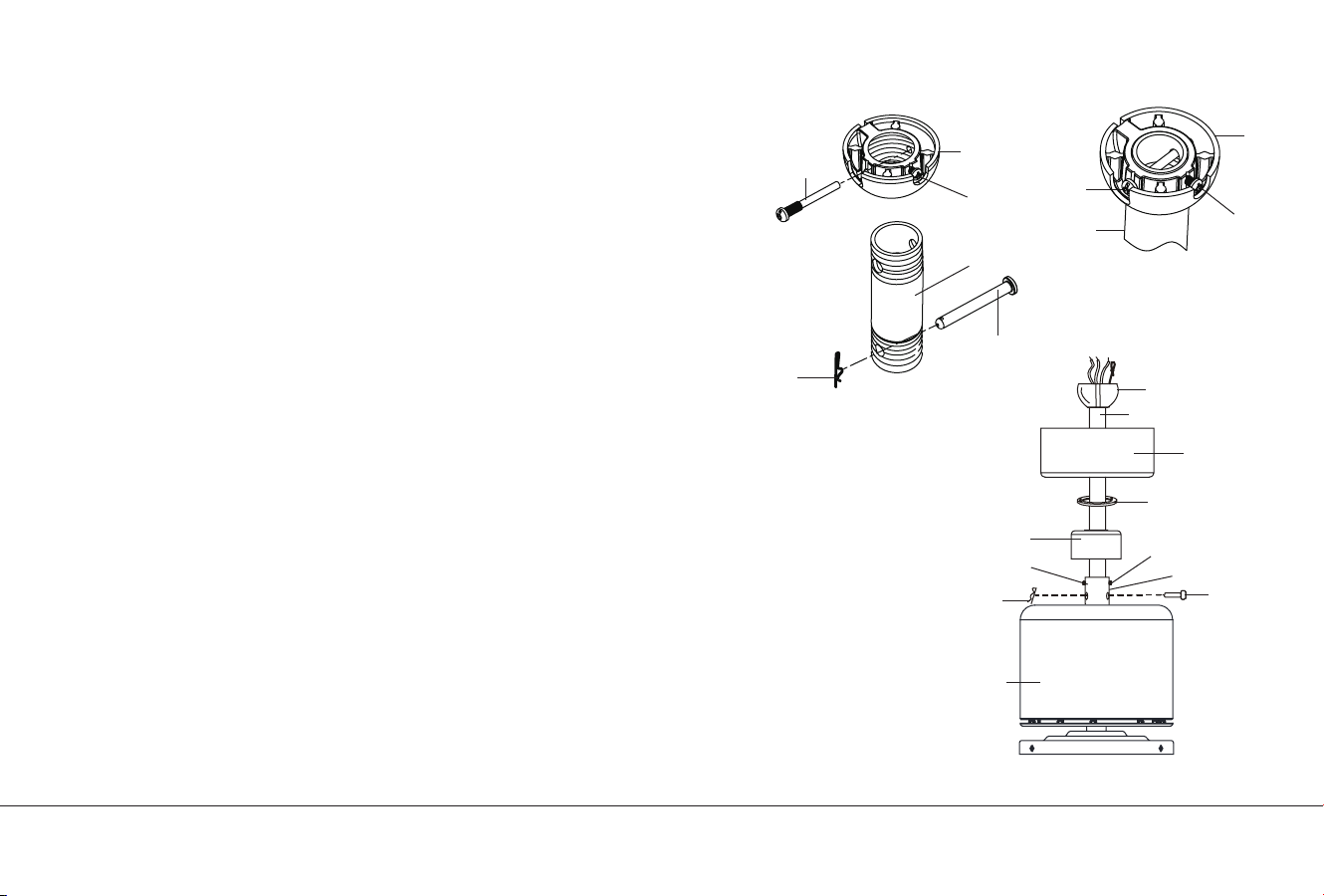

Step 5. Remove the retaining clip and the hitch pin from the ball/downrod

assembly. Remove the ball from the ball/downrod assembly by loosening the set

screw (do not remove) on the ball, unscrewing and removing the cross pin, and

unscrewing the ball from the downrod. (Fig. 7)

Step 6. Loosen the two set screws (do not remove) in the coupling on top of the

motor. (Fig. 8)

Step 7. Carefully feed the wires from the coupling on top of the motor assembly

up through the downrod. (Fig. 8)

Step 8. Thread the downrod into the coupling on top of the motor assembly until

the hitch pin holes in the downrod and the hitch pin holes in the coupling are

aligned. Carefully insert the hitch pin through the holes in the coupling and the

downrod. (Fig. 8)

NOTE: Be careful not to jam the hitch pin against the wiring inside of the

downrod.

Insert the retaining clip through the hole near the end of the hitch pin until it snaps

into its locked position. (Fig. 8)

Step 9. Tighten the two set screws in the coupling on top of the motor assembly

firmly. (Fig. 8)

Step 10. Carefully slip the coupling cover, canopy trim ring (smooth finished side

facing motor body), and canopy onto the downrod. (Fig. 8)

Carefully thread the ball onto the downrod. Insert the cross pin through the ball

and downrod and tighten. (Fig. 9)

NOTE: Be careful not to jam the cross pin against the wiring inside of the

downrod.

Tighten the set screw on the ball. Make sure that the wires are not twisted. (Fig. 9)

HANGING THE FAN (continued)

Fig. 7

Cross Pin

Hitch Pin

Ball

Canopy

Set Screw

Downrod

Coupling

Set Screw

Coupling Cover

Hitch Pin

Retaining Clip

Retaining

Clip

Canopy Trim Ring

Motor

Assembly

Fig. 9

Fig. 8

Downrod

Set Screw

Cross

Set Screw

Ball

Downrod

52" True | 9

Step 11. Lift the motor assembly into position and place the hanger ball into the

ceiling mounting bracket. Rotate the entire assembly until the “Check Tab” has

dropped into the “Registration Slot” and seats firmly. (Fig. 10)

The entire motor assembly should not rotate (left or right) when seated properly.

WARNING: Failure to reattach the cross pin and seat the “Check

Tab” can cause the fan to fall from the ceiling during operation. Take

special care to make sure this pin is reattached.

HANGING THE FAN (continued)

Registration Slot

Check Tab

Ceiling Mounting

Bracket

Fig. 10

10 | KICHLER.COM

INSTALLATION OF SAFETY Cable

(required for Canadian installation ONLY)

A safety support cable is provided to help prevent the ceiling fan from falling, please

install it as follows.

Step 1. Attach the wood screw and washer to the ceiling joist next to the ceiling

mounting bracket but do not tighten. (Fig. 11)

Step 2. Adjust the length of the safety cable to reach the screw and washer by pulling

the extra cable through the cable clamp until the overall length is correct, put the end of

the cable back through the cable clamp, forming a loop at the end of the cable. Tighten

the cable clamp securely. Now, put the loop in the end of the safety cable over the wood

screw and under the washer. Tighten the wood screw securely.

NOTE: Although the safety support cable is required for Canadian installations only, it’s a

good idea to make the attachment with any installation.

ELECTRICAL CONNECTIONS

CAUTION: To avoid possible electrical shock, be sure you have turned o the

power at the main circuit panel.

Step 1. Insert the receiver into the ceiling mounting bracket with the flat side of the

receiver facing the ceiling. (Fig. 12) For best performance, make sure the black antenna

wire (on the end of the receiver) remains extended, and does not become tangled with

the electrical wires. Fig. 12

Ceiling Mounting

Bracket

Fig. 11

Ceiling Mounting

Bracket

Receiver

Attach safety cable

to ceiling joist with

wood screw and washer

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Admirador de Kichler Lighting

Kichler Lighting

Kichler Lighting Hatteras Bay Patio Manual de usuario

Kichler Lighting

Kichler Lighting Imari 65 Manual de usuario

Kichler Lighting

Kichler Lighting HATTERAS BAY PATIOLED 60" Manual de usuario

Kichler Lighting

Kichler Lighting 300260/60-GENT Series Manual de usuario

Kichler Lighting

Kichler Lighting Decor InnesII 300130 Manual de usuario

Kichler Lighting

Kichler Lighting Almere Manual de usuario

Kichler Lighting

Kichler Lighting 35153 Manual

Kichler Lighting

Kichler Lighting Golden Iridescence Manual de usuario

Kichler Lighting

Kichler Lighting Todo 330025 Manual de usuario

Kichler Lighting

Kichler Lighting Canfield Manual de usuario

Kichler Lighting

Kichler Lighting ZEUS KLF-ZEUS-60-WHT-BN Manual de usuario

Kichler Lighting

Kichler Lighting 35156 Manual de usuario

Kichler Lighting

Kichler Lighting Lyndon 300120 Manual de usuario

Kichler Lighting

Kichler Lighting Riggs 300143 Manual de usuario

Kichler Lighting

Kichler Lighting Jade 300030 Manual de usuario

Kichler Lighting

Kichler Lighting Canfield Manual de usuario

Kichler Lighting

Kichler Lighting Golden Iridescence Manual de usuario

Kichler Lighting

Kichler Lighting Sterling Manor Manual de usuario

Kichler Lighting

Kichler Lighting Porters Lake Manual de usuario

Kichler Lighting

Kichler Lighting Maor 310136 Manual de usuario

Kichler Lighting

Kichler Lighting Ridley 300027OBB Manual de usuario

Kichler Lighting

Kichler Lighting Renew Select Patio Manual de usuario

Kichler Lighting

Kichler Lighting Tide Weather+ Manual de usuario

Kichler Lighting

Kichler Lighting Select Canfield Climates Manual de usuario

Manuales populares de Admirador de otras marcas

ELTA FANS

ELTA FANS H03VV-F Manual de usuario

Hunter

Hunter 20714 Manual de instrucciones

Emerson

Emerson CARRERA VERANDA CF542ORB00 Manual de usuario

Hunter

Hunter Caraway Manual de instrucciones

Panasonic

Panasonic FV-15NLFS1 Manual de usuario

Kompernass

Kompernass KH 1150 Manual de usuario

VES

VES FALA100/12V/TR Manual de usuario

Vertiv

Vertiv Liebert DCD Manual de usuario

Westinghouse

Westinghouse GFP Series Manual de usuario

Venmar

Venmar KUBIX HRV PLUS Series Manual de usuario

Maico

Maico ECR 31 Manual de usuario

Sonnenkonig

Sonnenkonig Dinky Manual de usuario

S&P

S&P ECOWATT HXBR Manual de usuario

Wider

Wider IMP03369BH Manual de usuario

Panasonic

Panasonic F-60DHN Manual de usuario

Hinkley

Hinkley HIGHLAND Manual de usuario

Broan

Broan 766BN Manual de usuario

Premium

Premium PFS16022 Instrucciones de montaje
