Kichler Lighting 35166 Manual de usuario

ITEM #0883799

MODEL #35166

CEILING FAN

ATTACH YOUR RECEIPT HERE

Serial Number Purchase Date

Questions, problems, missing parts? Before returning to your retailer, call our customer

service department at 1-800-554-6504, 8 a.m. - 4:30 p.m, EST, Monday - Friday.

Français p. 17

Español p. 33

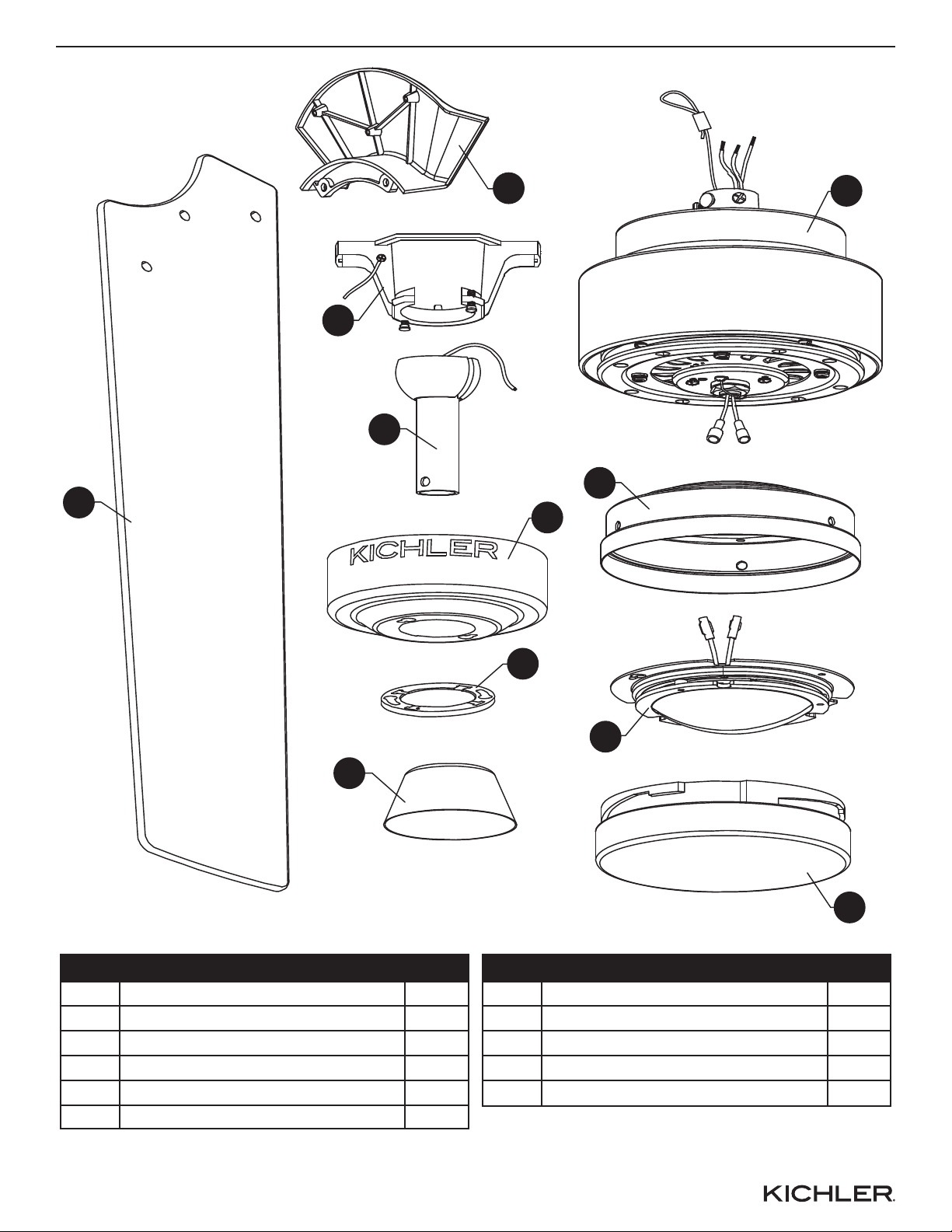

PACKAGE CONTENTS

Hanging Bracket

Down Rod

Canopy

Blade Iron

Motor Coupling Cover

Motor Assembly

PART DESCRIPTION QTY

Light Kit Housing

Light Kit

Shade

Canopy Hole Cover

Blade

PART DESCRIPTION QTY

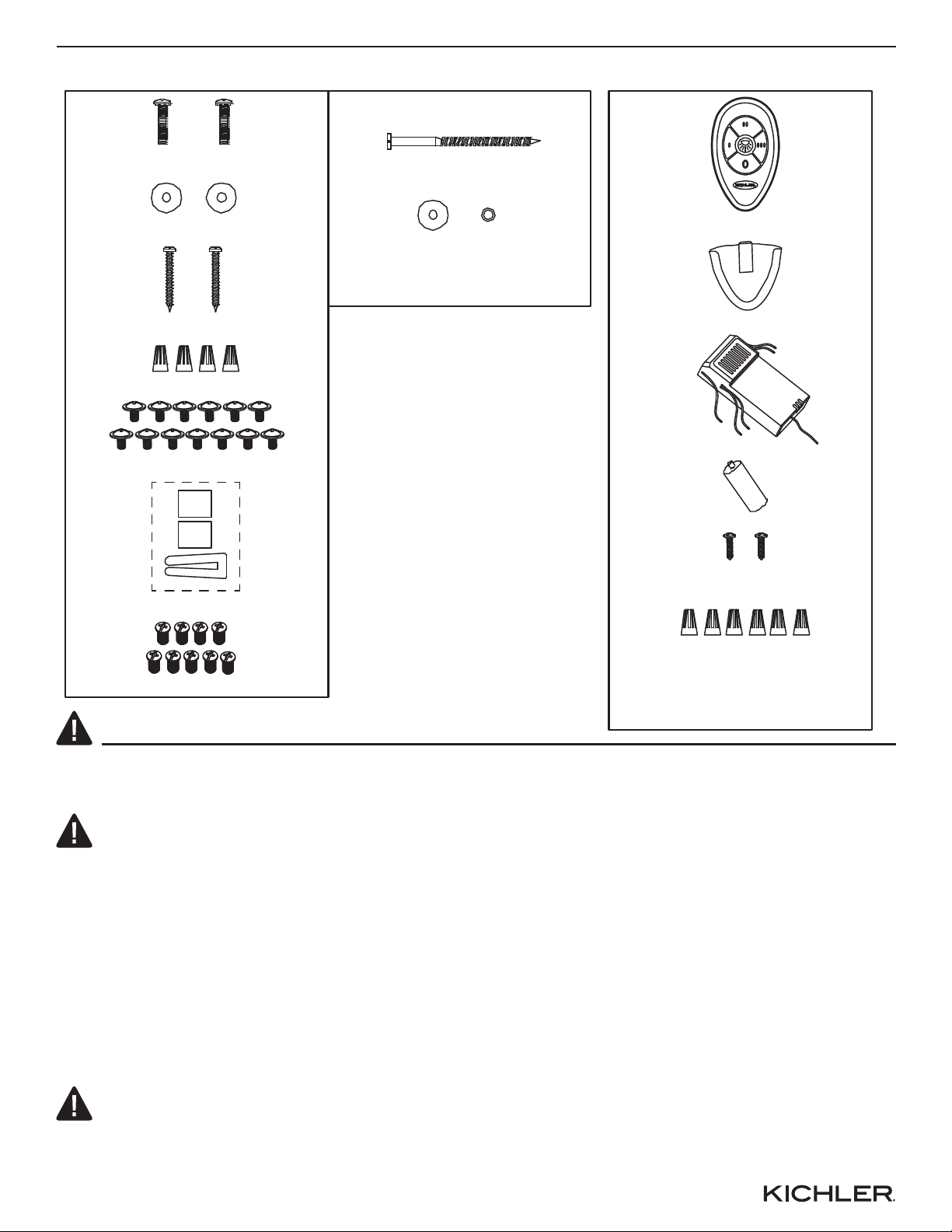

HARDWARE CONTENTS

Hanging bracket Screw

Hanging bracket Washer

Wire Connector

Blade Screw

Balance Kit

HARDWARE BAG REMOTE CONTROL

Remote Control

Remote Control Holder

Receiver

Battery

Wood Screw

Lag Screw

Wire Connector

Blade Iron Screws

Flat Washer + Spring Washer

SAFETY INFORMATION

Please read and understand this entire manual before attempting to assemble, operate or install the

product.

WARNING

• IMPORTANT: NEVER attempt any work without shutting off the electricity.

• Go to the main fuse box, or circuit breaker, in your home. Place the main power switch in the

“OFF” position and unscrew the fuse(s), or switch “OFF” the circuit breaker switch(es), that control

the power to the fixture or room that you are working on.

• Place the wall switch in the "OFF" position. If the fixture to be replaced has a switch or pull

chain, place those in the "OFF" position.

• Do not touch hot LED.

• The LED light output is strong enough to injure human eyes. Precautions must be taken to prevent

looking directly at the LEDs with unaided eyes for more than a few seconds.

• California Proposition 65

WARNING: This product can expose you to lead, which is known to the State of

California to cause cancer, birth defects or other reproductive harm. For more

information go to www.p65warnings.ca.gov

PREPARATION

Before beginning assembly of product, make sure all parts are present. Compare parts with package

contents list and diagram. If any part is missing or damaged, do not attempt to assemble the product.

Contact customer service for replacement parts.

Estimated assembly time: 30 minutes to 1 hour.

Tools Required for Assembly (not included): Phillips screwdriver, flathead screwdriver, wire strippers,

electrical tape, ladder, safety glasses.

A B C

ASSEMBLY INSTRUCTIONS

• WARNING-To reduce risk of fire, electric shock, or personal injury, mount to outlet box marked

“Acceptable for Fan Support of 15.9kg (35lbs) or less” and use mounting screws provided with the

outlet box and/or support directly from building structure. Most outlet boxes commonly used for

the support of luminaries are not acceptable for fan support and may need to be replaced.

Consult a qualified electrician if in doubt.

• Warning-Risk of fire, electric shock, or personal injury. Ceiling fans may be either directly

supported from a structural framing member of a building and (see examples in figures A & B) or

may be mounted to an outlet box marked acceptable for fan support of 31.8 kg (70 lbs) to 15.9kg

(35 lbs) (see example in figure C).

SAFETY INFORMATION (continued)

CAUTION

• Read and understand all instructions and illustrations completely before proceeding with assembly

and installation of this fixture.

• If you have any doubts about how to install this lighting fixture, or if the fixture fails to operate

completely, please contact a qualified licensed electrical contractor.

• All parts must be used as indicated in these instructions. Do not substitute any parts, leave parts

out, or use any parts that are worn out or broken. Failure to obey this instruction could invalidate

the UL listing, C.S.A. certification, and/or ETL listing of this fixture.

• This fixture is intended for installation in accordance with the National Electric Code (NEC) and all

local code specifications.

• This fixture is for indoor use only.

• Use ONLY the supplied LED driver to power fixture.

• Driver cable is not intended for use through or concealed behind walls, floors, or ceilings.

• This fixture is dimmable when using an electronic low voltage (ELV) dimmer. Note: dimmers

that specify use with LED, but are not ELV, are NOT sufficient. They are designed to work with

LED “bulbs” not integrated LED fixtures.

ASSEMBLY INSTRUCTIONS

1. Secure the hanger bracket (A) to the ceiling outlet

box using hanging bracket screws and hanging

bracket washers.

Important: If attaching the fan to a sloped ceiling,

make sure open end of mounting bracket is installed

facing the roof. Do not install fan on a ceiling with a

pitch greater than 18°.

2. Loosen the set screws found on coupling on top of the motor assembly (F). Then remove the hair

and clevis pin that will be used on a later step.

Outlet Box

Hair Pin

Safety Cable

Clevis Pin

Coupling

Hardware Used

x 2

Hanging Bracket

Screw

Hanging Bracket

Washer

ASSEMBLY INSTRUCTIONS

3. Insert down rod (B) through canopy (C), canopy hole

cover (J), and motor coupling cover (E). Feed wires

from the motor assembly (F) through the down rod

(B), then insert the down rod (B) into the coupling

found on top of the motor assembly (F).

4. Pass the clevis pin through the down rod (B) and coupling found on the motor assembly (F) then

secure with the hair pin. Tighten set screws found on the coupling on the motor assembly (F).

Hair Pin

Clevis Pin

Coupling

ASSEMBLY INSTRUCTIONS

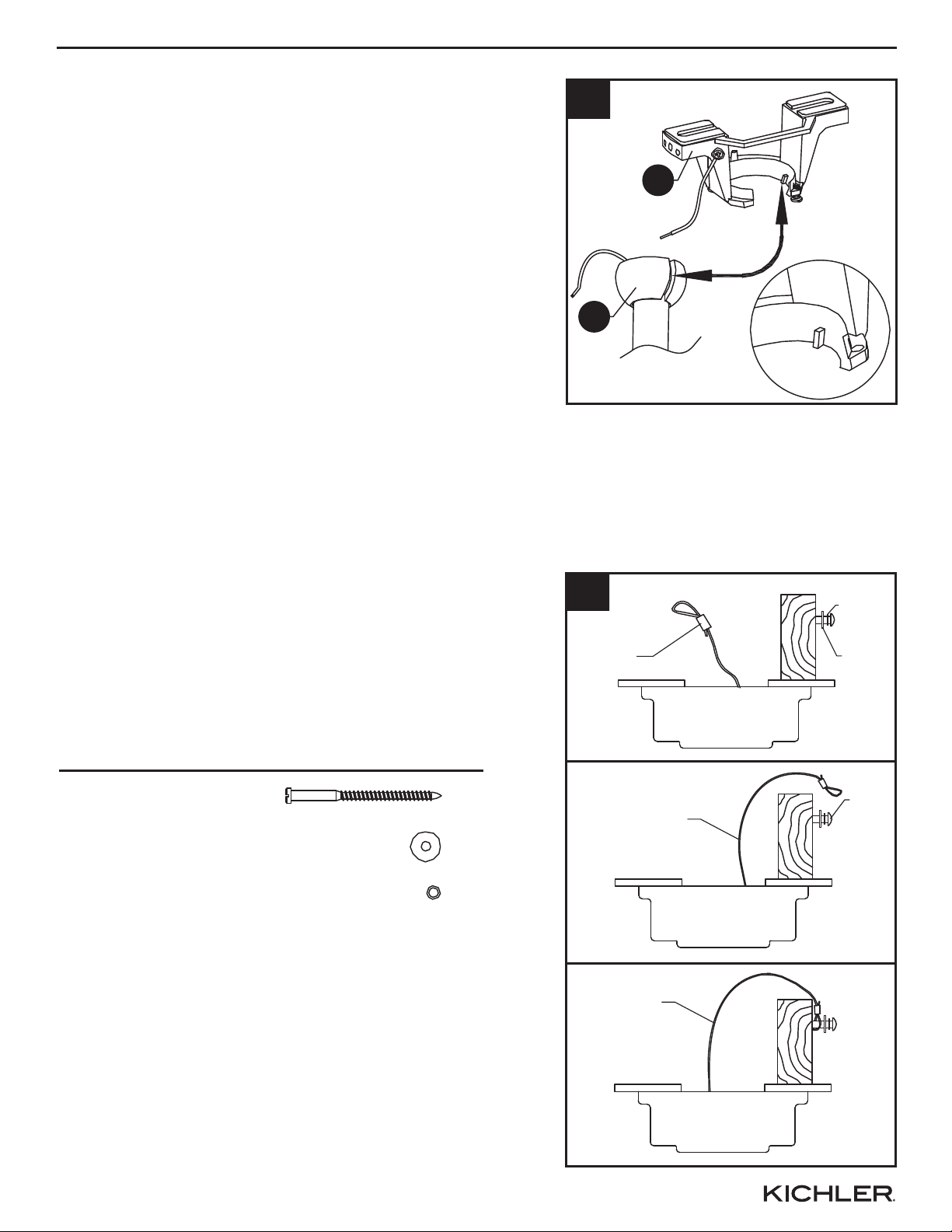

5. Carefully lift the fan and seat the downrod (B)/hanger

ball assembly on the hanger bracket (A). Be sure the

groove in the ball is lined up with the tab on the

hanger bracket (A).

6. For Canadian installation and for USA fans over 35

lbs, the safety cable must be installed into the house

structure beams using a 3” lag screw. Make sure

that when the safety cable is fully extended the lead

wires are longer than the cable and no stress is

placed on the lead wires.

Safety

Cable

Lag

Screw

Safety

Cable

Flat

Washer

Spring

Washer

Safety

Cable

Hardware Used

x 1

Lag Screw

Flat Washer

Spring Washer

ASSEMBLY INSTRUCTIONS

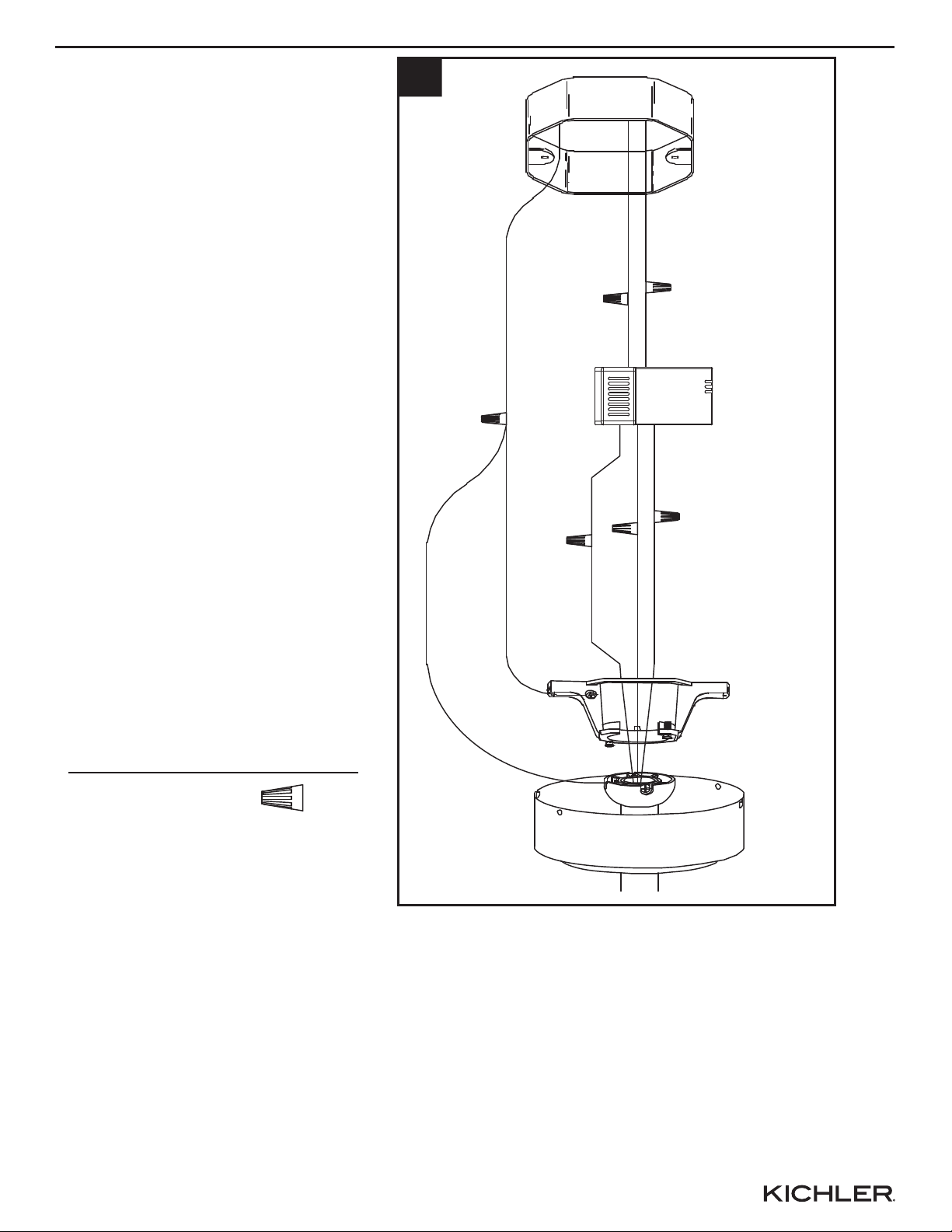

7. Wiring the fan per wiring diagram and securely connect wires with wire connectors: Wrap electrical

tape (not included) around each wire connector and make sure no bare wire or wire strands are

visible after making connections.

• Connect WHITE wire from the fan to WHITE wire marked TO MOTOR N from the receiver.

• Connect BLUE wire from the fan to BLUE wire marked FOR LIGHT from the receiver.

• Connect BLACK wire from the fan to BLACK wire marked TO MOTOR L from the receiver.

• Connect BLACK wire from the outlet box to BLACK wire marked AC IN L from the receiver.

• Connect WHITE wire from the outlet box to WHITE wire marked AC IN N from the receiver.

• Connect GROUND (GREEN) wires from hanger bracket and downrod ball, to GROUND (GREEN

or BARE COPPER) from house.

OUTLET BOX

BLACK

(LIVE)

BLACK

(AC

INPUT)

WHITE

(NEUTRAL)

WHITE

(AC

INPUT)

BARE COPPER

(GROUND)

BLUE

WHITE

BLACK

BLUE (LIGHT)

WHITE

(NEUTRAL)

BLACK

(MOTOR)

GREEN (BRACKET)

GREEN (DOWNROD)

Hardware Used

x 6Wire Connector

ASSEMBLY INSTRUCTIONS

9. Once wiring step has been completed, slide the

wired remote receiver in between the hanging

bracket (A) and the top of the downrod ball (B) with

the flat side of the receiver facing the ceiling. Turn

lead wires upward and carefully push them into the

outlet box, with the white and green wires to one

side of the box and the black wires toward the other

side.

8. There are 16 combinations of code for setting up the

remote control. If you do not use the dip switch set

up by manufacture then you will need to use the set

up procedures listed below.

Remove the remote control battery cover to expose

the remote dip switches. Use a small ballpoint pen

(not included) to set the dip switches to either up or

down.

a.) Install the 23A 12V battery (included) and replace the

battery cover you previously removed.

b.) After installing the unit and restoring power to the

fan, press and hold the “Light” button until the light

flashes (on/off) 3 times and will stay on, then the

control and speed setting process is complete. You

must press the “Light” button within 30 seconds of

restoring power to the fan.

c.) If programming is unsuccessful, retry the above

instructions.

The remote control comes with a cradle that may be

attached to the wall with the included screws.

REMOTE

CONTROL

RECEIVER

NOTE: Remove batteries if remote has

not been used for a long period of time

in order to avoid damage. Store remote

away from excessive heat or humidity.

ASSEMBLY INSTRUCTIONS

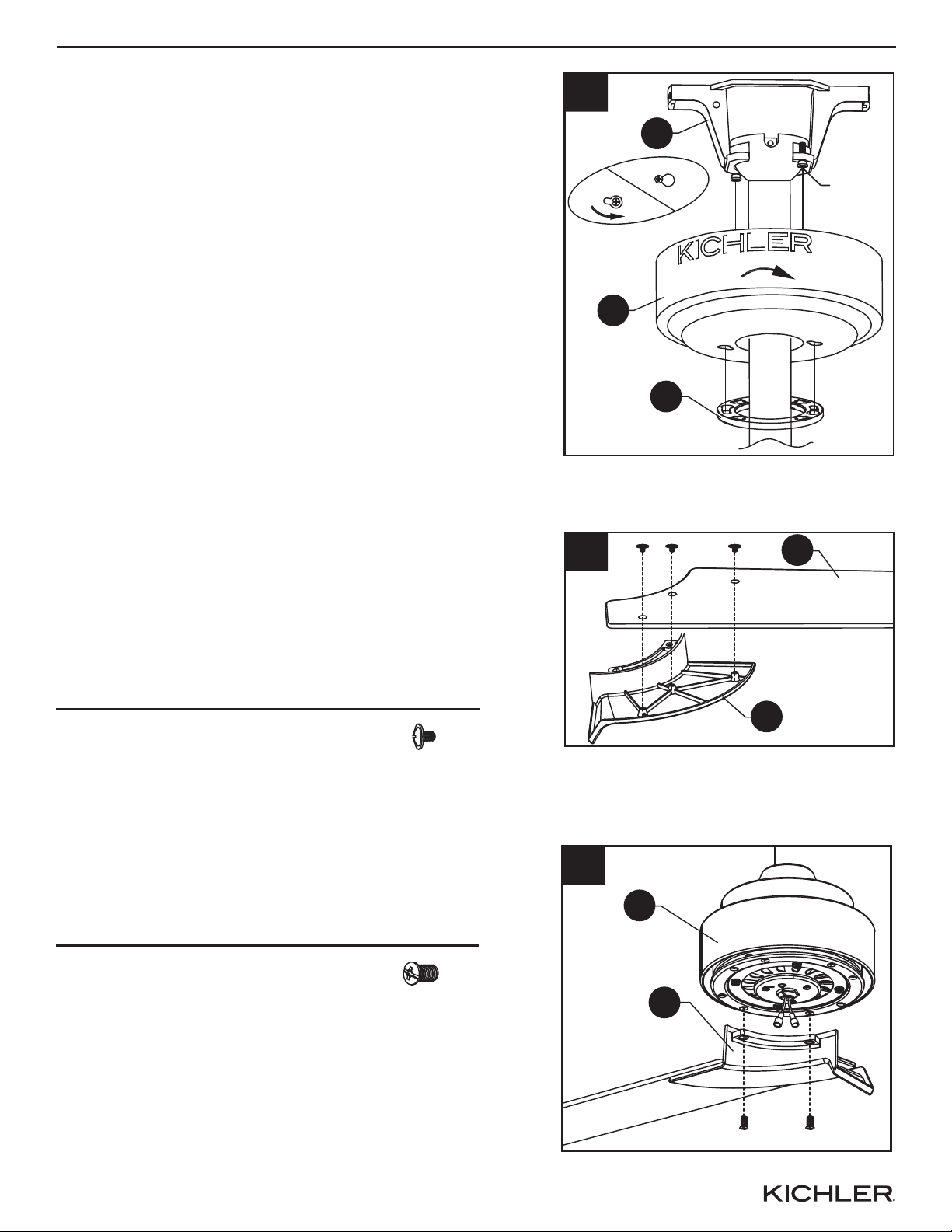

12. Attach blade irons (D) to the motor assembly (F)

with the screws provided.

11.Attach blade iron (D) to blade (K) with blade screws.

Do not tighten blade screws until each screw has

been started. Then, tighten each screw starting with

the center screw.

Repeat for remaining blades

10.Loosen the two shoulder screws without fully

removing the hanger bracket (A). Assemble canopy

screws in hanger bracket (A). Tighten shoulder

screws. Securely attach and tighten the canopy hole

cover (J) over the shoulder screws in the hanger

bracket (A) utilizing the keyhole slot twist-lock

feature.

Shoulder

Screw

Hardware Used

x 12Blade Screw

Hardware Used

x 8Blade Iron Screw
