Kia SORENTO HEV Manual de usuario

Emergency

Response

Guide

Version_1

SORENTO HEV

1. Identification / Recognition

2. Immobilization / Stabilization / Lifting

3. Disable Direct Hazards / Safety Regulations

4. Access to the Occupants

5. Stored Energy / Liquid / Gases / Solids

6. In Case of Fire

7. In Case of Submersion

8. Towing / Transportation / Storage

9. ImportantAdditional Information

Contents

SORENTO HEV

1. Identification / Recognition

Initial Response: Identify, Immobilize and Disable

Identify

The

Sorento Hybrid is a hybrid electric vehicle. Emergency responders should respond

emergency

scenarios involving the Sorento HEV accordingly, exercising extreme care

and

caution

to avoid contact with the high voltage system within the vehicle.

The

following procedures should be used whenever you are dealing with a Sorento Hybrid

emergency scene. However, all operations should be consistent with your

department's

standard

operating procedures, guidelines, and any applicable laws. When HEV is damaged

crash, the high voltage safety systems may have been compromised and present a

potential

high

voltage electrical shock hazard. Exercise caution and wear appropriate

personal

protective

equipment (PPE), including high voltage safety gloves and boots. Remove

all

metallic

jewelry, including watches and rings.

SORENTO HEV

WARNING

1. Identification / Recognition

1.1 Identifying a Kia SORENTO HEV

SORENTO HEV

Orange Color Cable

Orang

e color cables run under the floor of the vehicle and under the hood. When opening

the hood, the orange color cable identifies a HEV.

“Eco hybrid” Logo on Tailgate

The

Sorento Hybrid can be easily identified by the

“Eco hybrid” logo attached on the tailgate.

The

eco hybrid logo may be missing or

hidden

after

a crash due to damage to the

vehicle.

Always

be sure to utilize additional methods

identification

before determining that the

vehicle

not a hybrid car.

Engine

room

“Hybrid”

is also specified on the engine room cover under the hood.

HYBRID

1. Identification / Recognition

1.1 Identifying a Kia SORENTO HEV

SORENTO HEV

VIN Label

The

VIN (Vehicle Identification Number) identifies an hybrid car with a “G” displayed in

the

8th

position, as shown in the below picture.

The

VIN can be found:

VIN Plate can be seen through the windshield from outside.

On the vehicle certification label attached to the driver’s side center pillar.

Underneath the front passenger seat (or driver seat).

XXXXXXXGXXXXXXXXX

8th position (G)

1. Identification / Recognition

1.1 Identifying a Kia SORENTO

HEV

The

Sorento HEV Cluster Instrument Panel displays HEV specific features such as

high

voltage

battery SOC (State of Charge) as circled below.

SORENTO HEV Cluster Instrument Panel

SORENTO HEV

2. Immobilization / Stabilization / Lifting

The

next step is to immobilize the vehicle to prevent any accidental movement that

can

endanger

response personnel or civilians. When the Sorento HEV is damaged in a crash,

the

vehicle

may appear to be shut off, even when it actually is not, due to a lack of engine sounds

When

the "READY" mode light is illuminated on the Instrument Panel, the vehicle can

move

silently

using the electric motor. Responders should approach the vehicle from the sides

and

stay

away from the front or rear as they are potential paths for vehicle movement. Be sure

immobilize

the vehicle in the following manner.

Chock the wheels

Set the Electronic Parking

Brake (EPB)

Put the vehicle in P (Park)

position by pressing the ‘P’

button on the rotary shifter

2.2 Vehicle Stabilization

Use standard stabilization (lift) points, as

shown beside. Always be sure to connect to a

structural component of the vehicle and avoid

placing cribbing under high voltage cables,

and other areas not normally considered

acceptable.

2.1 Immobilization

•

When installing a block or jack, avoid high voltage cable, battery and fuel system.

•

If high voltage components or cables are exposed, do not place any support on them.

SORENTO HEV

WARNING

Disable Direct Hazards / Safety Regulations

The

final step in the initial response process, conducted after immobilizing the vehicle, is

disable

the vehicle, its SRS components and the high voltage electrical system. To

prevent

current

flow through the system, use one of the following procedures to disable the vehicle

3.1 Disabling the System – Smart Key System and “POWER”

START/STOP Button

Confirm the status of the READY light

the instrument panel. If the

READY

light is illuminated, the vehicle is ON.

“POWER” START/STOP Button

If the READY light is NOT

illuminated,

the

vehicle is off. Do not push

the

“POWER”

START/STOP button

because

the

vehicle may start (go into

READY

mode)

To turn OFF the system, press the 'P' (Park) button on the rotary shifter dial,

and

press

the POWER button.

Case I

Power

Off

12V battery

disconnection

High voltage

shut off

Case II*

12V battery

disconnection

Fuse removal

(Fuse box)

High voltage

shut off

*In case of emergency

SORENTO HEV

Disable Direct Hazards / Safety Regulations

If necessary, lower the windows, unlock the doors and open the tailgate as

required,

before

disconnecting the 12V battery. Once the 12V battery is disconnected,

power

controls

will not operate. (Refer to below “4. – c” for 12V battery disconnection)

Before disconnecting the 12V battery, remove the smart key at least 2 meters

away

from

the vehicle to prevent accidental restart.

While depressing the brake pedal

Pressing POWER

button

POWER button

LED color Vehicle condition

One time Off Ready to drive

Without depressing

the brake pedal

Pressing

POWER button

LED color Vehicle condition

One time Amber Electrical accessories are operational.

Two times Reddish orange The warning lights can be checked

before the vehicle is started.

Three times Off Off

SORENTO HEV

Disable Direct Hazards / Safety Regulations

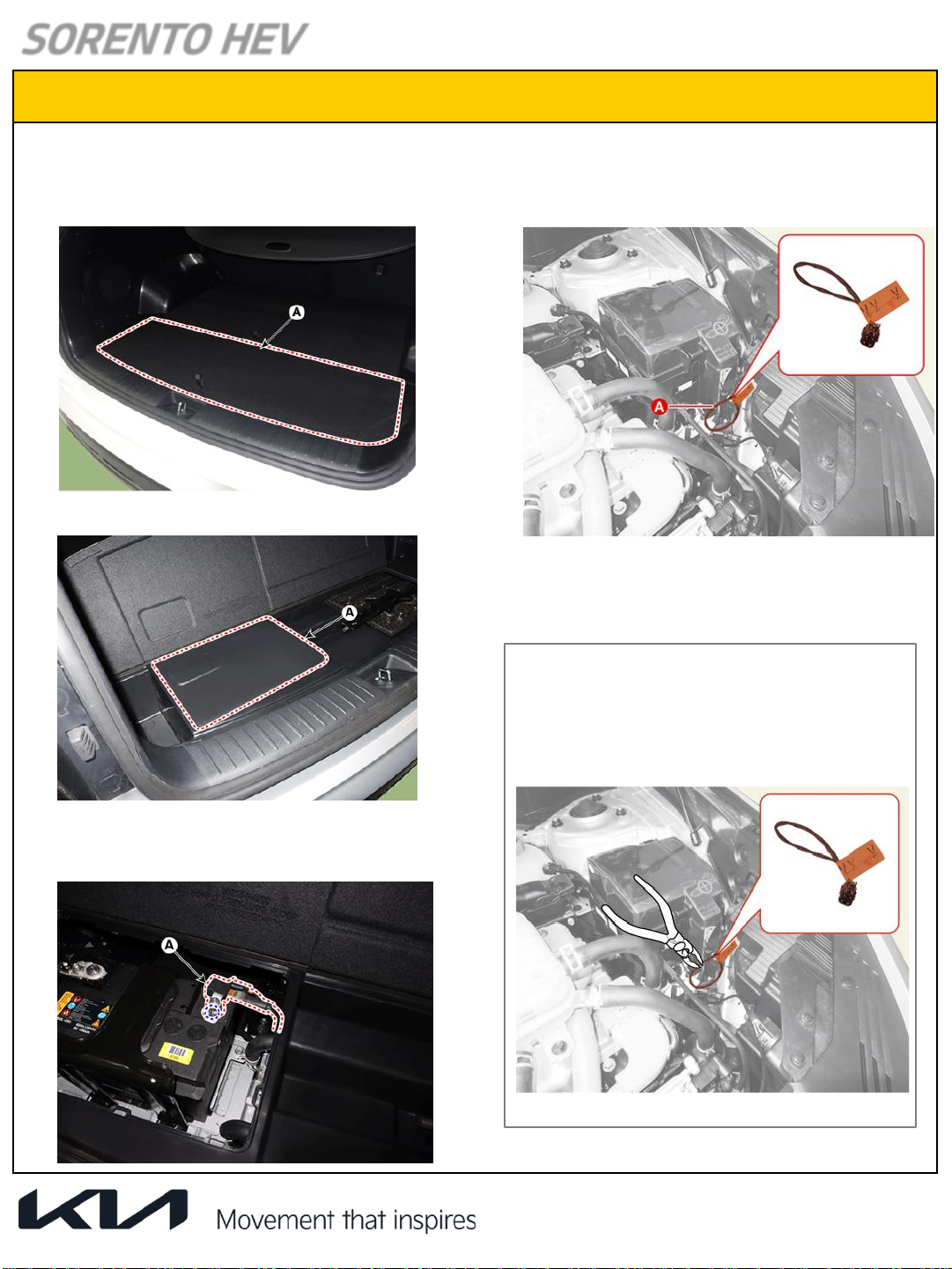

4. Follow the procedure below to remove the interlock connector and

disable the high voltage battery :

Remove the auxiliary battery service cover (A).

Open the luggage mat (A).

Disconnect the auxiliary 12V negative (-)

battery terminal (A) after loosening the nut.

Disconnect the service interlock connector (A).

If the service interlock connector

can not be disconnected, cut the

service interlock connector wire.

SORENTO HEV
