Kia EV6 2022 Manual de usuario
Emergency
Response
Guide
Version_1
1
1. Identification / Recognition
3
2. Immobilization / Stabilization / Lifting
7
3. Disable Direct Hazards / Safety Regulations
8
4. Access to the Occupants
13
5. Stored Energy / Liquid / Gases / Solids
17
6. In Case of Fire
21
7. In Case of Submersion
25
8. Towing / Transportation / Storage
26
9. ImportantAdditional Information
29
Contents
2
1. Identification / Recognition
Initial Response: Identify, Immobilize and Disable
Identify
•
The EV6 is an electric vehicle. Emergency responders should respond to emergency
scenarios involving the EV6 accordingly, exercising extreme care and caution to avoid
contact with the high voltage system within the vehicle.
The following procedures should be used whenever you are dealing with a EV6 at an
emergency scene. However, all operations should be consistent with your department’s
standard operating procedures, guidelines, and any applicable laws. When an EV is
damaged in a crash, the high voltage safety systems may have been compromised and
present a potential high voltage electrical shock hazard. Exercise caution and wear
appropriate personal protective equipment (PPE) safety gear, including high voltage safety
gloves and boots. Remove all metallic jewelry, including watches and rings.
3
WARNING
1. Identification / Recognition
1.1 Identifying a EV6
“EV6
” Car name emblem on Tailgate
•
The EV6 can be easily identified by the car
name emblem attached on the tailgate on the
left side.
•
The car name emblem may be missing or
hidden after a crash due to damage to the
vehicle. Always be sure to utilize additional
methods of identification before determining
that the vehicle is not a electric car.
Charging Port
•
The charging port is located on the rear right side.
#Note : The doors must be un
-locked to open the charge port door.
How to open the charging port
1.
Press the unlock door button, depress the brake pedal and apply the Electric Parking Brake
(EPB).
2.
Turn OFF all switches, move the shift lever to P (Park) and turn off the vehicle.
3.
Open the charging door by pressing it, or press the “charging door open button” in the crash
pad.
4
1. Identification / Recognition
1.1 Identifying a EV6
VIN Label
The VIN (Vehicle Identification Number) identifies
an electric car
with a “C” displayed in the
4th position, as shown in the below picture.
The VIN can be found:
1) VIN Plate also can be seen through the windshield from outside.
2) On the vehicle certification label attached to the driver’s side (or passenger) center pillar.
3) Underneath the front passenger seat (or driver seat).
XXXCXXXXXXXXXXXX
4th position (C)
5
1. Identification / Recognition
1.1 Identifying a EV6
The EV6 Cluster Instrument Panel displays
EV specific features such as high voltage
battery SOC (State of Charge) as below
.
EV6 Cluster Instrument Panel
Charge Status Indicator
The battery charge status indicator (4 lighted bars),located inside the charging door, is
illuminated when the vehicle is charged. The number of lights illuminated indicates the
charge level of the battery.
6
1. Speedometer
2. Distance to empty
3. Power/Charge gauge
4. Battery SOC (State of Charge)
5. LCD display
6. Warning and indicator lights
7. Reduction gear shift indicator
8. Odometer
9. Regenerative braking level indicator
10. Electric energy economy
2. Immobilization / Stabilization / Lifting
The next step is to immobilize the vehicle to prevent any accidental movement that can
endanger response personnel or civilians. When the EV6 is damaged in a crash, the vehicle
may appear to be shut off, even when it actually is not, due to a lack of engine sounds.
When the "READY" mode light is illuminated on the Instrument Panel, the vehicle can move
silently using the electric motor. Responders should approach the vehicle from the sides and
stay away from the front or rear as they are potential paths for vehicle movement. Be sure to
immobilize the vehicle in the following manner.
Chock the wheels
Set the Electronic Parking
Brake (EPB)
Put the vehicle in P (Park)
position by pressing the ‘P’
button on the rotary shifter
2.2 Vehicle Stabilization
Use standard stabilization (lift) points, as
shown beside.Always be sure to connect to a
structural component of the vehicle and avoid
placing cribbing under high voltage cables,
and other areas not normally considered
acceptable.
2.1 Immobilization
7
•
When installing a block or jack, avoid high voltage cable, high voltage battery.
•
If high voltage components or cables are exposed, do not place any support on them.
WARNING
3.
Disable Direct Hazards / Safety Regulations
The final step in the initial response process, conducted after immobilizing the vehicle, is to
disable the vehicle, its SRS components and the high voltage electrical system. To prevent
current flow through the system, use one of the following procedures to disable the vehicle.
3.1 Disabling the System – Smart Key System and “POWER”
START/STOP Button
1.
Confirm the status of the READY light on
the instrument panel. If the READY
light is illuminated, the vehicle is ON.
“POWER” START/STOP Button
a) If the READY light is NOT
illuminated, the vehicle is off. Do not
push the “POWER” START/STOP
button because the vehicle may start
(go
into READY mode).
b) To turn OFF the system, press the 'P' (Park) button on the rotary shifter dial, and
press the POWER button.
8
Case I
Power
Off
12V battery
disconnection
High voltage
shut off
Case II*
12V battery
disconnection
Fuse removal
(Fuse box)
High voltage
shut off
*In case of emergency
3.
Disable Direct Hazards / Safety Regulations
2. If necessary, lower the windows, unlock the doors and open the tail gate as required,
before disconnecting the 12V battery. Once the 12V battery is disconnected, power
controls will not operate.
3. Before disconnecting the 12V battery, turn OFF ignition and remove the smart key at
least 2 meters away from the vehicle to prevent accidental restart.

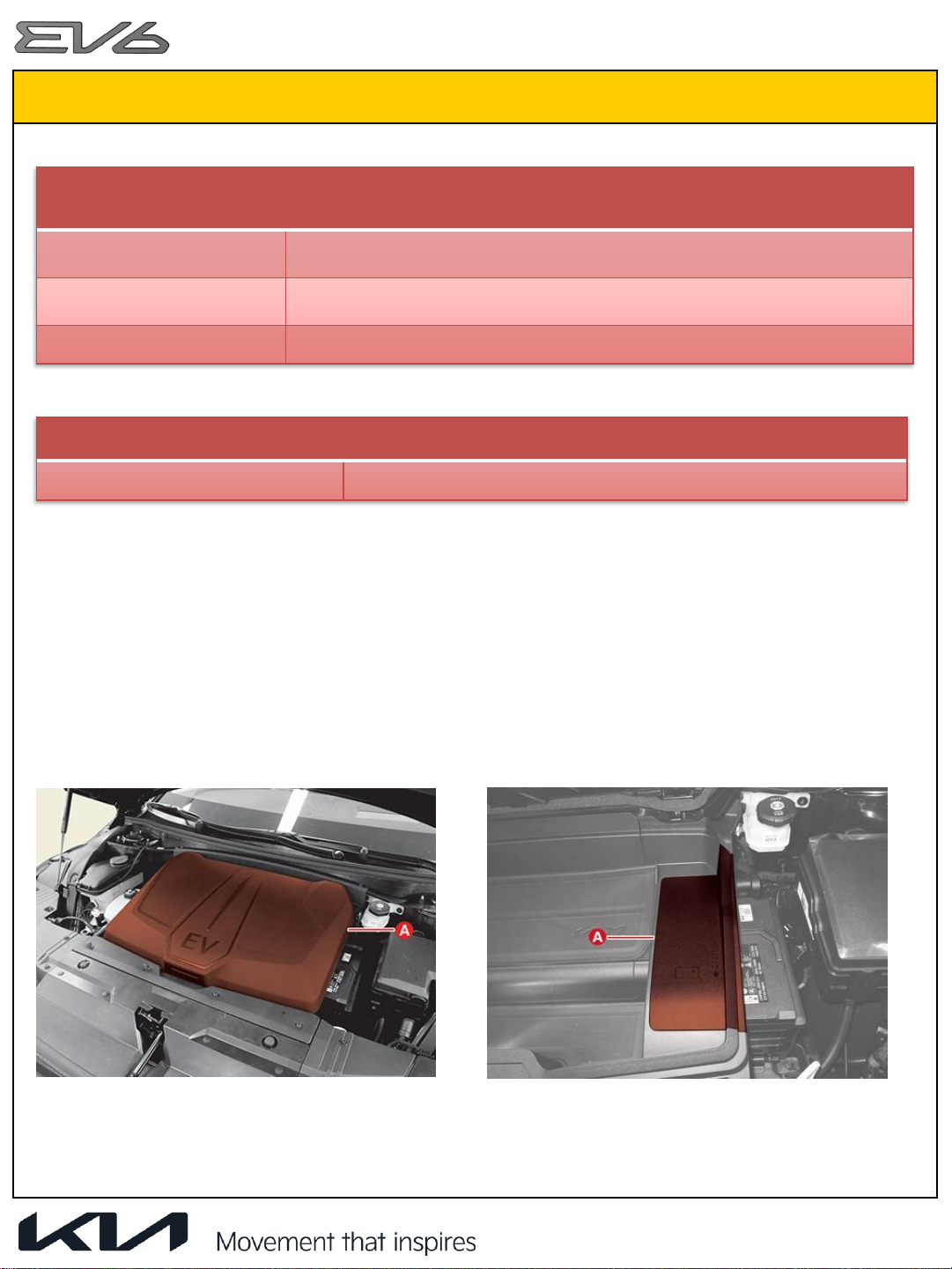

4. Open the hood and front trunk (A).
9
While depressing the brake pedal
Pressing POWER button Vehicle condition
One time Ready to drive
Without depressing
the brake pedal
Pressing POWER
button Vehicle condition
One time Electrical accessories are operational.
Two times The warning lights can be checked before the vehicle is started.
Three times Off
5. Open the 12V battery service cover (A).
3.
Disable Direct Hazards / Safety Regulations
6. Disconnect the 12 auxiliary battery negative (
-) terminal.
10
7. Pull up the yellow lever (interlock connector) to cut off the high voltage.
*The yellow lever doesn't get pulled out completely.
