Keymecher MANO-703UB Manual de usuario
Product Information ------------------------------
Product View ----------------------------------------
Functions & Note -----------------------------------
Bluetooth Pairing -----------------------------------
Gestures Controls ----------------------------------

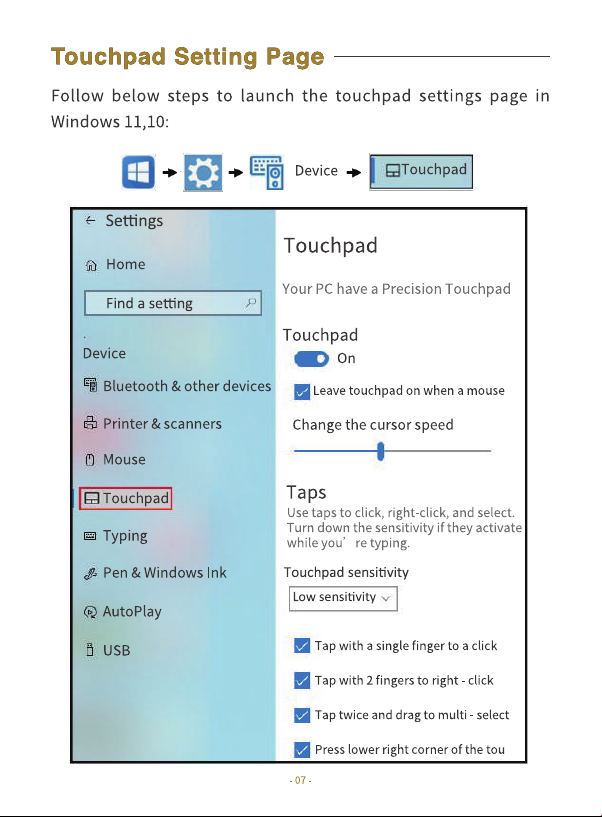

Touchpad Setting -----------------------------------
MANO Collection -----------------------------------
中文說明書 --------------------------------------------
Product Warranty -----------------------------------
FCC Statement --------------------------------------
01
02
03-04
05
05-06
07-08
09
10-19
20
21
This touchpad fully support Microsoft Windows 10 & 11’s precision
touchpad capabilities, and integrates the mouse's button and wheel
functions so that users can operate all the features of the touchpad
and mouse simultaneously in all applications. This touchpad
provides USB and Bluetooth (BLE) connections for Windows system
of desktop computer, laptop, tablet, TV box and computer TV.
• Fully supports Microsoft Windows gestures. (p.5-6)
• 2 in 1 Wired / Wireless options. Wireless operating range is up to
10 meters. (Bluetooth pairing instruction, p.5)
• Ergonomically designed housing to effectively reduce wrist joint injuries.
• Integrates mouse button with haptic-force feedback feature,
shortcuts functions.(p.4)
• Indicators to display status of mouse button and connection. (p.4)
• Brand: Keymecher
• Model: MANO-703 UB
• Interfaces: Bluetooth 5.0 and Micro-USB 2.0
• System support: Windows 11(USB/BT), 10 (USB/BT), 7 (USB)
• Touchpad Protocol: Microsoft Precision Touchpad Protocol
• Touch Area: 6.0 Inch (Diagonal Dimension)
• Dimensions: 138.8 mm x 106.8 mm x 5.8 ~ 9.1 mm
(5.4" x 4.2" x 0.23~0.36")
• Weight: 87gm(0.19lb)
• Power Consumptions: 20mA, @3.7V/5.0V
• Cable Length: 5ft.
• Included contents: Touchpad x 1, USB Cable x 1, User Manual x 1
0.19 inch
0.38 inch
1
4
8
6
9
5
10
2 3 7
5.4 inch
6.0 inch
Previous Left RightMiddle Lock Key (On/Off) Forward
• USB Port: Used for connect touchpad to a host via a USB cable, and for charge device’s battery.
• Pairing Button: Press for more than 4 seconds to start the Bluetooth pairing procedure to a host.
• Wired/Wireless Switch: Turn off for USB connection and turn on for Bluetooth mode.
• When the Bluetooth power is off, the USB interface can be connected to all Windows 11,10,7.
When the Bluetooth power is on, the Bluetooth interface can be connected to Windows 11 and 10
device.
• Haptic Force Feedback Button: Press to light on the function with blue light
indicates the haptic force feedback is enabled
• Touch Feedback Indicator: Light on when any part of the mouse or shortcut button is pressed.
• Bluetooth & USB Connection Indicator: Turn blue when the touchpad is connected to a host via
Bluetooth mode and light with blue flashing when it is waiting for pairing. Green light indicates
that the touchpad is connected to a host via an USB cable.
• Battery Status Indicator: Red light indicates the battery power is in low, and green light
indicates the battery is in charging.
• Keyboard Button:Press the icon to invoke Windows’ screen keyboard, and re-tap it again to
close. This function is only available for Bluetooth connection.
•Touch-button can operated by 1-finger tap only. And will be disabled if gesture is operating.
•Under Bluetooth connection, touchpad will automatically turn into power saving mode after 90
minutes of idle. Use finger-sliding can wake it up.
•Device can work up to 20 days after 1-2hr charging
•The Windows 11, 10 provides a setting page for users to redefine the touchpad functions, including
gesture function, the pointer speed, the wheel’s rolling direction and speed, the touchpad
sensitivity and other related functions.
1
2
3
8 4
5
6
7
9
•Use 1-finger quick tap this icon to enable or disable the haptic function. After the
haptic function is enabled, all the gesture operation including shortcuts , the 3 and 4 fingers’
gestures will reflect with tactile force feedback features.
•In Bluetooth connection, once the haptic force feedback function is turned on, the
indicator above the icon will lightup for 15 seconds. If there is no action in touch-sensor
area, the indicator will turn off to save the power for the next action.
•If haptic force feedback function turned off, the shortcuts and gestures won’t have
haptic force feedback feature.
•When the Bluetooth power is off, the USB interface can be connected to all Windows 11 &
10 devices. When the bluetooth power is on, the Bluetooth interface can be connected to
Wndows 11 and 10 device. (A-Bluetooth Toggle)
•When low battery, the indicator will be turn the red light on. if you are charging the battery,
the indicator will be turn on the green light. The indicator will be turn off when the battery
is complete charging.(7-Battery indicator)
•Touch-button can be operated by 1-finger tap only. And will be disabled if the gesture is
operating. (10)
•Under Bluetooth connection, touchpad automatically goes into power-saving mode after
15 minutes of idle. Use finger-sliding can wake it up.
•Device can work up to 20 days after 1-2hr charging.
•The Windows 11 & 10 provides a setting page for users to redefine the touchpad functions,
including the gesture function, the pointer speed, the wheel’s rolling-direction and
speed, the touchpad sensitivity and others of related functions. (P.5-6)
USB Plug
the haptic force feedback On/Off Keyboard Button
Bluetooth Pairing Power On/Off LED Indicator
The haptic force
feedback is enabled Touch Feedback Bluetooth & USB
Connection
Battery Status
Low Power / Charging
1 2 3 4
8
5
9
6 7
4 5 6 7
10 10 10 10 10
Quick Tap
Tap on the icon to enable or disable
the haptic force feedback function.
