Kenmore Kenmore Electronic Three-Speed Automatic... Instrucciones originales

Owner's Manual and

Installation Instructions

E L I T E TM

Three-Speed

Automatic Washers

with TRIPLE SMART TM Dispenser

IMPORTANT:

Read and follow all safety

and operating instructions

before first use of this product.

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U,S.A. www.sears.com

Sears Canada Inc., Toronto, Ontario, Canada MSB 2B8 www,sears,ca

8312692 PRINTED IN U.S.A. 10/99

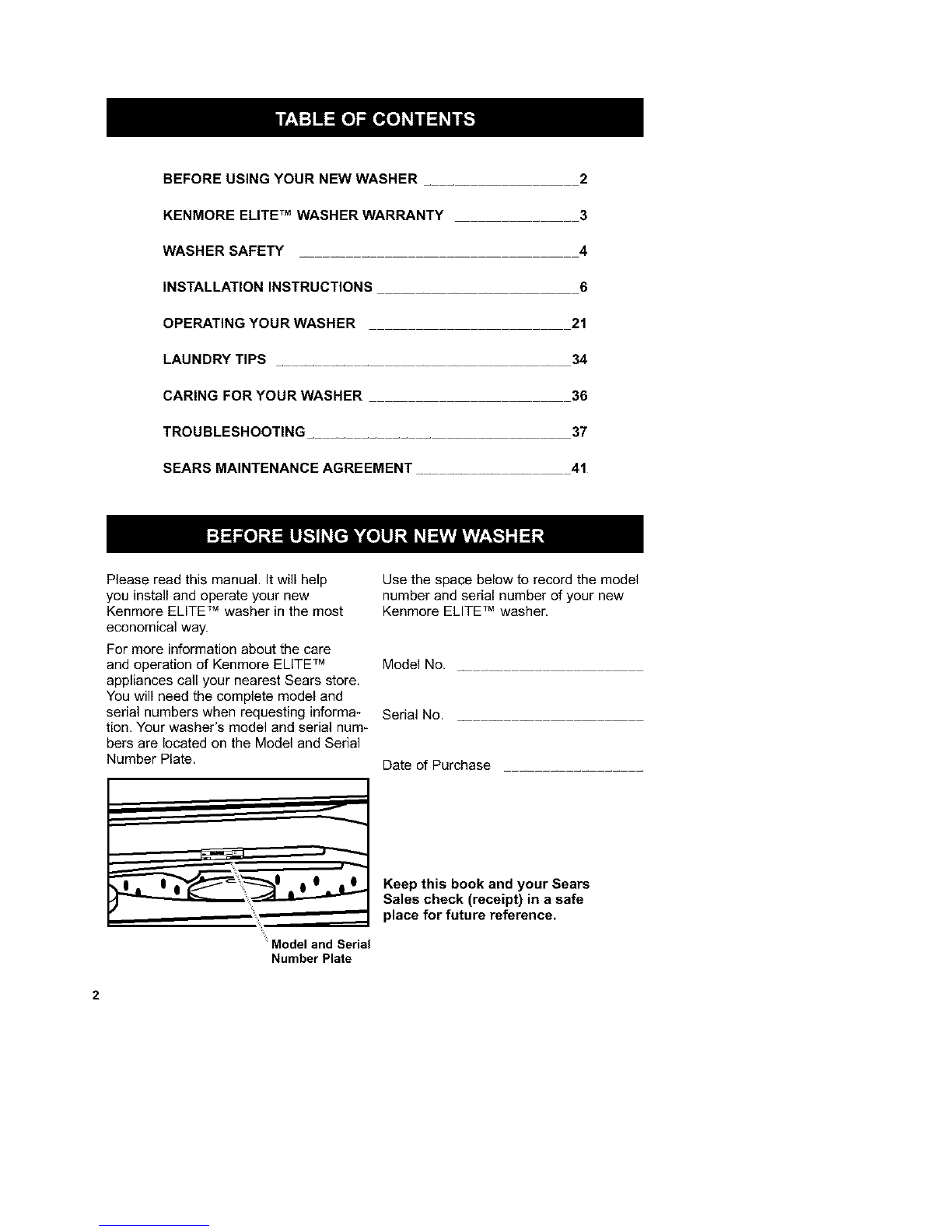

BEFORE USING YOUR NEW WASHER _ _ 2

KENMORE ELITE TM WASHER WARRANTY 3

WASHER SAFETY ..... 4

INSTALLATION INSTRUCTIONS ..... 6

OPERATING YOUR WASHER ..... 21

LAUNDRY TIPS ........... 34

CARING FOR YOUR WASHER _ _ _ 36

TROUBLESHOOTING ........ 37

SEARS MAINTENANCE AGREEMENT 41

Please read this manual. It will help

you install and operate your new

Kenmore ELITE TM washer in the most

economical way.

For more information about the care

and operation of Kenmore ELITE TM

appliances call your nearest Sears store.

You will need the complete model and

serial numbers when requesting informa-

tion. Your washer's model and serial num-

bers are located on the Model and Serial

Number Plate.

Use the space below to record the model

number and serial number of your new

Kenmore ELITE TM washer.

Model No.

Serial No.

Date of Purchase

Modeland Serial

Number Plate

Keep this book and your Sears

Sales check (receipt) in a safe

place for future reference,

LimitedLifetimeWarrantyon

WhitePorcelainBasket

For the lifetime of the washer from the

date of purchase, Sears will replace the

white porcelain wash basket if it chips

or rusts due to defective material or

workmanship, After the first year, you

will be charged for labor.

Limited 10-Year Warranty on

Plastic Tub*

For the second through tenth year from

the date of purchase, Sears will replace

the plastic tub if it is defective in

material or workmanship. After the first

year, you will be charged for labor.

Limited 5-Year Warranty on

Gearcase Parts*

For the second through fifth year from

the date of purchase, Sears will replace

any gearcase parts that are defective in

material or workmanship. After the first

year, you will be charged for labor.

Full 1-Year Warranty on

Mechanical and Electrical parts

For one year from the date of pur-

chase, when this washer is installed

and operated according to the instruc-

tions that come with it, Sears will repair

or replace any of its mechanical or

electrical parts if they are defective in

material or workmanship.

Warranty Restriction

If this washer is operated for any puF

pose other than private family use, air

warranty coverage is restricted to 90

days from the date of purchase.

Warranty Service

Warranty service is available by

contacting your nearest Sears Service

Center in the United States or Canada.

This warranty applies only while this

washer is used in the United States or

Canada.

This warranty gives you specific legal

rights and you may also have other

rights that vary from state to state or

province to province.

Sears, Roebuck and Co.,

Dept 817WA,

Hoffman Estates, IL 60179

Sears Canada Inc.,

Toronto, Ontario,

Canada M5B 2B8

* In Canada a different warranty may apply.

In the U.S. or Canada, for Sears warranty

information or to contact a Sears Service

Center in the U.S., call 1-890-4-MY-HOME '

(1-800-469-4663) or in Canada, call

1-877-533-6937.

Your safety and the safety of others is very important.

We have provided many importantsafety messages in this manual and on

your appliance. Always read and obey all safety messages.

This is the safety alert symbol. This symbol alerts you to

hazards that can kill or hurt you and others. All safety

messages will be preceded by the safety alert symbol and

the word "DANGER" or "WARNING." These words mean:

You will be killed or seriously

injured if you don't follow

instructions.

You can be killed or seriously

injured if you don't follow

instructions.

All safety messages will identify the hazard, tell you how to reduce the chance

of injury, and tell you what can happen if the instructions are not followed.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: To reduce the risk of fire, electric shock, or injury to persons

when using your washer, follow basic precautions, including the following:

• Read all instructions before using

the washer.

• Do not wash articles that have been

previously cleaned in, washed in,

soaked in, or spotted with gasoline,

dry-cleaning solvents, other flammable

or explosive substances as they give

off vapors that could ignite or explode.

• Do not add gasoline, dry-cleaning

solvents, or other flammable or

explosive substances to the wash

water. These substances give off

vapors that could ignite or explode.

• Under certain conditions, hydrogen

gas may be produced in a hot water

system that has nat been used for 2

weeks or more. HYDROGEN GAS IS

EXPLOSIVE. Ifthe hot water system

has not been used for such a period,

before using awashing machine, turn

on all hat water faucets and let the

water flow from each far several

minutes. This will release any accumu-

lated hydrogen gas. As the gas is

flammable, do not smoke or use an

open flame during this time.

• Do not allow children to play on or

in the washer. Close supervision of

children is necessary when the

washer is used near children.

• Before the washer is removed from

service or discarded, remove the lid,

• Do nat reach into the washer if the

tub or agitator is moving.

• Do nat install or store this washer

where it will be exposed to the

weather.

• Do nat tamper with controls,

• Do nat repair or replace any part of

the washer or attempt any servicing

unless specifically recommended in

the Owner's Manual or in published

user-repair instructions that you

understand and have the skills to

carry out,

• See the "INSTALLATION

INSTRUCTIONS" section for

grounding requirements.

SAVE THESE INSTRUCTIONS

INSTALLATION OVERVIEW

For a complete list of tools and parts

needed, see pages 7-9,

A. SELECT LOCATION

FOR YOUR WASHER (pgs. 11-13)

Recessed Area/

Closet Installation Instructions (p. 11)

Standpipe Drain System (p, 13)

3gin

(gg

Laundry Tub Drain System (p, 12)

Floor Drain System (p. 13)

B, REMOVE SHIPPING STRAP (p. 14)

Tools Needed:

Scissors Flashlight (optional

depending on installation)

C, CONNECT DRAIN HOSE (pgs, 15-16)

Ns_IST

Tools Needed: Parts Supplied:

Pliers that open

to 1 9/IGin (3.95 cm)

Flashlight (optional

depending on installation)

1 yellow, single-wire

hose clamp (top of

drain hose)

1 silver, double-

wire hose clamp

(bottom of drain

hose)

D. CONNECT INLET HOSES TO WASHER (pg. 16-17)

Tools Needed:

fd'

Pliers that open to lg_ in {3.95 cm)

Flashlight (optional

depending on

installation)

Parts Supplied:

2 water inlet hoses

4 flat water inlet hose washers

E. CONNECT INLET HOSES TO WATER FAUCETS (pg. 17)

Tools Needed: Parts Supplied:

Pliers that open to 1_6 in (3.95 cm)

Bucket

(optional Flashlight(optional

depending on depending on

installation) installation)

2 water inlet hoses

F, SECURE DRAIN HOSE (p. 18)

Tools Needed: Parts Supplied:

Flashlight (optional

depending on installation) Shipping strap with fastener

G. LEVEL WASHER(p. 19)

Tools Needed: Parts Supplied:

9/16in (1.43 cm)

open-end wrench

Flashlight (optional

depending on installation) Wood block

2 front leveling legs with nuts

ELECTRICAL REQUIREMENTS

120-Volt, 60-Hz,, AC-only, 15- or

20-ampere fused electrical supply is

required, (Time-delay fuse or circuit

breaker is recommended.) Connect to

individual branch circuit.

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions

can result in death, fire, or

electrical shock.

This washer is equipped with apower

supply cord having a 3-prong grounding

plug. To minimize possible shock hazard,

you must plug the power supply cord into

amating 3-prong grounding-type wall

receptacle, grounded in accordance with

National Electrical Code, ANSI/NFPA 70-

latest edition and all local codes and

ordinances.

3 prong

grounding-type

wall receptacle

3prong

grounding plug

Grounding \ II //

Power supply

cord

•For a grounded, cord-

connected washer:

GROUNDING INSTRUCTIONS

This washer must be grounded. In the

event of malfunction or breakdown,

grounding will reduce the risk of electri-

cal shock by providing a path of least

resistance for electric current. This

washer is equipped with a cord having

an equipment-grounding conductor and

agrounding plug. The plug must be

plugged into an appropriate outlet that

is properly installed and grounded in

accordance with all local codes and

ordinances.

WARNING: Improper connection

of the equipment grounding conductor

can result in a risk of electric shock,

Check with a qualified electrician or

serviceman if you are in doubt as to

whether the appliance is properly

grounded,

Do not modify the plug provided with

the appliance - if it will not fit the out-

let, have a proper outlet installed by a

qualified electrician.

,For a permanently connected

washer:

GROUNDING INSTRUCTIONS

This washer must be connected to a

grounded metal, permanent wiring

system, or an equipment grounding

conductor must be run with the circuit

conductors and connected to the equip-

ment-grounding terminal or lead on the

appliance.

Otros manuales para Kenmore Electronic Three-Speed Automatic...

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Arandela de Kenmore

Kenmore

Kenmore 110.4596 Instrucciones de funcionamiento

Kenmore

Kenmore 796.3151#21 Series Manual de usuario

Kenmore

Kenmore Kalypso 22082 Manual de usuario

Kenmore

Kenmore 25102 Series Manual de usuario

Kenmore

Kenmore OASIS 110.2807 Manual de usuario

Kenmore

Kenmore elite 796.2947 Series Manual de usuario

Kenmore

Kenmore HE 3 110.4586 Instrucciones de funcionamiento

Kenmore

Kenmore 417.4194 Series Manual de usuario

Kenmore

Kenmore 12502 Manual del propietario

Kenmore

Kenmore 111.2914 Manual de usuario

Kenmore

Kenmore One-speed automatic washers with water temperature... Instrucciones de funcionamiento

Kenmore

Kenmore 23732 Manual del propietario

Kenmore

Kenmore 796.3152#21 Manual de usuario

Kenmore

Kenmore 2718 - High Efficiency 3.1 cu. Ft. Capacity Coin Op Front Load... Manual de funcionamiento

Kenmore

Kenmore Elite CALYPSO 24082 Manual de usuario

Kenmore

Kenmore 11029852990 Instrucciones de funcionamiento

Kenmore

Kenmore 110.4646 Instrucciones de funcionamiento

Kenmore

Kenmore 2002 Series Manual de usuario

Kenmore

Kenmore Oasis HE 110.2708 Manual de usuario

Kenmore

Kenmore 8537395 Manual de usuario

Kenmore

Kenmore 796.3140* Manual de usuario

Kenmore

Kenmore 20942 Manual de usuario

Kenmore

Kenmore 41740412701 Manual de usuario

Kenmore

Kenmore 79629272010 Manual de usuario

Manuales populares de Arandela de otras marcas

Tricity Bendix

Tricity Bendix AW 1000 W Guía del producto

Panasonic

Panasonic NA-F60L5WRB Manual de usuario

GE WSLP1500 Manual

Electrolux

Electrolux EWF1284EDW Manual de usuario

Bosch

Bosch WAN2829BSN Manual de usuario

LG TV2516DV3B Manual de usuario

LG TH2517DSAV Manual de usuario

VESTEL

VESTEL CMH-XL 7510 TE Manual de usuario

AEG

AEG 74335 Manual de operación

Johnson

Johnson JWF721A Manual de usuario

Beko

Beko WTE7604XLW0 Manual de usuario

Danby

Danby DTT100A1WDB Instrucciones de montaje

Amica

Amica WA 14 Ex Manual de usuario

Daewoo

Daewoo DWD-F1222 Manual de usuario

Bosch

Bosch WAS28461AU Manual de usuario

Miele

Miele PW 6080 Vario Manual de usuario

Finlux

Finlux FLX108CF220 Manual de usuario

Whirlpool

Whirlpool 3LBR5132AN0 Manual de usuario
