Kenmore 1249 Manual de usuario

INSTRUCTIONS

MODEL 1249 . ZIG- ZAG SEWING MACHINE

(ZD

Sears, Roebuck and Co.

Dear Homemaker:

You have just invested in a very fine stretch stitch sewing machine. Be-

fore using your new Kenmore machine, please pause for a moment and

carefully read this booklet which contains instructions on how to oper-

ate and care for your machine.

Specific instructions are given on threading, tension adjustments, cIean-

ing, oiling, etc. This will help you obtain the best sewing results and

avoid unnecessary service expense for conditions beyond our control.

Advice on the operation and care of your machine is always available at

your nearest Sears Retail Store,

Please remember, any correspondence or reference to your machine

must mention the model number and serial number of your machine.

Kenmore Sewing Machine

Record in space provided below the model number

and serial number of this appliance° The model num-

ber and serial number' are located on the nomenclature

plate, as identified on Page 3 of this booklet.

Model No. Serial No

Retain these numbers for future reference.

,i;i!_!iiii!)_i_i_iii:I i _

_FI:i:_)! ¸ <

::ii!iil;!)_:i_):;::i¸:¸/5

! i: ¸ <

ii ?iiii_i! _,,_i

i_:i:iiii_;'_II_!I__i!:i)

TABLE OF

CONTENTS Section I Knowing Your Sewing Machine

Identifying Parts ................... 2, 3

Installing Machine ................... 4

Converting to Free-arm Sewing ............ 5

Winding the Bobbin ....................... 6

Threading the Bobbin Case ................ 7

Threading of Top Thread .................. 8

Using the Controls

Adjusting Top Tension ............... 9

Adjusting Bobbin Tension ............ 10

Checking Tensions ................... 11

Stitch Width Control ............ 12, 13

Stitch Length Control ............ 12, 13

Reverse Stitch Control ................ 14

Stretch Stitch Control ................ !4

Stitch Selector ................... 15, 16

Pressure Regulator ..................... ! 7

Sewing Light ........................... t8

Seam Guides ..................... 19

Presser Foot Lever ...................... 19

Accessories

Needles ......................... 20

Needle, Thread and Fabric Chart ......... 21

Presser Feet .......................... 22

Section |I Starting to Sew ................... 1

Garment Construction Stitches

Straight Stitching ....................... 2

Zigzag Stitching ................... 3

Stretch Stitching .................. 4

Special Finishing Stitches

Buttonhole Making ................. 5

Blind Hemming ...................... 6

Satin Stitching, Appliqueing ............ 7

Zipper Application .................... 8

Mending, Darning ........................ 9

Button Sewing, Bar Tacking .............. 10

Free-arm Sewing ................... t 1

Section 11] Checking Performance Problems

Section IV Caring for the Machine

Cleaning Feed Dogs and Shuttle ......... !

Oiling Under Arm Cover Plate .......... 2

Oiling Underside ...................... 3

Oiling in Face Cover Plate .................. 4

Parts List .................... 5, 6

Memo .................................... 7

Warranty ........................... 8

I. Needle Plate

2. Presser Foot

3. Thread Guide

4. Needle Clamp Screw

5. Thread Guide

6, Top Thread Tension Control

7. Face Cover Thread Guide

8, Face Cover Plate

9. Take-up Lever

10. Upper Thread Guides

1 1, Stitch Selector

12. Stitch Width Control

13. Stretch Stitch Control

14. Stitch Length Control

15. Reverse Stitch Control

16. Light and Power Switch

17. Buttonhole Stitch

Adjustor

18_ Extension Table

19. Support Leg

20. Shuttle Cover

2t. Free Arm

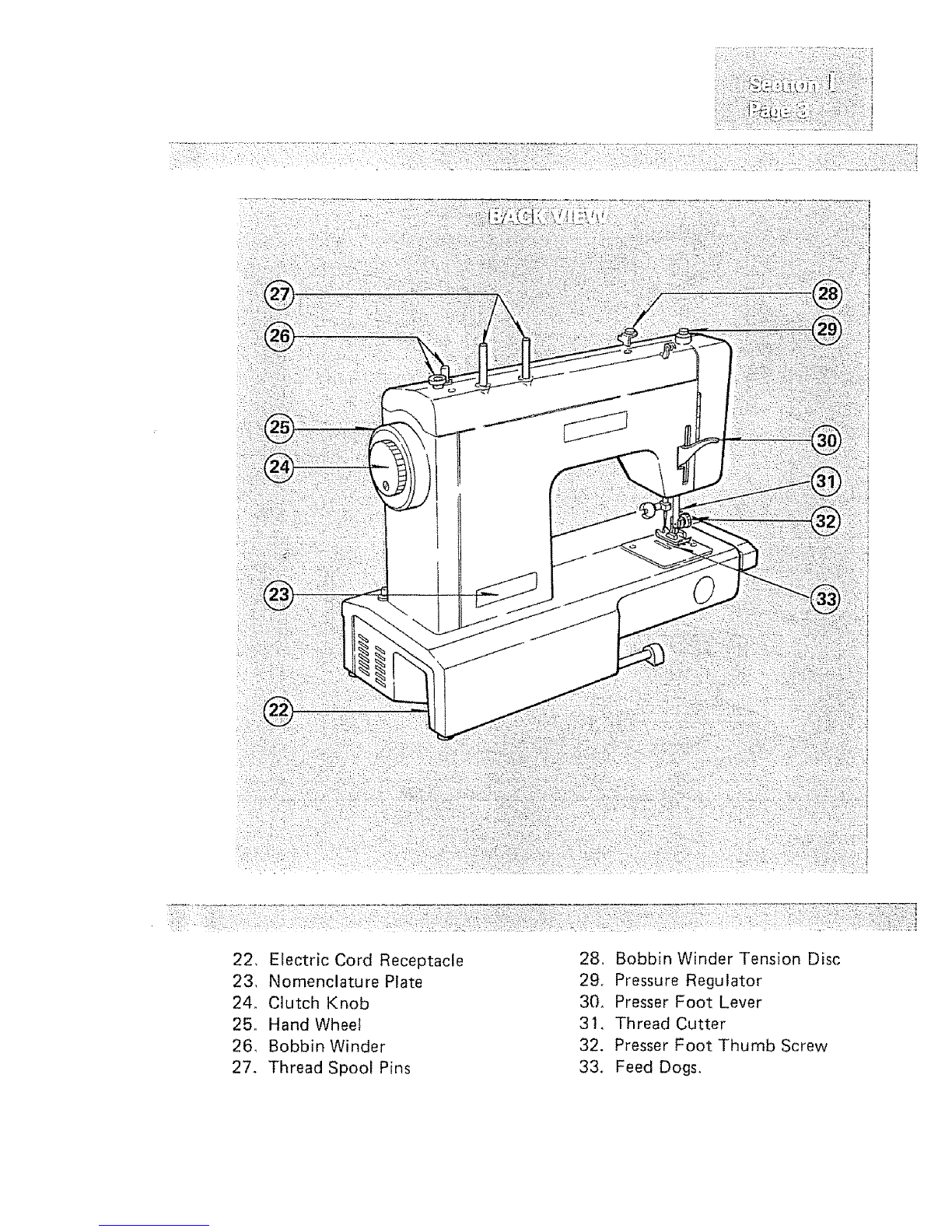

22, Electric Cord Receptacle

23, Nomenclature Plate

24. Clutch Knob

25° Hand Wheel

26, Bobbin Winder

27. Thread Spool Pins

28, Bobbin Winder Tension Disc

29. Pressure Regulator

30. Presser Foot Lever

3t, Thread Cutter

32. Presser Foot Thumb Screw

33. Feed Dogs.

1_ ST_ LLii!!_ J_,/__::_C_i!i¸,i_ii

Fig. 1 Fig, 3

Discs

Fig, 2 Fig. 4

1 To install the machine in cabinet, posi-

tion machine head on cabinet platform

so that holes on bottom of machine

match those on board, Insert washers

and screws and tighten into place° (Fig

1) (Follow instructions provided with

Sears Cabinet, Screws and washers are

supplied with cabinet.)

2, A separate base and cover is available to

carry the machine when needed.

To install machine in carrying case, set

machine into base, with word FRONT in

base facing you, (Fig 2)

Place cover on machine with word

"SEARS" on handle facing you., The

case slopes in the same direction of the

machine (Fig_ 3)

Push the speed control plug onto three-

prong connector_ Plug machine cord into

any 110-120 volt wall outlet. Turn on

power by poshing light and power switch.

(Fig, 4)

Spool pins are packed in accessory box,

Screw thread spool pins in place securely

with a screw driver, Position nylon discs

as shown in illustration.

:,i ¸ _ , ;. _ .-

• ,_,_ i _i_:i _i:_'_ i_i_:i!'i:i_i. __'_.i_ii_'_,,_ii_!_i_!_.'_/!/]__i_

Fig_ I

Fig 2

1. Remove the extension table from the

machine by folding the support leg up

and pulling table to the Ieft. (Fig.. 1,2)

2. To replace the table, simply slide it along

the free arm to its original position and

place supporting leg in down position

{Fig, 1)

®®

1. Release clutch by turning clutch

knob toward you.

2. Draw thread from spool through

bobbin winder tension disc as

shown,

3. Pull end of thread through hole in

bobbin as shown,

4. Place bobbin onto bobbin winder

shaft with end of thread coming

from the top of the bobbin. Push

bobbin winder shaft to the right

until it clicks. Holding onto end of

thread, start machine. When bobbin

is slightly filled, sn_p off end of

thread.

5. Wind thread until winder stops,

Remove bobbin. Clip thread.

6. Tighten clutch knob.

®®

@ ® ®

® ® ®

1. Remove the extension table from

the machine by pulling it to the

left, Open the shuttle cover by pull-

ing down the embossed part on the

left side of the cover,

2. Raise needle to its highest position

by rotating hand wheel toward you.

3. To remove bobbin case from shut-

tle, pull open latch of bobbin case,

4. Pull bobbin case straight out of

shuttle.

5. Insert bobbin into bobbin case

making sure thread is coming from

bobbin as shown.

6- Pull thread through slot of case as

shown.

7. Pull thread under tension spring.

8., Holding latch open, position case

into shuttle, and release latch. Case

should lock into place when latch is

released.

Fig_2

Fig.3

Fig. I

Fig_ 4

Place thread on spool pin as shown

with thread coming from the back of

the spool. Draw thread through the

top thread guides, Holding the spool

stationary with right hand, pull the

end of the thread between the tension

discs as shown. Pull the spring wire

loop up and past the top hook until

the thread can be slipped into the

hook (See Fig° 2), When the thread is

released, the spring wire loop will re-

turn to position (See Fig. 3) with

thread in proper place. Release spool

of thread and continue to thread ma-

chine exactly as shown, Needle must

always be threaded in direction as

shown in Fig. 4,

Hold needle thread loosely in left hand

and rotate hand wheel toward you one

complete turn, Bring bobbin thread up

by pulling upper thread° (Fig, 5).
