TABLE OF CONTENTS

Knowing Your Sewing Machine

Identifying Parts ................................. 1 - 2

Connecting Machine .............................. 3

Threading - Bobbin .............................. 4 - 5

Top Thread ........................................ 6

Using the Controls

Top Tension Control ........................... 7 - 8

Adjusting Bobbin Tension ...................... 9

Stitch Length Control ............................ 10

Stitch Width Control ............................. 10

Reverse Stitch Control .......................... 11

Feed Dog Control ................................. 11

Special Stitch Dial ........................... 12- 14

Pressure Regulator ............................... 15

Sewing Light ...................................... 16

Seam Guides ...................................... 17

Accessories

Needles ............................................. 18

Needle, Thread, Fabric Chart .................. 19

Presser Feet ........................................ 20

Buttonhole Guide Feet .......................... 21

Zigzag and Straight Stitching Needle

Plate ................................................. 22

Starting to Sew ..................................... 23

Garment Construction Stitches

Straight Stitching ................................ 24

Zigzag Stitching .................................. 25

Stretch Stitching ............................ 26 - 28

Special Finishing Stitches

Satin Stitching, Appliqueing ................... 29

Buttonhole Making ......................... 30 - 32

Button Sewing, Bar Tacking ................... 33

Blind Hemming .................. :........... 34 - 35

Zipper Application ................................ 36

Special Edge Stitch, Mending, Darning ..... 37

Checking Performance Problems ......... 39 - 40

Caring for the Machine

Cleaning Feed Dogs and Shuttle ................ 41

Oiling Under Arm Cover Plate .................... 42

Oiling Underside .................................... 43

Oiling Face Cover Plate ........................... 44

Parts List ........................................ 45 - 46

,--_1. Knowing Your Sewing

FRONT VIEW

Machi

®_

(_'

10.

Accessory Box

Hinged Extension

Needle Plate

Zigzag Stitching Plate

Presser Foot

Thread Guide

Thread Tension Regulator

Thread Guide

Face Cover Plate

11. Thread Guide

12. Take-up Lever

13. Top Thread Tension Control

14. Threading Path

15. Special Stitch Dial

16. Stitch Width Control

17. Reverse Stitch Control

18. Stitch Length Control

19. Nomenclature Plate

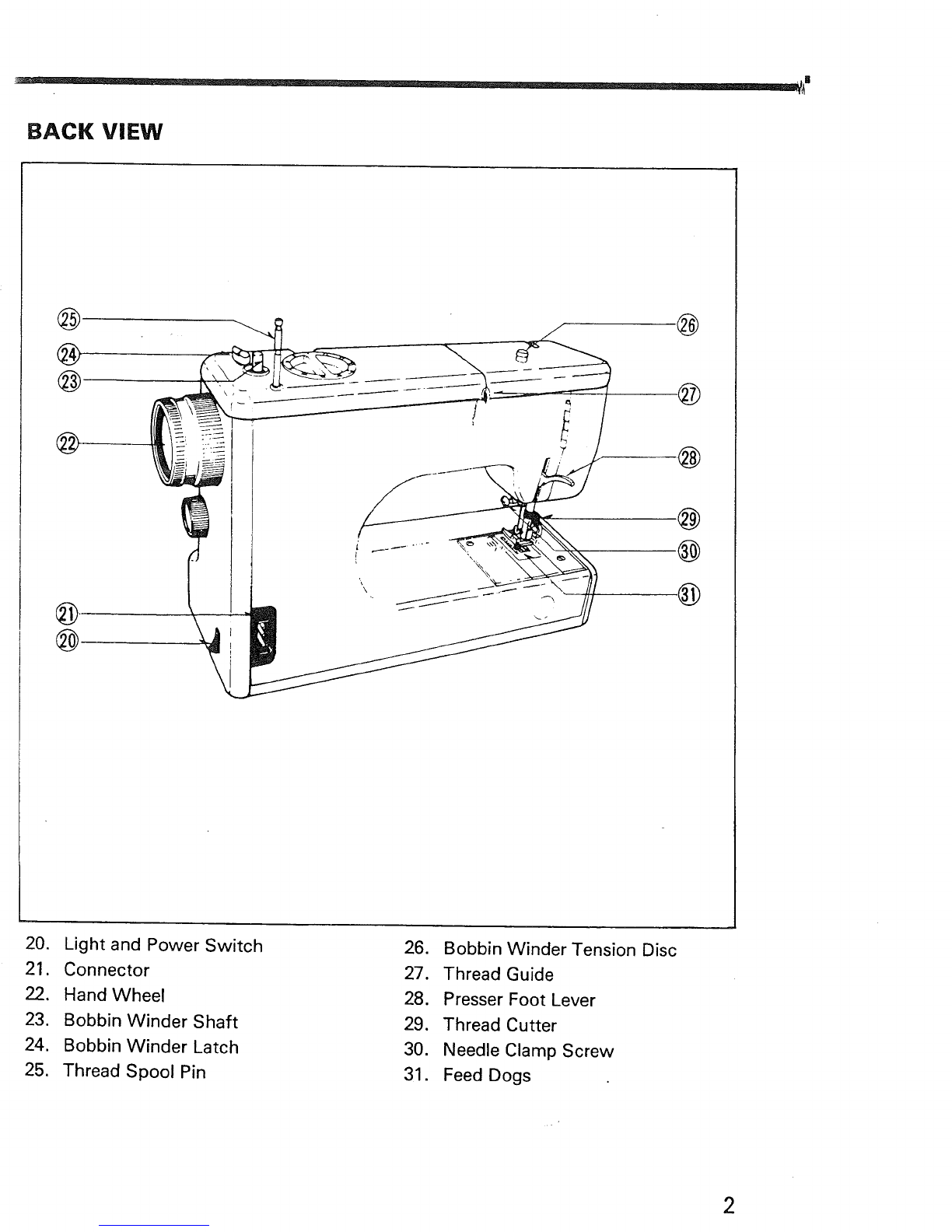

BACK VIEW

20. Light and Power Switch

21. Connector

22. Hand Wheel

23. Bobbin Winder Shaft

24. Bobbin Winder Latch

25. Thread Spool Pin

26. Bobbin Winder Tension Disc

27. Thread Guide

28. Presser Foot Lever

29. Thread Cutter

30. Needle Clamp Screw

31. Feed Dogs

CONNECTING MACHINE

1. Lift hinged extension at the left

side of machine bed-plate.

2. For more sewing space, tip the

bed plate cover up by pushing

right edge as shown in Fig. 2.

Turn the accessory box toward

you as shown in Fig. 2.

3. Fig. 3. shows the machine ready

to sew with all the extensions in

place for maximum sewing space.

4. Push the plug onto three-prong

connector at the back of machine

column.

5. Plug machine cord into any 110-

120 volt wall outlet. Turn on

power by pushing light and power

switch.

6. Pull up spool pin stored at top of

machine.

WINDING THE BOBBIN

Draw thread from spool through

bobbin winder tension disc as shown

in Fig. 1.

Pull end of thread through hole in

bobbin and place bobbin onto

bobbin winder shaft with end of

thread coming from the top of the

bobbin, fitting the notch on the

bobbin over locking stud on the

shaft as shown in Fig. 2.

Push bobbin winder latch against

bobbin until it clicks.

4. Release clutch by pulling hand wheel

or turning clutch knob as shown in

Fig. 4. Start machine, holding onto

end of thread. When bobbin is

slightly filled, release end of thread.

5. When bobbin is full, winding

mechanism stops.

6. Push in hand wheel or turning clutch

knob to return to stitching position.

Remove bobbin.

THREADING THE BOBBIN CASE

. k ,.

1. To remove bobbin case from the

shuttle, raise needle to its highest

position.

2. Open bed plate cover, and remove

accessory box.

Pull open latch of bobbin case.

Pull bobbin case straight out of

shuttle.

Insert bobbin into bobbin case mak-

ing sure thread is coming from

bobbin as shown.

Pull thread through slot of case as

shown.

Pull thread under tension spring.

Holding latch open, position case

into shuttle, and release latch. Case

should lock into place when latch

is released.

Hold needle thread loosely in left

hand and rotate hand wheel toward

you one complete turn. Bring bob-

bin thread up by pulling upper

thread.

THREADING OF TOP THREAD

Model 1050 _ _ (_

Model1020, 1030, 1040, 1045

(_/

TOP TENSION CONTROL

Model 1050 Model1020, 1030, 1040, 1045

Probably the most important control on your machine is this one that regulates

your top thread tension. It consists of discs between which the thread passes.

The pressure on these discs is regulated by turning the dial on the front of

the control. The higher the number, the tighter the tension.

There are many reasons for having to reset your tension. The best tension

for one fabric may not be correct for another. The required tension depends

upon the stiffness of the fabric, thickness of the fabric, numbers of layers of

fabric being sewn, as well as the type of stitch you are making.

It is best to test the stitching on a scrap of the fabric you are using before

starting to make a garment. To adjust for the correct stitch, see next page.

ADJUSTING TOP TENSIONS

A perfect straight stitch will have

threads locked between the two

layers of fabric with no loops on

top or bottom.

(_ Upper thread too tight Decrease Tension

(_ Upper thread too loose Increase Tension

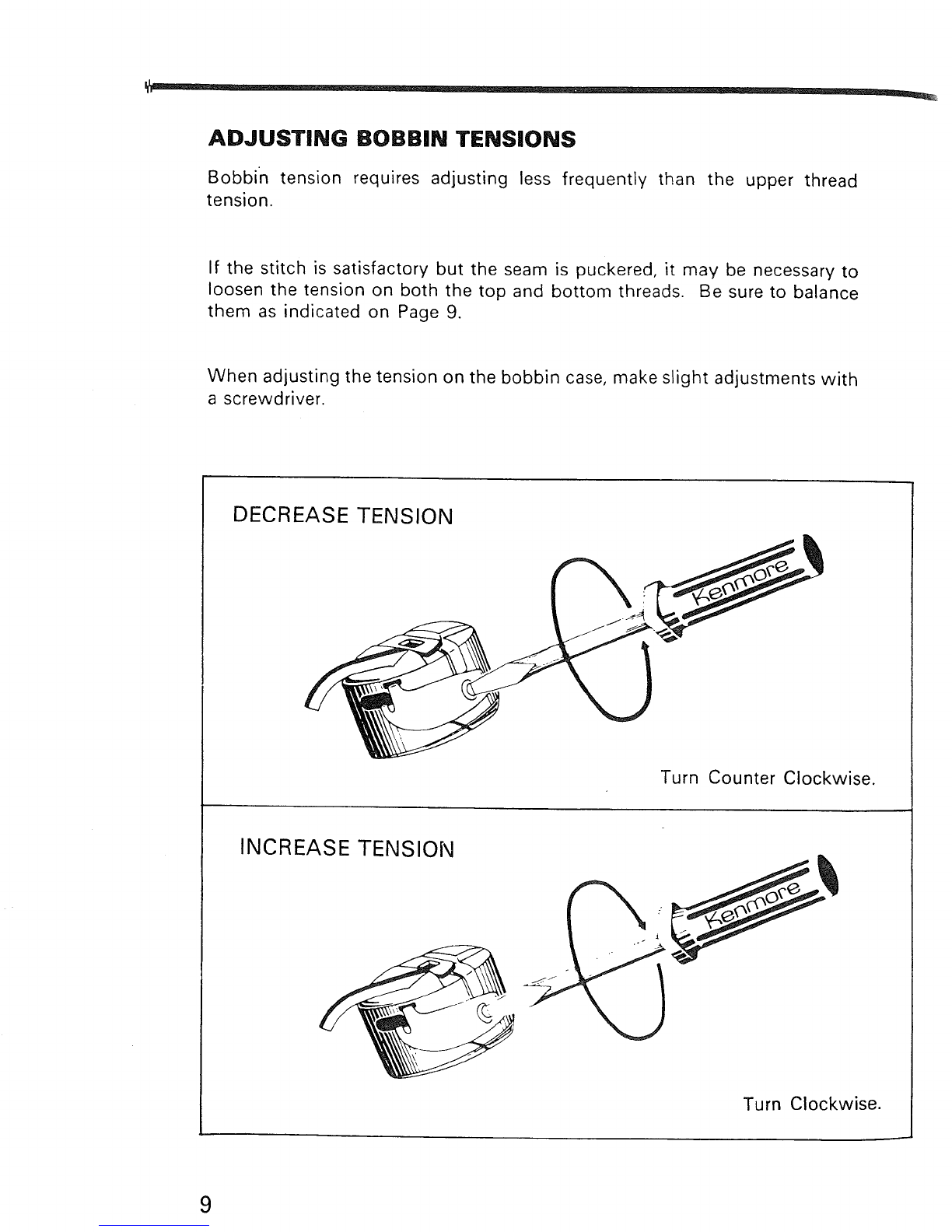

ADJUSTING BOBBIN TENSIONS

Bobbin tension requires adjusting less frequently than the upper thread

tension.

If the stitch is satisfactory but the seam is puckered, it may be necessary to

loosen the tension on both the top and bottom threads. Be sure to balance

them as indicated on Page 9.

When adjusting the tension on the bobbin case, make slight adjustments with

a screwdriver.

DECREASE TENSION

Turn Counter Clockwise.

INCREASE TENSION

Turn Clockwise.
