Instructions 30" Built In Wall Oven

911.41084,41085,41086,41089,41184,41185,41189,41785,

41789,41885,41889,47082,47084,47089,47822,47824,

47829,49002,49003,49004,49009,49012,49013,49014,

49019,49022,49023,49024,49029,49032,49033,49034,

49039

Questions? Contact our Website at: www.sears.com

Before you begin

Read these instructions carefully and completely

• IMPORTANT-Save these instructions for

local inspector's use.

•IMPORTANT-Observe all governing

codes and ordiances.

ATTENTION: INSTALLER

• Note to Installer- Be sure to leave these

instructions with the consumer.

• OWNER- Keep these instructions for future

reference.

•NOTE- This appliance must be properly

grounded.

All electric wall ovens must be hard wired (direct wired) into an approved

junction box. A "plug and receptacle" is not permitted on these products.

Parts Included

4 screws (single)

8 screws (double)

Bottom Trim

Tools You Will Need

1/8" Drill Bit & Phillips

Electric or Screwdriver

Hand Drill

Materials Needed

Junction

Box

Wire Nuts

Strain ReliefClamp

36" of String

Pub. No. 31-10437

229c4053P419-1 1

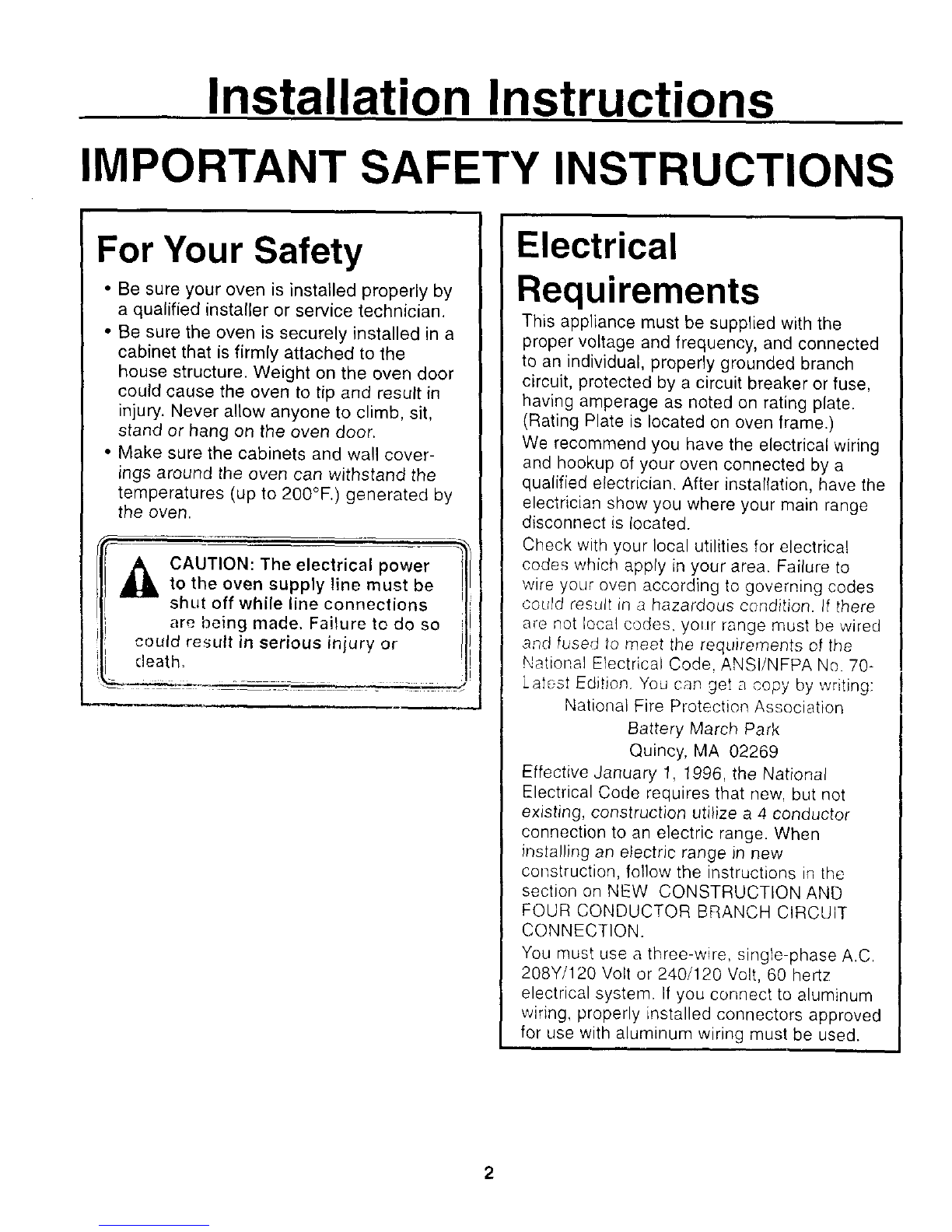

Installation Instructions

IMPORTANT SAFETY INSTRUCTIONS

For Your Safety

• Be sure your oven is installed properly by

a qualified installer or service technician.

• Be sure the oven is securely installed in a

cabinet that is firmly attached to the

house structure. Weight on the oven door

could cause the oven to tip and result in

injury. Never allow anyone to climb, sit,

stand or hang on the oven door.

• Make sure the cabinets and wall cover-

ings around the oven can withstand the

temperatures (up to 200°F.) generated by

the oven,

_1 CAUTION: The electrical power

to the oven supply line must be

shut off while line connections

are being made. Failure to do so

could result in serious injury or

death.

Electrical

Requirements

This appliance must be supplied with the

proper voltage and frequency, and connected

to an individual, properly grounded branch

circuit, protected by a circuit breaker or fuse,

having amperage as noted on rating plate.

(Rating Plate is located on oven frame.)

We recommend you have the electrical wiring

and hookup o1 your oven connected by a

qualified electrician. After installation, have the

electrician show you where your main range

disconnect is located.

Check with your local utilities for electrical

codes which apply in your area. Failure to

wire your oven according to governing codes

could result in a hazardous condition. If there

are not local codes, your range must be wired

and fused to meet the requirements of the

National Electrical Code. ANSI/NFPA No. 70-

Late-st Edition. You can get _qcopy by writing:

National Fire Protection Association

Battery March Park

Quincy, MA 02269

Effective January 1, 1996, the National

Electrical Code requires that new, but not

existing, construction utilize a 4 conductor

connection to an electric range. When

installing an e_ectric range in new

construction, follow the instructions in the

section on NEW CONSTRUCTION AND

FOUR CONDUCTOR BRANCH CIRCUIT

CONNECTION.

You must use a three-wire, single-phase A.C.

208Y/120 Volt or 240/120 Volt, 60 hertz

electrical system. If you connect to aluminum

wiring, properly installed connectors approved

for use with aluminum wiring must be used.

Installation Instructions

Pre- Installation Checklist

iALL INSTALLATION INFORMATION

ON THE FOLLOWING PAGES ARE

TO BE USED FOR SINGLE AND

DOUBLE OVEN INSTALLATION!

Remove packaging materials.

Check behind hinges, and under

false bottom. Remove labels on

door, plastic on trims and panel,

and all tape around oven.

Open the door to the stop position.

II DO NOT LIFT THE DOOR BY THE III

HANDLE!

_Oven Rack_

Open oven door and remove literature

pack, broiler pan and grid, and oven

racks.

Remove Installation Instruction from

literature pack and read them carefully

before you begin.

Be sure to place all literature, Use and

Care, Installations, etc. in a safe place

for future reference.

Grasp the door on both sides and

lift up and off the hinges.

NOTE:The oven door is very heavy. Be

sure you have afirm grip before lifting the

oven door off the hinges. Use caution

once the door is removed. Do not lay the

door on its handle. This could cause

dents or scratches

3(Continued on following page)

Installation Instructions

Pre- Installation Checklist cont.

Cover hinge with towel roils

paper

or toweling.

,_ CAUTION: When the door isremoved and the hinge arms

are at the stop post!on, DO

NOT bump or try to move the

hinge arms. The hinges could

snap back causing an injury to

the hands. Cover the hinges with

toweling or empty towel rolls

while working in the oven area.

Place the oven on a table or

platform even with the cutout

opening. (Platform must support

150 Ibs. single, 275 Ibs double.)

Remove the bottom trim from the

top of the oven. It will be installed at

the end of installation The trim is

wrapped separately and taped to the

top of the unit.

Bottom Trim

Shipping Location

•Side Trim

Installation Instructions

Cutouts for Single Built-In-Oven

CUTOUT

WIDTH

_--281/2" MIN.

ALLOW 11/16"FOR

OVERLAPOFTHE

EDGESOFCUTOUT

21,,_--_"_.

ALLOW A MINIMUM

OF 21" FOR CLEARANCE

TO ADJACENT CORNERS,

DRAWERS, WALLS ETC.

WHEN THE DOOR IS (

THE OPENING

WALLS MUST

BE AT LEAST

28 1/2"WIDE

ALLOW 1" FOR

OVERLAP

ON OVEN TOP

AND BOTTOM

OF CUTOUT

WIDTH

30"

CUTOUT

HEIGHT

27 1/4" MIN

27 5116"

RECOMMENDED

CUTOUT

LOCATION

32 1_"

FROM THE

FLOOR

JUNCTION BOX

22"TO

BOTTOM OF

Cabinet Width 30"

Recommended

Cutout Location

from Floor 32 1/2"

Cutout Depth 23 1/2" Min.

Cutout Width 28 1/2" Min.

28 5/8" Max.

Cutout Height 27 1/4" Min.

27 5/16" Max.

NOTE: If the cabinet does not

have a front frame and the sides

are less than

3/4" thick, shim both sides

equally to establish the cutout

width.

BRACIN G --

TO SUPPORT ,,

°u+°s OF CABINET

--2*x 4"or

EQUIVALENT

RUNNERS

If the cabinet does not have a solid

bottom, then two braces or runners

must be installed to support the

weight of the oven. For single ovens

the runners and braces must

support 150 pounds.

THIS OVEN IS NOT APPROVED FOR STACKABLE

OR SIDE BY SIDE INSTALLATION

Installation Instructions

Cutouts for Double Built-In-Oven

ALLOW 11116"

FOR OVERLAP

OFTHE OVEN-_

OVER SIDE EDGES

OFCUTOUT

ALLOW A MINIMUM OF21

FORCLEARANCETO

ADJACENT CORNERS,

DRAWERS, WALLS ETC.

WHENTHE DOOR

IS OPENED.

CUTOUT

WIDTH

28 1/2" MIN.

28 5/

THE OPENING

BETWEEN INSIDE

WALLS MUST

BE AT LEAST

28 1/2"WIDE

ALLOW 1"FOR

OVERLAP

ON OVEN TOP

AND BOTTOM

OF CUTOUT

CABINET

WIDTH

CUTOUT

HEIGHT

51 13/16" MIN.

51 15/16" MAX.

iJUNCTION BOX

LOCATION

47" TO

BOTTOM OF

JUNCTION BOX

RECOMMENDED

CUTOUT LOCATION

• 12" FROM THE FLOOR

Cabinet Width

Recommended

Cutout Location

from Floor

Cutout Depth

Cutout Wdth

Cutout Height

30"

12"

23 1/2" Min.

28 1/2" Min.

28 5/8" Max.

51 13/16" Min.

51 15/16" Max.

SUITABLE

BRACING--

TO SUPPORT

RUNNERS _ 21 5/13"

OVER CENTER LINE

OF CABI_

--2,,x 4,,or

EQUIVALENT

RUNNERS

NOTE: If the cabinet does not

have a front frame and the

sides are less than

3/4" thick, shim both sides

equally to establish the cutout

width.

If the cabinet does not have a solid bottom,

then two braces and runners must be

installed to support the weight of the oven.

For double ovens the runners and braces

must support 275 pounds.

Installation Instructions

Cutouts For Single Oven Under Counter

Gas or electric cooktops

may be installed over this

oven, See cooktop installation

instructions for cutout size,

See label on top of oven for

approved cooktop models,

Top and/or side

fillers may be

necessary if 28 1/2" MIN.

unit is positioned 28 5/8" MAX.

between existing I

cabinets. Be sure

they are attached 27 1/4" MIN.

securely since 27 5/16" MAX,

they will anchor

the oven in the .I I

cabinet. I j

240V /208V

Junction Box

Location

"Allow 11116"

Overlap Top

of Oven &

Side Edges

of Cutout

Gas and electrical connections

for 30" gas cooktop must be

located in an adjacent accessible

location to the right, For a 36"

gas cooktop the connections

may be made to the left.

22" MIN. 36"

Above Typical

Support Countertop

Platform Height

_L_

3/4" Support

Platform

Required

MUST SUPPORT 150 LBS.

5 9/16"

Reference dimension

for maximum support height

with typical 36" countertop

height

_IL NOTE: This Oven is not approved

to be installed under a Solid Disk,

Induction or Downdraft Modular

Cooktop.

Installation Instructions

Electrical Connections

Turn off the circuit breaker or remove

fuses to the oven branch circuit.

With the oven in front of the cabinet

opening, on a table or platform, connect

the flexible conduit to the electrical

junction box as shown below. You will

need to purchase a strain relief clamp

to complete the connection of the

conduit to the junction box.

JUNCTION BOX

PLACE OVEN ON

ASUPPORT

TO ASSISTIN

CONNECTING

CONvDUIT

STRAIN RELIEF CLAMP

{ NOT INCLUDED )

MUST BE USED

AT JUNCTION BOX

NEW CONSTRUCTION AND FOUR-

CONDUCTOR BRANCH CIRCUIT

CONNECTION

• When installing in a new

construction, or

• When installing oven in a mobile

home, or

• When local codes do not permit

grounding through neutral:

a.Cut the neutral (White) lead from the crimp.

Re-strip the neutral (white) lead to expose

the proper length of conductor.

Grounc

Wires

,]unctim_

Box Co', er

b.Attach the appliance grounding lead (green

or bare copper) in accordance with local

codes. If the residence grounding conductor

is aluminum, see WARNING note.

c.Connect the oven neutral (white) lead to

the branch circuit neutral (white or gray) in

accordance with local codes, using wire

nut.

d.Connect the oven red lead to the branch

circuit red lead and the oven black lead to

the branch circuit black lead in accordance

with local codes, using wire nuts. If the

residence red, black or white leads are

aluminum conductors, see " WARNING"

note.

e. Install Junction Box Cover.

8 ( Continued on Next Page)

Installation Instructions

Electrical Connections cont.

ITHREE-CONDUCTOR BRANCH I

CIRCUIT CONNECTION

When connecting to a 3-conductor

branch circuit, if local codes permit:

a.Connect the bare oven ground conductor

with the crimped neutral (white) lead to the

branch circuit neutral (white or gray in

color), using wire nut.

Ground and

Neutral Wires

b.Connect the oven red lead to the branch

circuit red lead, using wire nut.

c.Connect the oven black lead to the branch

circuit black lead in accordance with local

codes, using wire nut.

d.lnstall Junction Box Cover.

Do not shorten the flexible conduit.The

conduit strain Relief Clamp must be

securely attached to the junction box

and the flexible conduit must be

securely attached to the clamp. If the

flexible conduit will not fit within the

clamp, do not install the oven until a

clamp of the proper size is obtained.

NOTE TO ELECTRICIAN: The 3 power

leads supplied with this appliance are UL

recognized for connection to larger gauge

household wiring. The insulation of these 3

leads is rated at temperatures much higher

than the temperature rating of household

wiring. The current carrying capacity of the

conductor is governed by the temperature

rating of the insulation around the wire,

rather than the wire gauge alone.

_WARNING: Improper

connection of aluminum

house wiring to copper leads

can result in an electrical hazard or

fire, Use only connectors designed

for joining copper to aluminum and

follow the manufacturer's

recommended procedure closely.

Installation Instructions

Securing the Oven

With the conduit connected, the oven

is ready to be slid into the cutout

opening.

a. Loop a 36" string around the conduit

before the oven is slid into place. This

will keep the conduit from falling be-

hind the oven.

Pull out on

<i • string loop

while pushing

the oven into

the cabinet

b. Lift oven into cabinet cutout using the

oven opening as an grip. Carefully

push against oven front frame. Do not

push against outside edges.

c. As you slide the oven back, pull the

string so that the conduit will lie on top

of the oven in a natural loop.

d. When you are sure the conduit is out

of the way, slide the oven all the way

back into the opening. Remove the

string.

_-] Drill four-I/8" pilot holes through the

mounting holes (top and bottom) of the

side trim, for the four #8 screws

provided. Drill eight holes for the

Double Oven.

MOUNTING

HOLE

_,/ LOCATIONS _

JFF_IlIIY_

The screws must be a

minimum of 1/4" from

the front of the cutout.

NOTE: Mounting screws must be

used. Failure to do so could result in

the oven falling out of the cabinet

causing serious injury.

_3-] Secure the oven to cabinet with screws

provided.

Note: Before drilling the pilot holes

make sure the oven is pushed as far

back into the opening as it will go

and centered.

Otros manuales para 30" Built In Wall Oven

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Horno de Kenmore

Kenmore

Kenmore Elite 100.90005 Manual de usuario

Kenmore

Kenmore 790.4836 series Manual de usuario

Kenmore

Kenmore Gas double oven range Manual de usuario

Kenmore

Kenmore 363.63672 Manual de usuario

Kenmore

Kenmore 79048173002 Manual de usuario

Kenmore

Kenmore 911.30169690 Manual de usuario

Kenmore

Kenmore 100.76771410 Manual de usuario

Kenmore

Kenmore 790. 4045 Manual de usuario

Kenmore

Kenmore 911. 48385 Manual de usuario

Kenmore

Kenmore 4061 - 24 in. Clean Double Wall Oven Manual de usuario

Kenmore

Kenmore 790.4717 Series Manual de usuario

Kenmore

Kenmore 790. 3017 Manual de usuario

Kenmore

Kenmore 22-45262 Manual de usuario

Kenmore

Kenmore Gas Wall Oven Manual de usuario

Kenmore

Kenmore 9114803592 Use Instrucciones de instalación

Kenmore

Kenmore 30-inch electric wall ovens Manual de usuario

Kenmore

Kenmore 911.47712 Manual de usuario

Kenmore

Kenmore 790. 4907 Series Manual de usuario

Kenmore

Kenmore 911.47602 Manual de usuario

Kenmore

Kenmore D10043MSLRIIH-WP Manual de usuario

Kenmore

Kenmore 911.41885 Series Manual de usuario

Kenmore

Kenmore 790-4942 Series Manual de usuario

Kenmore

Kenmore 71381 Instrucciones de instalación

Kenmore

Kenmore 911.33465 Manual de usuario

Manuales populares de Horno de otras marcas

Bosch

Bosch HVA531NS0 Manual de usuario

Electrolux

Electrolux EOF6P46X Manual de usuario

NEFF

NEFF B44S32 5GB Series Manual de usuario

Combi

Combi BLODGETT BC142GDS Manual de usuario

AEG

AEG COMPETENCE 311704300 Manual de usuario

Falcon

Falcon DOMINATOR PLUS G3106 Series Guía del usuario

Rational

Rational SCC WE 61G Manual de usuario

Smeg

Smeg DOSPA38X Manual de instalación y operación

Electrolux

Electrolux air-o-convect 20 GN 2/1 Manual de usuario

Miele

Miele HR 1954-2 Manual de usuario

KHIND

KHIND OT50 Manual de usuario

Henny Penny

Henny Penny Smoker Box Manual de usuario

Lang

Lang ECOD-AP Manual de usuario

AEG

AEG BEK455310M Manual de usuario

Frigidaire

Frigidaire FNGE90JGR Manual de usuario

Hotpoint

Hotpoint FE9 S831 JSH IX Manual de usuario

GE Advantium SCB2000 Manual de usuario

AEG

AEG DE401301DM Manual de usuario
