Kenmore 147 Manual de usuario

iOWNER'S MANUAL

Electronic Air Cleaning System

:_:Featuring the Forever Filter'"

Model

635,83147

Operating

Instructions

Parts List

CAUTION:

Read this manual

and follow all its

Safety and Operating

Instructions.

INFO-LINE

After reading this manual, if

you have any questions or

comments on your Kenmore

Air Cleaner call:

1-800-227-3917

Sold by Sears, Roebuck and Co., Hoffman Estates, IL 60179

INTRODUCTION

Congratulations on your purchase of the Kenmore Air

Cleaner featuring the Forever Filter'". This Kenmore Air

Cleaner will remove airborne pollutants such as dust,

smoke, pollen, and mold that are circulating in your home,

most of which you cannot see with the naked eye. As the

air recirculates through your room and through the air

cleaner system, the air iscleaned continuously.

Please read this Owner's Manual thoroughly before

operating your air cleaner.

If, at any time, you have any questions about the operation

of your Kenmore Air Cleaning System, please contact the

Help Line at 1-800-227-3917.

GENERAL SAFETY INSTRUCTIONS

When using electrical appliances, basic precautions should

always be followed to reduce the risk of fire, electrical shock

and injury to persons, including the following:

II, Please read this Owner's Manual before using your

Electronic Air Cleaner

_I, This air cleaner is equipped with a 3-prong plug and

should only be plugged into a standard 3-prong

(grounded) 120 volt AC outlet.

_I, DO NOT use an extension cord with the air cleaner

_I, Unplug the air cleaner prior to moving the unit or

cleaning filters

41, DO NOT use this electronic air cleaner when oxygen is

being used or when combustible gases are present

4DO NOT use outdoors

_I, DO NOT place any foreign objects inside the Air

Cleaner

CAUTION - Do not operate this air cleaner in the presence of candies, wood burning

fireplaces or stoves, or improperly maintained gas appliances. These products can produce

smokethat may cause property damage such as staining on walls, furniture, draperies or

other household furnishings if used while operating this air cleaner, especially if the "Forever

Filter" is not cleaned on a regular basis. Follow all Owner's Manual instructions.

WARRANTY

If within one year from the date of purchase, this air

cleaner fails due to a defect in material or workmanship,

Sears will repair or replace it, free of charge:

Warranty service is available by simply returning the air

cleaner to the nearest Sears store throughout the United

States.

This warranty gives you specific legal_rights _and you may

have other rights which may vary from state to state.

Sears, Roebuck and Co. Department 817WA,

Hoffman Estates, IL 60179

GETTING STARTED WITH YOUR

ELECTRONIC AIR CLEANER

CONTROL

ION NEEDLES

FOREVER FILTER

PANEL

HOW IT WORKS

Stage One - Pre-Filter: As dirty air is forced through the

unit, large airborne particles are trapped by the Pre-filter.

StageTwo - Forever Filter'" - Ionizer: Airborne particles

such as dust, smoke and pollen pass through the ionizer

section and receive an e ectr ca! charge.

StageThree-ForeverFilterTM - Collector: Charged par-

ticles are collected, like a powerful magnet, on aseries of

alternately charged collection plates.

Stage Four - Negative Ion Generator: Emits negative ions

into the air that freshens stale air. In addition, it also

charges existing airborne particles so they can be collected

by the Forever Filter".

NOTE: Since the collected dirt is distributed across several

metal plates inside the Forever Filter", it may take awhile

to notice the accumulated dirt with the naked eye.

PLACEMENT OF AIR CLEANER

Your air cleaner should be placed where air can freely

move in, out and around it.

4, Do not place the unit

(t) Directly on or against any soft furnish!ngs such

as bedding or curtains.

(2) Near computers, radios, TVs or other electronically

sensitive devices

(3) Near sources of heat (such as stove tops, or ovens)

Please keep in mind that the air movement Created by

the air cleaner will draw any airborne particles towards

it. Depending on the specific types and weight of

airborne particles present in your environment, some

particles may fall onto other surfaces in the general

vicinity of the air cleaner before reaching the air

cleaner.

OPERATION

WARNING: To reduce the risk of electrical shock, this

equipment is supplied with a 3-prong power cord with a

grounding lug on the plug. It is intended to be used with a

standard 3-prong 120 volt AC outlet. If the plug does not fit

your outlet, contact qualified personnel to install the proper

receptacle. DO NOT alter the plug in any way.

The operation of the unit is very simple.Turn it on by setting

the green control switch to high (3), med (2) or low (1).

When the Clean Air Light (green) is on, this is an indication

that the Forever Filter" is working properly. The light will

NOT be on when the switch is in the "Quick Dry" position.

The "Quick Dry" position is provided for drying the filter

after cleaning.

OPERATION NOTES

!. The speed shoul dbeset on high (3)for two minutes ,

before switching to the desired speed to initially start

the unit. Control Panel Diagram

_,j I,, ,,, ,,,,,

.Your Sears Kenmore Air Cleaner_is equipped with a

Negative ton Generator (Ionizer). The negative ions

are discharged through needles located just beneath

the air discharge grill.

if you place your hand close to the negative ion field

generated by the needles (within 6-!2 inches of the

grill) for a period of time, and then touch a grounded

(metal) object, you may experience a mild static

discharge similar to the static electricity charge from

"carpet shock". The static discharge is simply a result

of the negative ions that have built up on your hand

being discharged to ground.

•Please note that there is no cause for alarm should

this occur. Your air cleaner is nottdefective.

CLEANING AND CARE

In addition to the exterior ofthe unit, there are three areas

that require periodic cleaning:the pre-filter, the Forever

FilterTM, and the Negative Ion Generator Needles.

ACCESS TO FILTERS

Before performing any maintenance, turnthe unit to the

OFF position and unplug the power cord.

To access the filters for cleaning, simply place your hands

on each side of the front access panel and pull towards you.

CLEANING THE FOREVER FILTER TM

Please use care when handling the Forever Filter" to

ensure you do not damage the ionizing wires or metal

plates.

1. Remove access panel as described above.

2. Pivot tension ciips 90 degrees (horizontal orientation)

to release the Forever Filters".

3. Pull on the plastic handles at the base of the Forever

Filter".

4. After removing the Forever FilterTM, the Pre-Filter'can

be easily slid out of its track (please see instructions

for cleaning the Pre-Filter).

TENSION CLIPS

HANDLES

The twin Forever Filters TM shoUld be cleaned every one to

three months depending on the conditions in your particular

environment. Failure to clean the Forever Filter periodically

will degrade performance of the air cleaner.

The filter can be washed with Zap-lt cleaner sold through

Sears (Sears stock # 8395) or with a dishwashing detergent

such as Electrasol.

If using Zap-lt, spray the filter with water and then spray

the metal plates with Zap-lt. Allow to soak for 5-t0 minutes

before rinsing with water.

If using dishwashing detergent, completely immerse the

Forever Filter TM in hot soapy water for 20 to 30 minutes.

Rinse it off, using a sprayer if available.

Shake as much water from the filter as possible

After the first cleaning, the metal surface of the electronic

filtermay not beas shiny as before, This is normal and

does not reduce effectiveness.

CLEANING THE PRE_FILTER

1. Remove the filter from its rack.

2. Simply rinse the pre-fiIter in warm soapy water.

3. Shake off the excess water.

4. Return to its rack on the air intake of the Forever

REINSTALLING FOREVER FILTERS"

1. Ensure the Pre-filter is placed inthe tracks provided on

the bottom side of the Forever Filter TM (same side as

plastic handles).

2. Return the Forever Filters TM to their original position in

the air cleaner.

3. Pivot the tension clips back to their original position

_ (vertical orientation) to ensure the Forever Filter TM is

properly located.

4. Replace the front access panel by inserting the top

first and then push the lower outside corners toward

the rear of the cabinet until it snaps into place.

5. After reinstalling the cleaned filters in the unit, operate

the unit in the ,Quick Dry" position for about two hours

to ensure the filter is thoroughly dry (Failure to dry the

filters may cause permanent damage to the Forever

Filters").

NOTE: Ifaccess panel does not close securely, check to

make sure that the Forever Filters are properly installed.

The plastic handles should be at the bottom.

CLEANING THE NEGATIVE ION NEEDLE

When cleaning the Forever Filters", you should also take a

cotton swab dipped in water or alcohol and wipe the two

needles located beneath the air discharge grill.

HANDLES

•7

DIAGNOSTIC CHECKLIST

Should you ever haveany questions or concerns about the

operation of your Kenmore Air Cleaning System, you may

want to check this chart first. If the problem persists, call

our Help Line.

Condition

Unit won't come on

,,,,,, ,,,,

Unit does not operate

on Low (1) Speed

Unit does not remove

pollutants

,,,,,,

unit snaps or pops

Interference with

Radio and "PC

Unit does not operate

properly

Checkpoints

Make sure that the power cord is

plugged in

Set the Rota_ Switch to the desired

speed

Make sure"ihat the Front Access

Panel is properly installed

*"Make sure Forever Filter" is properly .....

installed

,,,,,

Run on High (3) for two minutes then

reset to Low (1) Speed

, ,,,,,,,,,,

Wash Forever.Filter"

Wash the Forever Filter" and

make sure that it is thoroughly dry

Make sure ionizing wire's in Forever

Filter" are not broken

, ,,,,,,,,,,,,,,,,

Check for bent plates in Forever

Filter" - straighten if possible

Check for large particles such as hair

or lint on ionizing wires; Remove if

possible

,,, , ,,,,,,,,

Move unit to a different location away

from TV or Radio. Do not operate

unit on the same electrical outlet as

TV or Radio

Clean Forever Filter" if dirty

, ,, ,,,,,,,, ..... ,,

Call Help Line/Have unit serviced

The Help Line: 1800/227-3917

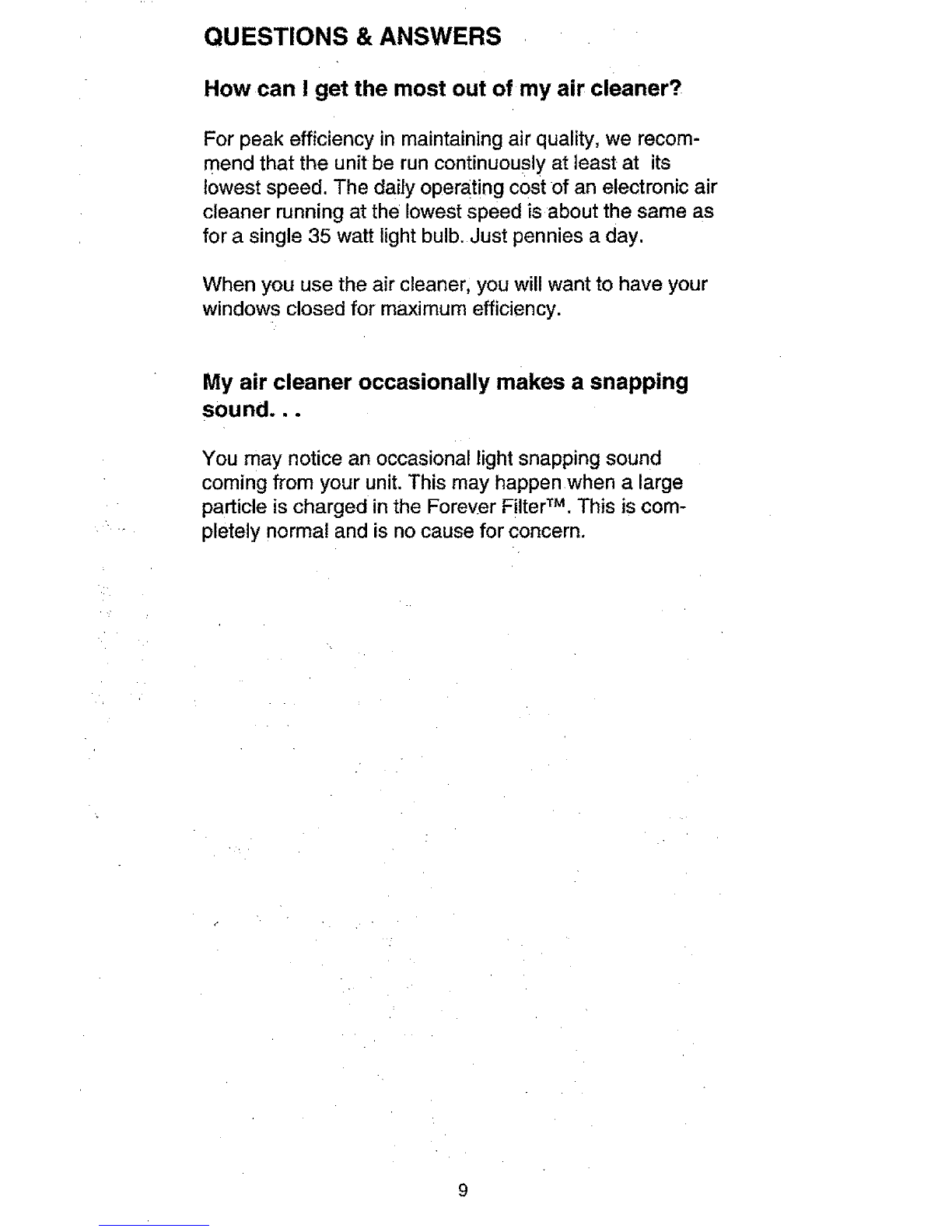

QUESTIONS & ANSWERS

How can ! get the most out of my air cleaner?

For peak efficiency in maintaining air quality, we recom-

mend that the unit be run continuously at least at its

lowest speed. The daily operating cost of an electronic air

cleaner running at the lowest speed isabout the same as

for asingle 35 watt lightbulb. Just pennies a day.

When you use the air cleaner, you willwant to have your

windows closed for maximum efficiency.

My air cleaner occasionally makes a snapping

sound...

You may notice an occasional light snapping sound

coming from your unit. This may happen when a large

particle ischarged in the Forever FilterTM. This is com-

pletely normal and is no cause for concern,

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Purificador de aire de Kenmore

Kenmore

Kenmore PlasmaWave 85300 Manual de usuario

Kenmore

Kenmore ENVIROSENSE 85500 Manual de usuario

Kenmore

Kenmore 1500e Series Manual de usuario

Kenmore

Kenmore 850e Series Manual de usuario

Kenmore

Kenmore D42 M32702 Manual de usuario

Kenmore

Kenmore K PA3D0AMW Series Manual de usuario

Kenmore

Kenmore 437.85264 Manual de usuario

Kenmore

Kenmore TRUE HEPA 106.832 Manual de usuario

Kenmore

Kenmore 437.83235 Manual de usuario

Kenmore

Kenmore 1500e Series Manual de usuario

Kenmore

Kenmore 1200e Series Manual de usuario

Kenmore

Kenmore 850e Series Manual de usuario

Kenmore

Kenmore KENMORE 437.83163 Manual de usuario

Kenmore

Kenmore 1200e Series Manual de usuario

Kenmore

Kenmore 83230 Manual de usuario

Kenmore

Kenmore 83353 Manual de usuario

Kenmore

Kenmore 152.83220 Manual de usuario

Kenmore

Kenmore 1500e Series Manual de usuario

Kenmore

Kenmore 437.83231 Manual de usuario

Kenmore

Kenmore Kenmore 43785777 Manual de usuario

Kenmore

Kenmore HEPA 152.8525 Manual de usuario

Kenmore

Kenmore PlasmaWave 85150 Manual de usuario

Kenmore

Kenmore SMART 2300e Series Manual de usuario

Kenmore

Kenmore 152.83244 Manual de usuario

Manuales populares de Purificador de aire de otras marcas

IKEA

IKEA UPPÅTVIND Manual de usuario

Nash

Nash AP-1 PureSmart Manual de usuario

LG PH-U450 Series Manual de usuario

DeLonghi

DeLonghi DDSX 220WFA Manual de usuario

Mitsubishi Electric

Mitsubishi Electric MA-E85R-E Manual de usuario

Sharp

Sharp FU-40SE Manual de usuario

Philips

Philips AC2721 Manual de usuario

Hitachi

Hitachi EP-A3000 Manual de usuario

TruSens

TruSens Z-2000 Manual de usuario

Motorola

Motorola MBP87SN Manual de usuario

Beko

Beko ATP 7100I Manual de usuario

Carrier

Carrier INFINITY 1620 Manual de usuario

AtmosAir

AtmosAir P2002 Manual de usuario

Winix

Winix NK300 Manual de usuario

Friedrich

Friedrich C-90A Instrucciones de funcionamiento e instalación

Surgically Clean Air

Surgically Clean Air JADE2.0 Manual de usuario

Base aire

Base aire 555 Pro Manual de usuario

Champion

Champion CP25 Manual de usuario
