Kelvinator KGM220RHY Manual de usuario

Product No. KGM220RHY3

Series Commercial

Color gray

Volts 115V

Owner's Guide

297279901

Market North America

P08F0143.eps P08D0595.eps P08C1177.eps R08S0481.eps

Publication No.

5995583902

11/01/13

(EN/SERVICE/BVB)

365

REFRIGERATOR

Model No.

KGM220RHY

Publication No: 5995583902 KGM220RHY3

01/11 2

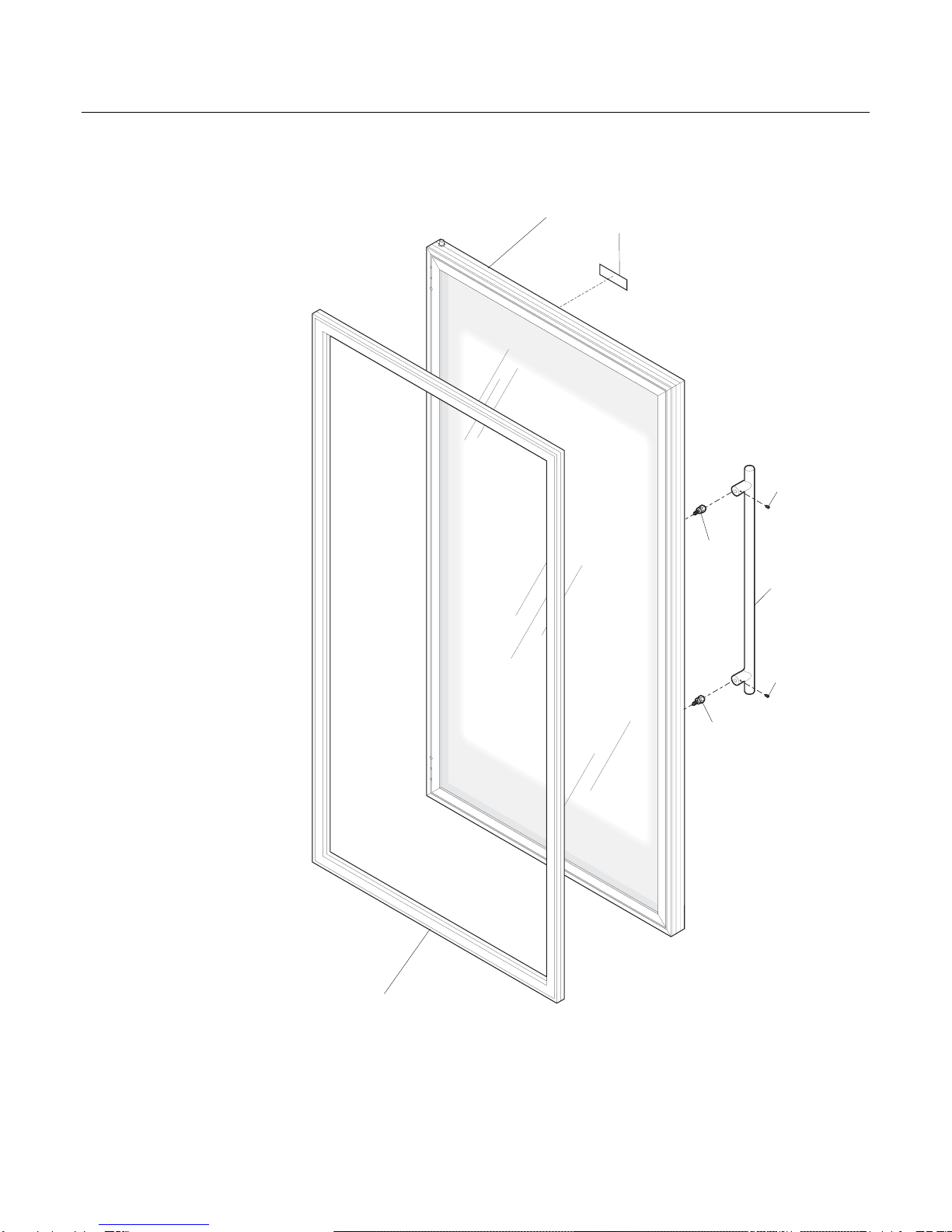

DOOR

P08D0595

KGM220RHY3 Publication No: 5995583902

# Functional Parts 3 01/11

* Non-Illustrated Parts

DOOR

POS. NO PART NO. DESCRIPTION

1 216657201 Gasket-door, black

11 297071600 Door-assy, glass

12 297146600 Nameplate, Commercial

18 297314000 Handle

18* 297168700 Instructions, handle

79 218755401 Screw-set, 10-32 x 0.375

80 218755504 Screw-shoulder, #10 AB, handle mounting

Publication No: 5995583902 KGM220RHY3

01/11 4

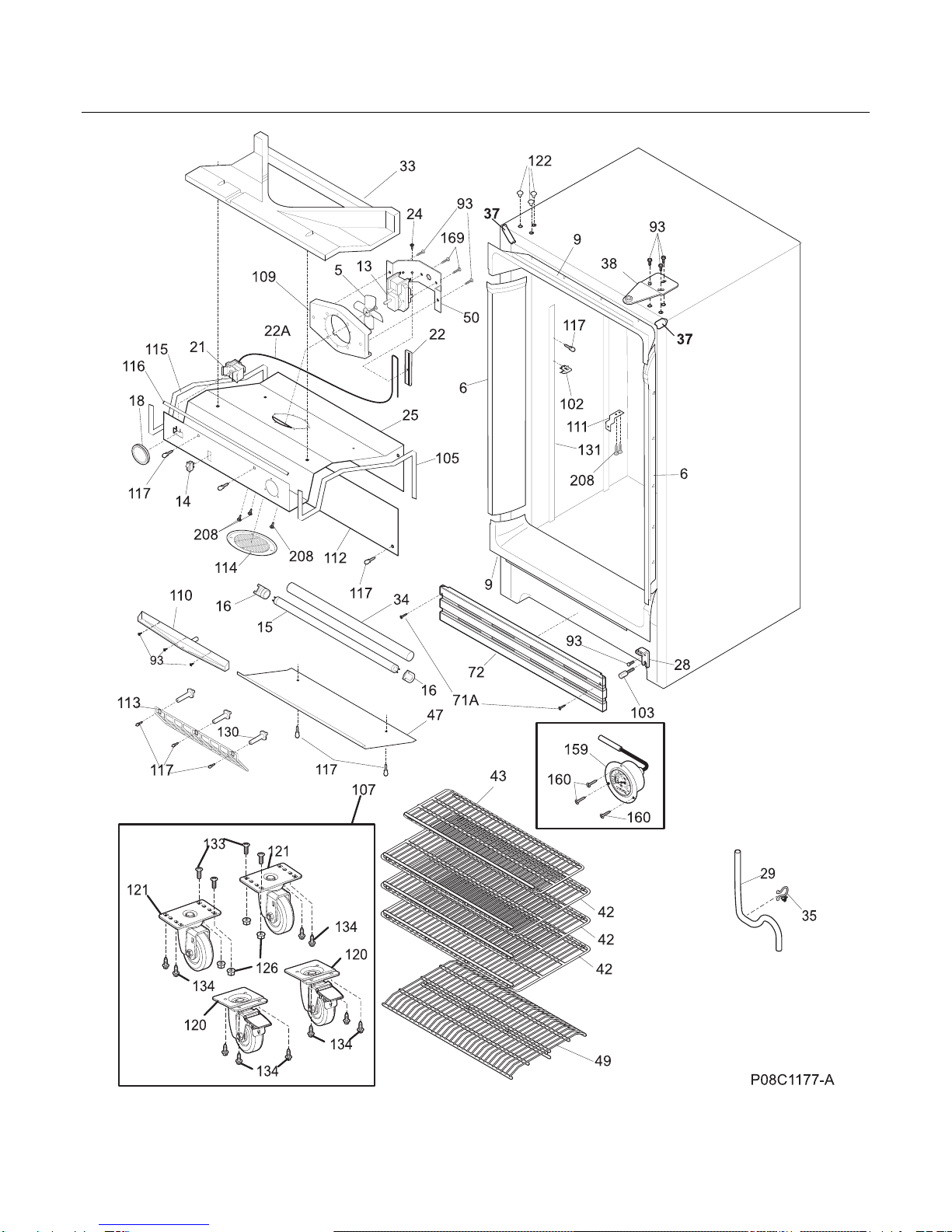

CABINET

KGM220RHY3 Publication No: 5995583902

# Functional Parts 5 01/11

* Non-Illustrated Parts

CABINET

POS. NO PART NO. DESCRIPTION

5 # 216325600 Fan Blade

6 297200900 Breaker Kit w/corners

9 297200100 Breaker Kit w/corners, 32", top and bottom

13 # 297250000 Motor, fan, 115 V

14 216660000 Switch, rocker

15 216659500 Bulb-light, 40W, 130V

16 216659900 Socket-light/lamp

16* 297173500 Ballast, Fl Lamp

* # 297069500 Harness, electrical, evaporator

* 297174300 Screw, #8, 18x.63

18 216591501 Knob, temp control

21 # 216660600 Control-temperature

22 216823500 Clamp, cap tube, cold control

22A 5303916855 Tube, sensor sleeve, plastic, clear

24 5304460604 Screw, type A, 10-24 x 3/8

25 216659101 Cover-evaporator

28 216658900 Hinge-bottom

29 216361901 Hose-drain

33 216680901 Duct-air

34 216659400 Shield-light

35 216273000 Clip, wire retainer

37 297273903 Trim-cabinet corner, silver mist, (2)

38 297211200 Hinge-upper

42 216681902 Shelf, white, (2)

43 216682002 Shelf, white

47 216680600 Deflector-air

49 216681802 Trivet

50 08013207 Bracket-fan motor

71A 297146820 Screw, 8-18AB x.470 QX

72 297071200 Grille/Kickplate

93 5304460605 Screw, ph truss head, 8-18AB x 0.500

102 297121900 Support shelf

103 216336301 Standoff-base panel

105 216361100 Gasket-cover evap, RH

107 297085805 Castor Kit

107* 297086605 Castor, hardware kit

109 297014200 Venturi, blower

110 216377000 Pan-drain, condensate

111 297141400 Bracket-evap cover

111* 3017666 Nut-insert

112 216381300 Cover-drain, condensate

113 216383602 Grate-air intake

114 297014400 Cover-blower

115 216383700 Gasket-evap cover, LH

116 216383800 Gasket-evap cover, front

117 216605500 Thumbscrew

120 297206600 Caster-front, (2)

121 297206500 Caster-rear, (2)

122 297095301 Plug, black

126 216658601 Nut, lock, 5/16 UNC-3B

130 297244700 Support, evaporator mtg

Publication No: 5995583902 KGM220RHY3

01/11 6

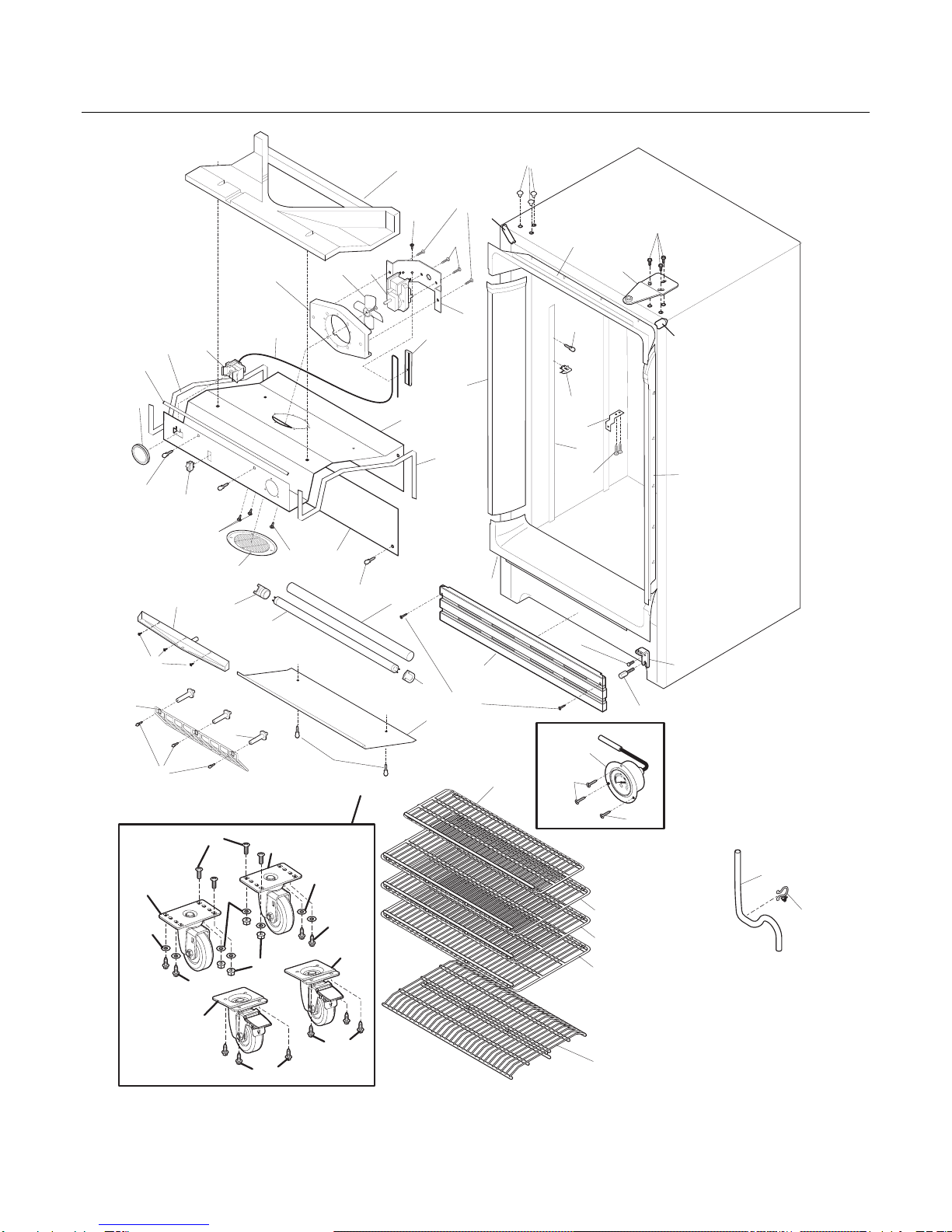

CABINET

-10

-20

-30

-40

20 30

FRIGIDAIRE

COMMERCIAL

NSF

122

22A

117

110

117

130

113

103

117

105

117

131

102

111

208

169

109

115

116

117

114 112

208

71A

P08C1177

43 160

160

159

134

124

120

134

121

126

124

133

134

124

107

KGM220RHY3 Publication No: 5995583902

# Functional Parts 7 01/11

* Non-Illustrated Parts

CABINET

POS. NO PART NO. DESCRIPTION

131 297122000 Shelf-standard

133 216658401 Bolt, caster, 5/16 sq. neck, front

134 297236250 Screw, hex head, 1/4-20x5/8, hinge, (4)

159 297070201 Dial, thermometer

160 297096100 Screw, #6-20X.375 AB, stainless, thermo dial

169 216912401 Screw, hex washer head, 8-32 x 0.500, bracket fan mtr, (2)

208 216504500 Screw, AB, 8-18x.500

* 297001708 Insulation, drain tube, 36"

* 5303311565 Clip-cable

* # 297169900 Cord-power, flat

Publication No: 5995583902 KGM220RHY3

01/11 8

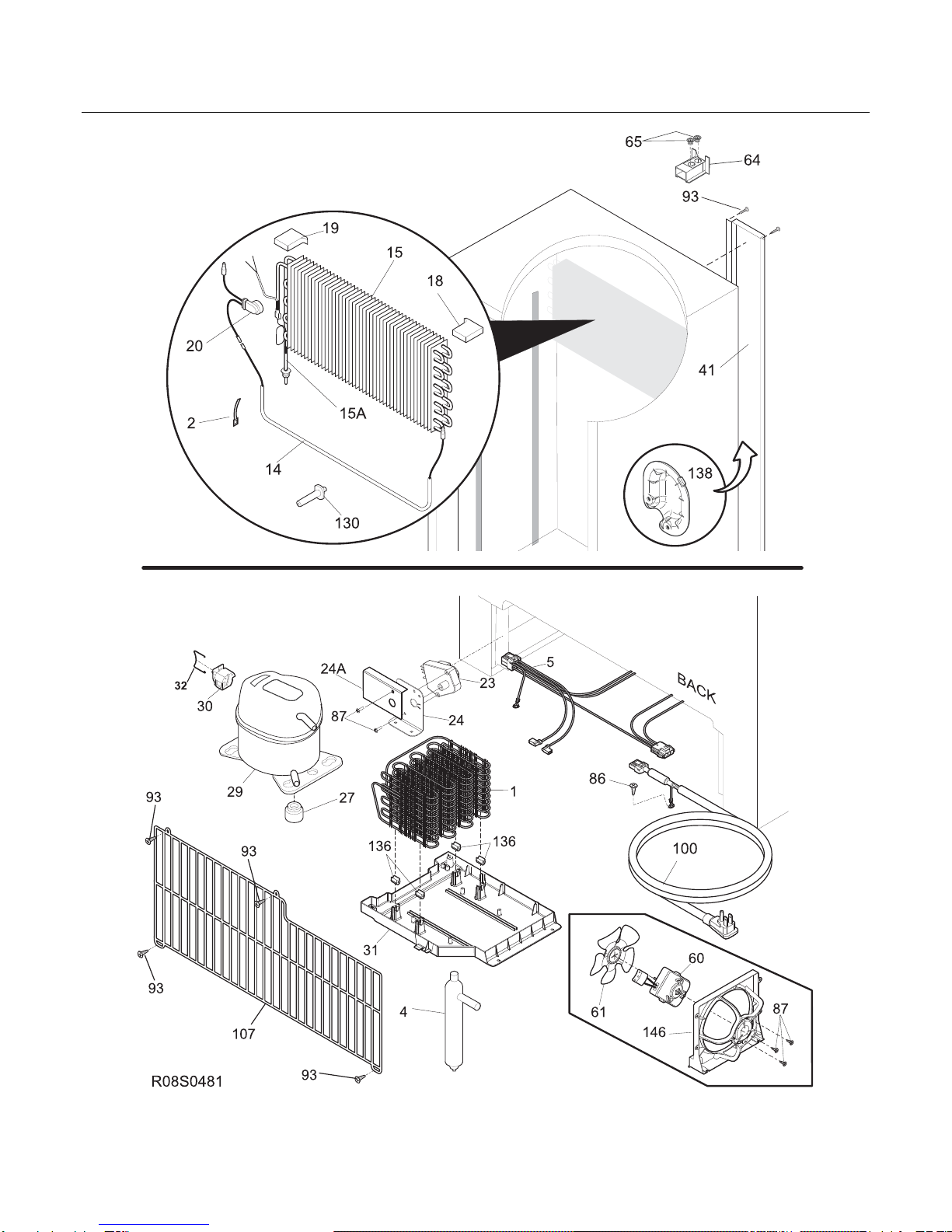

SYSTEM

KGM220RHY3 Publication No: 5995583902

# Functional Parts 9 01/11

* Non-Illustrated Parts

SYSTEM

POS. NO PART NO. DESCRIPTION

1 297152201 Condenser

2 5308000110 Strap-evap/heater, aluminum, (2)

4 # 216938601 Drier-filter

5 # 297170700 Harness-electrical

14 216730700 Heater-defrost

15 # 297311300 Evaporator

15A 297219300 Heat Exchanger

18 297078701 Insulator-evap, styrofoam, RH

19 297078801 Insulator-evap, styrofoam, LH

20 216731001 Thermostat, defrost

23 # 216744500 Timer-defrost

24 216968501 Bracket-timer

24A 297207900 Guard, timer

27 297102900 Grommet, compressor

29 # 5304475102 Compressor Kit, w/electricals

* 240491503 Screw-compressor mtg, 1/4-28 x 1.16, (4)

30 216954228 Controller

31 297165801 Pan-drain

32 216954300 Clip, controller

41 297070700 Cover-wiring, rear

60 241584301 Motor-condenser fan

61 241639501 Blade-condenser fan

64 216578800 Vent

65 5309950074 Valve, breather

86 216036601 Screw, RWHD, 8-32A x 0.500, GX-CA

87 5304463290 Screw, hi-lo blunt, #8-18X1/2

93 5304460605 Screw, ph truss head, 8-18AB x 0.500

100 # 297169900 Cord-power, flat

107 297225501 Cover, access

130 297244700 Support, evaporator mtg

136 240405201 Grommet, rubber, black, cond tube/wire

138 297070800 Cover-drain hose

146 297164000 Shroud-fan orfice

146* 216337701 Screw, HWH, 10-24 x 0.500, Swage

* 216225700 Grommet-spacer

* 240555002 Screw-#8-32 X 3/8

* 297048400 Clip

* 297082300 Harness-jumper

* 297111000 Standoff

* 5303311565 Clip-cable

* 297174300 Screw, #8, 18x.63
