Keithley 263 Manual de usuario

Model263

Calibrator/Source

Quick ReferenceGuide

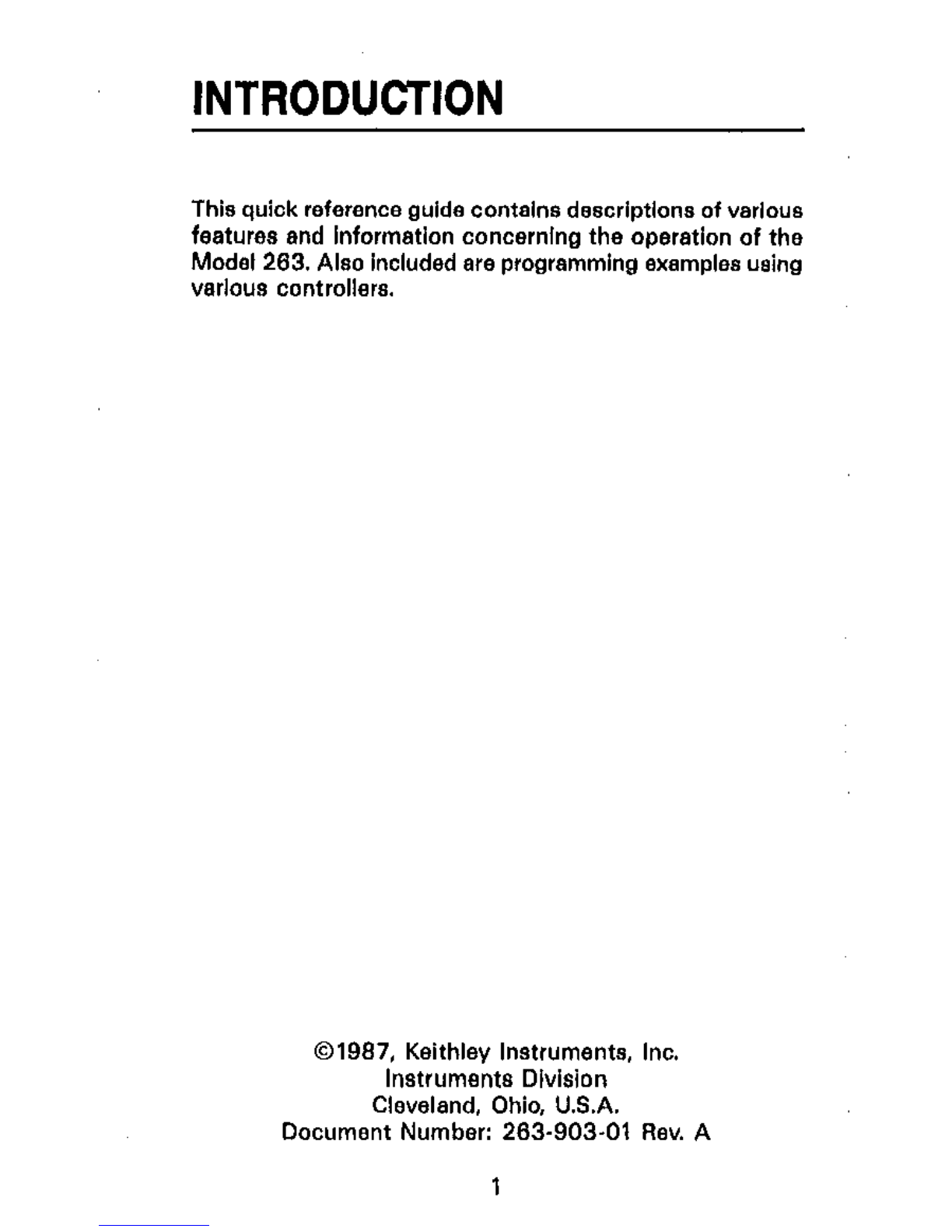

INTRODUCTION

This quick reference guide contalne descriptions of parlous

features and Information concerning the operation of the

Model 283. Also included are programming examples using

VBrlous COntr011wa.

Q1997, Keithley Instruments. Inc.

Instruments Division

Cleveland. Ohio, U.S.A.

Document Number: 283-903-01 Rev. A

TABLE OF CONTENTS

SAFETY PRECAUTlONS 3

FRONT PANEL OPERAflON 4 : j

CONNECTORS IRear Panell.. 9

PROGRAMMING OUTPUT VALUES 10 i i

SOURCING METHODS 11 ; ~

GUARD 13 ‘~I

FRONT PANEL PROGRAMS. 16 i

IEEE-488 PROGRAMMING.. 17

PROGRAMS 23

IBM PC or AT ICEC PC < > 488 Interface1 24

IBM PC or AT ,National GPIS PC Interface,. 26

APPLE II 28

HP85................................ 30

HPSERlES300and.9816 ,,,,,,,,,,,,,.,,, 32 ; j I

HP9925A............................. 34 :

DECLSIll ,...,,.,,,,,,,,,,,o,,,,.,,, 36 i ,! _

SAFETY PRECAUTIONS

1. Before operation, ground the instrument through a prop-

erly earth grounded power receptacle.

2. Before sevlcing, disconnect the instrument from the

power line and all other equipment, and consult the Model

263 InstructIon Manual.

3. Do not touch any terminals while the Instrument Is oon-

nectsd to any other test equipment.

FRONT PANEL OPERATION

POWER-Controls AC line power to the instrument. i ;

1~~>

SHIFT-Several controls have secondary functions that are

selected by first pressing SHIFT and then pressing the ap- 1 :

propdate button.

: I

FUNCTION GROUP

FUNCTION

OHM9

VOLTS EX

OmH

AMPS

f=-l

OYAV/Rm

OB-'

OHMS-Pressing the OHMS button configures the Model

263 as a resistance source. The value of the reslstanoe will

be displayed.

VOLTS-Pressing the VOLTS button conflgures the Model

263 88 a voltage 80”~~ The voltage VBIUBwill be displsyed.

Pressing SHIFT VOLTS configures the Model 263 to output

an external wurce applied to the EXT INPUT and COMMON

terminals on the rear panel. The EXT indicator turns on and

the message “USE, V” 18displayed.

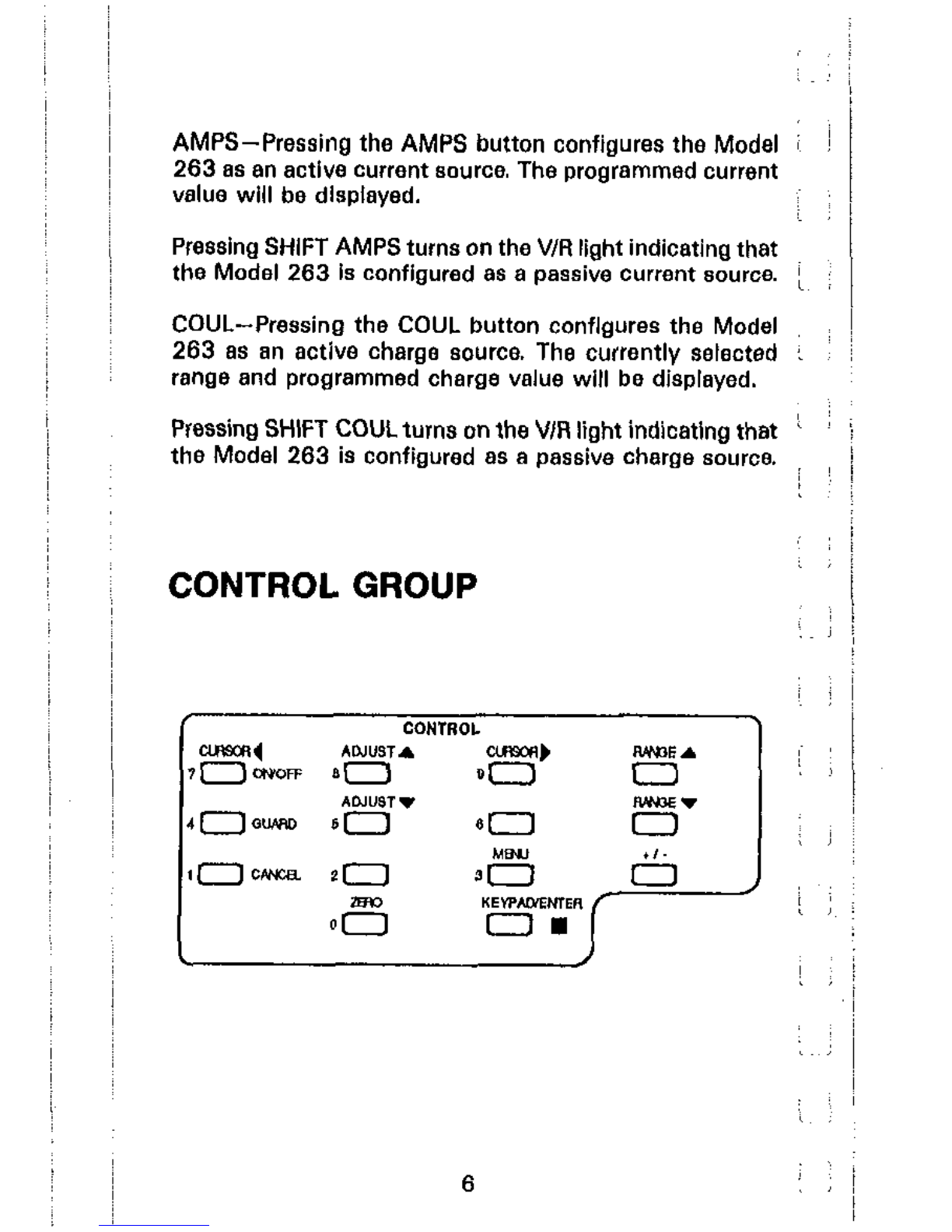

AMPS-Pressing the AMPS button configures the Model :

263 as an active current source. The programmed current

value will be dlsplayed.

Pressing SHIFT AMPS turns on the V/R light indicating that

the Model 263 is configured as a passive current aouroe. I

COUL-Pressing the COUL button conflgures the Model

263 8s an active charge 8ouroe. The currently selected :

range and programmed charge value will be displayed.

Pressing SHIFT COUL turns on the VIR light indicating that ’ ’

the Model 263 is configured as a passive charge source.

CONTROLGROUP

RANGE-These two buttons are used to swleot the range

of the selected function. RANGE A upranges the Instru-

ment and RANGE V downranges.

CURSOR-These two buttons are used to position the our-

sot when using the Adjust Method to modify an output

valuw. CURSOR C moves the cursor from left to right and

conversely, CURSOR 4 moves the cursor from right to left.

Not functional In OHMS.

Pressing SHIFT ON/OFF the first time displays the flashing

cursor continually. Pressing It again disables the cursor. Not

functional in OHMS.

ADJUST-These two buttons aro used to modify the display

reading using the Adjust Method. ADJUST A increments

the reading at the seleotnd dlglt and ADJUST T decrements

the reading. Not funotional in OHMS.

KEYPAD/ENTER-Pressing this button enables the keypad

allowing an output value to be keyed in using the number

10through 91buttons and the + button IKeypad Method).

Pressing this button *gain enters the resdlng and disables

the keypad. Not functional in OHMS.

SHIFT CANCEL-Pressing this button after keying in B

reading (Keypad Method) canoels that reading and disables

the keypad.

+/- Toggles the displayed reading (except OHMS1 bet-

wsen posltlve (t) and negative l-l polarity. Not functional

in OHMS.

ZERO-Toggles the display between zero and the previously

displayed reading.

SHIFT GUARD-Toggles the output configuration between

guarded and unguarded.

MENU-Used to Sslsot front panel program& Program

parameters are modified by the ADJUST buttons. Pressing

MENU after modifying a program parsmeter enters the new

parameter and returns the instrument to normal operation.

OPERATE-Toggles the instrument between the standby and

operate conditions.
