TECHNICAL MANUAL

KAYF-DN3.0

Version 1.1

The specifications, designs, and information in this book are subject to change without notice for

product improvement

TECHNICAL MANUAL

Wall Mounted

1. Features.......................................................................................................3

2. Specifications .............................................................................................4

3. Dimensions .................................................................................................6

4. Piping Diagrams .........................................................................................7

5. Wiring Diagrams .........................................................................................8

6. Capacity Tables.........................................................................................11

7. Electrical Characteristics.........................................................................15

8. Sound Levels ............................................................................................16

9. Accessories...............................................................................................18

KAYF- DN3.0

1. Features

New Panel

Flexible installation

Multi-refrigerant outlet pipe method: left\right\rear, more flexible for installation.

Flexsible piping connection

Refrigerant piping and condensate piping on the same side

High efficiency DC fan motor

The power consumption of DC driven VRF indoor units can be reduced up to 30% in comparison to

correspondingAC type.

Quiet operation

Adoption of the 2000 stages element positioning mechanical expansion valve, ensures precise flow control, as

well as lower modulation noise when EXV operating.

More smooth airflow with less turbulence. Owing to the multiple-blade fan and the air guide design, the airflow

is getting smoother and more comfortable.

TECHNICAL MANUAL

2. Specifications

Model

KAYF-22 DN3.0

KAYF-28 DN3.0

KAYF-36 DN3.0

KAYF-45 DN3.0

Power supply

V- Ph-Hz

220-240V~ 50/60Hz

Cooling

Capacity

2.2

2.8

3.6

4.5

Input

Rated current

0.27

0.31

0.43

0.44

Heating

Capacity

2.4

3.2

Input

Rated current

0.27

0.31

0.43

0.44

Indoor fan motor

Model

WZDK20-38G

ZKSP-58-8-1

Type

DC motor

Input

Indoor coil

Number of rows

Tube pitch× row

pitch

21×13.37

Fin spacing

1.3

Fin type

Hydrophilic aluminum

Piping diameter

Ф7

Length× height

585×315

701×315

Number of circuits

Indoor air flow (H/M/L)

m3/h

422/393/356

417/370/316

656/573/488

594/507/424

Indoor noise level (H/M/L)

dB(A)

31/30/29

33/32/30

35/33/31

Indoor unit

Dimension (W×H×D)

835×280×203

990×315×223

Packing (W×H×D)

935×385×320

1085×420×335

Net/Gross weight

8.4/12.1

9.5/13.1

11.4/15.5

12.8/16.9

Refrigerant type

R410A

Throttle

Type

EXV

Design pressure (H/L)

MPa

4.4/2.6

Liquid pipe/ Gas pipe

Ф6.35/ Ф12.7

Connecting wiring

Power wiring

mm2

3×2.5

Signal wiring

mm2

3×1.5

Drainage water pipe diameter

Ф16.5

Notes:

Nominal cooling capacities are based on the following conditions: return air temperature: 27°CDB, 19°CWB; outdoor temperature: 35°CDB,

equivalent ref. piping: 8m (horizontal)

Nominal heating capacities are based on the following conditions: return air temperature: 20°CDB, outdoor temperature: 7°CDB, 6°CWB;

equivalent ref. piping: 8m (horizontal)

KAYF- DN3.0

Specifications

Model

KAYF-56 DN3.0

KAYF-80 DN3.0

Power supply

V-

Ph-Hz

220-240V~ 50/60Hz

Cooling

Capacity

5.6

Input

Rated current

0.58

0.6

Heating

Capacity

6.3

Input

Rated current

0.58

0.6

Indoor fan motor

Model

ZKSP-58-8-1

ZKSP-60-8-3

Type

DC motor

Input

Indoor coil

Number of rows

Tube pitch× row

pitch

21×13.37

Fin spacing

1.3

Fin type

Hydrophilic aluminum

Piping diameter

Ф7

Length× height

701×315

825×399

Number of circuits

Indoor air flow (H/M/L)

m3/h

747/648/547

1195/1005/809

Indoor noise level (H/M/L)

dB(A)

38/36/34

44/39/36

Indoor unit

Dimension (W×H×D)

990×315×223

1194×343×262

Packing (W×H×D)

1085×420×335

1290×375×460

Net/Gross weight

12.8/16.9

17/22.4

Refrigerant type

R410A

Throttle

Type

EXV

Design pressure (H/L)

MPa

4.4/2.6

Liquid pipe/ Gas pipe

Ф9.53/ Ф15.9

Connecting

wiring

Power wiring

mm2

3×2.5

Signal wiring

mm2

3×1.5

Drainage water pipe diameter

Ф16.5

Notes:

Nominal cooling capacities are based on the following conditions: return air temperature: 27°CDB, 19°CWB; outdoor temperature: 35°CDB,

equivalent ref. piping: 8m (horizontal)

Nominal heating capacities are based on the following conditions: return air temperature: 20°CDB, outdoor temperature: 7°CDB, 6°CWB;

equivalent ref. piping: 8m (horizontal)

TECHNICAL MANUAL

3. Dimensions

KAYF-22 DN3.0, KAYF-28 DN3.0

KAYF-36 DN3.0, KAYF-45 DN3.0, KAYF-56 DN3.0

KAYF-80 DN3.0

KAYF- DN3.0

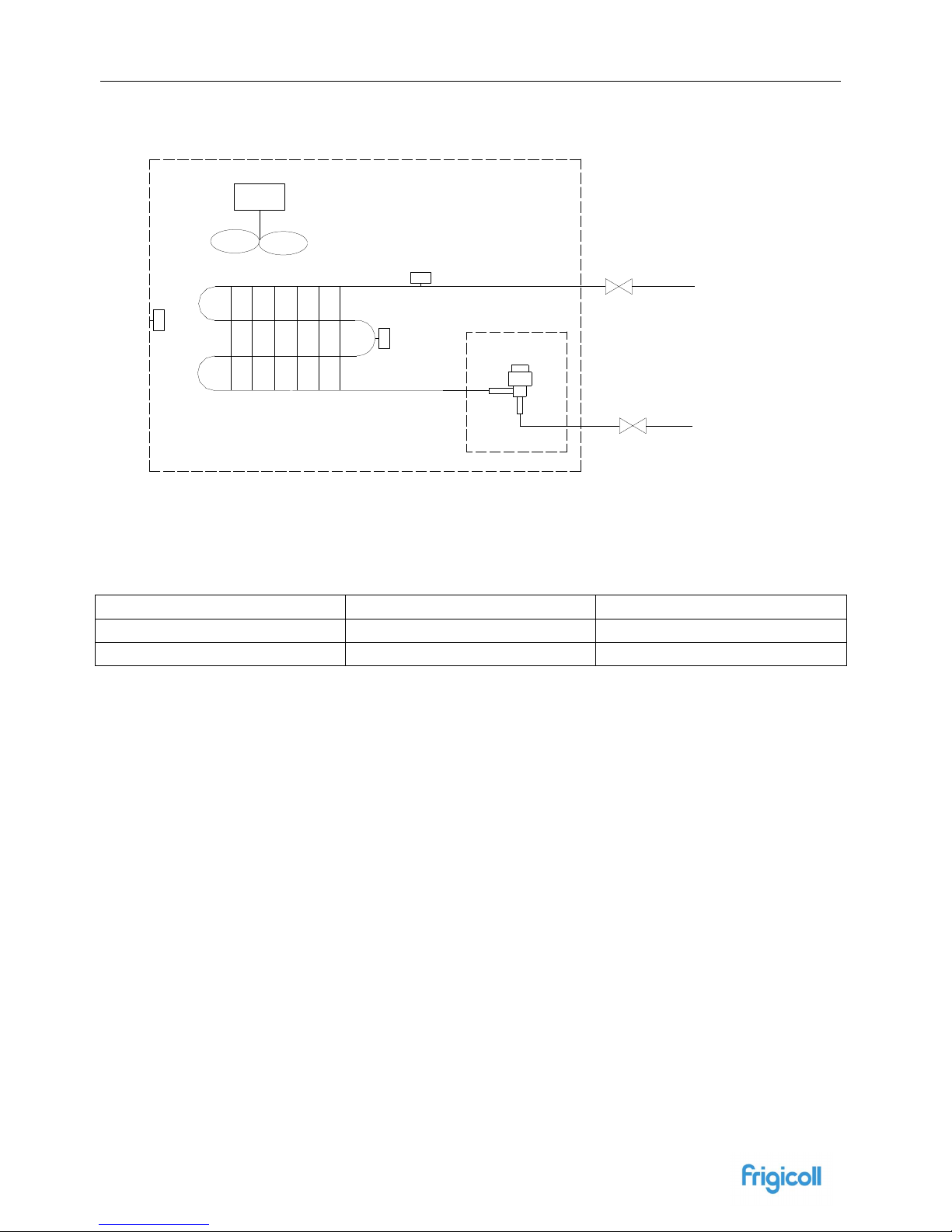

4. Piping Diagrams

flare nut

T2B

gas side

motor

heat exchanger

fan

EXV

liquid side

T1: Indoor ambient temperature sensor;

T2: Temperature sensor in the middle of evaporator;

T2B: Evaporator outlet temperature sensor.

Refrigerant pipe connection port diameters

Model

Gas pipe

Liquid pipe

2.2-4.5kW

Φ12.7

Φ6.35

5.6-8.0kW

Φ15.9

Φ9.53

TECHNICAL MANUAL

5. Wiring Diagrams

KAYF-22 DN3.0, KAYF-28 DN3.0

KAYF-36 DN3.0, KAYF-45 DN3.0, KAYF-56 DN3.0

KAYF- DN3.0

Wiring diagrams

KAYF-80 DN3.0

Code definition

Code

Name

Code

Name

Fan motor

T2B

Evaporator outlet temperature sensor

Swing motor

Water level switch

PMV

EXV

XP1-5/XS1-5

Connectors

Indoor ambient temperature sensor

XT1/XT2

Terminals

Temperature sensor in the middle of evaporator

Magnetic ring

Dial switch setting

Means 0

Means 1

SW1 setting

0 means auto addressing mode (Default)

1 means factory test mod

SW2 setting

00 means when temperature is 15°C or below, fan will stop to prevent cold air(Default)

01 means when temperature is 20°C or below, fan will stop to prevent cold air

10 means when temperature is 24°C or below, fan will stop to prevent cold air

11 means when temperature is 26°C or below, fan will stop to prevent cold air

1234

TECHNICAL MANUAL

Dial switch setting

SW2 setting

00 means in heating mode, the fan which stop for reaching the set temp., will periodically stop for 4 minutes and run

for 1 minute (Default)

01 means in heating mode, the fan which stop for reaching the set temp., will periodically stop for 8 minutes and run

for 1 minute

10 means in heating mode, the fan which stop for reaching the set temp., will periodically stop for 12 minutes and

run for 1 minute

11 means in heating mode, the fan which stop for reaching the set temp., will periodically stop for 16 minutes and

run for 1 minute

SW5 setting

00 means temperature compensation value is 6oC in heating mode (default)

01 means temperature compensation value is 2oC in heating mode

10 means temperature compensation value is 4oC in heating mode

11 means temperature compensation value is 8oC in heating mode

SW6 setting

0 means temperature compensation value is 0oC in cooling mode (default)

1 means temperature compensation value is 2oC in cooling mode

J1 definition

With auto restart function

Non-auto restart function

1234

SW5

SW6
