KAP FORD-SYNC3-THC2 Manual de usuario

FORD-SYNC3-THC2

(VIDEO Interface)

MODEL

-PAS-171204

DATE

2018.02.27

Main Spec.

1. Input Spec. (MULTI VIDEO INTERFACE)

- 1 x Analog RGB Input (Navigation System output)

- 1 x HDMI Input (Mirroring System source)

- 2 x A/V Input (External video source).

- 1 x CVBS(REAR CAMERA) Input. (Rear camera source)

- 1 x CVBS(FRONT CAMERA) Input. (Front camera source)

- 1 x LVDS Input. (Car Command System)

2. Output Spec.

- 1 x LCD Output (LCD Operation)

- 1 x Resistive Touch Output

3. Power Spec.

- Input Power : 8VDC ~ 24VDC

- Consumption Power : 12Watt, Max

4. Switch Input mode

- Possible to select CAR model while switching mode by DIP S/W

- By button on the Commander in the car via CAN

External Appearance

LED

DIP S/W PROGRAM


Mirroring

(USB power)

POWER/CAN

TOUCH

Mirroring

(HDMI)

NAVI

A/V

LCD-OUT

LCD-IN

Connector Pin Assignment

*POWER Connect

1. Battery (Yellow)

2. Battery (Yellow)

3. Rear-DET (Brown)

4. Front-DET (Blue)

5. CAN1-L (Green)

6. CAN1-H (Orange)

7. N.C

8. N.C

115

2 16

9. N.C

10. N.C

11. ACC (Red)

12. Rear-VCC (Red)

13. Front-VCC (Red)

14. Mode (Green)

15. GND (Black)

16. GND (Black)

*NAVI Connect

①R DATA (Red)

②G DATA (Green)

③B DATA (Blue)

④SYNC (White)

⑤GND (Black)

⑥DVB-T-IR

⑦DVD-IR

① ② ③ ④ ⑤ ⑥ ⑦

*Touch Connect

①Y-

②X-

③Y+

④X+

① ② ③ ④

Product Composition

Interface 1 EA

FS-PAS-170830

LVDS IN Cable 1 EA

Power Cable 1 EA

OSD Board 1 EA

RGB NAVI Cable 1 EA

LVDS OUT Cable 1 EA

Mode S/W 1 EA

A/V Cable(GU-20pin) 1 EA

DIP S/W Setting

* ON : DOWN , OFF : UP

PIN FUNCTION DIP S/W Selection

1 NAVI ON : Not Used

OFF : Used

2 DVB-T(AV1) ON : Not Used

OFF : Used

3 DVD(AV2) ON : Not Used

OFF : Used

4 HDMI ON : Not used

OFF : used

5 N.C

CAR type SEL Right Picture7

* DIP S/W Example

F150 Model

Mustang Model

F150 Model (2) If 6,7,8 up setting not work,

use this

Mode Change

Steering Wheel Button Control

Select “Left” button or “Voice” button.

Not use, select “Off”

“Left” button

- Press 1.5sec to Mode change

-Push short , back to OEM

“Voice” button

- Press 3sec to Mode change

-Push short , back to OEM

“Left” button

-Press 1.5sec to Mode change

- Push short , back to OEM

“Voice” button

- Press 3sec to Mode change

- Push short , back to OEM

Special model–Looks same as F150 , but not work mode change.

Dip s/w setting

Mode Change

Touch Control

Push 11sec on the NAVI / DVB-T / DVD screen

(just 1 screen)

Press+

Touch control - Calibration

OSD menu -> Utility -> Calibration

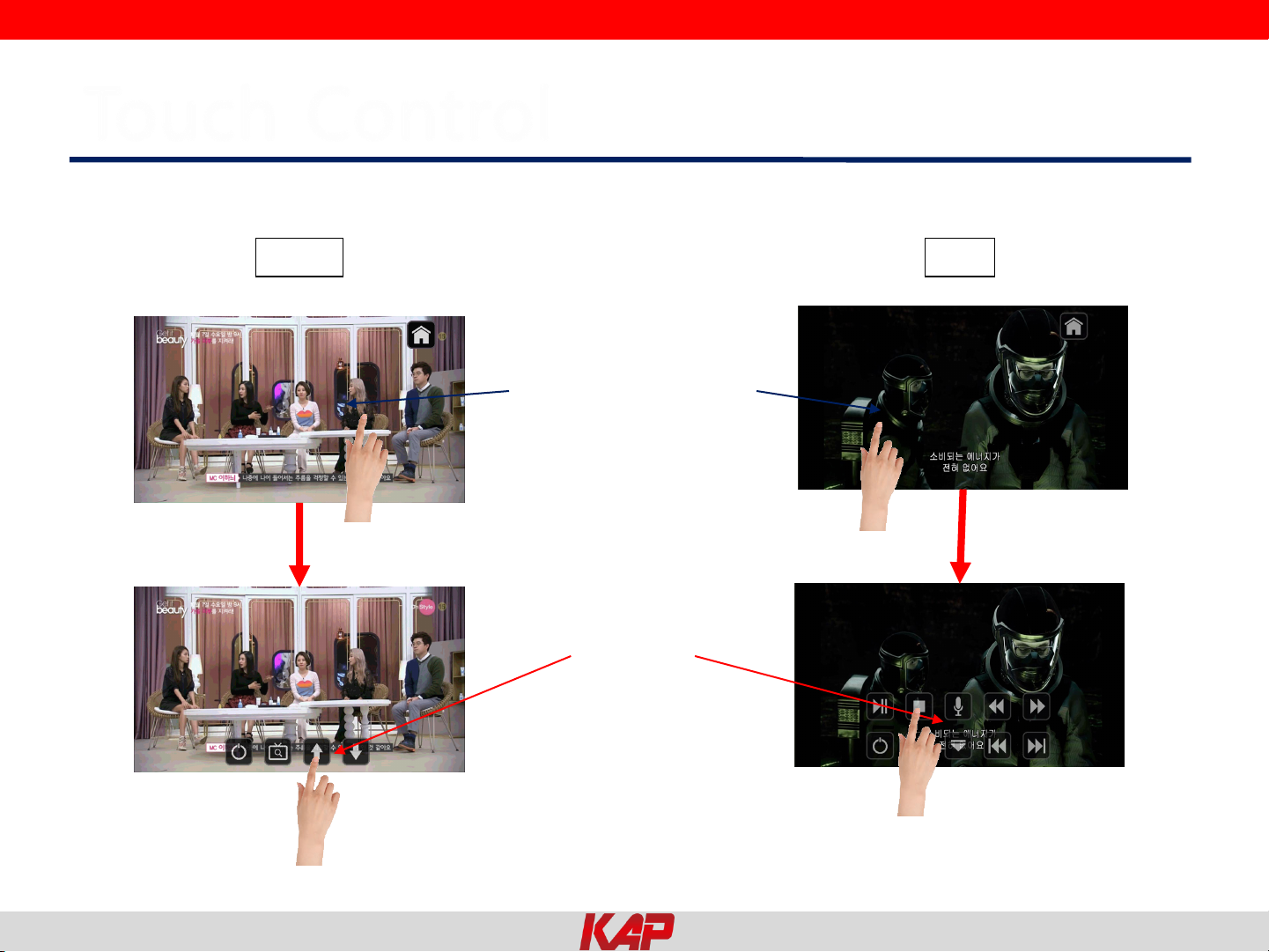

Touch Control

Touch control in DVB-T / DVD mode

Press Touch(Anywhere)

Press Icon

DVB-T DVD
