Name of Parts
Specification Parameters
Package Contents
Using the Camera
Studio
ENContents
Operate with Obsidian Remote APP

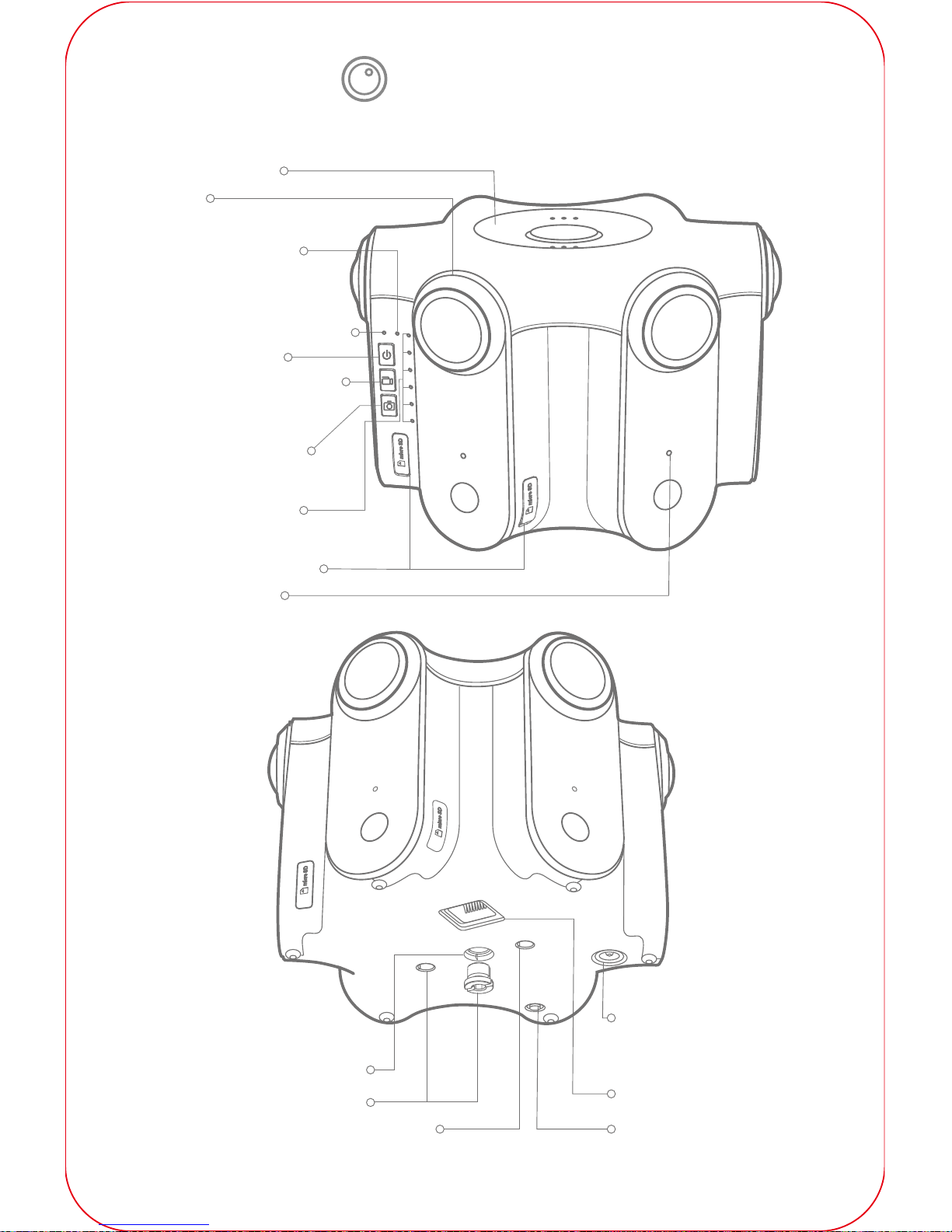

Name of Parts
1
Tripod Mount：Anti-Rotation Pin
Tripod Mount：3/8“UNC
Tripod Mount：1/4“UNC
External microphone
input /Zoom H2n
synchronization
Ethernet Port
12V External Power
Supply Terminal
Micro SD Card Slot
Microphone
Battery Status Indicator
Power Indicator
Working Mode
Indicators
Power Button
Video Record Button
Time-lapse Photo
Capture Button
Battery Cover
Lens
Model Video Resolution
Obsidian R
Obsidian S
Single-lens Resolution
8k x 8k 30 3800 x 3000
4k x 4k 60 1900 x 1500
6k x 6k 3000 x 2160
6k x 6k 30 3000 x 3000
4k x 4k 120 1500 x 1080
4k x 4k 80 1500 x 1500
Frame rate (fps)
Photo Format
Weight (Camera + Battery)
Video Coding Format
Working Temperature
Working Humidity
Storage Temperature
Input Voltage
Video Format MOV
JPG / DNG
1.1kg
Recording Media Micro SD / SDHC / SDXC cards,
U3（USH - I）cards are recommended
H.264 / H.265
12V
0 ~ 30 °C
10~90% RH
- 40 ~ 80 °C
Storage Humidity 5 ~ 90% RH
ISO Range 100 - 3200
Model Obsidian R / S
Photo Resolution Single-lens Resolution
8k x 8k 3800 x 3000
6k x 6k 3000 x 3000
Model
Obsidian R
Obsidian S
Video
2
It can be conforms to 60fps in Kandao Studio for better VR HMD
playback.
50
Specification Parameters
3
Package Contents
Batteries LP-E6
PoE Power Cord
Ethernet Cable
for PoE & Camera
Shoulder StrapCarrying CaseObsidian Camera
Manual
i
Bubble LevelHot/Cold-Shoe Mount
for Zoom H2n Handy
Recorder(spatial sound)
Battery Cover with
Hot/Cold-Shoe Socket
Lens Cleaning Pen
Sync control cable
for Zoom H2n Handy
Recorder(spatial sound)
Card Reader USB 3.0
3
Lens Cleaning
Cloths
PoE Power Supply
for DC54V 60W
( Optional )
Using the Camera
If more than one power source is connected to the camera
at the same time, the camera will choose its supply in the
order of preference as listed above.
Power the Camera using one of the following ways
PoE (Power over
Ethernet)
2 X Canon LP-E6
or compatible
batteries
12V external power
supply
1
2
3
4
Insert Micro SD cards
Insert all six Micro SD cards into the slots. U3（USH-I）cards are
highly recommended for maximum speed and stability.
R/S
2
3
4
5
6
Power on：Long press the [power button]
for 3 seconds,if the camera is turned on
normally,the power lamp will stay red and
the six working mode lamps will blink the
then stay blue.
Power off：Long press the [power
button] for 3 seconds，all [working
mode lamps] will turn off after fast
blink.
Power on / off
5
Video Shooting & Time Lapse
R/S
2
3
4
5
6
Short press the [Video Capture button] to start
recording video and short press the button
again to stop recording .All working mode lamps
will be in quick flashes before the recording
starts normally. During the recording process, all
working mode lamps will flash slowly.
Video shooting
Master Lens
The lens labeled “S” or “R” is the master lens of the camera. In
default mode, each lens calculates its own exposure parameters
(ISO & Shutter Speed) automatically and individually, and all of
them follow the Automatic White Balance setting of the master
lens . This setting can be changed in the Obsidian Remote App.
4
Master Lens
2
3
6
5
6
Short press the [Time-lapse Photo Capture
button] to start the capture.The default time
interval is 10 seconds. Short press the
[Time-lapse Photo Capture button] again to
end the capture. Every time it captures,the blue
working mode lamps will twinkle once.Time
inverval can be changed in the Obsidian
Remote App.
Time lapse shooting
R/S
2
3
4
5
6
The camera should be connected to the router’s LAN port, not
the WAN port.
Connect your smartphone to the router’s WIFI. For example, if
you connect the camera to the router with WIFI name "Love
Virtual Reality ", your phone should also connect to the WIFI
named “Love Virtual Reality”. You can verify this by checking the
WIFI connection in your phone’s settings.
Click the Obsidian Remote APP icon to start
1
2
WIFI connection
The camera must connect to a wireless router by an Ethernet cable
and the mobile phone must connect to the same router. Please
note:
7
Download the Obsidian remote APP to the mobile phone
Operate With Obsidian Remote APP
Download AndroidiOS
Google Play StoreAPP Store http://www.kandaovr.com
Obsidian Remote Controller
APP
Studio
Kandao Studio provides a effortless solution for stitching high
quality 3D 360 VR videos and photos.
8
http://www.kandaovr.com/studio.html
00:00
GPU
Effortless
One-Click
Processing
Immersive 3D
depth
Ambisonic
surround
sound support
GPU acceleration
to speed up
creative workflow
Download
