USER MANUAL

Version 1.0

RGB

KML305

Power Party Bar WFS

Worldwide Trade Distributors

.KU,RH252SLSDEEL,HTROFRAG,HCAORPPANOSNIKRAP,ESUOHMELAS,SHJ

Read Manual before Operation

Dear user,

Thanks for choosing our LED device. Before operating this device, please read this manual

thoroughly, and retain it for future reference.

Unpacking Instructions

Please note the warnings in bold which will ensure the safe and smooth operation. These

warnings are important to a certain extent.

Warning Data

This unit is in perfect condition before delivery, please check all accessories when unpacking

the unit. User should follow this user manual to operate this unit, and make sure that you are

clear on all safety information and unit operation before power it on. Any wrong operation

will make this unit out of warranty.

Carefully moving after receiving it, checking whether there is any damage from shipping, and all

the accessories in it.

Attention!

Unpacking Instructions

NAME

LED system

Power Cord

User manual

Stand

Wireless Footswitch

Packing Case

Attention! Indicates a skill or other useful information for special situations.

Important! Indicates important information to protect personnel from laser incident or injury.

Caution! Prevent damage or injury from incorrect operation.

Warning!

If the external flexible cable or cord of this luminaire is damaged, it shall be replaced by a

special cord or cord exclusively available from the manufacturer or his service agent.

Shields, lenses or ultraviolet screens shall be changed if they have become visibly damaged to

such an extent that their effectiveness is impaired, for example by cracks or deep scratches.

The lamps shall be changed if it has become damaged or thermally deformed.

QTY

1set

1pcs

1set

Safety Instructions

To protect the environment, please try to recycle the packing material as much as possible.

The projector is for indoor use only, IP20. Use only in dry locations. Keep this device away

from rain and moisture, excessive heat, humidity and dust. Do not allow contact with water

or any other fluids, or metallic objects.

Don’t throw this product away just as general trash, please deal with the product follow the

abandon electronic product regulation in your country.

Locate the fixture in a well ventilated spot, away from any flammable materials and/or

liquids. The fixture must be fixed at least 50cm from surrounding walls.

To avoid condensation to be formed inside, allow this unit to adapt to the surrounding

temperatures when bringing it into a warm room after transport. Condense sometimes

prevents the unit from working at full performance or may even cause damages.

Don’t cover any ventilation openings as this may result in overheating.

Don’t install it on flammable objects.

Do not use it when maximum ambient temperature is higher than 40 degree.

Unplug the unit when it is not used for a longer time or before replacing the bulb.

Don’t open the top cover to avoid unit damage.

Please use the original packing when the device is to be transported.

◆

Never expose the lens to direct sunlight, even for a short period, this may damage the light

effect or even cause fire!

DMX-512 connection

Overhead Rigging

Make sure the area below the installation place is free from unwanted persons during rigging, de-

rigging and servicing.

Locate the fixture in a well ventilated spot, far away from any flammable materials and/or liquids.

The fixture must be fixed at least 50cm from surrounding walls

The device should be installed out of reach of people and outside areas where persons may walk

by or be seated.

The device should be well fixed; a free swinging mounting is dangerous and may not be

considered!

Do not cover any ventilation opening as this may result in overheating

Before the first time use, it must be inspected by professional staff to make sure safety, inspection

regularly every year.

◆

Attention!

The installation must be carried out by qualified service personal only. Improper installation can

result in serious injuries and /or damage to property. Overhead rigging required extensive

experience! Working load limits should be respected, Certified installation materials should be

used, the installed device should be inspected regularly for safety.

Overhead Rigging

AC Power

Please use the attached power cord , note that power voltage and frequency

are the same as the marked voltage and frequency of device when

connecting power. Every device’s power should be connected separately,

so that device can be controlled individually.

Cable spec. Cable(EU)

Brown

Light blue

Yellow/Green

Cable(US)

Black

White

Yellow/Green

Live

Neutral

Earth

International

Connection between lights and DMX must use the shielded cable of diameter more than 0.5mm.

Please use the attached 3 pin XLR plug/socket to connect the DMX output/input interface. The

connection between socket and cable as below (note the plug/socket’s 3 pin number and position).

Note, XLR plug/socket’s 3pin can not be touched by inner hull, connection between pins is not allowed.

Except above connection, XLR plug/socket can not be connected with XLR control line. Device receives

international standard DMX512(1990) control signal.

When using standard DMX512 control signal, the last device’s output interface must be

connected to a DMX plug. This plug is putting a 120 ohm resistance between “canon”

plug’s 2 pin and 3 pin. Showing as below pic. Sticking this plug into the last device’s signal

output interface, it will avoid the interference during the process of signal transmission.

DMX-output

XLR mounting-sockets(rear view)

DMX-input

XLR mounting-plugs(rear view)

1-Shield

2-Shield(-)

3-Shield(+)

Operation instructions

Footswitch Operation Instruction

FUNCTION

LED PAR lights

DMX input/output

Power connection

Power input

DESCRIPTION

12*Tri-9W

3PIN male/female XLR interface，for DMX communication

Power output connect with next light

Power input socket, built-in protective tube and spare tube

Receiving the audio signal through a microphone, and positive

response to the intensity by the potentiometer

To adjust the sound activated sensitivity

Microphones

Potentiometer

LCD control interface

NOTE：All the operations from the footswitch is invalid to the DMX mode and the SLAVE mode.

NAME FUNCTION

Press AUTO to activate the auto program controls. When working, all the lights will

begin in auto mode.

AUTO

Press SOUND to activate the sound program controls. When working, all the lights will

begin in sound mode.

SOUND

Color setting: R-G-RG-B-RB-GB-RGB

Light off.

BLACKOUT

POWER INPUT:100-240VAC 50/60HZ

POWER OUTPUT

FUSE:T1.6A 250V/60W

DMXIN

DMXOUT

IMIC MICROPHONE

SENSITIVITY

FUNCTIONSETTING

MENU UP DOWN ENTER

2 3 4 5 6 7

Product operation diagram

Various mode setting operations of the machinel

COLOUR

Menu operating instruction

After every power on the VERSION and MANUFACTURE INFORMATION will be shown

in LED monitor of rear panel. When the machine is powered on, LED monitor on rear

panel shows the current operating standalone mode or DMX address of DMX mode.

With help of LED control panel, isit very easy to set and change the operating mode.

After every resetting and saved, the new mode information will be shown on LED monitor at

next power .

Model choice,return to the previous menu.

Go into the deeper menu.

For higher numeric value operation.

For lower numeric value operation.

LED Display Functional Description

PAR light auto mode

Effect speed adjustment. 01 is the slowest, 99 is the fastest

PAR light sound mode

Color manual adjustment

LED color setting

Flash light speed adjustment. S.00: all on; S.99 is the fastest

Synchronous auto mode

Synchronous sound mode

Be the master for synchronous mode.

（under AUTO/SOUND/COLOR Mode）

Wireless pedal working mode

Aging testing and main board testing program.

Restore the factory initial setup

DMX channel selecting

Channel address setting

Slave mode

Address setting

Menu operating instruction

Initial Setting

ENTER into the next

step. To choose the

effect speed through

the UP/DOWN button.

S.01-S.99：

Effect speed adjustment.

01 is the slowest,

99 is the fastest

ENTER:

confirm and back

to the previous step.

AP01-AP17

PAR light auto show

Built-in

auto

programs

Rut

SP01-SP12

PAR light sound show

Built-in

sound

programs

SOU

Enter to confirm.

To adjust the sound sensitivity through the potentiometer.

ENTER into the next

step. MENU to

the previous step.

S.00—S.99：

strobe speed

S.00: all on,

S.99: the fastest

ENTER:

confirm and back

to the previous step.

R.000-R.255

G.000-G.255

B.000-B.255

COLO

color

setting

COL

Selecting the channel d001-dXXX Setting the address

03/04/12/20CH

DMX

mode

DNH

ENTER into the

next step 001-255 address setting

When selecting the

SLAVE mode, this

machine will follow

the master’s built-in

program through the

DMX cable.

SLAVE

mode

SLR

ENTER:

confirm and back

to the previous step.

ENTER into the

next step

ON：

turn on master mode

M-En: master mode

System

setting

sys

ENTER:

confirm and back

to the previous step.

ENTER into the

next step

ON：

turn on the wireless

footswitch working mode

W-En:

wireless pedal

working mode

ENTER:

confirm and back

to the previous step.

OFF：

turn off the wireless

footswitch working mode

OFF：

turn off master mode

TEST: testing mode

REST:

restore the

factory initial setup

ENTER to the testing mode

ENTER to restart the machine

NOTES：（1）S.01-S.99: program speed adjusting; S.01: the slowest, S.99: the fastest

2 A point will be shown on the screen if there’s no operation in 30s.

3 Machine address bit instruction, face to the LED screen, from left to right, the address

is 1-2-3-4.

4 The nixie tube will twinkle when there’s no signal input to SLAVE,D001.

DMX operation instructions

DMX Channels Chart.This device adopts large storage and high speed chip, which has been written with

lots of effect based on laser light DMX application. There are many kinds of model in channel one.

3 Channel DMX mode

CH1

CH2

Auto show

Sound-

to-Light

Auto shows

Channel Description

Value

Blackout

Standard Auto mode

Flashing Auto mode

000-009

010-127

128-255

000-014

015-029

030-044

045-059

060-074

075-089

090-104

105-119

120-134

135-149

150-164

165-179

180-194

195-209

210-224

225-239

240-255

Standard Auto show 1

Standard Auto show 2

Standard Auto show 3

Standard Auto show 4

Standard Auto show 5

Standard Auto show 6

Standard Auto show 7

Standard Auto show 8

Standard Auto show 9

Standard Auto show 10

Standard Auto show 11

Standard Auto show 12

Standard Auto show 13

Standard Auto show 14

Standard Auto show 15

Standard Auto show 16

Standard Auto show 17

Sound-to-Light show 1

Sound-to-Light show 2

Sound-to-Light show 3

Sound-to-Light show 4

Sound-to-Light show 5

Sound-to-Light show 6

Sound-to-Light show 7

Sound-to-Light show 8

Sound-to-Light show 9

Sound-to-Light show 10

Sound-to-Light show 11

Sound-to-Light show 12

000-019

020-039

040-059

060-079

080-099

100-119

120-139

140-159

160-179

180-199

200-219

220-255

CH3 Program speed setting

000-255

DMX operation instructions

12 Channel DMX mode

Value

Channel Description

CH1

CH2

CH3

CH4

CH5

CH6

CH7

CH8

CH9

CH10

CH11

CH12

Red Dimmer

Green Dimmer

Blue Dimmer

RGB overall dimmer

Sound-to-Light flashing

Flashing speed

All On

000-255

000-191

192-200

201-249

250-255

Value

Channel Description

CH1

CH2

CH3

CH4

4 Channel DMX mode

PAR1

PAR2

PAR3

PAR4

Function

Red dimmer

Green dimmer

Blue dimmer

Red dimmer

Green dimmer

Blue dimmer

Red dimmer

Green dimmer

Blue dimmer

Red dimmer

Green dimmer

Blue dimmer

000-255

DMX operation instructions

Par can 2 flashing speed

Par can 3 red dimmer

Par can 3 green dimmer

Par can 3 blue dimmer

Par can 3 RGB overall dimmer

Par can 3 flashing speed

Par can 4 red dimmer

Par can 4 green dimmer

Par can 4 blue dimmer

Par can 4 RGB overall dimmer

Par can 4 flashing speed

000-255

CH10

CH11

CH12

CH13

CH14

CH15

CH16

CH17

CH18

CH19

CH20

20 Channel DMX mode

Value

Channel Description

CH1

CH2

CH3

CH4

CH5

CH6

CH7

CH8

CH9

Par can 1 red dimmer

Par can 1 green dimmer

Par can 1 blue dimmer

Par can 1 RGB overall dimmer

Par can 1 flashing speed

Par can 2 red dimmer

Par can 2 green dimmer

Par can 2 blue dimmer

Par can 2 RGB overall dimmer

000-255

Tabla de contenidos

Otros manuales de Equipo de DJ de KAM

KAM

KAM Cluster FX-Bar Manual de usuario

KAM

KAM XY Laser Manual de usuario

KAM

KAM Powercan15W Manual de usuario

KAM

KAM Digi Mini Manual de usuario

KAM

KAM LED Concept V2 Manual de usuario

KAM

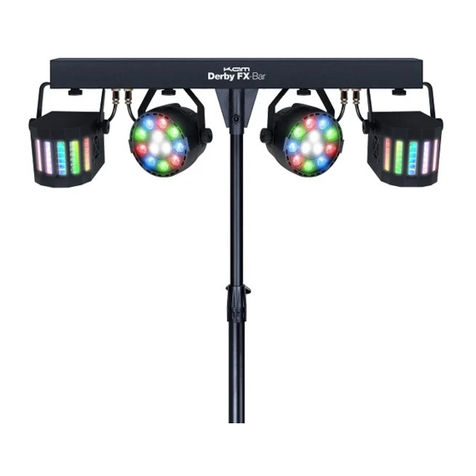

KAM Derby FX-Bar Manual de usuario

KAM

KAM DMX Laser 40 Manual de usuario

KAM

KAM Par Kit WFS Manual de usuario

KAM

KAM HEXATRIX GLOW Manual de usuario

KAM

KAM Trilogy Manual de usuario

KAM

KAM dmx3 Manual de usuario

KAM

KAM Gobolaser 550RB Manual de usuario

KAM

KAM Mini Par 12 USB Manual de usuario

KAM

KAM LED Spiro 1 Manual de usuario

KAM

KAM Energy SD300 Manual de usuario

KAM

KAM KCD3000 USB Manual de usuario

KAM

KAM VECTOR6 Manual de usuario

KAM

KAM LED Hexaflower 1 DMX Manual de usuario

KAM

KAM BLUE MOVER 500 FSCAN Manual de usuario

KAM

KAM DMX Laser80 FScan Manual de usuario

KAM

KAM LED Moonglow Manual de usuario

KAM

KAM DMX Star Cluster 3D Manual de usuario

KAM

KAM LED Superflower 1 DMX Manual de usuario

KAM

KAM InfinityBeam Manual de usuario

Manuales populares de Equipo de DJ de otras marcas

ALPHA LITE

ALPHA LITE ALPHA 1500 Manual del propietario

Chauvet

Chauvet OVATION E-930VW Manual de usuario

Zumtobel

Zumtobel APHRODITE Home Manual de usuario

Snow Masters

Snow Masters Zig Oscillator Manual de usuario

EuroLite

EuroLite 50530554 Manual de usuario

Beamz

Beamz BUV243 Manual de usuario

thomann

thomann Stairville DJ Lase 40-G MK-III Manual de usuario

Eagletone

Eagletone 6 Eyes Flower Manual de usuario

EuroLite

EuroLite FLD-1508 Manual de usuario

Technical Pro

Technical Pro LG8xSEA Manual de usuario

JB Systems

JB Systems Lounge Laser DMX Manual de usuario

Lightmaxx

Lightmaxx Vega Halo 90 Manual de usuario

Elation

Elation FUZE WASH Z350 Manual de usuario

Maverick

Maverick MK3 WASH Manual de usuario

Infinity

Infinity TF-260C7 Fresnel Manual de usuario

Chauvet

Chauvet EVE E-50Z Manual de usuario

Eliminator Lighting

Eliminator Lighting E 138 Manual de usuario

EuroLite

EuroLite Mini Multicolor LED Flashing Light SC Manual de usuario
