JVC AV-25L83 Manual de usuario

LCT1172-001A

COLOUR TELEVISION

INSTRUCTIONS

Thank you for buying this JVC

colour television.

To make sure you understand how to

use your new TV, please read this

manual thoroughly before you begin.

AV-21L83

AV-21W83

AV-25L83

AV-29W83

AV-21L83B

AV-21W83B

AV-25L83B

AV-29W83B

Contents

Safety precautions 2

Preparation 3

1 Confirm which remote control you have ... 3

2 Insert the batteries into the remote control ... 3

3 Connecting the aerial and VCR .................. 4

4 Connecting other devices .......................... 5

5 Connect the power cord to the AC outlet ... 5

6 Initial setting ............................................... 6

Basic operation 7

Remote control buttons and functions 8

ECO SENSOR button ..................................... 8

PICTURE MODE button ................................. 8

COLOUR SYSTEM button ............................. 8

SOUND SYSTEM button ............................... 8

BASS button .................................................. 9

CINEMA SURROUND button ........................ 9

MUTING button ............................................. 9

DISPLAY button ............................................. 9

OFF TIMER button ......................................... 9

RETURN + button ........................................ 10

CHANNEL SCAN button .............................. 10

Using the TV’s menus 11

Basic operation ............................................ 11

INPUT ........................................................... 12

PICTURE TILT ............................................... 12

VNR ............................................................... 12

COMPRESS (16:9) ........................................ 12

AUTO SHUTOFF .......................................... 13

CHILD LOCK ................................................. 13

BLUE BACK .................................................. 13

VIDEO-2 SET ................................................ 14

Picture Adjustments .................................... 14

Sound Adjustments ..................................... 14

AI VOLUME .................................................. 15

AUTO CH PRESET ....................................... 15

MANUAL CH PRESET .................................. 16

SKIP .............................................................. 17

LANGUAGE .................................................. 17

Attaching the Twin Port Bass Blaster Unit

TV buttons and parts 19

Using the buttons on the TV 20

Troubleshooting 21

Specifications 22

Safety precautions

WARNING

• To prevent fire or shock hazard, do not expose the TV to rain or moisture.

CAUTION

• Operate only from the power source indicated on the rear of the TV.

• Avoid damaging the power cord and mains plug. When you unplug the TV, pull it out by

the mains plug. Do not pull on the power cord.

• Never block or cover the cabinet openings for

ventilation. Never install the TV where good

ventilation is unattainable. When installing

this TV, leave spaces for ventilation around

the TV more than the minimum distances

shown in the diagram.

• Do not allow objects or liquid into the

cabinet openings.

• In the event of a fault, unplug the TV and bring to JVC service centre. Do not attempt to

repair it by yourself or remove the rear cover.

• The surface of the TV screen is easily damaged. Be very careful with it when handling

the TV. Should the TV screen become soiled, wipe it with a soft dry cloth. Never rub it

forcefully. Never use any cleaner or detergent on it.

• When you don’t use this TV for a long period of time, be sure to unplug it.

WARNING

<AV-21W83 and AV-21W83B only>

•A removable plastic cover is fixed to the television’s front Audio/Video connector. To

prevent this cover from being accidentally swallowed by babies or children, remove it

from the television and store it in a safe place. If the cover is swallowed seek the

advice of a doctor immediately.

The Twin Port Bass Blaster Unit is packaged together with the TV.

Before you use the TV, mount the Twin Port Bass Blaster Unit correctly on the TV.

15 cm

10 cm 15 cm

10 cm

Preparation

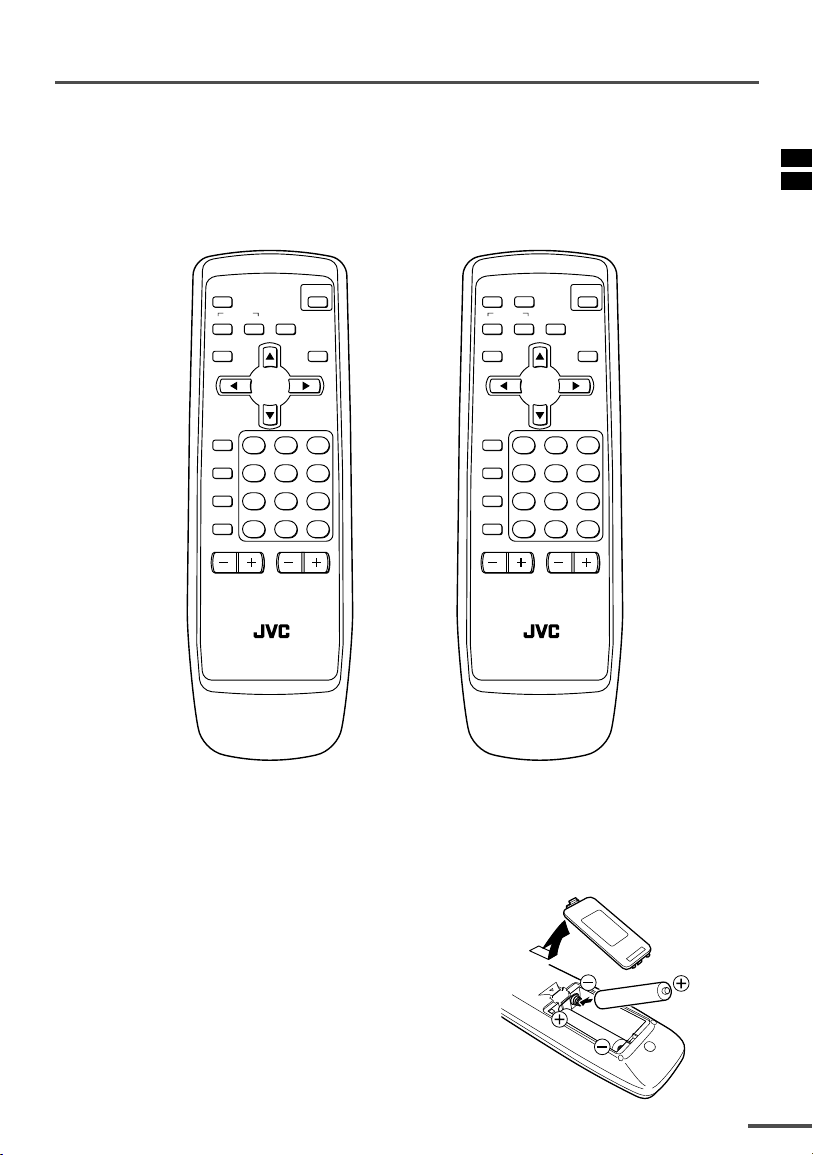

1 Confirm which remote control you have

Your TV comes with one of the two remote controls shown below. Functions you can

operate differ depending on the type of remote control.

<AV-21L83/AV-21W83/ <AV-21L83B/AV-21W83B/

AV-25L83/AV-29W83> AV-25L83B/AV-29W83B>

2 Insert the batteries into the remote control

Correctly insert two batteries, observing the ,and .polarities and inserting the .

end first.

CAUTION:

Follow the cautions printed on the batteries.

Notes:

•Use AA/R6/UM-3 dry cell batteries.

•If the remote control does not work properly,

fit new batteries.

The supplied batteries are for testing, not

regular use.

MUTING

OFF

TIMER

ECO

SENSOR


MODE

CHANNEL

SCAN

RM-C1014

SYSTEM

COLOUR SOUND

SURROUND

CHANNEL

RETURN+

POWER

DISPLAY

TV/VIDEO

VOLUME

123

456

789

0-/--

MUTING

OFF

TIMER

ECO

SENSOR


MODE

CHANNEL

SCAN

RM-C1015

SYSTEM

COLOUR SOUND

SURROUND

CHANNEL

RETURN+

POWER

DISPLAY

TV/VIDEO

VOLUME

123

456

789

0-/--

BASS

Preparation

3 Connecting the aerial and VCR

•Read the manuals provided with the devices. Depending on the device, the connection method

may be different from the diagrams. Also the device settings may need to change depending on

the connection method.

•Turn off all the devices including the TV.

•Connecting cables are not supplied.

•When connecting monaural audio to the TV, use the L/MONO jack.

• If you connect the VCR to the TV only with an aerial cable, you should preset the video channel

from the VCR to the AV channel (channel number 0) on this TV. See “MANUAL CH PRESET” on

page 16 and preset it manually.

VIDEO-1

INPUT OUTPUT

COMPONENT

(VIDEO-2)

INPUT

To RF

output

To video

output

VCR

VHF/UHF outdoor aerial

To aerial input

To audio

output

VIDEO-1

INPUT OUTPUT

COMPONENT

(VIDEO-2)

INPUT

VHF/UHF outdoor aerial (1)

(2)

(3)

Matching

aerial

adapter

(supplied)

MONO

Connecting the aerial

Connecting the aerial and VCR

Preparation

4 Connecting other devices

If you are not connecting any other devices, skip step 4 and perform step 5.

• Use the headphones with a stereo mini jack (3.5 mm in diameter). When you connect the

headphones, the TV speakers go off.

•The OUTPUT terminal outputs the video and sound signals which you are viewing on the TV.

You can dub them onto the VCR connected to the OUTPUT terminal.

(The OUTPUT terminal cannot output component video signals. Also it cannot output any

signals when the TV is turned off.)

•Connect components outputting a component signal (Y/CB/CRsignal), such as a DVD player, to

the VIDEO-2 terminal, and set VIDEO-2 SET function to “COMPONENT”. (See page 14.)

• The following illustrations are for the AV-21W83. Your TV’s front and rear pannels may not look

exactly like the illustrations.

VIDEO-1

INPUT OUTPUT

COMPONENT

(VIDEO-2)

INPUT

VCR (for playing)

VCR (for recording)

DVD player

(composite signals)

DVD player

(component video signals)

MONO

5 Connect the power cord to the AC outlet

Operate only from the power source indicated on the rear of the TV.

Front

Rear

IN (VIDEO-3)

L/MONO

Headphones

Camcorder or TV game

Preparation

6 Initial setting

When the TV is first turned on, it enters the initial setting mode, and the JVC logo is

displayed. Follow the instructions on the on-screen display to perform the initial

settings.

1 Press the Main power button

on the TV.

The POWER lamp lights. After the

JVC logo has been displayed, the TV

automatically switches to the

language setting mode.

MENU 3

AUTO CH PRESET

MANUAL CH PRESET

LANGUAGE ENGLISH

SELECT BY EXIT BY

OPERATE BY -+

DISPLAY

•The JVC logo does not appear if your

TV has been turned on once before. In

this case, use the LANGUAGE and AUTO

CH PRESET functions to perform the ini-

tial settings. For details, see pages 15 and

17.

2 Press the MENU

buttons to select language.

3 Press the MENU Tbuttons to select “AUTO CH PRESET”.

4 Press the MENU

buttons to start the AUTO CH PRESET function.

“>>>ON SEARCH” is displayed on the screen.

When all the TV channels that can be received on your TV have been preset, the

display goes out and the AUTO CH PRESET function operation is completed.

To stop the AUTO CH PRESET function, press the MENU

buttons.

•If a TV channel you want to view is not set to the channel, set it with the MANUAL CH PRESET

function. For details, see page 16.

This completes initial setting.

Now you’re ready to enjoy your JVC TV.

POWER lamp Main power button

VOLUME

EXIT

POWER

OFF

TIMER

ECO

SENSOR

SYSTEM

COLOUR SOUND

SURROUND

DISPLAY

TV/VIDEO

123

456

DISPLAY

button

MENU t

buttons

Basic operation

•The illustration below is for the remote control

RM-C1015. Your remote control may not look

exactly like the illustrations.

1 Press the POWER button to turn

your TV on.

•If your TV does not turn on, press the Main

power button on the TV then press the

POWER button again.

•You can also turn on your TV by pressing

any of the following buttons;

- the CHANNEL mbutton

- the Number buttons

- the TV/VIDEO button

2 Select a channel.

■Press the CHANNEL mbutton.

•Up/down selection cannot be selected for

channels to which the SKIP has been set

to “YES”. See page 17.

■Press the Number buttons to enter

the channel number.

•If you want to enter a two-digit number,

press the -/-- button to select the two digit

mode “--”, then enter the channel num-

ber.

3 Press the VOLUME Mbutton to

adjust the sound.

4 To turn your TV off, press the

POWER button.

•We recommend that you press the Main

power button on the TV to turn the main

power off if you do not plan to use your TV

for a long time or if you wish to save energy.

If the picture is not clear:

Press the COLOUR SYSTEM button to

select another colour system, see page 8.

If the sound is not clear:

Press the SOUND SYSTEM button to select

another sound system, see page 8.

Viewing Images from an External

Device:

Press the TV/VIDEO button to select the

VIDEO mode.

•You can also use the INPUT function to select

the VIDEO mode. For details, refer to page 12.

MUTING

OFF

TIMER

ECO

SENSOR


MODE

CHANNEL

SCAN

RM-C1015

SYSTEM

COLOUR SOUND

SURROUND

CHANNEL

RETURN+

POWER

DISPLAY

TV/VIDEO

VOLUME

123

456

789

0-/--

BASS

Remote control buttons and functions

ECO SENSOR button

You can adjust this TV so that the screen

automatically adjusts to the optimum

contrast according to the brightness of your

room. This function reduces eye strain and

the power consumption of this TV.

Press this button to select the desired

mode.

DIGITAL ECO SENSOR DISPLAY:

The ECO SENSOR function switches on. In

this mode, the clover mark indicating the

brightness of your room is displayed for

several seconds each time the brightness

changes. The number of clover marks

displayed on screen increases as your room

becomes darker.

DIGITAL ECO SENSOR:

The ECO SENSOR function switches on.

However, in this mode, the clover mark will

not be displayed.

DIGITAL ECO SENSOR OFF:

The ECO SENSOR function switches off.

PICTURE MODE button

You can select one of three picture

adjustment settings as you like.

Press this button to select a mode.

BRIGHT:

Heightens contrast and sharpness.

STANDARD:

Standardizes picture adjustments.

SOFT:

Softens contrast and sharpness.

•Pressing this button returns all the picture set-

tings in “MENU 4”to their default settings.

COLOUR SYSTEM button

If the picture is not clear or no colour

appears, change the current colour system

to another colour system.

Press this button to select the colour

system.

AUTO PAL SECAM

NTSC3.58

NTSC4.43

AUTO:

Automatic colour system selection.

•For the colour systems in each country or

region, see the table“Broadcasting systems” on

page 24.

•If the picture is abnormal in the AUTO mode,

change the AUTO mode to another colour

system.

SOUND SYSTEM button

If the sound is not clear even when the

picture appears normal, change the

current sound system to another sound

system.

Press this button to select the sound

system.

B/G D/K M

•For the sound systems in each country or re-

gion, see the table “Broadcasting systems” on

page 24.

•You can not select any sound system when in a

VIDEO mode.

Remote control buttons and functions

BASS button

< Bass function support model only >

You can enjoy a powerful bass sound by

using the BASS (Bass Reflex) function.

Press this button to turn the BASS

function on or off.

•To use this function, you must first mount the

Twin Port Bass Blaster Unit packaged with the

TV on top of the TV. For details, see page 18.

CINEMA SURROUND button

You can enjoy an enhanced sound for a

wider audience by using CINEMA

SURROUND function.

Press this button to select one of the

CINEMA SURROUND mode.

HIGH/LOW:

When you listen to the stereo surround,

please select HIGH mode or LOW mode.

You can enjoy the sound for a wider

audience similar to the experience at the

theatre.

•In case that you setting up the CINEMA SUR-

ROUND function to HIGH mode, there may be

slight volume distortion. In case that occurs,

please switch the HIGH mode to LOW mode,

the effect of CINEMA SURROUND functions will

be less noticeable, however, the volume distor-

tion will be corrected.

MONO SURROUND:

Select the MONO SURROUND mode,

when you listen to the mono surround.

You can enjoy the sound for a wider

audience similar to stereo surround.

OFF:

The CINEMA SURROUND function

switches off.

MUTING button

You can turn the sound off instantly.

Press this button.

To turn the sound on, press this button

again.

DISPLAY button

You can continuously display the current

channel number or VIDEO mode on the

screen.

Press this button.

To turn the display off, press this button

again.

•When selecting a VIDEO mode with no signal,

indication of the VIDEO mode becomes fixed

on the screen.

OFF TIMER button

You can set the TV to automatically turn off

after a set time.

Press this button to select the period of

time.

•You can set the period of time to a maximum of

120 minutes in 10 minute increments.

•1 minute before the OFF TIMER function turns

off the TV, “GOOD NIGHT!” appears.

To display the remaining time, press this

button once.

To cancel the OFF TIMER function, press

this button to set the period of time to 0.

•The OFF TIMER function will not turn off the

TV’s main power.

Remote control buttons and functions

RETURN + button

You can set a channel you frequently view

to the Return Channel and you can view

that channel at any time with one-touch.

To set the channel to the Return

Channel:

1 Select the channel you want to set

to the Return Channel.

2 Press this button and hold until the

message “RETURN PLUS

PROGRAMMED!” appears.

•When you turn off the TV, the Return Chan-

nel setting is cancelled.

To view the Return Channel:

Press this button.

•You can view two channels (current channel

and Return Channel) alternately by pressing this

button.

To cancel the Return Channel setting:

Press this button and hold until the

message“RETURN PLUS CANCELLED!”

appears.

If no channel is set to the Return

Channel:

You can view the channel selected right

before the current channel by pressing

this button.

CHANNEL SCAN button

You can quickly view all TV channels

programmes that you can view on your TV,

and search for the programme you want to

view.

1 Press this button to start scanning

TV channels.

The TV channel programmes are each

displayed for several seconds.

•The programmes of TV channels for which

the SKIP function is set to “YES” are not

displayed.

2 When you find the programme you

want to view, press this button

again to stop scanning.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de TELEVISOR de JVC

JVC

JVC AV-16N214 Manual de usuario

JVC

JVC AV-21L11, AV-21L31, AV-25L31, Manual de usuario

JVC

JVC AV-27F703 - 27" Real Flat TV Manual de usuario

JVC

JVC AV-21YMG4/G Guía del administrador

JVC

JVC AV-21QS27 Manual de usuario

JVC

JVC AV-29QH4BU Manual de usuario

JVC

JVC GGT0116-001A-H Manual de usuario

JVC

JVC AV-25MT35/P Manual de usuario

JVC

JVC AV-21BX16S Manual de usuario

JVC

JVC AV-28X37SUE Manual de usuario

JVC

JVC AV-28WX1EP Manual de usuario

JVC

JVC InteriArt AV-28R47SK Manual de usuario

JVC

JVC PD-35DX, PD-42DX Manual de usuario

JVC

JVC AV-24F703 Manual de usuario

JVC

JVC AV-28ED5BN, AV-28ED5SN Manual de usuario

JVC

JVC AV-28F3SJ Manual de usuario

JVC

JVC AV-28GT1BJF, AV-28GT1SJF Manual de usuario

JVC

JVC AV-28KH1BUF Manual del sistema

JVC

JVC AV-28WFT1EPG Manual de usuario

JVC

JVC I Art AV-20F476 Manual de usuario

JVC

JVC AV-28BD5EES Manual de usuario

JVC

JVC AV-32F703/Y Manual de usuario

JVC

JVC AV-28PS4N Guía de inicio rápido

JVC

JVC AV-21TG16 Manual de usuario

Manuales populares de TELEVISOR de otras marcas

Philips

Philips Colour Television Manual de usuario

Toshiba

Toshiba 27A10 Manual de usuario

Philips

Philips 42PF9630A/37 Manual de usuario

Hitachi

Hitachi 32FX48B Manual de usuario

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manual de usuario

Changhong Electric

Changhong Electric uhd55b6000is Manual de usuario

Philips

Philips Matchline 21CE7551 Manual de usuario

Panasonic

Panasonic Genus TX-G10 Manual de usuario

Toshiba

Toshiba 19A20 Manual de usuario

Philips

Philips 25PT4523-16 Manual de usuario

Sony

Sony XBR-100Z9D Manual de usuario

Philips

Philips PR0930X3 Manual de usuario

Philips

Philips Brilliance 231P4QPY Manual de usuario

Samsung

Samsung 55S9 B Series Manual de usuario

Philips

Philips 32HF9385D Guía de solución de problemas

Sharp

Sharp LC-40FI5012E Manual de usuario

Loewe

Loewe Table Stand Reference 55 Manual de usuario

Philips

Philips 32PFH5300 Manual de usuario
