JVC AV-21WMG5 Manual de usuario

GGT0077-001A-H

COLOUR TELEVISION

AV-21WMG5 Contents

Knowing your TV’s features ........................... 2

Remote control buttons and basic functions .3

TV buttons and functions .............................. 5

Setting up your TV ........................................ 6

Basic setting for picture ................................. 8

Advanced setting for picture .......................... 9

Basic setting for sound ................................ 10

Advanced setting for sound ........................ 10

Favorite channel and video setting ............. 11

Customized setting ..................................... 12

TV channel presetting ................................. 13

Additional preparation ................................. 15

Troubleshooting .......................................... 15

Specifications ................................ Back cover

INSTRUCTIONS

GGT0077-001A-H_E_Cover 1/13/05, 18:1121

Safety Instructions

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS

APPLIANCE TO RAIN OR MOISTURE.

CAUTION: TO ENSURE PERSONAL SAFETY, OBSERVE THE FOLLOWING

RULES REGARDING THE USE OF THIS TV.

1Operate only from the power source indicated on the rear of the TV.

2Avoid damaging the power cord and mains plug. When unplugging the TV, grasp the

mains plug. Do not pull on the power cord.

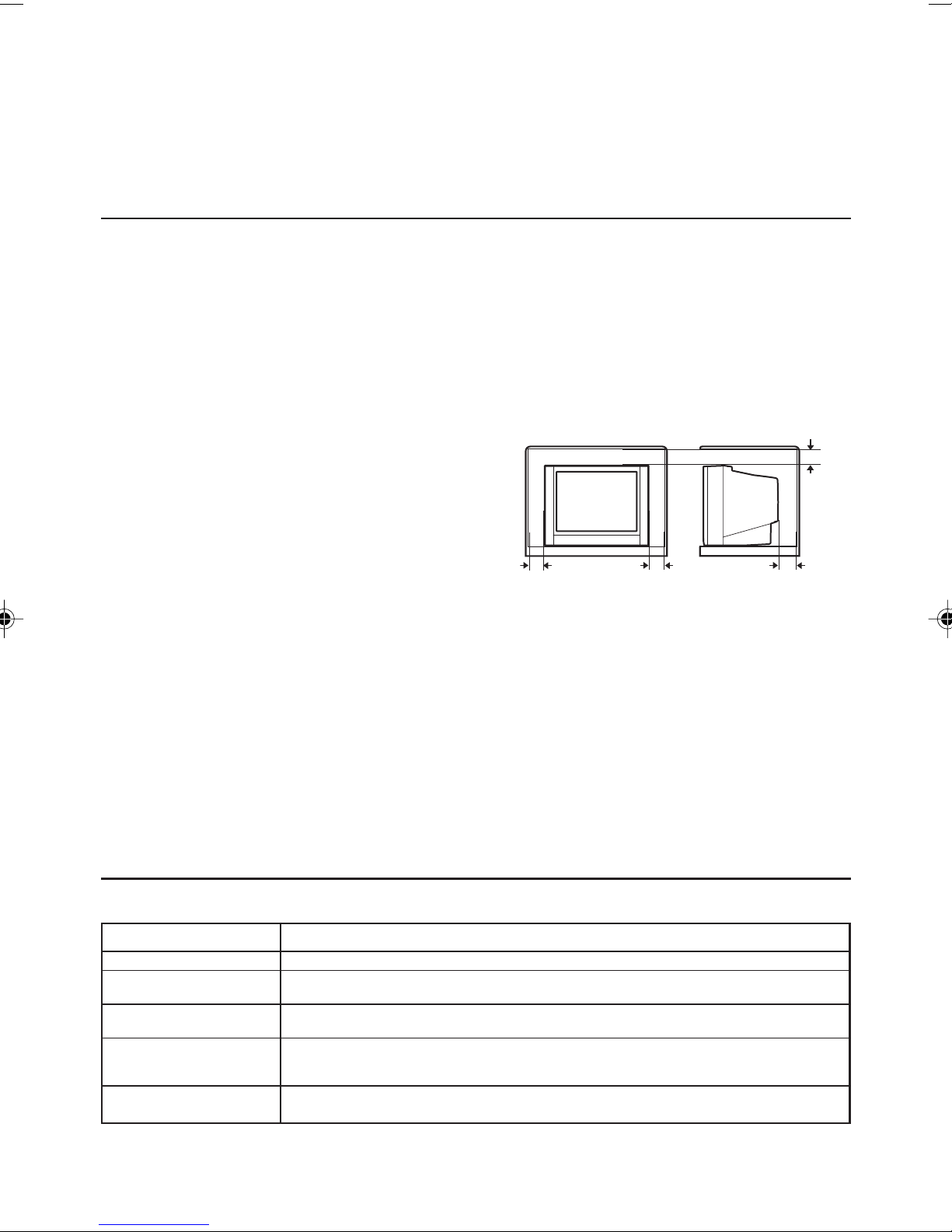

3Never block or cover the cabinet ventilation

openings. Never install the TV where good

ventilation is unattainable. When installing

this TV, leave spaces for ventilation around the

TV more than the minimum distances as

shown in the diagram.

4Do not allow objects or liquid into the cabinet

openings.

5In the event of a fault, unplug the unit and call a JVC service technician.

Do not attempt to repair it yourself or remove the rear cover.

6The surface of the TV screen is easily damaged. Be very careful with it when handling

the TV. Should the TV screen become soiled, wipe it with a soft dry cloth. Never rub it

forcefully. Never use any cleaner or detergent on it.

7If you are not going to use this TV for a long period of time, be sure to disconnect the

AC plug from the AC socket.

8The apparatus shall not be exposed to dripping or splashing and that no objects filled

with liquids, such as vases, shall be placed on the apparatus.

15 cm

10 cm 15 cm10 cm

Knowing your TV’s functions

Main features

Function Description

Favorite CH (Channel) You can register up to four favorite channels for quick re-call with one-press.

AI Volume TV adjusts automatically the volume to the same level for all TV channels to

avoid sudden change of the volume when selecting different TV channel.

VNR You can reduce the picture noise when viewing noisy TV programmes or video

sources.

White balance You can choose one of three tones of white to match to the video source such

as movie, sports, etc. Changing White balance affects the appearance of all other

colours on the screen.

Child lock To prevent accidental operation by your children, you can disable the control

buttons on the TV.

Thank you for buying this JVC colour television.

To make sure you understand how to use your new TV, please read this manual

throughly before you begin.

GGT0077-001A-H_E_P02-15 1/13/05, 18:112

Remote control buttons and basic functions

RM-C1261

No.Press To

1POWER Turn on or off the TV from standby mode.

2MENU/OK Display menu and confirm selected function.

35/∞/2/3Select and adjust menu function.

4CHANNEL MSelect the desired channel number.

5VOLUME MAdjust the volume level.

6TV/VIDEO Select TV or VIDEO terminal input.

7MUTING Turn off the volume. Press this button again to resume the volume.

8DISPLAY Display the programme number or video terminal number and PR list (channel

/BACK list) on the screen. You can select the channel using the PR list.

1Press the DISPLAY button once to display the PR list.

2Press 5/∞/2/3button to choose a channel, then press the MENU/OK button.

You can confirm the favorite channels in the PR list. The channels set to favorite

channels are indicated with coloured mark.

On the other hand, you can use this button to return to the previous menu.

90~9, -/-- Select the programme number. For two digits programme number, press -/--,

then press the number button.

0RETURN,a) Return to the frequently view channel with one touch.

1Choose the channel you want to register.

2Press and hold RETURN,button until “RETURN PLUS PROGRAMMED!”

appears.

To cancel, press and hold RETURN,button until “RETURN PLUS CANCELED!”

appears.

b) Return to the previously viewed channel, if you have not set or have

cancelled the Return channel as above.

GGT0077-001A-H_E_P02-15 1/13/05, 18:123

Remote control buttons and basic functions

How to operate menus and menu locations

TO Operation Note

Display the MENU. Press the MENU/OK button 2.To exit the MENU, press the

DISPLAY/BACK button* 8or

choose EXIT menu.

Display the top menu. Press 5/∞buttons 3to choose a menu title. Press ∞button 3to display the

Then press MENU/OK button 2.next page for more functions.

Display the 2nd menu. Press 5/∞buttons 3to choose a menu title.

Then press MENU/OK button 2.

Display the 3rd menu. Press 5/∞buttons 3to choose a menu title.

Then press MENU/OK button 2.

Return to the previous Press the DISPLAY/BACK button* 8.–

menu.

Choose the setting of Press 5/∞buttons 3to choose a function. Press the MENU/OK button 2to

a function. Then press the 2/3buttons 3to change the exit from the menu.

setting.

Adjust the effect level Press 5/∞buttons 3to choose a function.

of a function. Then press the 2/3buttons 3to adjust the

effect level.

Display the sub menu Press 5/∞buttons 3to choose a function.

of a function. Then press MENU/OK button 2to display –

the sub menu.

The following chart shows locations of functions in menus.

In this manual, location of a function is described as follows:

MENU Top menu 2nd menu

3rd menu

Note: Some functions have the 4th menus as the sub-menus.

*To exit the menu, the on screen display will show BACK indicated in blue. But it doesn’t refer to the

blue button on the remote control. Instead, it refers to the DISPLAY/BACK button on the remote control.

Top menu 2nd menu Location 3rd menu Location

MENU INPUT EXT. INPUT P.12 - -

DISPLAY P.12 - -

PICTURE PICTURE MODE P.8 - -

PICTURE SETTING P.8 - -

WHITE BALANCE P.8 - -

PICTURE FEATURES - VNR P.12

FAVORITE CH SETTING P.11

VIDEO SETTING P.11

COLOUR SYSTEM P.8

SOUND AI VOLUME P.10 - -

FEATURES OFF TIMER P.12 - -

CHILD LOCK P.12 - -

INSTALL AUTO PROGRAM P.13 - -

EDIT/MANUAL P.13 DELETE, MOVE, MANUAL, INSERT P.13

LANGUAGE P.12 LANGUAGE P.12

BLUE BACK P.9 - -

AUTO SHUTOFF P.12 - -

EXIT - - - -

* If you want to

adjust


SETTING

menu, you must

set PICTURE

MODE menu to

USER.

GGT0077-001A-H_E_P02-15 1/13/05, 18:124

TV buttons and functions

Front of the TV

AV-21WMG5

Rear of the TV

AV-21WMG5

No. Button/terminal Description

1I(main power) Press to turn on or turn off the TV’s main power.

2Power lamp Indicate the TV is being turned on or off.

No colour : TV’s main power is being turned off.

Red : TV’s main power is being turned on.

3Not Application

4Remote control sensor

5VOLUME MPress to adjust the volume level.

6CHANNELMPress to select the desired channel.

7MENU Press to display the menu.

8IN (VIDEO-2) Video and audio input jacks for VIDEO-2 mode.

9Headphone jack.

0Aerial socket.

-OUTPUT Video and audio output jacks.

=VIDEO-1 INPUT Video and audio input jacks for VIDEO-1 mode.

How to operate the menus with the TV button

Work as same as the button on the

TV button remote control unit Note

MENU MENU/OK button To display main menu and exit

menu after finish setting.

CHANNEL M∞/5button To select menu function.

VOLUME M2/3button To adjust the desired function.

MENU CHANNEL VOLUME

VIDEO AUDIO

IN (VIDEO-2)

POWER

97 4 23 1856

VIDEO-1

INPUT

VIDEO

AUDIO

OUTPUT

0-=

GGT0077-001A-H_E_P02-15 1/13/05, 18:125

Setting up your TV

CAUTION

• Turn off the equipment including the TV

before connecting.

1Connecting the aerial

VIDEO-1

INPUT

VIDEO

AUDIO

OUTPUT

If you connect a VCR, connect the aerial

output jack of your VCR and the aerial jack

on the TV with the aerial cable. Then

connect the output jacks of your VCR and

the VIDEO-1 input jacks of the TV with the

video cable and audio cables. For details,

see the manual of your VCR.

VIDEO-1

INPUT

VIDEO

AUDIO

OUTPUT

To RF

output

To audio/video

output

To aerial input

The illustration shown is just a sample. It may

not be same as your TV.

3Inserting batteries into the remote

control.

Insert two batteries by following the ªand

·polarities and inserting the ·end first.

CAUTION:

Follow the cautions printed on the batteries.

Notes:

• Use AA/R6/UM-3 dry cell batteries.

• If the remote control does not work

properly, fit new batteries. The supplied

batteries are for testing, not regular use.

4Turn on the TV by pressing the main

power button.

JVC logo appears on the screen.

VHF/UHF outdoor aerial

Rear of the TV

VCR

VHF/UHF outdoor aerial

Rear of the TV

2Connecting the compatible main plug

to the AC outlet.

GGT0077-001A-H_E_P02-15 1/13/05, 18:126

Setting up your TV (continued)

5Making the initial settings

Set up your TV by pressing MENU/OK button or waiting for 15 seconds, then operate the TV by

following the steps as below:

  







 

• Press the red button to cancel the SETUP

TOUR RESTART function.

If you want to make initial settings again

when the next time you turn on the TV,

press the MENU/OK button to activate the

SETUP TOUR RESTART function.

≠

EDIT

PR CH/CC

7 CH 09

8 CH 11

9 CH 13

■

•Proceed to edit the channel list (PR list).

For details, see page 13.

LANGUAGE

ENGLISH

FRANAIS

êìëëäàâ

•Press 5/∞button to select your desired

language.

≠



 

 



•TV will start searching for the channels.

To stop AUTO PROGRAM, press MENU/OK

button.

•If the JVC logo does not appear, use LANGUAGE and AUTO PROGRAM functions to

make the initial settings.

Those functions are located in the INSTALL menu.

•If the JVC logo appears, although you had made the initial settings, press the TV/VIDEO

button to exit from initial settings.

GGT0077-001A-H_E_P02-15 1/13/05, 18:127

Basic setting for picture

COLOUR SYSTEM

You can select the appropriate colour system

when the picture is not clear or no colour

appears.

Press the COLOUR SYSTEM button to select a

setting.

AUTO PAL SECAM

NTSC3.58NTSC4.43

To operate this function with a menu:

❇

MENU PICTURE PICTURE FEATURES

COLOUR SYSTEM

For the colour system in each country or region,

see the table below:

Area Country or Region System

Bahrain, Kuwait, Oman, Qatar,

United Arab Emirates, Yemen, etc. PAL

Indonesia, Malaysia, Singapore,

Asia, Middle Thailand, India, etc.

East China, Vietnam, etc. PAL

Hong Kong, etc. PAL

Islamic Republic of Iran, Lebanon, SECAM

Saudi Arabia, etc.

Philippines, Taiwan, Myanmar, etc. NTSC

Russia, etc. SECAM

Europe Czech Republic, Poland, etc. PAL

Germany, Holland, Belgium, etc. PAL

UK, etc. PAL

Oceania Australia, New Zealand, etc. PAL

Republic of South Africa, etc. PAL

Africa Nigeria, etc. PAL

Egypt, Morocco, etc. SECAM

PICTURE MODE

You can choose the desired picture setting with

one-touch.

Press the PICTURE MODE button to select a

setting.

SOFT Softens contrast and sharpness.

BRIGHT Heightens contrast and sharpness.

STANDARD Standard picture setting.

USER You can change this picture setting

as you like.

Select USER and adjust following

items in the PICTURE SETTING menu.

(CONTRAST, BRIGHT, SHARP, COLOUR,

TINT*)

*TINT can only be adjusted in NTSC system.

To operate this function with a menu:

❇

MENU PICTURE PICTURE MODE

To return the USER setting to the default, press

the blue button when the PICTURE SETTING

menu appears.

Adjusting the picture - USER

You can adjust the desired picture setting when

selecting USER in PICTURE MODE.

1Select the USER in PICTURE MODE under

PICTURE menu.

❇

USER

MENU PICTURE PICTURE MODE

2Select the PICTURE SETTING in PICTURE

menu, then adjust the setting.

❇

MENU PICTURE PICTURE SETTING

CONTRAST 2: Lower contrast 3: Higher contrast

BRIGHT 2: Darker 3: Brighter

SHARP 2: Softer 3: Higher

COLOUR 2: Lighter 3: Deeper

TINT* 2: Reddish 3: Greenish

*TINT can only be adjusted in NTSC system.

WHITE BALANCE

You can change the white balance of the picture

to better match the type of video being viewed.

Select the WHITE BALANCE in the PICTURE

menu, then choose the desired setting.

❇

MENU PICTURE WHITE BALANCE

NORMAL Normal white balance.

COOL Bluish white.

WARM Reddish white.

❇About the basic operations of the menu,

please see the “How to operate menus

and menus locations” on page 4.

GGT0077-001A-H_E_P02-15 1/13/05, 18:128

Advance setting for picture

BLUE BACK

You can set the TV to automatically change to a

blue screen and mute the sound if the signal is

weak or absent, or when there is no input from

an antenna.

Select the BLUE BACK in the INSTALL menu,

then choose ON or OFF.

❇

MENU INSTALL BLUE BACK

If you wish to continue viewing the poor picture,

cancel the BLUE BACK function.

❇About the basic operations of the menu,

please see the “How to operate menus

and menus locations” on page 4.

GGT0077-001A-H_E_P02-15 1/13/05, 18:129

Basic setting for sound

Advanced setting for sound

SOUND SYSTEM

You can select an appropriate sound system when

abnormal sound occurs even when the picture

appears normally.

Press the SOUND SYSTEM button to select a

setting.

B/G I D/K M

The function is not available in video mode.

For the sound system in each country or region,

see the table below:

Area Country or Region System

Bahrain, Kuwait, Oman, Qatar,

United Arab Emirates, Yemen, etc. B/G

Indonesia, Malaysia, Singapore,

Asia, Middle Thailand, India, etc.

East China, Vietnam, etc. D/K

Hong Kong, etc. I

Islamic Republic of Iran, Lebanon, B/G

Saudi Arabia, etc.

Philippines, Taiwan, Myanmar, etc. M

Russia, etc. D/K

Europe Czech Republic, Poland, etc. D/K

Germany, Holland, Belgium, etc. B/G

UK, etc. I

Oceania Australia, New Zealand, etc. B/G

Republic of South Africa, etc. I

Africa Nigeria, etc. B/G

Egypt, Morocco, etc. B/G

AI VOLUME

You can adjust the volume of all the channels

and video inputs to the same level automatically.

Select the AI VOLUME in SOUND menu, then

choose ON or OFF.

❇

MENU SOUND AI VOLUME

❇About the basic operations of the menu,

please see the “How to operate menus

and menus locations” on page 4.

GGT0077-001A-H_E_P02-15 1/13/05, 18:1210

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de TELEVISOR de JVC

JVC

JVC AV-21U3 Manual de usuario

JVC

JVC AV-29ST16/P Manual de usuario

JVC

JVC AV-14A16 Manual de usuario

JVC

JVC AV-28F3SJ Manual de usuario

JVC

JVC AV 32120 Manual de usuario

JVC

JVC AV-2106TE Manual de usuario

JVC

JVC I Art AV-20F476 Manual de usuario

JVC

JVC AV29BF10EES Manual de usuario

JVC

JVC AV-28H5BU Manual de usuario

JVC

JVC InteriArt Natural Vision T_V LINK AV28H20EU Manual de usuario

JVC

JVC AV-29LS2 Manual de usuario

JVC

JVC AV-29L6SU, AV-29L6BU Manual de usuario

JVC

JVC AV-28GT1BJF, AV-28GT1SJF Manual de usuario

JVC

JVC AV-21CN14 Manual de usuario

JVC

JVC InteriArt Natural Vision T_V LINK AV32X25EU Manual de usuario

JVC

JVC LT-55EC3508 Manual de usuario

JVC

JVC AV-16KG21 Manual de usuario

JVC

JVC AV-28H50SU Guía de inicio rápido

JVC

JVC AV-29FH1BUG Instrucciones de montaje

JVC

JVC HV-L34PRO Manual de usuario

JVC

JVC AV28R250EK Manual de usuario

JVC

JVC AV-16N73 Manual de usuario

JVC

JVC AV-21QT19 Manual de usuario

JVC

JVC InteriArt T-V LINK AV-28H4BU Manual de usuario

Manuales populares de TELEVISOR de otras marcas

Philips

Philips Colour Television Manual de usuario

Toshiba

Toshiba 27A10 Manual de usuario

Philips

Philips 42PF9630A/37 Manual de usuario

Hitachi

Hitachi 32FX48B Manual de usuario

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manual de usuario

Changhong Electric

Changhong Electric uhd55b6000is Manual de usuario

Philips

Philips Matchline 21CE7551 Manual de usuario

Panasonic

Panasonic Genus TX-G10 Manual de usuario

Toshiba

Toshiba 19A20 Manual de usuario

Philips

Philips 25PT4523-16 Manual de usuario

Sony

Sony XBR-100Z9D Manual de usuario

Philips

Philips PR0930X3 Manual de usuario

Philips

Philips Brilliance 231P4QPY Manual de usuario

Samsung

Samsung 55S9 B Series Manual de usuario

Philips

Philips 32HF9385D Guía de solución de problemas

Sharp

Sharp LC-40FI5012E Manual de usuario

Loewe

Loewe Table Stand Reference 55 Manual de usuario

Philips

Philips 32PFH5300 Manual de usuario
