COLOUR TELEVISION

INSTRUCTIONS

The illustrations of AV-14UMG7 is used in this instruction manual for explanation

purpose. Your TV may not look exactly the same as illustrated.

This illustration shows AV-14UMG7.

AV-21B17

AV-21BMG7

AV-21BMG7B

AV-21BMG7S

PREPARATION FUNCTIONS REFERENCE

Contents

Safety precautions......................... 2

Connections .................................. 3

Initial settings................................. 3

Remote control buttons

and functions ................................. 4

TV buttons and functions............... 4

Using the TV’s MENU.................... 5

Presetting TV channels ................. 6

Using the timer .............................. 7

Playing game................................. 7

Sound and Colour system in your

country or region ........................... 7

Troubleshooting............. Back cover

Speciﬁcations ................ Back cover

AV-14U17

AV-14UMG7

AV-14UMG7B

GGT0130-001A-H

AV-21B17&14U17.indd 1AV-21B17&14U17.indd 1 12/26/06 11:40:28 AM12/26/06 11:40:28 AM

• Insert two batteries by

following the and

polarities and inserting

the end ﬁrst.

• Use AA/R6/UM-3 dry

cell batteries.

• If the remote control

does not work properly, ﬁt new batteries.

The supplied batteries are for testing, not

regular use.

• The apparatus shall not be exposed to

dripping or splashing and that no objects

ﬁlled with liquids, such as vases, shall be

placed on the apparatus.

• Do not allow objects or liquid into the

cabinet openings.

Thank you for buying this JVC colour television.

To make sure you understand how to use your new TV, please read this manual thoroughly before you begin.

TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS

APPLIANCE TO RAIN OR MOISTURE.

WARNING

TO ENSURE PERSONAL SAFETY, OBSERVE THE FOLLOWING

RULES REGARDING THE USE OF THIS TV.

• Operate only from the power source

indicated on the rear of the TV.

• Avoid damaging the power cord and mains

plug. When unplugging the TV, grasp the

mains plug. Do not pull on the power

cord.

• This TV can be turned on/off power by

connecting/disconnecting the AC plug into

AC outlet. While this TV is being installed,

enough space should be reserved for

connection/disconnecting the AC plug into

AC outlet by hand.

• Never block or cover the ventilation openings.

• Never install the TV where good ventilation is unattainable.

• When installing this TV, leave spaces for ventilation around the TV of

more than the minimum distances as shown.

• The surface of the TV

screen is easily damaged.

Be very careful with it

when handling the TV.

Should the TV screen

become soiled, wipe it with a soft dry cloth.

Never rub it forcefully. Never use any

cleaner or detergent on it.

In the event of

a fault, unplug the unit

and call a service technician. Do

not attempt to repair it yourself or

remove the rear cover.

CAUTION

AV-21B17&14U17.indd 2AV-21B17&14U17.indd 2 12/26/06 11:40:34 AM12/26/06 11:40:34 AM

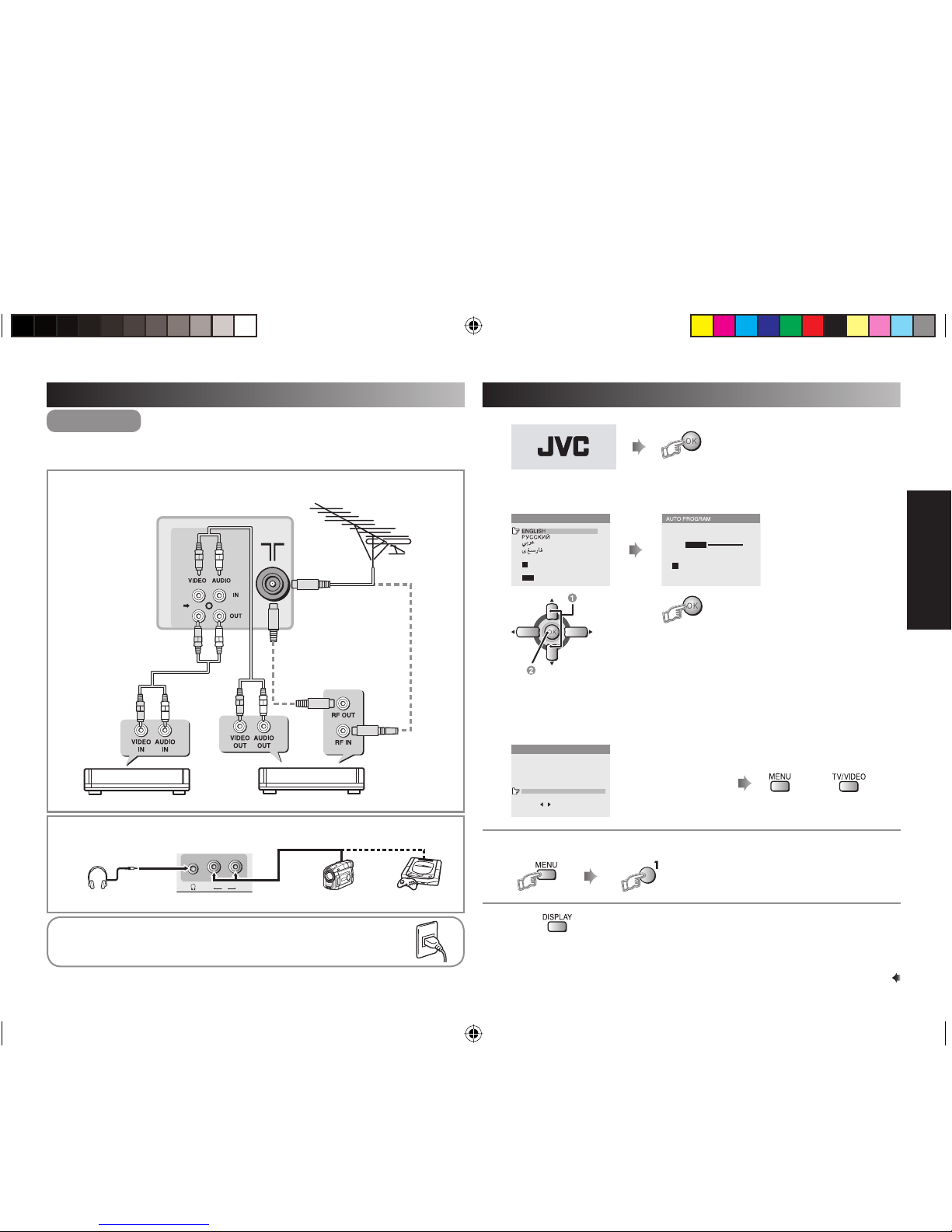

PREPARATION

Connections Initial settings

Ensure to turn off all equipments including the TV before connecting the

AC mains plug to the AC outlet.

VHF/UHF

outdoor aerial

75-ohm

coaxial

cable (not

supplied)

Connecting to the aerial cable and VCR

After all the connections have been made, insert the mains

plug to the AC outlet.

6)$%/ ). !5$)/

Camcorder TV gameHeadphones

Connecting to the TV front terminals

Turn on the TV.

or wait 15 seconds to run Setup Tour

JVC logo appears.

Select a language.

to stop or wait until AUTO

PROGRAM ﬁnishes

LANGUAGE

: AUTO PROGRAM

: BACK

: EXIT

DISPLAY

FRANÇAIS

Select

Proceed to AUTO PROGRAM

Searching for the channels.

: MANUAL PROGRAM

Search a channel manually or ﬁne-tune a channel.

MANUAL PROGRAM

PR CH / CC

05 B/G CH 06

06 B/G CH 05

07 B/G CH 08

08 B/G CH 10

09 B/G CH 12

VOLUME-/+ : SEARCH-/+

/ : FINE-/+

DISPLAY : SOUND SYSTEM

To perform manual

search and ﬁne-tune

(FINE), \page 6.

To restart Setup Tour after above setup has completed

If you press when LANGUAGE is displayed (Step 2), the screen will exit to

MENU.

CAUTION

VCR (for recording) VCR

TV rear terminals

TV front terminals

(while the cursor is pointing to PICTURE

MODE and within 3 seconds)

*This illustration

shows AV-14UMG7.

Note

This Language Menu’s on screen is used for explanation purpose only.

Your TV may not show the same as this on screen.

*This illustration shows AV-14UMG7.

To complete Setup

Tour

AV-21B17&14U17.indd 3AV-21B17&14U17.indd 3 12/26/06 11:40:37 AM12/26/06 11:40:37 AM

POWER /

ON TIMER

Remote control buttons and functions

TV buttons and functions

Turn the TV on from standby and vice versa

Set OFF TIMER (\page 7)

Select ECO MODE (\page 5)

Select the programme number

Operating the menus (\page 5)

Turn the volume Off / On

Adjust the volume level, Turn off Muting

Select Channel

For Hyper Scan :

Press and hold

PR changes without changing the picture. Once

you stop pressing CHANNEL+ or CHANNEL-

button, picture will change to the desired PR.

Display the programme number or video terminal number.

Select PICTURE MODE (\page 5)

RETURN PLUS function

Return to the frequently viewed channel.

RETURN PLUS

PROGRAMMED!

Press and hold

RETURN PLUS

CANCELED!

To cancel

Choose the channel you want to programme

RETURN function

If you have not set or have canceled the RETURN PLUS

channel, this will return to the previously viewed channel.

Press and hold

Remote control

sensor

POWER lamp - Indicates the TV’s status.

No colour : TV’s main power is being turned off.

Red : TV’s main power is being turned on.

Blink : While the TV is in standby mode, ON

TIMER function is in used. While the

TV is in turn on mode, OFF TIMER

function is in used.

Note: When you turn off the power switch while

TV is in standby mode, the power lamp will go

off in 5 -10 seconds. When you operate the TV,

POWER Lamp will blink.

TV’s main

power on/off

Video and audio input jack

Headphone jack

Display the TV’s MENU,

Exit after ﬁnish setting

Adjust volume level

Select Channel

Select TV or video input

*This illustration shows AV-14UMG7.

For two digits programme number

AV-21B17&14U17.indd 4AV-21B17&14U17.indd 4 12/26/06 11:40:40 AM12/26/06 11:40:40 AM

PICTURE MODE

PICTURE SETTING

WHITE BALANCE NORMAL

ECO MODE

ON TIMER

OFF TIMER

MENU (1 / 3)

FUNCTIONS

Using the TV’s MENU

MENU Item Description

(Setting / Adjustment)

PICTURE MODE USER Change picture settings

(\PICTURE SETTING)

VIVID Heightens contrast and sharpness

SOFT Softens contrast and sharpness

PICTURE SETTING

PICTURE SETTING can

operate when PICTURE

MODE is set to USER

(\PICTURE MODE)

On screen scale color

Center position : Yellow

Other position : Green

CONTRAST Adjust contrast (Lower jHigher)

BRIGHT Adjust brightness

(Darker jBrighter)

SHARP Adjust sharpness

(Softer jHigher)

COLOUR Adjust colour (Lighter jDeeper)

TINT Adjust colour tint

(Reddish jGreenish)

RESET Reset all items level to center

WHITE BALANCE NORMAL Normal white balance

COOL Bluish white

WARM Reddish white

ECO MODE

Adjust picture contrast

according to room

brightness

OFF Cancel the function

ECO-1 Mild contrast (recommended)

ECO-2 Even contrast

ON TIMER Turns on the TV from standby mode (\page 7)

OFF TIMER Turns off the TV to standby mode (\page 7)

AI VOLUME ON Sets the volume level for all

channels and video inputs

automatically depends on the

strength of signal from the source.

OFF Volume can be adjusted

individually for each channel

CHILD LOCK ON Disable the front buttons of the TV

OFF Cancel the function

BLUE BACK ON Displays a blue screen and mutes

the sound when signal from the

aerial is weak or absent

OFF Cancel the function

VNR

To reduce the picture

noise

AUTO Effect of VNR is automatically

controlled

MIN Effect of VNR becomes minimum

MAX Effect of VNR becomes maximum

OFF Cancel the function

GAME Select a game to play (PUZZLE / TWINS)

(\page 7)

LANGUAGE Choose your desired on screen display language.

AUTO PROGRAM Automatically registers channels (\page 6)

MANUAL PROGRAM Manually search channels and fine-tunes

channels (\page 6)

INSERT / DELETE Add, delete and move registered channels

(\page 6)

COLOUR SYSTEM Select the appropriate system

In TV mode :

(AV-14U17 / AV-21B17 : AUTO / PAL / SECAM)

(Other models : AUTO / PAL / SECAM /

NTSC3.58 / NTSC4.43)

In VIDEO mode (All models) :

(AUTO / PAL / SECAM / NTSC3.58 / NTSC4.43)

(\page 7)

SOUND SYSTEM Select the appropriate system

(AV-14U17 / AV-21B17 : BG / I / DK)

(Other models : BG / I / DK / M) (\page 7)

To return to previous screen

To exit from Menu or

Display MENU

Showing MENU

page 1 of 3

On-screen guide

/ Select function, go to

previous/next page

/ Display function setting.

/ Change setting

Operating the menus

AV-21B17&14U17.indd 5AV-21B17&14U17.indd 5 12/26/06 11:40:43 AM12/26/06 11:40:43 AM

Presetting TV channels

AUTO PROGRAM

AUTO PROGRAMMENU

to stop or when AUTO PROGRAM ﬁnishes.

MANUAL PROGRAM screen appears (\MANUAL PROGRAM).

MANUAL PROGRAM

-!.5!,02/'2!-

02  #(##

 "'#( 

 "'#( 

 "'#( 

 "'#( 

 "'#( 

6/,5-%3%!2#(

 &).%

$)30,!93/5.$3934%-

To search for a

channel manually

(SEARCH)

1. Select the PR number you wish to store the

channel.

2. Press the VOLUME +/- button to start searching

from the present channel. Searching stops when

the following channel is found.

To ﬁne-tune a channel

(FINE)

1. Select the channel you wish to ﬁne-tune.

2. Press the or button until a clear picture is

obtained.

INSERT / DELETE

After this operation, other channel's PR number will be changed.

INSERT / DELETEMENU

3To add the new

channel (INSERT)

1. Select the PR number you wish to store the new channel.

2. Press the VOLUME+ button.

3. Press button to choose “CH” or “CC”.

4. Enter the CH/CC number for the channel you wish to add.

The TV starts to search for the channel.

Certain channels are not available in some countries.

If you cannot receive a channel by INSERT, use MANUAL

PROGRAM.

To delete a

channel (DELETE) Select the channel you wish to delete and press .

To change the PR

number (MOVE)

1. Select the PR number you wish to move.

2. Press the button.

3. Press or button to move it to the new PR number.

4. Press button.

4to exit.

: MANUAL PROGRAM

).3%24$%,%4%

02  #(##

 "'#( 

 "'#( 

 "'#( 

 "'#( 

 "'#( 

6/,5-% ).3%24

-54).'$%,%4%

-/6%

to exit.

2or

CH/CC

CCIR OIRT

CH/CC

CCIR OIRT

CH/CC

CCIR OIRT

CH02 E2 R1 CH21 E21 CC01 S-1

CH03 E3 CH22 E22 CC02 S-2

CH04 E4 R2

CH05 E5 R6

CH06 E6 R7

CH07 E7 R8 CC41 S-41

CH08 E8 R9 CC75 X

CH09 E9 CC76 Y R3

CH10 E10 R10 CC77 Z R4

CH11 E11 R11 CC78 Z+1 R5

CH12 E12 R12 CH69 E69 CC79 Z+2

CCIR : Middle East, Southeast Asia, etc.. OIRT : Russia etc..

Channel table

If noisy sound is heard

and unsuitable sound

system for your broad-

casting (\page 7)

1. Press DISPLAY button then on screen will

change to Sound system.

2. Choose an appropriate sound system.

AV-21B17&14U17.indd 6AV-21B17&14U17.indd 6 12/26/06 11:40:45 AM12/26/06 11:40:45 AM

Using the timer Playing game

ON TIMER

ON TIMERMENU

ON TIMER

Choose the PR (channel) that you want to watch when the TV turns

on. External input, AV position and any un-preset channel cannot be

chosen for PR.

Set the ON TIMER to your desired period of time. When the

ON TIMER is set to other than 00:00, the ON TIMER is activated.

You can set the period of time to a maximum of 12 hours in

15-minute intervals.

To off the ON TIMER, set the time to 00:00.

OFF TIMER

Note: You can select OFF TIMER function by direct key.

You can set the period of time to a maximum of 120 minutes in 10

minutes intervals.

When the remaining elapse time is one minute, “GOOD NIGHT!”

appears on the screen.

You can display the OFF TIMER screen again to conﬁrm or change

the remaining time.

To off the OFF TIMER, select OFF or turn off the TV’s main power.

OFF TIMERMENU

1GAME

2Select a game.

PUZZLE This game needs you to rearrange the numbers 1 to 15 in order

by swapping the blank card with the numbered card.

TWINS This game needs you to ﬁnd all the matching pairs of cards. If

you open a correct pair, the card will stay uncovered. If you miss,

they will ﬂip back.

Instructions to play

Right

Down

Left

To move

Up Left RightDown

To move

To open a card (TWINS only) To restart the game To exit the game

Sound and Colour system in your country or region

Area Country or Region Sound

System

Colour

System

Asia,

Middle

East

Bahrain, Kuwait, Oman, Qatar, United Arab

Emirates, Yemen, etc.

Indonesia, Malaysia, Singapore, Thailand, India, etc

B/G

PAL

China, Vietnam, etc. D/K

Hong Kong, etc. I

Islamic Republic of Iran, Lebanon, Saudi Arabia, etc. B/G SECAM

Philippines, Taiwan, Myanmar, etc. M NTSC

Europe

Russia, etc. D/K SECAM

Czech Republic, Poland, etc.

PALGermany, Holland, Belgium, etc. B/G

UK, etc. I

Oceania Australia, New Zealand, etc. B/G PAL

Africa

Republic of South Africa, etc. I PAL

Nigeria, etc. B/G

Egypt, Morocco, etc. SECAM

AV-21B17&14U17.indd 7AV-21B17&14U17.indd 7 12/26/06 11:40:49 AM12/26/06 11:40:49 AM

Troubleshooting Speciﬁcations

If a problem occurs when you are using the TV, check the below

troubleshooting guide before calling for repair.

Problem Cause / Solution

No or poor picture • Turn OFF BLUE BACK if it is ON. (\page 5)

• Adjust the COLOUR or BRIGHT setting. Refer to

“PICTURE SETTING”. (\page 5)

• Choose the appropriate colour system. (\page 5)

Snowy picture • Check the aerial and TV connections. (\page 3)

Stripes or coloured

patches appeared

• Interference caused by electrical appliances or

speakers. Move them away from the TV.

Double-picture (ghost-

ing)

• Interference caused by signal reflecting from mountains

or buildings. Adjust the aerial’s direction or use another

antenna.

No or poor sound • Choose the appropriate sound system. (\page 5)

White and bright still

image looks as if it is

coloured

• Inevitable phenomenon due to the nature of the picture

tube. This is not a malfunction.

Image from video input

is distorted

• The image was not properly recorded. This is not a

malfunction.

Cannot operate the

remote control

• Replace the batteries. (\page 2)

• Operate it at less than 7 meters from the TV.

Cannot operate the

• Exit and enter the MENU again.

Cannot operate the

front panel buttons

• Turn OFF CHILD LOCK if it is ON.

Image takes a while to

be displayed

• Image requires time to stabilize before display.

This is not a malfunction.

TV emits crackling

sound

• Caused by a sudden change in temperature and it is not

a malfunction. Call a service technician for inspection.

Static shock when

touch the TV screen

• Caused by static electricity of the picture tube and it will

not harm the human body. This is not a malfunction.

TV RF systems AV-14U17 / AV-21B17 : B, G, I, D, K

Others models : B, G, I, D, K, M

Colour systems AV-14U17 / AV-21B17 : PAL, SECAM, NTSC 3.58 MHz /

NTSC 4.43 MHz (in VIDEO mode only)

Others models : PAL, SECAM, NTSC 3.58 MHz /

NTSC 4.43 MHz

Receiving

channels

VHF low channel (VL), VHF high channel (VH), UHF channel (U)

Receives cable channels in mid band, super band and hyper band.

Power requirements

For Malaysia AC 160 to 240 V, 50 Hz / 60 Hz

For others AC 110 to 240 V, 50 Hz / 60 Hz

External input / output

INPUT VIDEO input, AUDIO input

OUTPUT VIDEO output, AUDIO output

Headphone jack Stereo mini jack (3.5 mm diameter)

Design and speciﬁcations are subject to change without notice.

AV-21B17&14U17.indd 8AV-21B17&14U17.indd 8 12/26/06 11:40:52 AM12/26/06 11:40:52 AM

Otros manuales para AV-21B17

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de TELEVISOR de JVC

JVC

JVC AV21BF5ENS Manual de usuario

JVC

JVC AV-14FT Guía del administrador

JVC

JVC InteriArt Natural Vision T_V LINK AV32X25EU Manual de usuario

JVC

JVC AV14BJ8EPS Manual de usuario

JVC

JVC AV-21D116 Manual de usuario

JVC

JVC AV-28KT1BUF Manual de usuario

JVC

JVC PD-42V31BJE Manual de usuario

JVC

JVC AV-29BH11EES Manual de usuario

JVC

JVC InteriArt AV-21QT4BU Manual de usuario

JVC

JVC LT-37FX77 Manual de usuario

JVC

JVC AV-21F24, AV-21L24, AV-21C14, Manual de usuario

JVC

JVC AV-14F43, AV-20N43, AV-21D43 Manual de usuario

JVC

JVC AV 27D503 Manual de usuario

JVC

JVC LT19D200 - 19" LCD TV Manual de usuario

JVC

JVC AV-36260 Manual de usuario

JVC

JVC AV-321802 Manual de usuario

JVC

JVC AV-27FA44/BSA Manual de usuario

JVC

JVC AV-21F1EG Manual de usuario

JVC

JVC LT-26DY8ZG Manual de usuario

JVC

JVC LT-65MA 875 Manual de usuario

JVC

JVC AV-20F476, AV-27F476, AV-32F476 Manual de usuario

JVC

JVC AV-28H35SUE Manual de usuario

JVC

JVC AV-29ST16/P Manual de usuario

JVC

JVC AV-32H35SAE Manual de usuario

Manuales populares de TELEVISOR de otras marcas

Philips

Philips Colour Television Manual de usuario

Toshiba

Toshiba 27A10 Manual de usuario

Philips

Philips 42PF9630A/37 Manual de usuario

Hitachi

Hitachi 32FX48B Manual de usuario

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manual de usuario

Changhong Electric

Changhong Electric uhd55b6000is Manual de usuario

Philips

Philips Matchline 21CE7551 Manual de usuario

Panasonic

Panasonic Genus TX-G10 Manual de usuario

Toshiba

Toshiba 19A20 Manual de usuario

Philips

Philips 25PT4523-16 Manual de usuario

Sony

Sony XBR-100Z9D Manual de usuario

Philips

Philips PR0930X3 Manual de usuario

Philips

Philips Brilliance 231P4QPY Manual de usuario

Samsung

Samsung 55S9 B Series Manual de usuario

Philips

Philips 32HF9385D Guía de solución de problemas

Sharp

Sharp LC-40FI5012E Manual de usuario

Loewe

Loewe Table Stand Reference 55 Manual de usuario

Philips

Philips 32PFH5300 Manual de usuario
