JVC AV-16N211 Manual de usuario

GGT0010-001A-E

COLOUR TELEVISION

INSTRUCTIONS

Thank you for buying this JVC

colour television.

To make sure you understand how to

use your new TV, please read this

manual thoroughly before you begin.

AV-16N211

AV-21Y211

Contents

Safety precautions 2

Preparation 2

1 Confirm which remote control you have ...... 3

2 Inserting the batteries ................................... 3

Connecting the aerial and external devices ...

4 Connecting the power cord ........................ 5

5 SETUP TOUR .............................................. 6

Basic operation 7

Remote control buttons and functions 8

ECO SENSOR button ..................................... 8

PICTURE MODE button ................................. 8

COLOUR SYSTEM button ............................. 8

SOUND SYSTEM button ............................... 8

DISPLAY button ............................................. 9

MUTING button ............................................. 9

OFF TIMER button ......................................... 9

PICTURE BOOSTER button ........................... 9

RETURN + button ........................................ 10

CHANNEL SCAN button .............................. 10

Using the TV’s menus 11

Basic operation ............................................ 11

INPUT ........................................................... 12

ON TIMER ..................................................... 12

AUTO SHUTOFF .......................................... 13

CHILD LOCK ................................................. 13

BLUE BACK .................................................. 13

AI ECO DISPLAY .......................................... 14

SETUP TOUR ............................................... 14

AUTO CH PRESET ....................................... 14

MANUAL CH PRESET .................................. 15

SKIP .............................................................. 16

LANGUAGE .................................................. 16

Picture Adjustments .................................... 16

TV buttons and parts 17

Using the buttons on the TV 18

Troubleshooting 19

Specifications Back cover

GGT0010-21Y211-E501_cover 22/08/2003, 17:22pm3

Black

Safety precautions

WARNING

TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS

APPLIANCE TO RAIN OR MOISTURE.

CAUTION

TO ENSURE PERSONAL SAFETY, OBSERVE THE FOLLOWING RULES REGARDING

THE USE OF THIS TV.

•Operate only from the power source specified on the TV.

•Avoid damaging the power cord and main plug. When you unplug the TV, pull it out

by the main plug. Do not pull on the power cord.

•Never block or cover the cabinet opening

for ventilation. Never install the TV where

good ventilation is unattainable. When

installing this TV, leave spaces for

ventilation around the TV more than the

minimum distances shown in the diagram.

•Do not allow objects or liquid into the

cabinet openings.

•In the event of a fault, unplug the TV and bring to JVC service centre. Do not attempt

to repair it by yourself or remove the rear cover.

•The surface of the TV screen is easily damaged. Be very careful with it when

handling the TV. Should the TV screen become soiled, wipe it with a soft dry cloth.

Never rub it forcefully. Never use any cleaner or detergent on it.

•When you don’t use this TV for a long period of time, be sure to disconnect the

power plug from the AC outlet.

• The apparatus shall not be exposed to dripping or splashing and that no objects filled

with liquids, such as vases, shall be placed on the apparatus.

15 cm

10 cm 15 cm

10 cm

GGT0010-21Y211-E501 22/08/2003, 17:22pm2

Black

Preparation

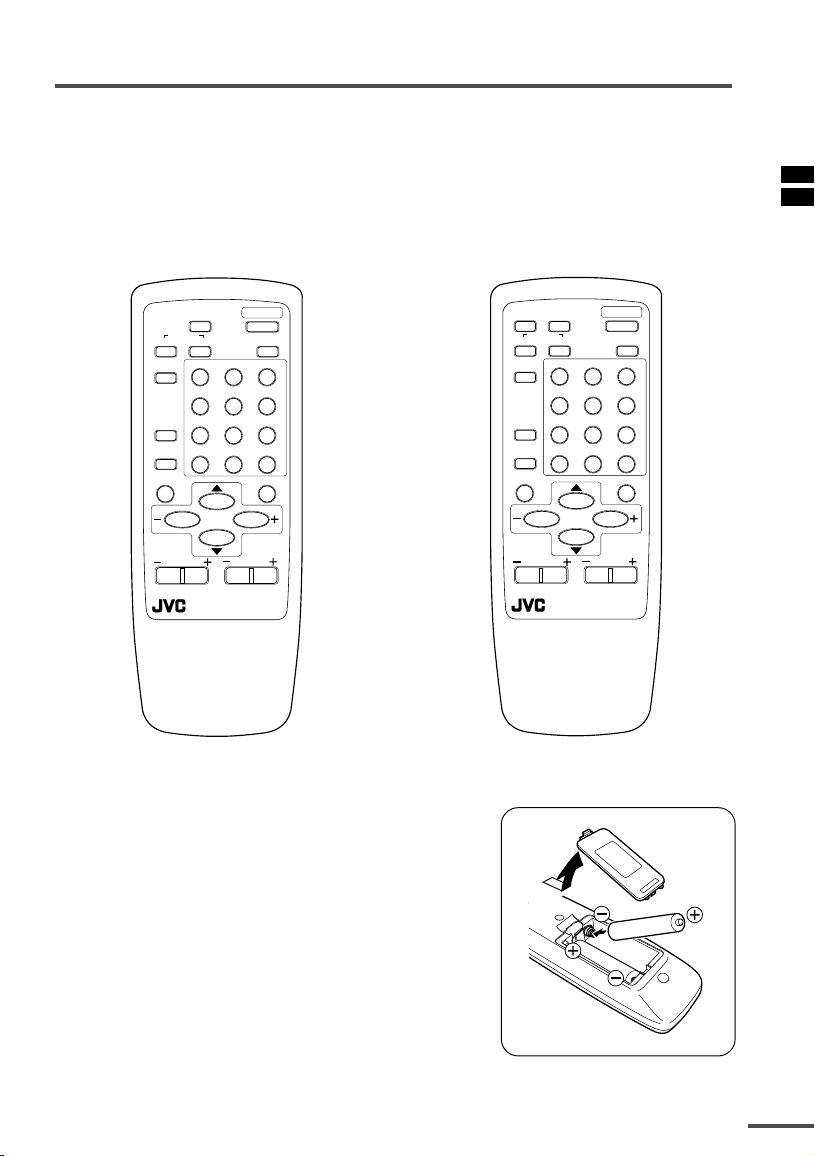

1Confirm which remote control you have

Your TV comes with one of the two remote controls shown below. Functions you

can operate differ depending on the type of remote control.

2Inserting the batteries

Correctly insert two batteries, observing the ,and .

polarities and inserting the .end first.

CAUTION:

Follow the cautions printed on the batteries.

Notes:

•Use AA/R6/UM-3 dry cell batteries.

•If the remote control does not work properly, fit new

batteries.

The supplied batteries are for testing, not regular use.

POWER

123

456

789

RETURN

+0-/--


MODE

SYSTEM

COLOUR

TV/VIDEO

CHANNEL

SCAN

OFF

TIMER

DISPLAY

MUTING

SOUND

VOLUME

CHANNEL

RM-C375GY


BOOSTER

For TV model:

AV-21Y211

RM-C375GY

POWER

123

456

789

RETURN

+0-/--


MODE

SYSTEM

COLOUR

TV/VIDEO

CHANNEL

SCAN

OFF

TIMER

ECO

SENSOR

DISPLAY

MUTING

SOUND

VOLUME

CHANNEL

REMOTE CONTROL UNIT

RM-C367GY


BOOSTER

For TV model:

AV-16N211

RM-C367GY

GGT0010-21Y211-E501 22/08/2003, 17:22pm3

Black

Preparation

3Connecting the aerial and external devices

•For further details, refer to the manuals provided with the devices you are connecting.

•Connecting cables are not supplied.

•The front and rear AUDIO/VIDEO input jacks are directly connected so that input to either

jack is output through both. You cannot provide input to both the front and rear jacks at the

same time. Disconnect one input, or use one of the jacks as an output jack only (for

monitoring or recording).

■Connecting the aerial and VCR

VIDEO

OUT

AUDIO

VIDEOAUDIO

OUT

Indoor aerialVHF/UHF outdoor aerial

Rod aerial

Matching aerial adapter

(supplied)

Aerial holder

(1)

(2)

(3)

Install into the top-rear aerial holder. Once installed, it cannot be removed.

To install rod aerial:

Connecting the aerial

• Illustration of AV-21Y211

VIDEO

OUT

AUDIO

To RF

output

To video

output

To aerial input

To audio

output

VCR

VHF/UHF outdoor aerial

Connecting the aerial and VCR

• Illustration of AV-21Y211

GGT0010-21Y211-E501 22/08/2003, 17:22pm4

Black

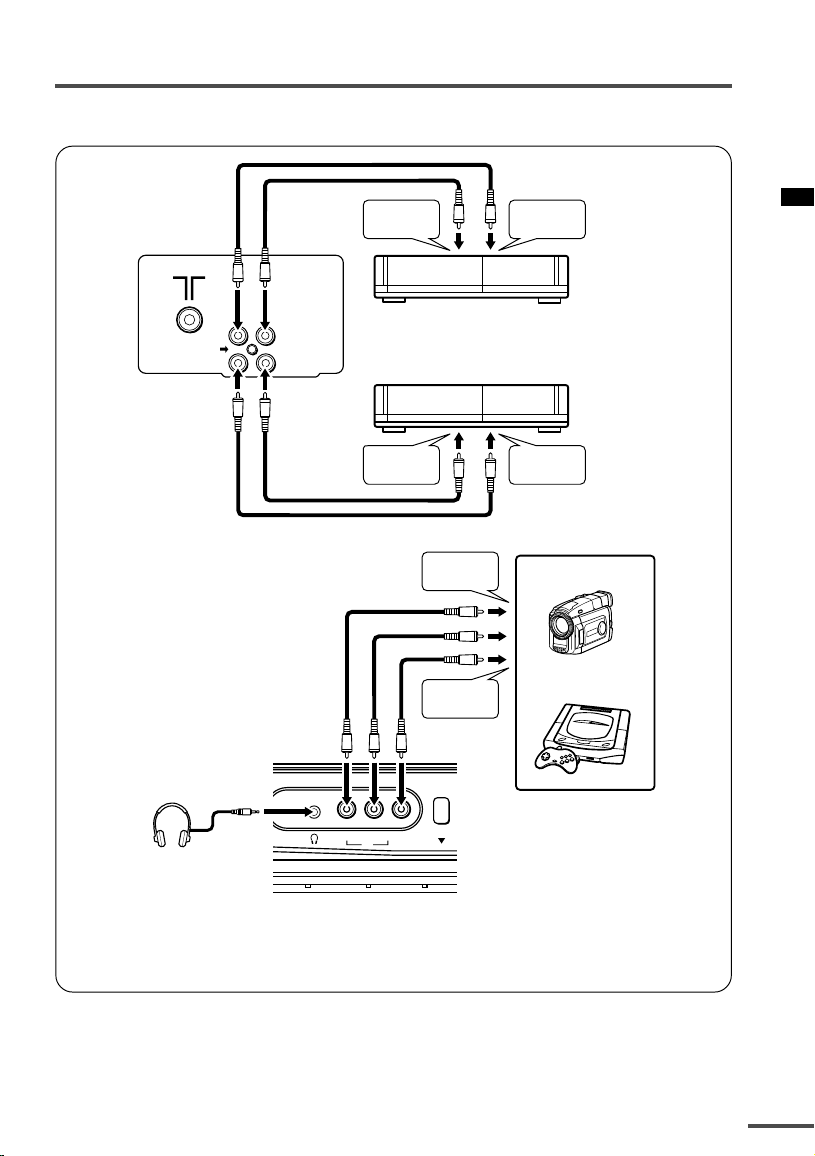

■Connecting other external devices

VIDEO

OUT

AUDIO

VCR (for recording)

VCR (for playing)

To audio

output

To video

output

To audio

input

To video

input

• Illustration of AV-21Y211

To audio

output

To video

output

Headphones

Camcorder

TV game

VIDEO AUDIO

• Illustration of AV-21Y211

•Use the headphones with a stereo mini jack (3.5 mm in diameter). When you connect the

headphones, the TV speakers go off.

•Because the front AUDIO jacks are monaural, even stereo input becomes monaural.

4Connecting the power cord

Connect the power cord to the AC outlet.

Operate only from the power source indicated on the rear of the TV.

Preparation

GGT0010-21Y211-E501 22/08/2003, 17:22pm5

Black

RETURN+0-/--

CHANNEL

SCAN

DISPLAY

VOLUME

MUTING

DISPLAY

button

MENU /

buttons

MENU –/+

buttons

CHANNEL

Preparation

5SETUP TOUR

When the TV is first turned on, it enters the SETUP TOUR mode, and the JVC logo is

displayed. Follow the instructions on the on-screen display to perform the SETUP TOUR.

•In case of resetting that the reason for such as removal, you can set the AUTO CH

PRESET function on the “MENU 3” menu. For details, see page 14.

1Press the Main power button

on the TV.

The POWER lamp lights. After the

JVC logo has been displayed, the TV

automatically switches to the

language setting mode.

SETUP TOUR

2Press the MENU Mbuttons to

select the on-screen language.

EXIT BY

OPERATE BY -+

DISPLAY

SETUP TOUR

LANGUAGE

ENGLISH

3Press the MENU ybutton.

The AUTO PROGRAMMING function will start and the indicator blinks.

STOP BY -+

SETUP TOUR

NOW PROGRAMMING

•To stop the AUTO PROGRAMMING function, press the MENU mbuttons.

When all the TV channels that can be received on your TV have been preset, the

display goes out and the AUTO PROGRAMMING function operation is completed.

•If a TV channel you want to view is not set to the channel, set it with the MANUAL CH

PRESET function. For details, see page 15.

ON TIMER POWER

POWER lamp Main power button

GGT0010-21Y211-E501 22/08/2003, 17:22pm6

Black

Basic operation

1Press the POWER button to turn

your TV on.

•If your TV does not turn on, press the

Main power button on the TV then press

the POWER button again.

•You can also turn on your TV by pressing

any of the following buttons;

- the CHANNEL mbutton

- the Number buttons

- the TV/VIDEO button

2Select a channel.

■Press the CHANNEL mbutton.

•Up/down selection cannot be selected for

channels to which the SKIP has been set to

“YES”. See page 16.

■Press the Number buttons to enter

the channel number.

•If you want to enter a two-digit number,

press the -/-- button to select the two digit

mode “--”, then enter the channel

number.

3Press the VOLUME Mbutton to

adjust the sound.

4To turn your TV off, press the

POWER button.

•We recommend that you press the Main

power button on the TV to turn the main

power off if you do not plan to use your

TV for a long time or if you wish to save

energy.

If the picture is not clear:

Press the COLOUR SYSTEM button to

select another colour system, see page 8.

If the sound is not clear:

Press the SOUND SYSTEM button to select

another sound system, see page 8.

Viewing Images from an External

Device:

Press the TV/VIDEO button to select the

VIDEO mode.

•You can also use the INPUT function to select

the VIDEO mode. For details, refer to page 12.

The illustration below is for the remote

control RM-C367GY. Your remote control

may not look exactly like the illustration.

POWER

123

456

789

RETURN

+0-/--


MODE

SYSTEM

COLOUR

TV/VIDEO

CHANNEL

SCAN

OFF

TIMER

DISPLAY

CHANNEL

REMOTE CONTROL UNIT

RM-C367GY

VOLUME

MUTING

SOUND

ECO

SENSOR PICTURE

BOOSTER

GGT0010-21Y211-E501 22/08/2003, 17:22pm7

Black

Remote control buttons and functions

ECO SENSOR button

<AV-16N211 only>

You can adjust this TV so that the screen

automatically adjusts to the optimum

contrast according to the brightness of

your room. This function reduces eye

strain and the power consumption of this

TV.

Press this button to select the desired

mode.

AI ECO SENSOR 1:

The AI ECO SENSOR function switches

on.

Usually, it is recommended to watch the TV

in this mode.

AI ECO SENSOR 2:

The AI ECO SENSOR function switches

on.

If you feel the screen in the “AI ECO

SENSOR 1” mode is too dark, select this

mode.

AI ECO SENSOR OFF:

The AI ECO SENSOR function switches

off.

• You can display on the screen the effect of the

AI ECO SENSOR function.

For details, see “AI ECO DISPLAY” on page 14.

PICTURE MODE button

You can select one of three picture

adjustment settings as you like.

Press this button to select a mode.

BRIGHT:

Heightens contrast and sharpness.

STANDARD:

Standardizes picture adjustments.

SOFT:

Softens contrast and sharpness.

•Pressing this button returns all the picture

settings in “MENU 4” to their default settings.

COLOUR SYSTEM button

If the picture is not clear or no colour

appears, change the current colour system

to another colour system.

Press this button to select the colour

system.

AUTO PAL SECAM

NTSC3.58

NTSC4.43

AUTO:

Automatic colour system selection.

•For the colour systems in each country or

region, see the table “Broadcasting systems”

on Back cover.

•If the picture is not normal in the AUTO

mode, change the AUTO mode to another

colour system.

SOUND SYSTEM button

If the sound is not clear even when the

picture appears normal, change the

current sound system to another sound

system.

Press this button to select the sound

system.

B/G D/K M

•For the sound systems in each country or

region, see the table “Broadcasting systems”

on Back cover.

•You cannot select any sound system when in

a VIDEO mode.

GGT0010-21Y211-E501 22/08/2003, 17:22pm8

Black

Remote control buttons and functions

DISPLAY button

You can continuously display the current

channel number or VIDEO mode on the

screen.

Press this button.

To turn the display off, press this button

again.

•When selecting a VIDEO mode with no

signal, indication of the VIDEO mode

becomes fixed on the screen.

MUTING button

You can turn the sound off instantly.

Press this button.

To turn the sound on, press this button

again.

OFF TIMER button

You can set the TV to automatically turn

off after a set time.

Press this button to select the period of

time.

•You can set the period of time to a maximum

of 120 minutes in 10 miniute increments.

•1minute before the OFF TIMER function

turns off the TV, “GOOD NIGHT!” appears.

To display the remaining time, press this

button once.

To cancel the OFF TIMER function,

press this button to set the period of

time to “0”.

•The OFF TIMER function will not turn off the

TV’s main power.

PICTURE BOOSTER button

When the picture is unclear because the

reception level of the TV signal is low,

activating the Picture Booster improves

the picture clarity in some situations.

Repeatedly press the PICTURE BOOSTER

button to select the desired mode.

HIGH:

The Picture Booster is functioning at

maximum.

LOW:

The Picture Booster is functioning at

minimum.

OFF:

The Picture Booster is off.

•If the picture becomes abnormal when you

set the Picture Booster to HIGH, then set it to

LOW or OFF.

GGT0010-21Y211-E501 22/08/2003, 17:22pm9

Black

Remote control buttons and functions

RETURN + button

You can set a channel you frequently view

to the Return Channel and you can view

that channel at any time with one-touch.

To set the channel to the Return

Channel:

1Select the channel you want to set

to the Return Channel.

2Press this button and hold until the

message “RETURN PLUS

PROGRAMMED!” appears.

•When you turn off the TV, the Return

Channel setting is canceled.

To view the Return Channel:

Press this button.

•You can view two channels (current channel

and Return Channel) alternately by pressing

this button.

To cancel the Return Channel setting:

Press this button and hold until the

message “RETURN PLUS CANCELED!”

appears.

If no channel is set to the Return

Channel:

You can view the channel selected right

before the current channel by pressing

this button.

CHANNEL SCAN button

You can quickly view all TV channels

programmes that you can view on your

TV, and search for the programme you

want to view.

1Press this button to start scanning

TV channels.

The TV channel programmes are each

displayed for several seconds.

• The programmes of TV channels for

which the SKIP function is set to “YES”

are not displayed. (See page 16.)

2When you find the programme you

want to view, press this button

again to stop scanning.

GGT0010-21Y211-E501 22/08/2003, 17:22pm10

Black

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de TELEVISOR de JVC

JVC

JVC AV-32WFT1EPS Manual de usuario

JVC

JVC LT-26AX5/S Manual de usuario

JVC

JVC AV-25PX Manual de usuario

JVC

JVC TV 13142 Manual de usuario

JVC

JVC I'Art PRO AV-48P787 Manual de usuario

JVC

JVC AV-36F802, AV-36F702, AV-32F802, AV-32F702, AV-27F802,... Manual de usuario

JVC

JVC AV-28GT20U Manual de usuario

JVC

JVC AV-32F703/Y Manual de usuario

JVC

JVC AV-2100QE Manual de usuario

JVC

JVC PD-42WX84SJ Manual de usuario

JVC

JVC HD70G886 - 70" CRT TV Manual

JVC

JVC InteriArt AV-28E50SK Manual de usuario

JVC

JVC 0801-Ki-NV-JET Manual de usuario

JVC

JVC AV-32920 Manual de usuario

JVC

JVC AV-32X4 Manual de usuario

JVC

JVC AV-14F116 Manual de usuario

JVC

JVC LT-20J50SE Manual de usuario

JVC

JVC AV-20F476, AV-27F476, AV-32F476 Manual de usuario

JVC

JVC AV-14JT5EU, AV-21JT5EU Manual de usuario

JVC

JVC D Series Manual de usuario

JVC

JVC InteriArt T-V LINK AV-28H4BU Instrucciones de montaje

JVC

JVC AV28BT5ENS Manual de usuario

JVC

JVC AV 27D302 Manual de usuario

JVC

JVC I'Art Pro AV-32S565 Manual de usuario

Manuales populares de TELEVISOR de otras marcas

Philips

Philips Colour Television Manual de usuario

Toshiba

Toshiba 27A10 Manual de usuario

Philips

Philips 42PF9630A/37 Manual de usuario

Hitachi

Hitachi 32FX48B Manual de usuario

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manual de usuario

Changhong Electric

Changhong Electric uhd55b6000is Manual de usuario

Philips

Philips Matchline 21CE7551 Manual de usuario

Panasonic

Panasonic Genus TX-G10 Manual de usuario

Toshiba

Toshiba 19A20 Manual de usuario

Philips

Philips 25PT4523-16 Manual de usuario

Sony

Sony XBR-100Z9D Manual de usuario

Philips

Philips PR0930X3 Manual de usuario

Philips

Philips Brilliance 231P4QPY Manual de usuario

Samsung

Samsung 55S9 B Series Manual de usuario

Philips

Philips 32HF9385D Guía de solución de problemas

Sharp

Sharp LC-40FI5012E Manual de usuario

Loewe

Loewe Table Stand Reference 55 Manual de usuario

Philips

Philips 32PFH5300 Manual de usuario
