JVC 0403-NIC-JMT Manual de usuario

GGT0013-001A-H

COLOUR TELEVISION

INSTRUCTIONS

Thank you for buying this JVC

colour television.

To make sure you understand how to

use your new TV, please read this

manual thoroughly before you begin.

AV-2137V1

AV-2132W1

AV-2132Y1

AV-2537V1

AV-2937V1

AV-2932W1

Contents

Safety precautions 2

Preparation 2

1 Insert the batteries into the remote control ... 2

2 Connecting the aerial and VCR .................. 3

3 Connecting other devices .......................... 4

4 Connect the power cord to the AC outlet ... 4

5 SETUP TOUR .............................................. 5

Basic operation 6

Remote control buttons and functions 7

MUTING button ............................................. 8

PICTURE BOOSTER button ........................... 8

COLOUR SYSTEM button ............................. 8

SOUND SYSTEM button ............................... 8

CINEMA SURROUND button ........................ 8

DISPLAY button ............................................. 9

ECO SENSOR button ..................................... 9

OFF TIMER button ......................................... 9

PICTURE MODE button ................................. 9

CHANNEL SCAN button .............................. 10

FAVORITE CH button ................................... 10

RETURN + button ........................................ 10

PIP buttons ................................................... 11

Viewing Teletext programmes 13

Using the TV’s menus 15

Basic operation ............................................ 15

INPUT ........................................................... 16

PICTURE TILT ............................................... 16

VNR ............................................................... 16

COMPRESS (16:9) ........................................ 16

AUTO SHUTOFF .......................................... 17

CHILD LOCK ................................................. 17

BLUE BACK .................................................. 17

VIDEO-2 SET ................................................ 18

Picture Adjustments .................................... 18

Sound Adjustments ..................................... 18

AI VOLUME .................................................. 19

AUTO CH PRESET ....................................... 19

MANUAL CH PRESET .................................. 20

SKIP .............................................................. 21

LANGUAGE .................................................. 21

TEXT LANGUAGE ........................................ 21

FAVORITE CH SETTING ............................... 22

VIDEO SETTING ........................................... 22

AI ECO SENSOR .......................................... 23

AI ECO DISPLAY .......................................... 23

PIP ................................................................. 23

TV buttons and parts 24

Using the buttons on the TV 25

Troubleshooting 26

Specifications 27

GGT0013-2937V1-E9 6/5/03, 10:33 PM3

Safety precautions

WARNING

TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE

TO RAIN OR MOISTURE.

CAUTION

TO ENSURE PERSONAL SAFETY, OBSERVE THE FOLLOWING RULES REGARDING THE

USE OF THIS TV.

• Operate only from the power source specified on the TV.

• Avoid damaging the power cord and main

plug. When you unplug the TV, pull it out by

the main plug. Do not pull on the power cord.

• Never block or cover the cabinet opening for

ventilation. Never install the TV where good

ventilation is unattainable. When installing

this TV, leave spaces for ventilation around the

TV more than the minimum distances shown

in the diagram.

• Do not allow objects or liquid into the cabinet openings.

• In the event of a fault, unplug the TV and bring to JVC service centre. Do not attempt to

repair it by yourself or remove the rear cover.

• The surface of the TV screen is easily damaged. Be very careful with it when handling

the TV. Should the TV screen become soiled, wipe it with a soft dry cloth. Never rub it

forcefully. Never use any cleaner or detergent on it.

• When you don’t use this TV for a long period of time, be sure to disconnect the power

plug from the AC outlet.

• The apparatus shall not be exposed to dripping or splashing and that no objects filled

with liquids, such as vases, shall be placed on the apparatus.

WARNING

<AV-2132W1 only>

A removable plastic cover is fixed to the television’s front Audio/Video connector. To

prevent this cover from being accidentally swallowed by babies or children, remove it

from the television and store it in a safe place. If the cover is swallowed seek the advice of

a doctor immediately.

Preparation

1 Insert the batteries into the remote

control

Correctly insert two batteries, observing the ,and .

polarities and inserting the .end first.

CAUTION:

Follow the cautions printed on the batteries.

Notes:

• Use AA/R6/UM-3 dry cell batteries.

• If the remote control does not work properly, fit new batteries.

The supplied batteries are for testing, not regular use.

15 cm

10 cm 15 cm

10 cm

GGT0013-2937V1-E9 6/5/03, 9:56 PM2

Preparation

2 Connecting the aerial and VCR

• Read the manuals provided with the devices. Depending on the device, the connection method

may be different from the diagrams. Also the device settings may need to change depending on

the connection method.

• Turn off all the devices including the TV.

• Connecting cables are not supplied.

• When connecting monaural audio to the TV, use the L/MONO jack.

• You can connect an S-VIDEO compatible device (such as an S-VHS VCR) to the S-connector with

an S-VIDEO cable and enjoy the high quality picture of the S-VIDEO signal (Y/C signal). In that

case, do not connect it to the TV with a video cable.

• If you connect the VCR to the TV only with an aerial cable, you should preset the video channel

from the VCR to the AV channel (channel number 0) on this TV. See “MANUAL CH PRESET” on

page 20 and preset it manually.

VHF/UHF outdoor aerial

VIDEO-1

INPUT OUTPUT

COMPONENT

(VIDEO-2)

INPUT

RRRCR

To RF

output

To video

output

To S-video

output VCR

VHF/UHF outdoor aerial

To aerial input 1

To audio

output

OVER

MONO

Y/V

MONO

VIDEO-1

INPUT OUTPUT

COMPONENT

(VIDEO-2)

INPUT

RRRCR

OVER

MONO

Y/V

MONO

Connecting the aerial

Connecting the aerial and VCR

GGT0013-2937V1-E9 6/5/03, 9:56 PM3

Preparation

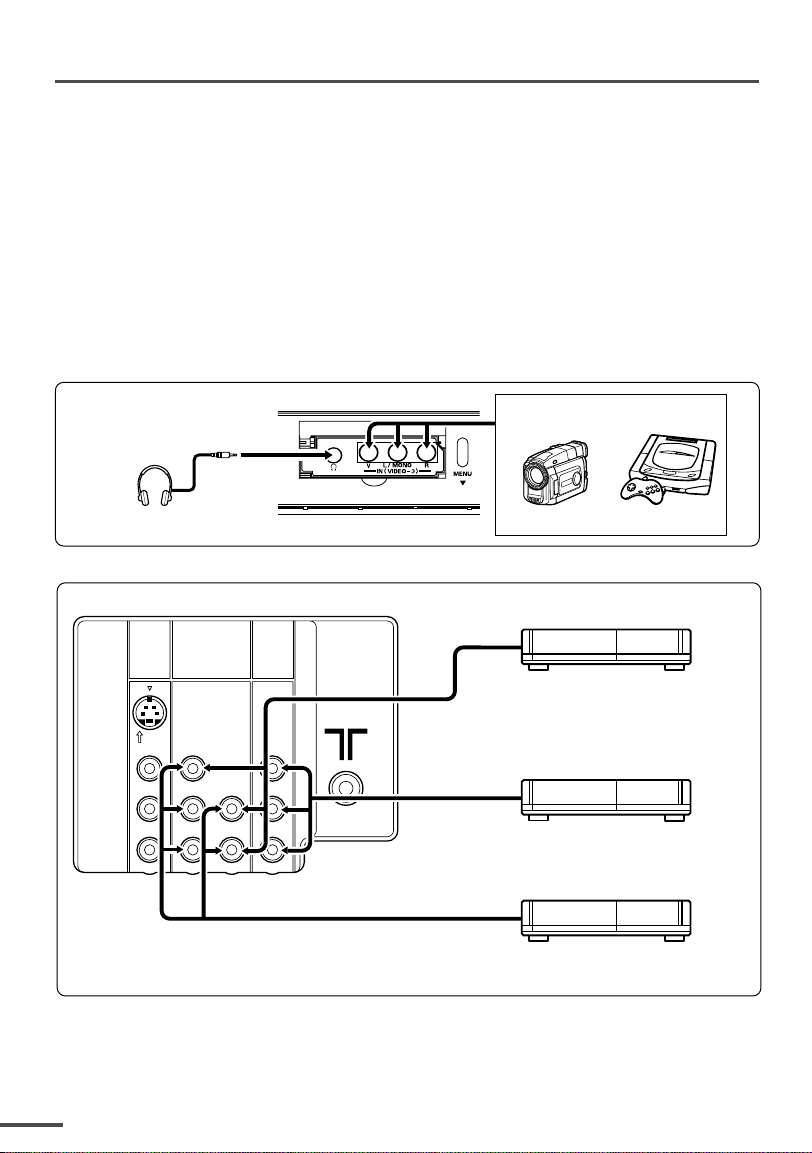

3 Connecting other devices

If you are not connecting any other devices, skip step 3 and perform step 4.

• Use the headphones with a stereo mini jack (3.5 mm in diameter). When you connect the

headphones, the TV speakers go off.

• The OUTPUT terminal outputs the video and sound signals which you are viewing on the TV.

You can dub them onto the VCR connected to the OUTPUT terminal.

(The OUTPUT terminal cannot output S-VIDEO signals or component video signals. Also it

cannot output any signals when the TV is turned off.)

• Connect components outputting a component signal (Y/CB/CRsignal), such as a DVD player, to

the VIDEO-2 terminal, and set VIDEO-2 SET function to “COMPONENT”. (See page 18.)

• The following illustrations are for the AV-2137V1. Your TV’s front and rear panels may not look

exactly like the illustrations.

4 Connect the power cord to the AC outlet

Operate only from the power source indicated on the rear of the TV.

Front

Rear

VIDEO-1

INPUT OUTPUT

COMPONENT

(VIDEO-2)

INPUT

RRR

VVV

VCR (for playing)

VCR (for recording)

DVD player

(composite signals)

DVD player

(component video signals)

MONO

OVER

Camcorder or TV game

Headphones

GGT0013-2937V1-E9 6/5/03, 9:56 PM4

Preparation

5 SETUP TOUR

When the TV is first turned on it enters the SETUP TOUR mode, and the JVC logo is

displayed. Follow the instructions on the on-screen display to perform the SETUP

TOUR.

• In case of resetting that the reason for such as removal, you can set the AUTO CH PRESET

function on the “MENU 3” menu. For details, see page 19.

1 Press the Main power button on the

TV.

The POWER lamp lights. After the JVC logo

has been displayed, the TV automatically

switches to the language setting mode.

SETUP TOUR

2 Press the CHANNEL –/+ or the

buttons to select the

on-screen language.

SETUP TOUR

LANGUAGE

ENGLISH

EXIT BY

OPERATE BY -+

DISPLAY

OFF

TIMER

ECO

SENSOR

SYSTEM

COLOUR SOUND

CINEMA

SURROUND

DISPLAY

TV/VIDEO

123

DISPLAY

button

MENU t

buttons

CHANNEL –/+

buttons


MODE

CHANNEL

SCAN

CHANNEL

RETURN+

VOLUME

456

789

0-/--

POWER lamp Main power button

PIP

TV/TEXT

ΙΙ

buttons

3 Press the CHANNEL –/+ or the

buttons to select

the teletext language group. For

details, see page 21.

çÄ. ìëíÄçéÇäà

К

ЛКС

ГУ -1

СЛДУ.

ОД

УЛ

DISPLAY

4 The AUTO PROGRAMMING

function will start and the

indicator blinks.

STOP BY

SETUP TOUR

NOW PROGRAMMING

• To stop the AUTO PROGRAMMING

function, press the CHANNEL mor the

buttons.

When all the TV channels that can

be received on your TV have been

preset, the display goes out and the

AUTO PROGRAMMING function

operation is completed.

• If a TV channel you want to view is

not set to the channel, set it with the

MANUAL CH PRESET function. For

details, see page 20.

5 Upon the completion of

AUTO PROGRAMMING

function, the message below

is displayed.

SETUP TOUR

THANK YOU!

GGT0013-2937V1-E9 6/5/03, 9:56 PM5

Your remote control may not look

exactly like the illustration.

MUTING BASS

OFF

TIMER

ECO

SENSOR


MODE

CHANNEL

SCAN

C.SYS

SYSTEM

COLOUR SOUND

CHANNEL

RETURN+

POWER

DISPLAY

PIP

TV/TEXT

ΙΙ

TV/VIDEO

MODE

VOLUME

123

456

789

0-/--

CINEMA

SURROUND


BOOSTER

FAVORITE CH

UB –

1 Press the POWER button to

turn your TV on.

• If your TV does not turn on, press the

Main power button on the TV then press

the POWER button again.

• You can also turn on your TV by pressing

any of the following buttons;

- the CHANNEL mbutton

- the Number buttons

- the TV/VIDEO button

2 Select a channel.

■Press the CHANNEL mbutton.

• Up/down selection cannot be selected

for channels to which the SKIP has

been set to “YES”. See page 21.

■Press the Number buttons to enter

the channel number.

• If you want to enter a two-digit

number, press the -/-- button to select

the two digit mode “--”, then enter the

channel number.

3 Press the VOLUME Mbutton

to adjust the sound.

4 To turn your TV off, press the

POWER button.

• We recommend that you press the Main

power button on the TV to turn the main

power off if you do not plan to use your

TV for a long time or if you wish to save

energy.

If the picture is not clear:

Press the COLOUR SYSTEM button to

select another colour system, see page 8.

If the sound is not clear:

Press the SOUND SYSTEM button to

select another sound system, see page 8.

Viewing Images from an External

Device:

Press the TV/VIDEO button to select the

VIDEO mode.

• You can also use the INPUT function to

select the VIDEO mode. For details, refer to

page 16.

Basic Operation

Note: For the function buttons available for

your TV set, please refer to which

Remote Control you have (See page 7

for details).

GGT0013-2937V1-E9 6/5/03, 9:56 PM6

Remote control buttons and functions

Cross Reference table for TV set and Remote Control

AV-2137V1 AV-2132W1 Refer to

TV SET AV-2537V1 AV-2932W1 AV-2132Y1 page no.

AV-2937V1

REMOTE CONTROL RM-C1302 RM-C1309 RM-C1311

MUTING ‡‡ ‡8

PICTURE BOOSTER ––‡8

COLOUR SYSTEM ‡‡ ‡8

SOUND SYSTEM ‡‡ ‡8

CINEMA SURROUND ‡‡ ‡8

DISPLAY ‡‡ ‡9

ECO SENSOR ‡‡ ‡9

TV/VIDEO ‡‡ ‡6

OFF TIMER ‡‡ ‡9

PICTURE MODE ‡‡ ‡9

CHANNEL SCAN ‡‡ ‡

FAVORITE CH ‡‡ ‡

RETURN+ ‡‡ ‡

SUB +/– ‡––

SWAP ‡––11

INPUT ‡––11

C.SYS ‡––

FREEZE ‡––

POSITION ‡––

REVEAL

‡‡ ‡

HOLD

‡‡ ‡

INDEX i‡‡ ‡

SIZE

‡‡ ‡

SUBPAGE ‡‡ ‡

STORE ‡‡ ‡

MODE ‡‡ ‡

CANCEL ‡‡ ‡

PIP

TV/TEXT

GGT0013-2937V1-E9 6/5/03, 9:56 PM7

MUTING button

You can turn the sound off instantly.

Press this button.

To turn the sound on, press this button

again.

PICTURE BOOSTER button

When the picture is unclear because the

reception level of the TV signal is low,

activating the Picture Booster improves

the picture clarity in some situations.

Repeatedly press the PICTURE BOOSTER

button to select the desired mode.

HIGH:

The Picture Booster is functioning at

maximum.

LOW:

The Picture Booster is functioning at

minimum.

OFF:

The Picture Booster is off.

• If the picture becomes abnormal when you

set the Picture Booster to HIGH, then set it to

LOW or OFF.

COLOUR SYSTEM button

If the picture is not clear or no colour

appears, change the current colour system

to another colour system.

Press this button to select the colour

system.

AUTO:

Automatic colour system selection.

• For the colour systems in each country or

region, see the table “Broadcasting systems”

on page 27.

• If the picture is not normal in the AUTO

mode, change the AUTO mode to another

colour system.

AUTO PAL SECAM

NTSC3.58

NTSC4.43

SOUND SYSTEM button

If the sound is not clear even when the

picture appears normal, change the

current sound system to another sound

system.

Press this button to select the sound

system.

B/G IMD/K

• For the sound systems in each country or

region, see the table “Broadcasting systems”

on page 27.

• You cannot select any sound system when in

a VIDEO mode.

CINEMA SURROUND button

You can enjoy an enhanced sound for a

wider audience by using CINEMA

SURROUND function.

Press this button to select one of the

CINEMA SURROUND mode.

HIGH/LOW:

When you listen to the stereo sound,

please select HIGH mode or LOW mode.

You can enjoy the sound for a wider

audience similar to the experience at the

theatre.

• In case that you setting up the CINEMA

SURROUND function to HIGH mode, there

may be slight volume distortion. In case that

occurs, please switch the HIGH mode to LOW

mode, the effect of CINEMA SURROUND

functions will be less noticeable, however, the

volume distortion will be corrected.

MONO SURROUND:

Select the MONO SURROUND mode,

when you listen to the mono sound.

You can enjoy the sound for a wider

audience similar to stereo sound.

OFF:

The CINEMA SURROUND function

switches off.

Remote control buttons and functions

GGT0013-2937V1-E9 6/5/03, 9:56 PM8

DISPLAY button

You can continuously display the current

channel number or VIDEO mode on the

screen.

Press this button.

To turn the display off, press this button

again.

• When selecting a VIDEO mode with no

signal, indication of the VIDEO mode

becomes fixed on the screen.

ECO SENSOR button

You can adjust this TV so that the screen

automatically adjusts to the optimum

contrast according to the brightness of

your room. This function reduces eye

strain and the power consumption of this

TV.

Press this button to select the desired

mode.

AI ECO SENSOR 1:

The AI ECO SENSOR function switches

on.

Usually, it is recommended to watch the

TV in this mode.

AI ECO SENSOR 2:

The AI ECO SENSOR function switches

on.

If you feel the screen in the “AI ECO

SENSOR 1” mode is too dark, select this

mode.

AI ECO SENSOR OFF:

The AI ECO SENSOR function switches

off.

• You can display on the screen the effect of the

AI ECO SENSOR function.

For details, see “AI ECO DISPLAY” on page 23.

OFF TIMER button

You can set the TV to automatically turn

off after a set time.

Press this button to select the period of

time.

• You can set the period of time to a maximum

of 120 minutes in 10 miniute increments.

• 1 minute before the OFF TIMER function

turns off the TV, “GOOD NIGHT!” appears.

To display the remaining time, press this

button once.

To cancel the OFF TIMER function, press

this button to set the period of time to 0.

• The OFF TIMER function will not turn off the

TV’s main power.

PICTURE MODE button

You can select one of three picture

adjustment settings as you like.

Press this button to select a mode.

BRIGHT:

Heightens contrast and sharpness.

STANDARD:

Standardizes picture adjustments.

SOFT:

Softens contrast and sharpness.

• Pressing this button returns all the picture

settings in “MENU 4” to their default settings.

Remote control buttons and functions

GGT0013-2937V1-E9 6/5/03, 9:56 PM9

CHANNEL SCAN button

You can quickly view all TV channels

programmes that you can view on your

TV, and search for the programme you

want to view.

1 Press this button to start scanning

TV channels.

The TV channel programmes are each

displayed for several seconds.

• The programmes of TV channels for

which the SKIP function is set to “YES”

are not displayed.

2 When you find the programme you

want to view, press this button

again to stop scanning.

FAVORITE CH button

You can correlate 4 channels out of 99

channels (PR01-PR99) with FAVORITE CH

buttons RED, GREEN, YELLOW and

BLUE.

When not in TEXT mode, press one of the

FAVORITE CH buttons for more than 3

seconds to correlate currently watching

channel. After the channel and button are

correlated, you can directly select favorite

channel by the correlated button.

• When MENU is displayed, FAVORITE CH

cannot be correlated.

• Correlation of FAVORITE CH button and the

channel cannot be reset eventhough the main

power is turned off.

Remote control buttons and functions

RETURN + button

You can set a channel you frequently view

to the Return Channel and you can view

that channel at any time with one-touch.

To set the channel to the Return Channel:

1 Select the channel you want to set

to the Return Channel.

2 Press this button and hold until the

message “RETURN PLUS

PROGRAMMED!” appears.

• When you turn off the TV, the Return

Channel setting is canceled.

To view the Return Channel:

Press this button.

• You can view two channels (current channel

and Return Channel) alternately by pressing

this button.

To cancel the Return Channel setting:

Press this button and hold until the

message “RETURN PLUS CANCELED!”

appears.

If no channel is set to the Return

Channel:

You can view the channel selected right

before the current channel by pressing

this button.

GGT0013-2937V1-E9 6/5/03, 9:56 PM10

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de TELEVISOR de JVC

JVC

JVC AV-29FH1BUG Manual de usuario

JVC

JVC AV-25BT6ENB Manual de usuario

JVC

JVC AV21BT7EPS Manual de usuario

JVC

JVC AV-20320/S Manual de usuario

JVC

JVC AV-32X5SU Instrucciones de montaje

JVC

JVC AV-21VT31 Manual de usuario

JVC

JVC AV-14FM Manual de usuario

JVC

JVC AV-21B17 Manual de usuario

JVC

JVC TM-2703U/SA Manual de usuario

JVC

JVC InteriArt HV-28P37SUE Manual de usuario

JVC

JVC AV-21CS24 Manual de usuario

JVC

JVC AV-21CN14 Manual de usuario

JVC

JVC AV-21AT Manual de usuario

JVC

JVC AV-28KH1BUF Manual del sistema

JVC

JVC AV28CH1EUS Manual de usuario

JVC

JVC AV-28T5BK/P Manual de usuario

JVC

JVC AV-28BH8ENS Manual de usuario

JVC

JVC AV-48WP30 Manual de usuario

JVC

JVC I'Art Palette PD-42V475 Manual de usuario

JVC

JVC AV-29DL6SGE Guía de inicio rápido

JVC

JVC LT-55MA888 Manual de usuario

JVC

JVC I Art AV-36F803 Manual de usuario

JVC

JVC AV-28GT20U Manual de usuario

JVC

JVC AV-T2922 Manual de usuario

Manuales populares de TELEVISOR de otras marcas

Philips

Philips Colour Television Manual de usuario

Toshiba

Toshiba 27A10 Manual de usuario

Philips

Philips 42PF9630A/37 Manual de usuario

Hitachi

Hitachi 32FX48B Manual de usuario

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manual de usuario

Changhong Electric

Changhong Electric uhd55b6000is Manual de usuario

Philips

Philips Matchline 21CE7551 Manual de usuario

Panasonic

Panasonic Genus TX-G10 Manual de usuario

Toshiba

Toshiba 19A20 Manual de usuario

Philips

Philips 25PT4523-16 Manual de usuario

Sony

Sony XBR-100Z9D Manual de usuario

Philips

Philips PR0930X3 Manual de usuario

Philips

Philips Brilliance 231P4QPY Manual de usuario

Samsung

Samsung 55S9 B Series Manual de usuario

Philips

Philips 32HF9385D Guía de solución de problemas

Sharp

Sharp LC-40FI5012E Manual de usuario

Loewe

Loewe Table Stand Reference 55 Manual de usuario

Philips

Philips 32PFH5300 Manual de usuario
