SERVICE MANUAL

POWERED SUBWOOFER

No.20863

Jul. 2000

din Japan

07(V)

SP-PW880

Contents

Safety Precautions

Disassembly method

Description of major ICs

1-2

1-3

1-6

Area Suffix

Continental Europe

Northern Europe

Singapore

SP-PW880

!Burrs formed during molding may be left over on some parts of the chassis. Therefore,

pay attention to such burrs in the case of preforming repair of this system.

Safety precaution

1-2

SP-PW880

1-3

Remove the saran board assembly from the cabinet

assembly while releasing the four corner joints

toward the front.

Remove the eight screws A attaching the speaker.

Disconnect the fasten connected to the speaker

terminal on the back of the speaker.

Disassembly method

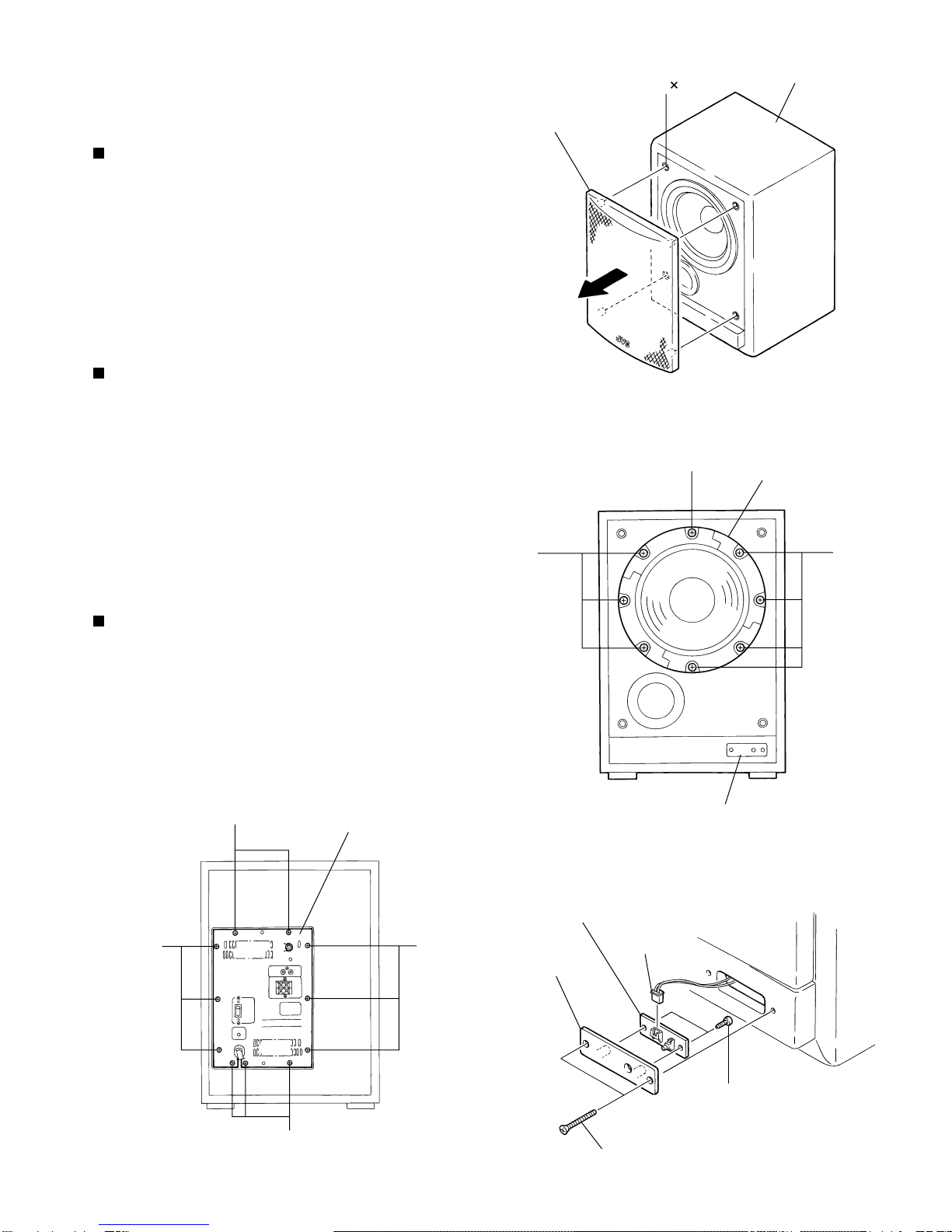

Removing the speaker (See Fig.1 and 2)

Remove the two screws B attaching the LED

indicator board assembly on the front side of the

speaker box.

Disconnect the harness from connector CN404 on

the LED indicator board assembly.

Remove the two screws C and the panel.

Removing the LED indicator board

assembly (See Fig.3)

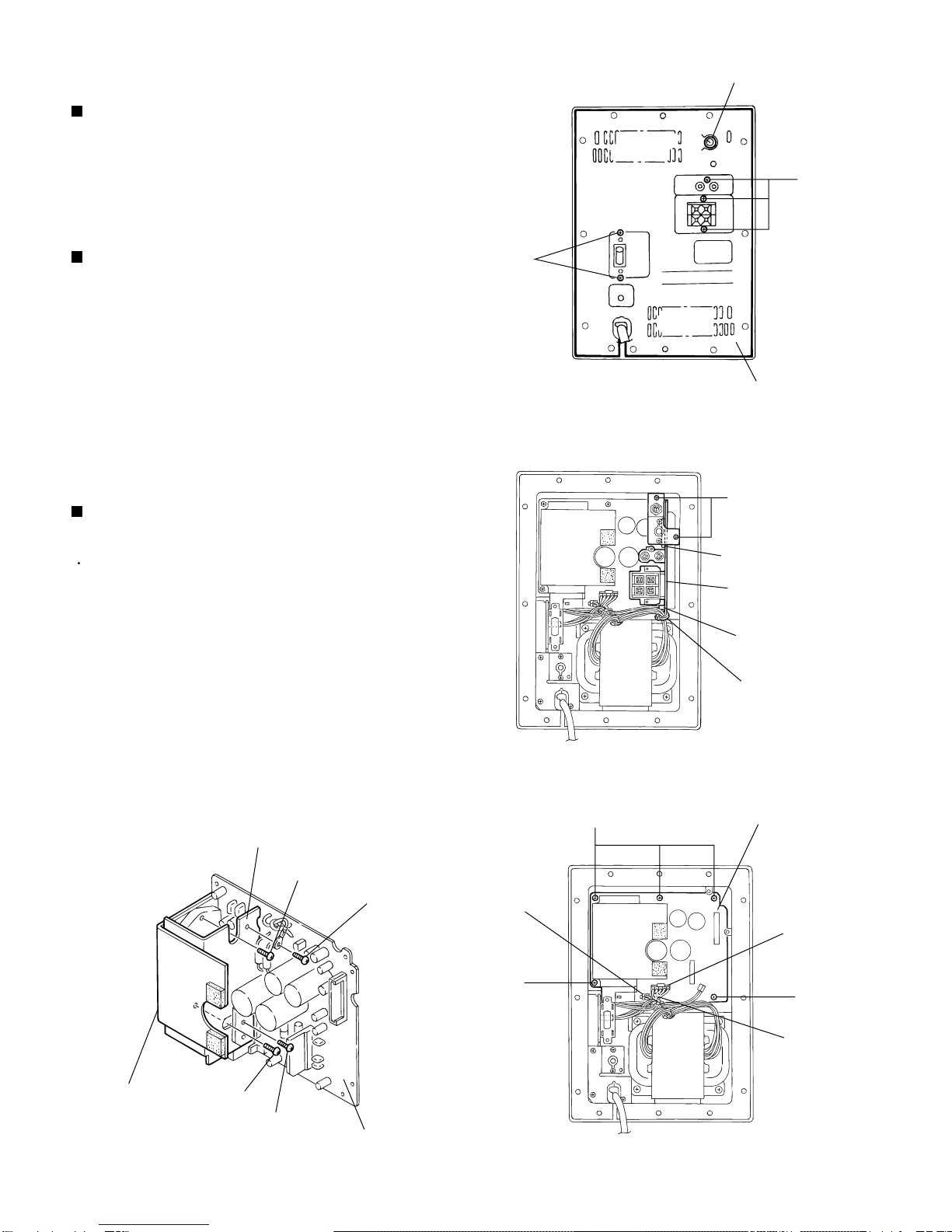

Removing the amplifier assembly

(See Fig.4)

Remove the eleven screws D attaching the amplifier

board on the back of the body.

Disconnect each relay harness connected to the

speaker and the LED indicator board.

Fig.1

Fig.2

Fig.3Fig.4

Joint 4 Cabinet assembly

Saran board assembly

Speaker

LED indicator board assembly

Harness

LED indicator board assembly

Panel

Amplifier board

SP-PW880

1-4

Pull out the volume knob from the amplifier.

Remove the three screws E and the two screws F

on the amplifier.

Removing the cover (See Fig.5)

Cut off the band under the input board assembly.

Disconnect the harness from connector CN851.

Remove the two screws G attaching the input

amplifier / filter board assembly. Pull and disconnect

connector CN811 from the body.

Removing the Input board assembly

(See Fig.6)

Removing the amplifier board assembly

(See Fig.7 and 8)

Prior to performing procedure, remove the input

amplifier / filter board assembly.

Disconnect the harness from connector CN891 and

CN881 on the amplifier board assembly.

Remove the six screws H attaching the amplifier

board assembly.

Remove the two screws I attaching the heat sink 1

and the two screws J attaching the heat sink 2

respectively.

Fig.5

Fig.6

Fig.7Fig.7

Volume knob

Cover

(Only US)

Input board

assembly

CN811

CN851

Band

Amplifier board assembly

CN891

CN881

Heat sink 2

Heat sink 1

Amplifier board assembly

SP-PW880

1-5

Cut off the three bands fastening the harnesses

extending from the transformer assembly.

Disconnect the harness from connector CN891 on

the amplifier board assembly and from CN899 on the

power board assembly.

Remove the four screws K attaching the transformer

assembly.

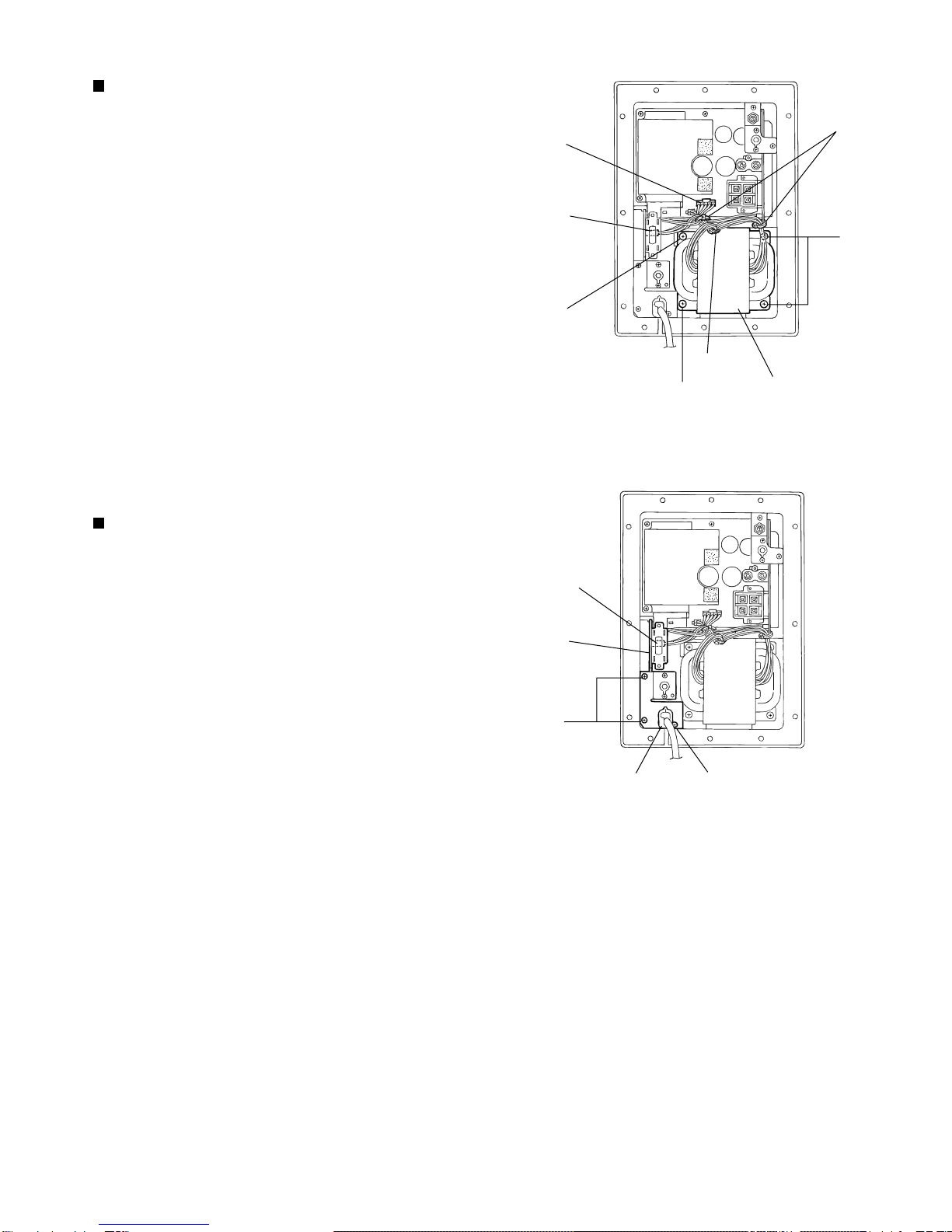

Removing the transformer assembly

(See Fig.9)

Disconnect the harness from connector CN899 on

the power board assembly.

Remove the three screws L assembly.

Remove the cord stopper.

Removing the power board assembly

(See Fig.10)

Fig.9

Fig.10

Bands

Amplifier board

assembly

CN891

Band

Power board

assembly

CN899

Transformer assembly

CN899

Power board

assembly

Cord stopper L

SP-PW880

1-6

TR1 TR2

R2 C1

TR3 TR4

D6 R4

TR6

TR5

R7 TR7

R51

TR9

TR8 TR12

TR10

TR11 TR23

TR24

TR22

TR21 R14

R16

R19 TR20

R15

R16

R17

TR19

R18

TR14 TR13

C3 R12

TR16TR15

TR17

R13

TR31 R31

D31

D32

TR32

R32

Comparator

D34

D36

D35

D33

SUB

21 22 916 10 14 15 11

12 13

STK411-290E (IC821) : Power amplifier

Description of major ICs

Printed in Japan

200007(V)

VICTOR COMPANY OF JAPAN, LIMITED

AUDIO & COMMUNICATION BUSINESS DIVISION

PERSONAL & MOBILE NETWORK B.U. 10-1,1Chome,Ohwatari-machi,Maebashi-city,371-8543,Japan

No.20863

SP-PW880

ABC

SP-PW880

2-1

LVA10058-A2

66-000-074-11

LVA10058-A1

LVA10058-A3

IC811

IC813

2/2

IC813

2/2

IC811

Q8101

Q8102

IC851

Q8501

Q8502

1/2

IC812

2/2

VR811

-VH

CN811 CN821

CN881

IC812

IC821 Q8204 RY881

1/2

S8101

18 14

Q8201 Q8202

Q8203

SP-PW880

Block diagram

Input L/H amp

LED control

Regulator

(5V) Regulator

(9V)

CN851

CN861

CN891

Power circuit

DC detector

High path

filter

Power amp Output current

detector Relay Speaker

Low path

filter Buffer

ABCD E F G

2-2

SP-PW880

Parts are safety assurance parts.

When replacing those parts make

sure to use the specified one.

Input circuit

LED indicator circuit

Power amplifier circuit

Power supply circuit

Playback signal line

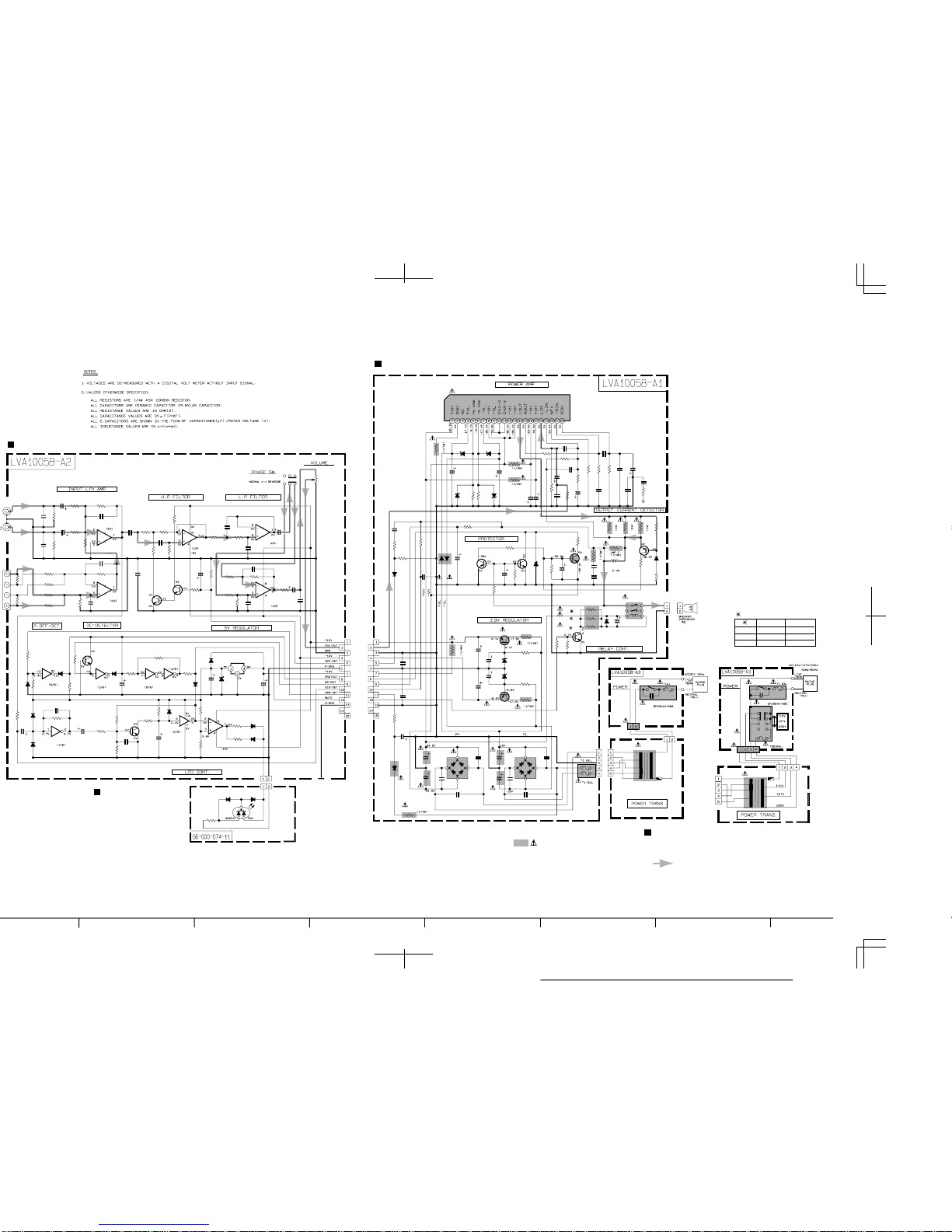

Standard schematic diagrams
