ACTIVE SUBWOOFER SYSTEM

MA25220063

CS-BB2J, CS-BB2U

Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade)

TABLE OF CONTENTS

1 PRECAUTION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

2 SPECIFIC SERVICE INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

3 DISASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

4 ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5

5 TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

1-2 (No.MA252)

SPECIFICATION

Design and specifi cations are subject to change without notice.

Type Closed Active Subwoofer (Built-in amplifi er)

Speaker Unit 14 cm (5-9/16 in.) cone

Input Terminal LINE IN (1 system), 0.19 V/25 kΩ

SPEAKER (1 system), 3.7 V

Power Output 32 W RMS x 2 channels at 2 Ωand [< or =] 1% THD + N

Signal-to-Noise Ratio 75 dBA (reference: 1 W into 2 Ω)

Maximum Amplifi er Power Output 60 W + 60 W (Impedance 2 Ω+ 2 Ω)

Cut-off Frequency 110 Hz (L.P.F. switch "ON", -12 dB/oct low pass fi lter)

Crossover Frequency 20 Hz to 200 Hz (L.P.F. switch "ON")

20 Hz to 500 Hz (L.P.F. switch "OFF")

Sound Pressure Level 88 dB/ m (with line input: 0.03 V)

Level Control -50 dB to 0 dB (Center) to + 10 dB

Power Requirement DC 14.4 V (11 V to 16 V allowance), Negative ground

Dimensions (W/H/D) 290 mm ×60.5 mm ×200 mm (11-7/16 in. ×2-7/16 in. ×7-7/8 in.)

Mass 2.1 kg (4.7lbs) (Excluding accessories)

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

(No.MA252)1-3

SECTION 1

PRECAUTION

1.1 Safety Precautions

SECTION 2

SPECIFIC SERVICE INSTRUCTIONS

This service manual does not describe SPECIFIC SERVICE INSTRUCTIONS.

SECTION 3

DISASSEMBLY

3.1 Removing the almi plate

(See fig.1)

(1) Remove the six screws A, two screws Band one screw C

attaching the almi plate.

(2) Remove the almi plate from main body.

Fig.1

!Burrs formed during molding may be left over on some parts of the chassis. Therefore,

pay attention to such burrs in the case of preforming repair of this system.

almi plate

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

1-4 (No.MA252)

3.2 Removing the main board

(See fig.2 to 4)

• Remove the almi plate.

(1) Remove the five screws Dand one screw D' attaching the

main board. (See fig.2)

(2) Remove the one screw Eattaching the main board. (See

fig.3)

(3) Take out the main board, and then remove the wire from

speaker terminal. (See fig.4)

Reference:

When attach the screw D', spring and washer are attached

with screw D'. (See fig.2)

Caution:

When reassembly, wire should connect as same as before dis-

assembly. (See fig.4)

3.3 Removing the speaker

(See fig.4)

• Remove the almi plate.

• Remove the main board.

(1) Remove the base cabinet.

(2) Remove the four screws Fattaching the speaker.

(3) Shift up the speaker and take out.

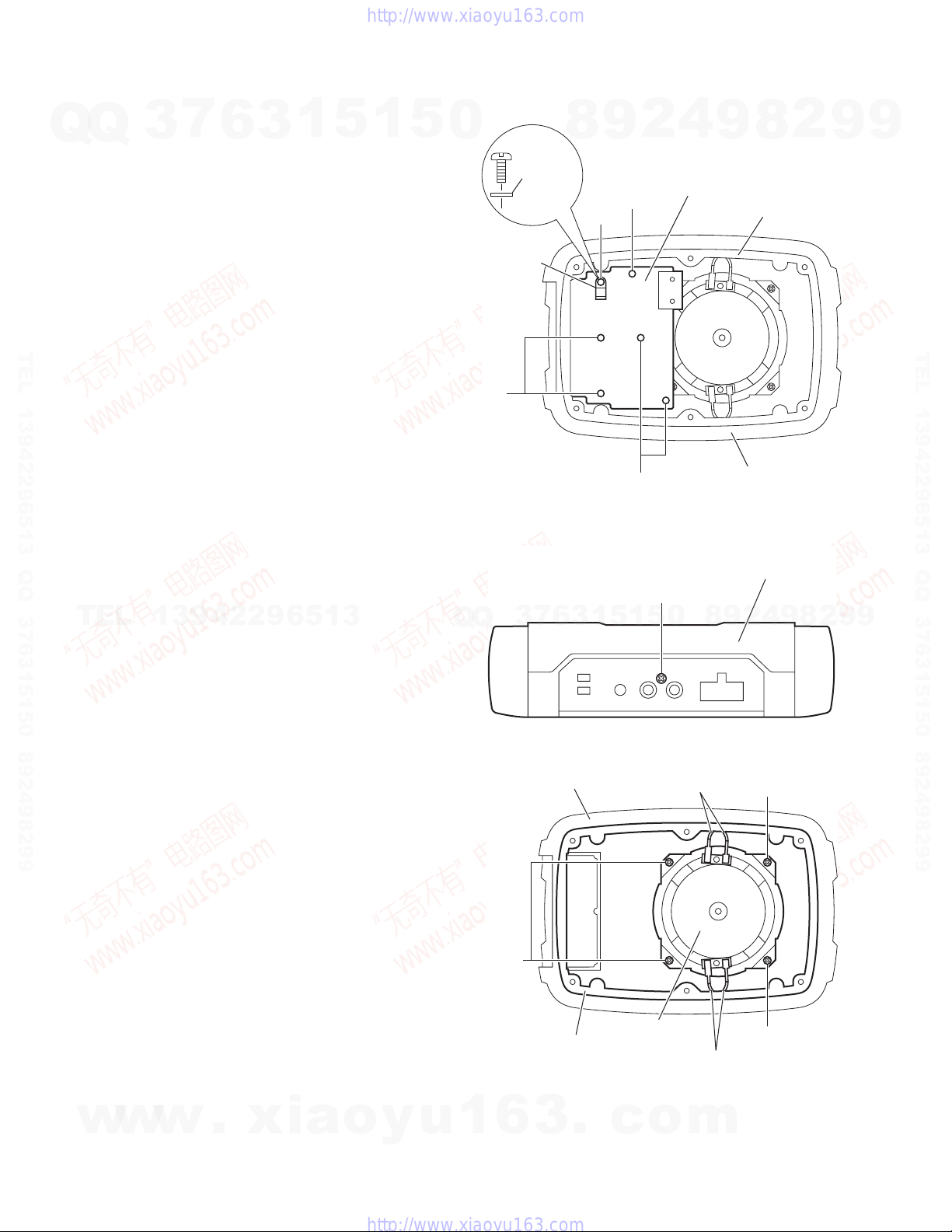

Fig.2

Fig.3

Fig.4

washer

base cabinet

spacer

main board

spring

upper cabinet

base cabinet wire (white)

wire (blue)

spacer speaker

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

(No.MA252)1-5

SECTION 4

ADJUSTMENT

This service manual does not describe ADJUSTMENT.

SECTION 5

TROUBLESHOOTING

5.1 10 PIN CORD DIAGRAM

1.BL/WH

2.YL

3.BK

4.WH/BK

5.GY/BK

6.NC

7.YL

8.BK

9.WH

10.GY

REMOTE OUT

POWER LEAD

POWER

LEAD

GROUND

TO L CHANNEL

SPEAKER OUTPUT

TO R CHANNEL

SPEAKER OUTPUT

TO ANPLEFIER

RECEIVER

TO ANPLEFIER

RECEIVER

1 BL/WH

2 YL

7 YL

3 BK

8 BK

9 WH

4 WH/BK

10 GY

5 GY/BK

Black

Blue

White

Gray

Yellow

RR Rear Right

FR Front Right

FL Front Left

RL Rear Left

REMOTE

Remote Out

GND Ground

MEMORY

Memory Backup Battery+

REMOTE

MEMORY

GND

FL+

FL-

FR+

FR-

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

(No.MA252)

Mobile Entertainment Business Group Mobile Entertainment Category 10-1,1chome,Ohwatari-machi,Maebashi-city,Gumma-ken, 371-8543,Japan

Victor Company of Japan, Limited

VPT

Printed in Japan

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

Contents

Block diagram

Standard schematic diagrams

Printed circuit boards

2-2

2-3

2-5 to 6

CD-ROM No.SML200603

SCHEMATIC DIAGRAMS

ACTIVE SUBWOOFER SYSTEM

No.MA252SCH

2006/3

CS-BB2J,CS-BB2U

Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade)

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

2-1

!Burrs formed during molding may be left over on some parts of the chassis. Therefore,

pay attention to such burrs in the case of preforming repair of this system.

Safety precaution

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

2-2

IC101

-1

IC101

-2

INPUT

AMP.

PHASE

SELECT

CN301

IC321 IC331

-1

IC331

-2

H.P.F L.P.F

IC701

POWER

AMP.

CN701

CJ101

CN401

S402

PHASE SW L.P.F. SW

S401

IC301

E.VOL

(V.C.A)

PHASE

IC311

-1

IC311

-2

Q604

Q701

MUTE

CN101

LINE IN

BATTERY

SPEAKER

(CAR CABLE)

8VREG.

IC511 Q601 to Q603

STAND BY

+8V

CJ301

CN801

S801

BOOST SW

VR801

LEVEL

SPEAKER

Block diagram
