JVC MX-KC2 Guía del administrador
SCHEMATIC DIAGRAMS
MX-KC2
Contents
Block diagram
Standard schematic diagrams
Printed circuit boards
2-1
2-2
2-8 to 10
CD-ROM No.SML200507
COMPACT COMPONENT SYSTEM
No.MB394SCH
2005/7
COPYRIGHT 2005 Victor Company of Japan, Limited.
Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade)
CA-MXKC2 SP-MXKC2SP-MXKC2
Area suffix
C ------------------------- Canada
In regard with component parts appearing on the silk-screen printed side (parts side) of the PWB diagrams, the
parts that are printed over with black such as the resistor ( ), diode ( ) and ICP ( ) or identified by the " "
mark nearby are critical for safety.
2-1
Block diagram
2-2
Parts are safety assurance parts.
When replacing those parts make
sure to use the specified one.
Standard schematic diagrams

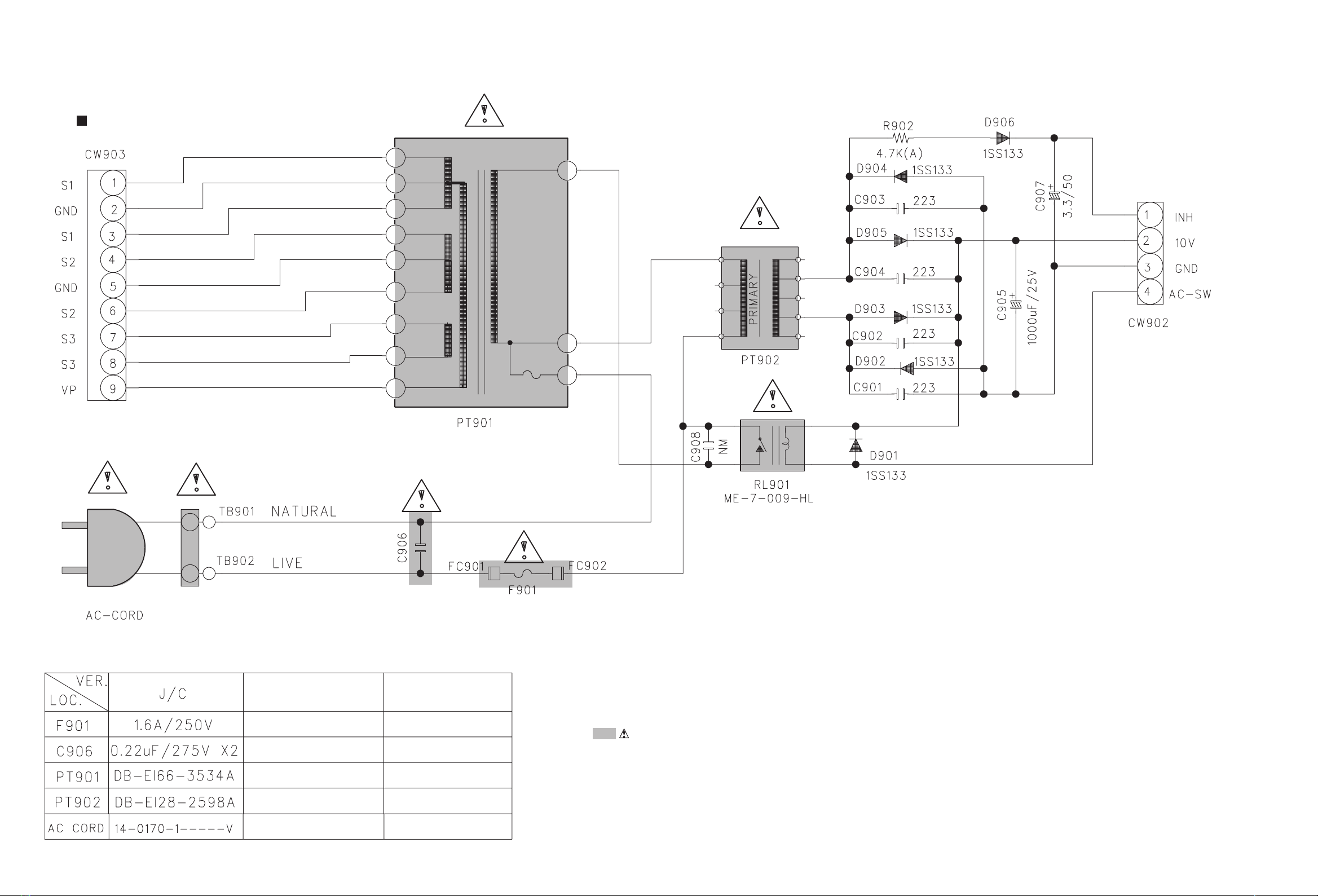

Primary section
2-3
Power amp. section
2-4
Micon section
2-5
Souce selector section
2-6
CD section
2-7
Front section
2-8
Printed circuit boards
Main board
Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade)
forward side reverse side
