Bluetooth® Bookshelf
Speakers
XS-D629BM
Instruction Manual
XS-D629BM_IB_Final190402V2.indd 1 03/04/2019 18:26
XS-D629BM_IB_Final190402V2.indd 2 03/04/2019 18:26
Contents
Safety Warnings...................................................................................................................4
Unpacking.............................................................................................................................6
Product Overview ................................................................................................................7
Main Unit.........................................................................................................................................................7
Remote Control ............................................................................................................................................8
Preparation...........................................................................................................................9
First-time use of Remote Control...........................................................................................................9
Battery Replacement for the Remote Control ..................................................................................9
Remote Control Operation Range...................................................................................................... 10
Connections........................................................................................................................10
Connecting the Speakers....................................................................................................................... 10
AUX Connection.........................................................................................................................................11
Connecting a USB device........................................................................................................................12
Charging from the USB CHARGING Port ...........................................................................................12
Connecting to the Mains Supply .........................................................................................................13
General Operation.............................................................................................................14
Standby / ON ...............................................................................................................................................14
Auto Standby...............................................................................................................................................14
Selecting Modes.........................................................................................................................................14
Adjusting the Speaker Level Settings and Eects.........................................................................14
AUX IN Operation...............................................................................................................14
Bluetooth® Operation ........................................................................................................15
Listen to Music from Bluetooth Device .............................................................................................15
USB Operation....................................................................................................................16
Maintenance.......................................................................................................................16
Hints and Tips.....................................................................................................................17
Product Fiche and Specifications.....................................................................................18
Other Information and Licences.......................................................................................19
XS-D629BM_IB_Final190402V2.indd 3 03/04/2019 18:26
4
Safety Warnings
obstruct the ventilation vents.
• A minimum distance of 5 cm around the
unit should be maintained to allow for
sucient ventilation.
• Do not install or place this unit in a
bookcase, built-in cabinet or in another
conned space. Ensure the unit is well
ventilated.
Safety
• Always disconnect the unit from the mains
supply before connecting / disconnecting
other devices or moving the unit.
• Unplug the unit from the mains socket
during a lightning storm.
• In the interests of safety and to avoid
unnecessary energy consumption,
never leave the unit switched on while
unattended for long periods of time, e.g.
overnight, while on holiday or while out of
the house. Switch it o and disconnect the
mains plug from the mains socket.
Mains Cable
• Make sure the unit or unit stand is not
resting on top of the mains cable, as the
weight of the unit may damage the mains
cable and create a safety hazard.
• If the mains cable is damaged it must be
replaced by the manufacturer, its service
agent, or similarly qualied persons in
order to avoid a hazard.
The mains plug is used as disconnect
device, the disconnect device shall
remain readily operable.
Interference
• Do not place the unit on or near appliances
which may cause electromagnetic
interference. If you do, it may adversely
aect the operating performance of the
unit, and cause a distorted picture or
sound.
Batteries
• Batteries used in the unit are easily
swallowed by young children and this is
dangerous.
• Keep loose batteries away from young
children and make sure that the battery
holder tray is secure in the unit. Seek
medical advice if you believe a cell has
been swallowed.
• Please dispose of batteries correctly by
following the guidance in this manual.
• Read all the instructions carefully before
using the unit and keep them for future
reference.
• Retain the manual. If you pass the unit
onto a third party make sure to include this
manual.
• Check that the voltage marked on the
rating label matches your mains voltage.
Damage
• Please inspect the unit for damage after
unpacking.
• Do not continue to operate the unit if you
are in any doubt about it working normally,
or if it is damaged in any way - switch o,
withdraw the mains plug and consult your
dealer.
Location of Unit
• The unit must be placed on a at stable
surface and not subjected to vibrations.
• Do not place the unit on sloped or unstable
surfaces as the unit may fall o or tip over.
• The mains socket must be located near the
unit and should be easily accessible.
• This unit is designed for indoor use only.
Temperature
• Avoid extreme degrees of temperature,
either hot or cold. Place the unit well away
from heat sources such as radiators or gas /
electric res.
• Avoid exposure to direct sunlight and other
sources of heat.
Naked Flames
• Never place any type of candle or naked
ame on the top of or near the unit.
Moisture
• To reduce the risk of re, electric shock or
product damage, do not expose this unit
to rain, moisture, dripping or splashing.
No objects lled with liquids, such as
vases, should be placed on the unit. Do
not operate the unit with wet hands, near
water or other liquid.
• If you spill any liquid into the unit, it can
cause serious damage. Switch it o at the
mains immediately. Withdraw the mains
plug and consult your dealer.
Ventilation
• To prevent the risk of electric shock or
re hazard due to overheating, ensure
that curtains and other materials do not
XS-D629BM_IB_Final190402V2.indd 4 03/04/2019 18:26
5
• Do not expose the battery to direct
sunlight or sources of excessive heat.
• Do not ingest the battery - Chemical Burn
Hazard.
• The remote control supplied with this
product contains a coin/button cell battery.
If the coin/button cell battery is swallowed,
it can cause severe internal burns in just 2
hours and can lead to death.
• Keep new and used battery away from
children.
• If the battery compartment does not close
securely, stop using the product and keep
it away from children.
• If you think batteries might have been
swallowed or placed inside any part of the
body, seek immediate medical attention.
Supervision
• Children should be supervised to ensure
that they do not play with the unit and the
remote control.
• Never let anyone especially children push
anything into the holes, slots or any other
openings in the case - this could result in a
fatal electric shock.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The lightning ash with arrowhead
symbol, within an equilateral
triangle, is intended to alert the
user to the presence of uninsulated
“dangerous voltage” within the
unit’s enclosure that may be of
sucient magnitude to constitute a
risk of electric shock.
The exclamation point within an
equilateral triangle is intended to
alert the user to the presence of
important operating and
maintenance (servicing)
instructions in the manual
accompanying the unit.
Service
• To reduce the risk of electric shock, do not
remove screws. The unit does not contain
any user-serviceable parts. Please leave all
maintenance work to qualied personnel.
• Do not open any xed covers as this may
expose dangerous voltages.
Maintenance
• Ensure to unplug the unit from the mains
socket before cleaning.
• Do not use any type of abrasive pad or
abrasive cleaning solutions as these may
damage the unit’s surface.
• Do not use liquids to clean the unit.
• This equipment is a Class II or double
insulated electrical appliance. It has
been designed in such a way that it
does not require a safety connection
to electrical earth.
~ AC voltage: This symbol indicates that the
rated voltage marked with the symbol is AC
voltage.
DC voltage: This symbol indicates that the
rated voltage marked with the symbol is DC
voltage.
To prevent the
spread of re,
keep candles
or other open
ames away
from this
product at all
times.
XS-D629BM_IB_Final190402V2.indd 5 03/04/2019 18:26
6
Unpacking
Remove all items from the packaging. Retain the packaging. If you dispose of it please do so
according to local regulations.

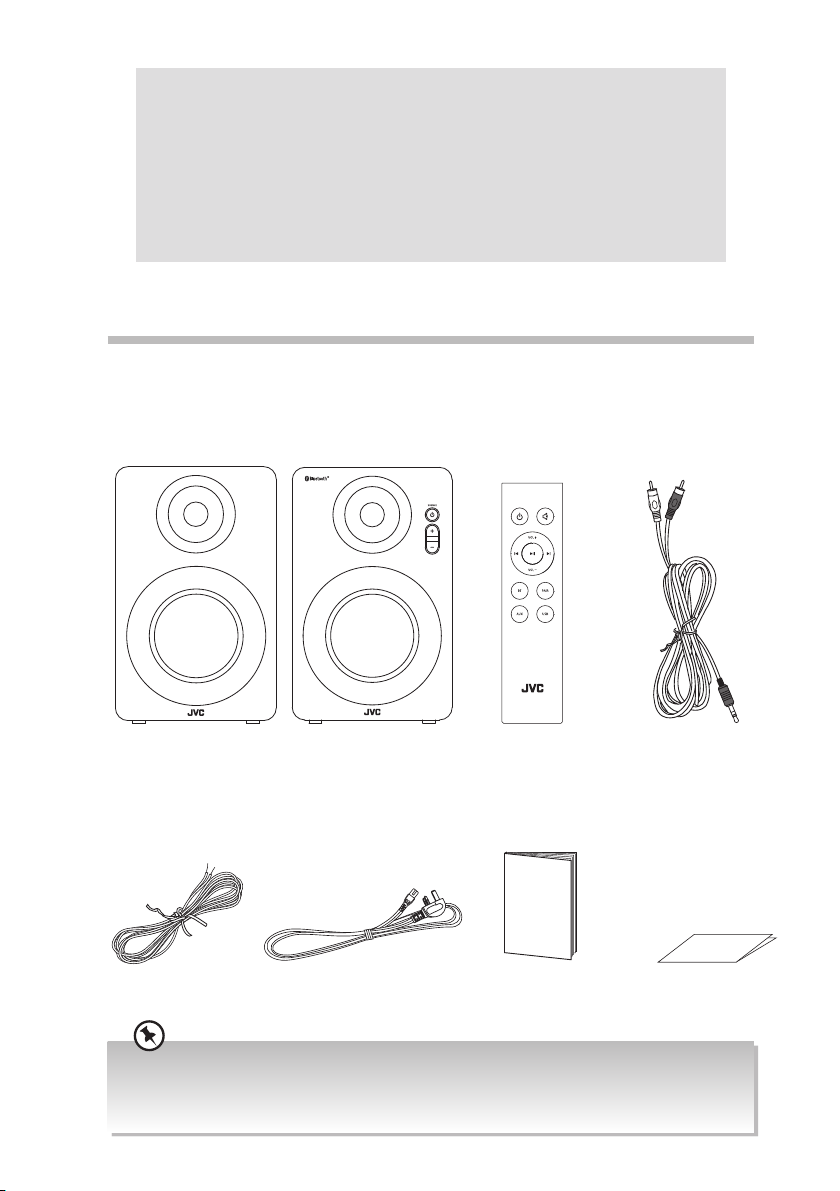

The following items are included:
Main Unit Remote Control
(Battery included)
Speaker cable Mains cable
RCA to 3.5 mm
stereo audio cable
Instruction Manual Quick Start Guide
Instruction
Manual
Thank you for purchasing your new product.
We recommend that you spend some time reading this instruction manual
in order that you fully understand all the operational features it oers. You
will also nd some hints and tips to help you resolve any issues.
Read all the safety instructions carefully before use and keep this
instruction manual for future reference.
• If items are missing, or damaged please contact Partmaster (UK only). Tel: 0344 800 3456 for assistance.
• If you require additional assistance:
For UK, please call our UK Call Centre on 0344 561 1234.
For Ireland, please call our Ireland Call Center on 1 890 818 575.
Quick Start Guide
XS-D629BM_IB_Final190402V2.indd 6 03/04/2019 18:26
7

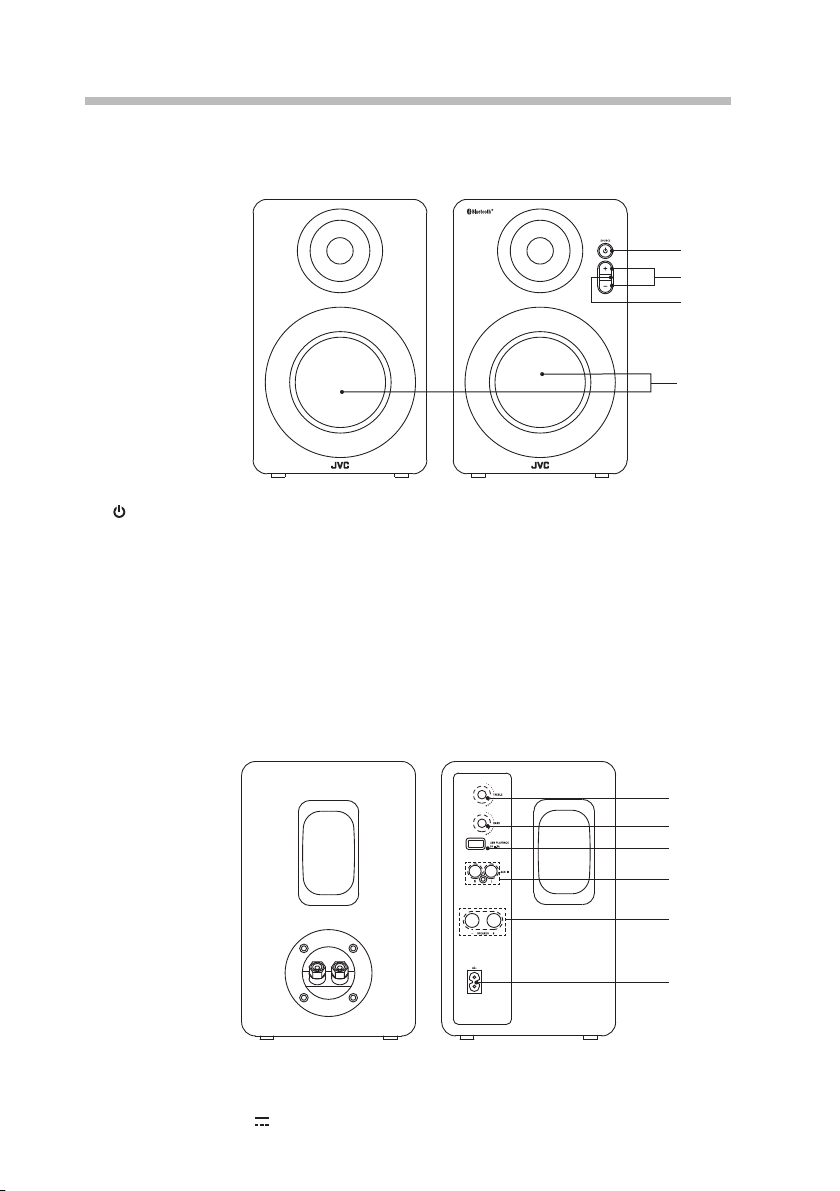

Product Overview
Main Unit
Front View (right speaker)
1. SOURCE Button
• Press to switch on the unit.
• Press and hold to switch o the unit.
• In Standby mode: Light up red
• In AUX IN mode: Light up green
• In BT mode: Light up blue
• In USB mode: Light up yellow
• The status indicator ashes quickly
while adjust volume/bass/treble level.
1
1
2
3
4
5
6
2
4
3
Rear View
1. TREBLE Dial
2. BASS Dial
3. USB PLAYBACK 5V 2.0A Socket
– +
2. +/– Button
• Press to increase/decrease volume
level.
• In BT mode, press both +/– buttons to
clear all pairing settings.
3. Remote Control Sensor
4. Speakers
4. AUX IN L/R Sockets
5. –SPEAKER+ Sockets
6. AC~ Socket
XS-D629BM_IB_Final190402V2.indd 7 03/04/2019 18:26
8

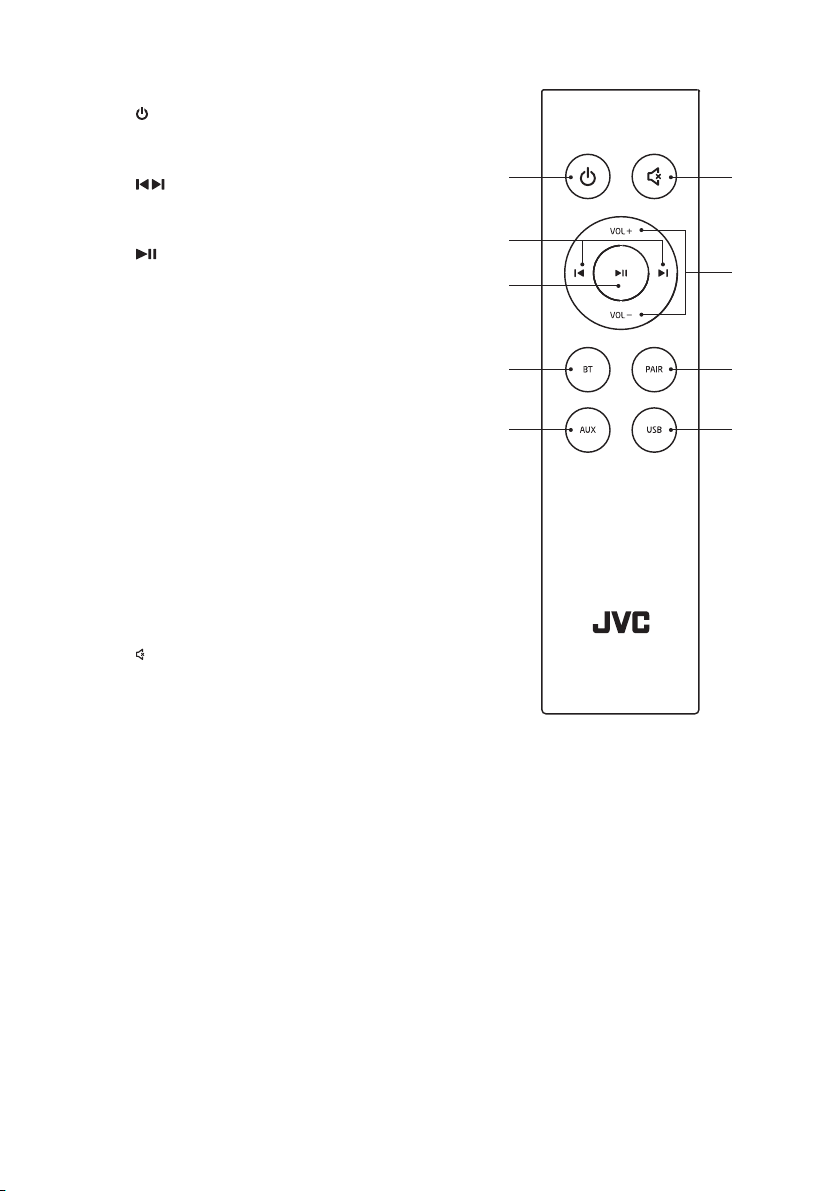

1. Button
Switch the unit between On and
Standby mode.
2. Button
Skip to previous/next track in BT/
USB mode.
3. Button
Play / pause / resume playback in BT/
USB mode.
4. BT Button
Switch to BT mode.
5. AUX Button
Press to switch to AUX IN mode.
6. USB Button
Press to switch to USB mode.
7. PAIR Button
• Press to activate the pairing
function in BT mode.
• Press to disconnect the existing the
paired Bluetooth device.
8. VOL +/– Buttons
Press to increase/decrease the
volume level.
9. MUTE Button
Mute the unit or resume the sound.
Remote Control
1
2
4
3
5 6
7
9
8
XS-D629BM_IB_Final190402V2.indd 8 03/04/2019 18:26
9

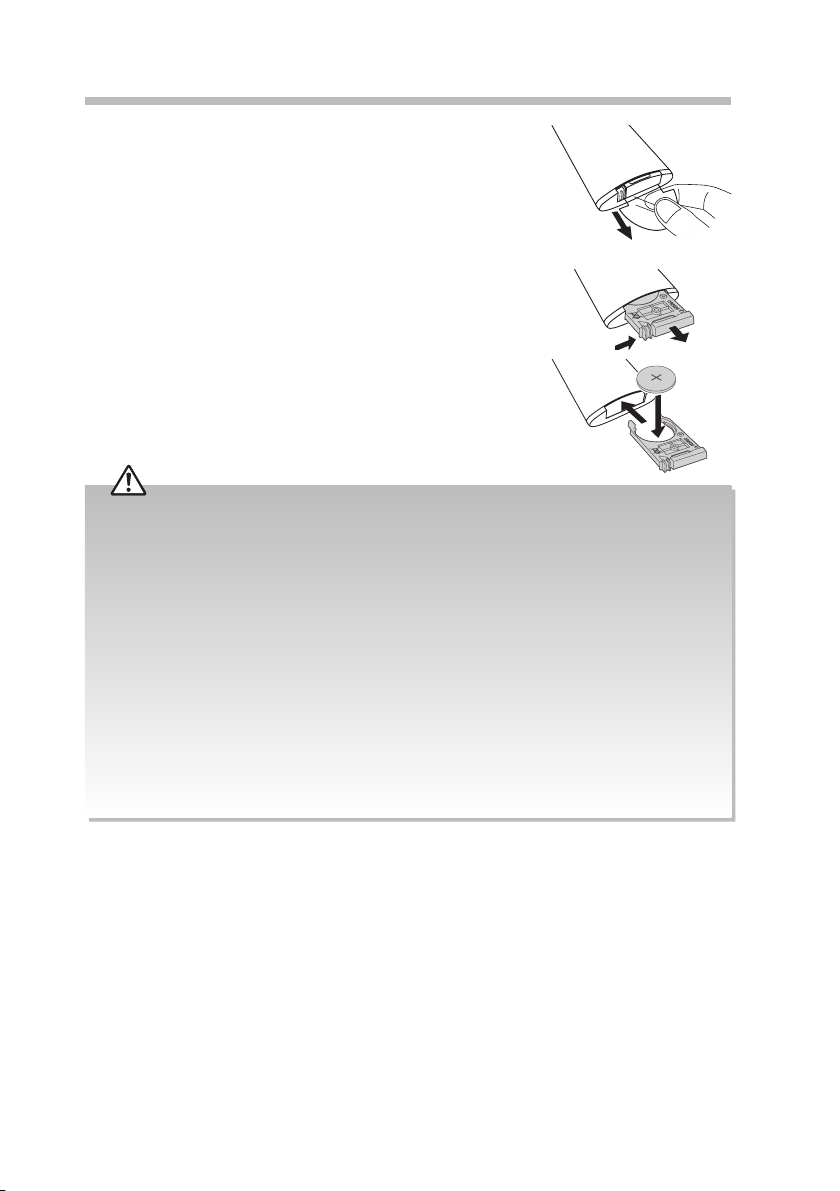

2. Replace with a new CR2025 battery.
3. Slide the tray back into the remote control.
There will be a click once it is back in place.
Handling the Battery
• Improper or incorrect use of batteries may cause corrosion or battery leakage, which could cause re,
personal injury or damage to property.
• Only use the battery type indicated in this manual.
• Do not install new batteries with used ones and do not mix dierent types of batteries.
• Do not dispose of used batteries as domestic waste. Dispose of them in accordance with local
regulations.
Handling the Remote Control
• Do not drop the remote control.
• Do not allow anything to impact the remote control.
• Do not spill water or any liquid on the remote control.
• Do not place the remote control on a wet object.
• Do not place the remote control under direct sunlight or near sources of excessive heat.
• Remove the battery from the remote control when not in use for a long period of time, as corrosion or
battery leakage may occur and result in physical injury, and / or property damage, and / or re.
• When the battery is exhausted, the remote control will not function.
Preparation
First-time Use of Remote Control
The unit has a pre-installed lithium CR2025 battery.
Remove the protective tab to activate the remote control
battery.
Battery Replacement for the Remote
Control
1. Gently push the tab of the battery tray in and
slide it free from the remote control.
XS-D629BM_IB_Final190402V2.indd 9 03/04/2019 18:26
10

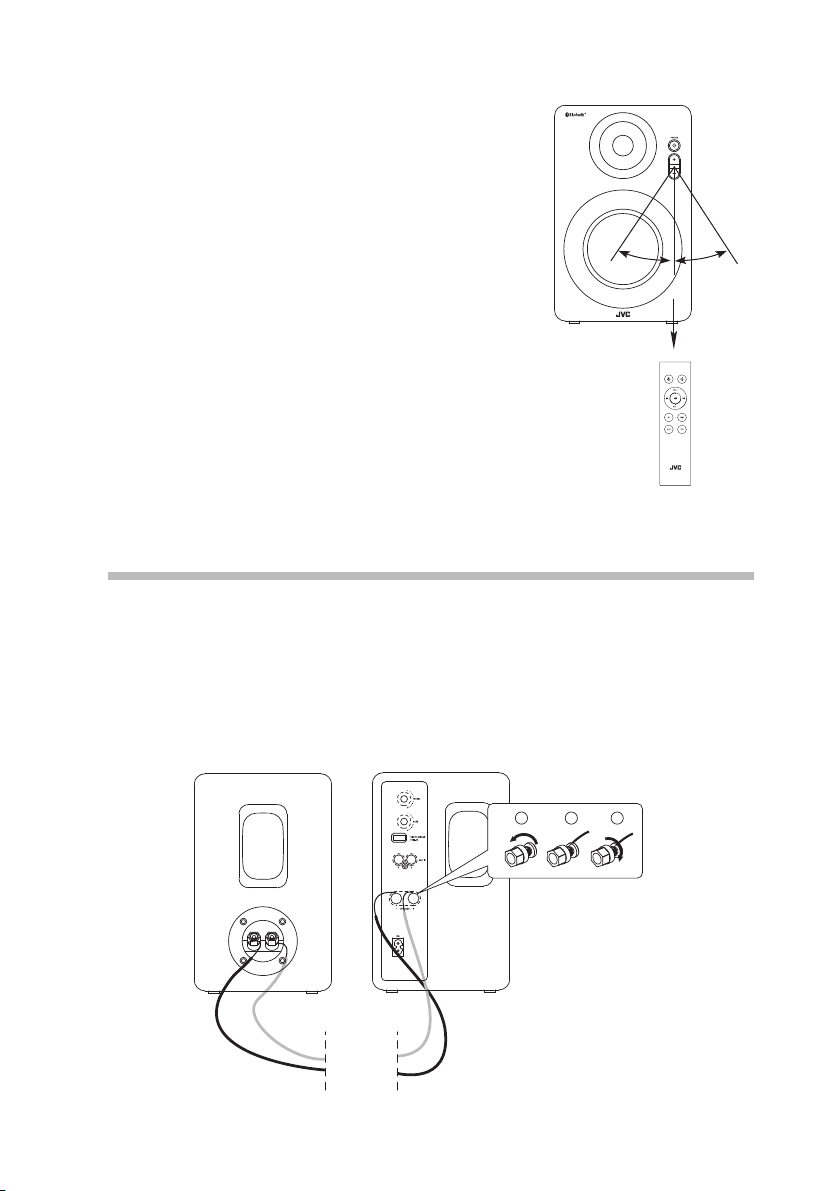

Remote Control Operation Range
• The remote control sensor on the front unit is sensitive
to the remote control’s commands up to a maximum of 6
metres away and within a maximum of a 60° arc.
• Please note that the operating distance may
vary depending on the brightness of the room.
30° 30°
Max. 6 m
Front View of the right speaker
Connection
Connecting the Speakers
Connect the speakers (L & R) with the speaker cable. Make sure that the red/black cable
is connected to the +socket and the silver cable is connected to the –socket of both
speakers.
– +
1 2 3
Rear view of the Right SpeakerRear view of the Left Speaker
XS-D629BM_IB_Final190402V2.indd 10 03/04/2019 18:26
Tabla de contenidos
Otros manuales de Oradores de JVC
JVC
JVC XS-KY3213B Manual de usuario
JVC
JVC SP-MXKB4 Manual de usuario
JVC
JVC TS-C421SPGU Manual de usuario
JVC
JVC CS-HX6957 Manual de usuario
JVC
JVC TH-WL311B Manual de usuario
JVC
JVC SP-XE5 Manual de usuario
JVC
JVC XS-N618PBA Manual de usuario
JVC
JVC TH-W513B Manual de usuario
JVC
JVC SP-AD80-B Manual
JVC
JVC XS-N5320PBA Manual de usuario
JVC
JVC LS-M1 Manual de usuario
JVC
JVC XS-N1129AA Manual de usuario
JVC
JVC XS-E322B Manual de usuario
JVC
JVC PC-37C Manual de usuario
JVC
JVC SP-XF10 Manual de usuario
JVC
JVC CS-V6834 Manual de usuario
JVC
JVC VS-DT2000 Manual de usuario
JVC
JVC UX-L40R Manual de usuario
JVC
JVC KW-XC407 Guía
JVC
JVC SP-AD70-A Manual de usuario
