JVC TM-123U Manual de usuario

R

TM-123U

14-Inch B&W Video Monitor

FEATURES

14" B&W Video Monitor

High Resolution Pictures

With 700 lines of horizontal resolution, the

monitor provides sharp reproduction of

every detail.

Looped-through Output

Convenient looped-through connection is

available.

Flexible Mounting

Two TM-123Us can be mounted together in

a standard EIA 19" rack using the optional

UC-P1027U Rack Mount Adapter.

ARCHITECTS’ AND ENGINEERS’ BID SPECIFICATION

The black-and-white video monitor shall be a JVC Model TM-123U or equivalent. It shall

have a 14" diagonal screen with horizontal resolution of 700 lines center, with an actual

visual size of 12-3/16" H x 12-1/2" W. The monitor shall feature manual controls for on/off,

brightness, contrast, vertical hold, horizontal hold, audio level, height, vertical linearity, scan

size (underscanning or normal), and loopthrough type (75 ohm termination switch or Hi-Z).

Terminals on the monitor shall be 1 video input and 1 video output, each 1.0Vp-p 75 ohm

composite via BNC connector. The monitor shall be UL listed. The dimensions shall be 12-

3/16" H x 12-1/2" W x 12-1/4" D and it shall weigh 23.1 lbs.

R

TM-123U

Specifications

CRT 14", 90° deflection

Scanning frequency H: 15.75 kHz

V: 60 Hz

Horizontal resolution More than 700 TV lines ( at center)

Input Video x 1: VS, 1 V(p-p), 75 ohms (BNC)

Output (looped-through) Video x 1: VS, 1 V(p-p), 75 ohms (BNC)

S/N ratio More than 55 dB

Video frequency response 15 kHz to 9 MHz

Sweep lineanty Less than 7%

Power requirement 120 V AC

Power consumption Approx. 27 W

Operating temperature range 14°F to 122°F (-10°C to 50°C)

Weight Approx. 23.1 lbs (10.5 kg)

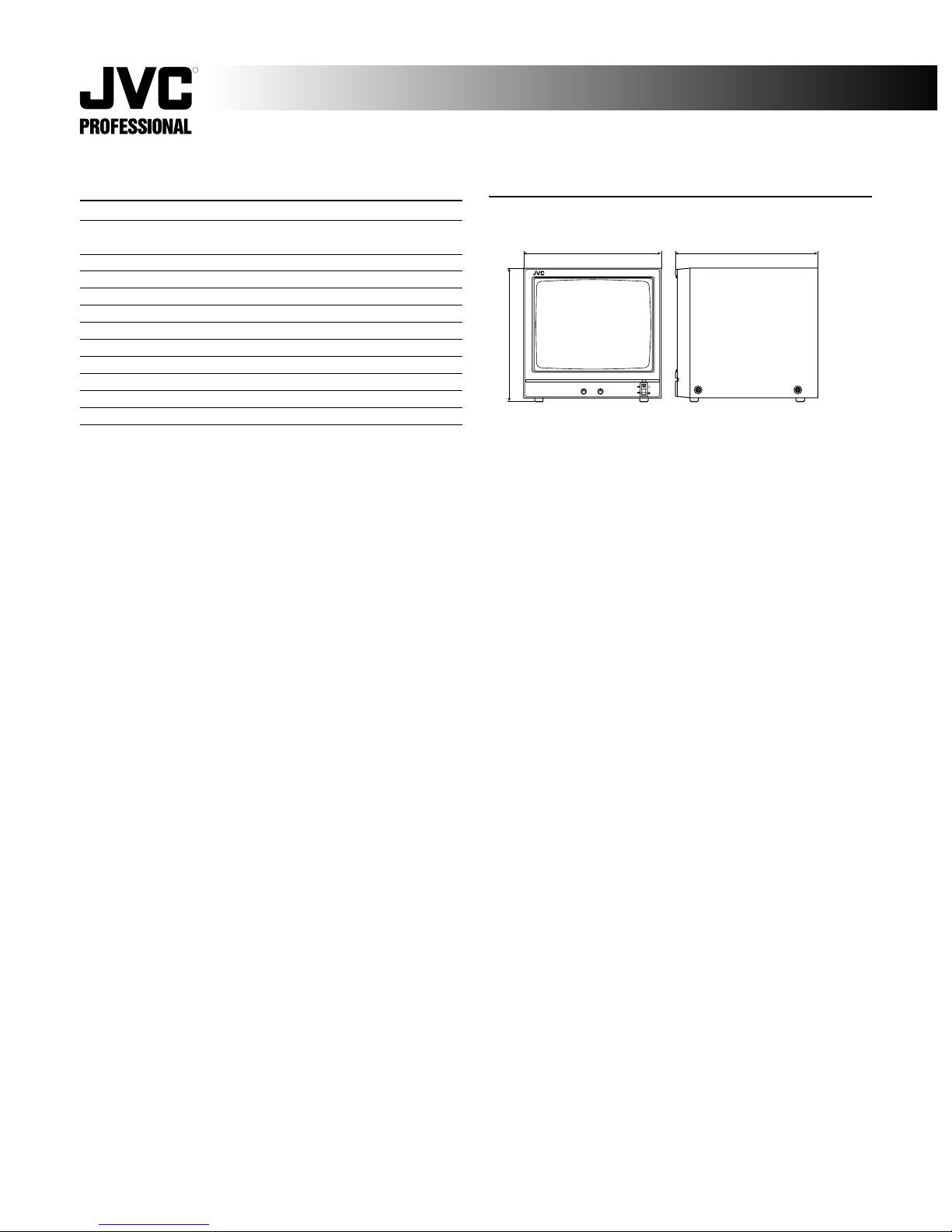

Dimensions

(Unit: inches)

12-1/412-1/2

12-3/16

TM-123 VIDEO MONITOR

POWER

??????

????
