JVC LT-42C550 Manual de usuario

TV Stand Base Front

(included)

Screw A x 2 Screw A x 2

TV Stand Support

(Left) (included)

TV Stand Support

(Right) (included)

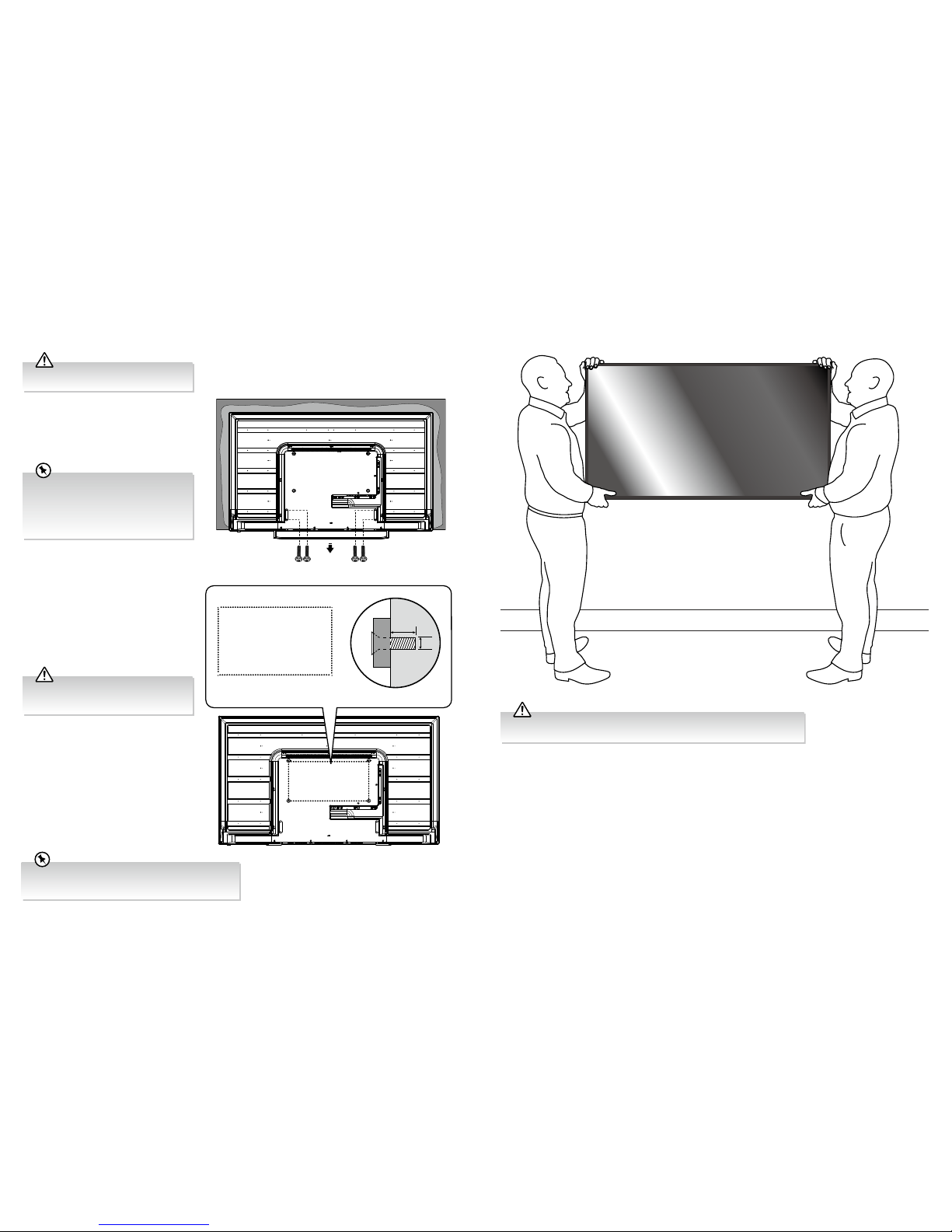

Unpacking Guide

LT-42C550

2 people are required when unpacking your TV.

TV Stand BaseTV Stand Support (L) x 1

TV Stand Support (R) x 1

Accessories

Pack

Instruction Book

& Quick Start Guide

Don't lift the TV from the top

When you remove the TV from its box lie it flat.

Don’t balance it on the sensor at the front of the TV.

Installing the Base Stand

1. Ensure the TV is switched off and not connected to the mains power supply.

2. Keep the protective bag on your TV, it will help to protect the TV. Lay the TV

down on a flat surface with the back side facing up, and ideally at the edge of

a table so that the base of the TV slightly overhangs on it. Please make sure

a soft cushioned material (such as a pillow or thick piece of foam) is placed

beneath the screen.

Remove the Protective Bag

If you don’t have a table big enough, you can use the TV box. Lie the box

flat, make sure you place the polystyrene back in the box first to give the

box some rigidity and strength.

• Keep the protective bag on your TV until you have attached the stand and

positioned the TV.

• The LCD display is very fragile, and must be protected at all times when installing

and removing the base stand. Be sure that no hard or sharp object, or anything

that could scratch or damage the LCD display, comes into contact with it. DO NOT

exert pressure on the front of the TV at any time because the screen could crack.

3. Fit the stand support onto the stand base. Ensure the stand support marking

position is in right position (L = left, R = right). Align with the screw holes

then screw the support by using 4 screws A supplied.

4. Rotate the stand assembly so the metal bar face to the front of the TV. Insert the stand

support under the bottom of the TV. The stand assembly will fit snugly into the TV.

Then screw the stand to the TV by using 4 screws B supplied.

MENU VOL- VOL+ CH- CH+

Screw B x 4

Table

Cushioned

Material

Protective

Bag

Mounting the TV to a Wall

Remove the stand assembly before mounting the

TV onto the wall.

1. To remove the stand assembly, lay the TV on a flat

surface with a cushioned material between the TV

and the surface, to prevent damage. The protective

bag can be used to cushion the TV. Untighten the

screws holding the stand assembly at the rear of the

TV. Remove the stand assembly.

TV Weight (Without Stand): 6.9kg

• If you don’t have a table big enough, you can

use the TV box. Lie the box flat, make sure you

place the polystyrene back in the box first to

give the box some rigidity and strength.

• Keep all the spare screws should you want to

use the stand assembly option.

2. This TV is designed to be wall-mounted with a

standard mounting kit (sold separately) designed

for flat-panel TVs. Mount this TV according to the

instructions included in the mounting kit. Due to

space restrictions, we recommend that you make all

connections before mounting on to the wall.

• If you require additional assistance:

For UK, please call our UK Call Centre on 0344 561 1234.

For Ireland, please call our Ireland Call Center on 1 890 818 575.

Always check the specifiacation of your wall

mount bracket to make sure its suitable for the

weight of your TV.

• 2 people are required when wall mounting large TVs.

• Make sure you hold the TV on the sides do not hold the screen, you may damage the screen.

(UG-LT-42C550-180209V3)

200 mm

100 mm

Four mounting holes

(size M6x8 screw)

6-8mm
