JVC KD-LX3 Manual de usuario
ENGLISH
LVT0289-001A
[J]
ESPAÑOL
FRANÇAIS
CD RECEIVER KD-LX3
RECEPTOR CON CD KD-LX3
RECEPTEUR CD KD-LX3
For customer Use:
Enter below the Model No. and
Serial No. which are located on
the top or bottom of the cabinet.
Retainthisinformationforfuture
reference.
Model No.
Serial No.
INSTRUCTIONS
MANUAL DE INSTRUCCIONES
MANUEL D’INSTRUCTIONS
SEL OFF/0FUNC
1
7
2
8
RPT
3
9
RND
4
10
INT
5
11
MONO
6
12
LOSOUND SSM
KD-LX3R
DISPMODE BANDBBE
For installation and connections, refer to the separate manual.
Para la instalación y las conexiones, refiérase al manual separado.
Pour l’installation et les raccordements, se référer au manuel séparé.
EN00.KD-LX3[J]/f 99.3.9, 10:08 AM3
2
ENGLISH
INFORMATION (For U.S.A.)
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particularinstallation.Ifthisequipmentdoescauseharmfulinterferencetoradioor television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipmentinto an outleton a circuitdifferent from thatto which thereceiver
is connected.
– Consult the dealer or an experienced radio/TV technician for help.
Identification and
Certification labels IMPORTANT FOR LASER
PRODUCTS (For U.S.A. only)
Precautions:
1. CLASS 1 LASER PRODUCT
2. DANGER: Invisible laser radiation when
openand interlock failedor defeated.Avoid
direct exposure to beam.
3. CAUTION: Do not open the top cover.
Thereare no user-serviceableparts inside.
Leave all servicing to qualified service
personnel.
4. CAUTION: This CD player uses invisible
laser radiation, however, is equipped with
safety switches to prevent radiation
emission when unloading CDs. It is
dangerous to defeat the safety switches.
5. CAUTION:Useof controls, adjustmentsor
performance of procedures other than
those specified herein may result in
hazardous radiation exposure.
BEFORE USE
* For safety....
• Do not raise the volume level too much, as this
will block outside sounds, making driving
dangerous.
• Stop the car before performing any complicated
operations.
* Temperature inside the car....
If you have parked the car for a long time in hot
or cold weather, wait until the temperature in the
car becomes normal before operating the unit.
Bottom of the main unit
Notes:
*1 The date of manufacture.
*2 The ID code of manufacturing plant.
*3 Marking of country origin.
NAME/RATING PLATE
US JVC CORP.41 SLATER DRIVE
ELMWOOD PARK, N.J. 07407
MANUFACTURED AT
MADE IN
Product complies with DHHS Rules 21
CFR Subchapter J in effect at date of
manufacture.
MANUFACTURED
*2
*3
*1
EN02-05.KD-LX3[J]/f 99.3.9, 10:08 AM2
3
ENGLISH
Thank you for purchasing a JVC product. Please read all instructions carefully before operation, to
ensure your complete understanding and to obtain the best possible performance from the unit.
CONTENTS
BASIC OPERATIONS .................................................... 5
RADIO OPERATIONS ...................................................6
Listening to the radio ..................................................................... 6
Searching a station automatically: Auto search ........................... 6
Searching a station manually:Manual search ............................. 7
Storing stations in memory ............................................................8
FM station automatic preset: SSM...............................................8
Manual preset.............................................................................. 9
Tuning into a preset station ......................................................... 10
CD OPERATIONS....................................................... 11
Playing a CD ................................................................................. 11
Playing a CD Text .........................................................................12
Locating a track or a particular portion on a CD ..................... 13
Selecting CD playback modes......................................................14
Prohibiting CD ejection ............................................................... 15
SOUND ADJUSTMENTS .............................................16
Adjusting the sound......................................................................16
Turning on/off the BBE function.................................................17
Selecting preset sound modes ......................................................18
Storing your own sound adjustments ......................................... 19
OTHER MAIN FUNCTIONS .........................................20
Setting the clock ............................................................................20
Controlling the volume automatically (Audio Cruise) ..............21
Changing the general settings (PSM) .........................................23
Assigning names to the sources ................................................... 27
How to Reset your unit
After installing the unit or when you have
troubles with operations, reset the
microcomputer built in this unit.
Press the reset button on the front panel
using a ball-point pen or a similar tool.
• REMEMBER your preset adjustments such
as preset channels or sound adjustments will
also be erased from memory.
To be continued on the next page
EN02-05.KD-LX3[J]/f 99.3.9, 10:08 AM3
4
ENGLISH
REMOTE OPERATIONS............................................... 30
Installing the battery ....................................................................30
Using the remote controller .........................................................31
CD CHANGER OPERATIONS ...................................... 32
Playing CDs ...................................................................................32
Selecting CD playback modes......................................................34
EXTERNAL COMPONENT OPERATIONS ..................... 36
Playing an external component ...................................................36
Using a subwoofer.........................................................................36
MAINTENANCE......................................................... 37
Handling CDs................................................................................37
TROUBLESHOOTING ................................................. 38
SPECIFICATIONS .......................................................39
To activate “DEMO” (Demonstration)
While holding DISP, press ¢until “DEMO” appears on the
lower part of the display.
Various functions and display illumination modes equipped for
this unit will be demonstrated repeatedly in sequence.
• The DEMO mode will turn off automatically after 1 hour.
To turn off the DEMO mode, press ¢again while holding
DISP until “DEMO”disappears from the lower part of the display.
How to use the number buttons:
After pressing MODE (while “MODE”remains on the display), the number buttons work
as other different function buttons.
To use these buttons as number buttons after pressing MODE, wait for 5 seconds
without pressing any number button so that “MODE”disappears from the display.
• Pressing MODE again also erases“MODE” from the display.
EN02-05.KD-LX3[J]/f 99.3.9, 10:08 AM4
5
ENGLISH
BASIC OPERATIONS
1 23
Note:
When you use this unit for the
firsttime,set the built-in clock
correctly, see page 20.
1
Turn on the power.
The display illuminates and the control panel comes out.
2
Select the source.
Each time you press the button, the source changes as described to
the left:
To operate the tuner, see pages 6 – 10.
To operate the CD player, see pages 11 – 15.
To operate the CD changer, see pages 32 – 35.
To operate the external component connected to the LINE IN plugs,
see page 36.
Notes:
* If a CD is not in the loading slot, you cannot select CD as the source to play.
** Without connecting the CD changer, you cannot select it as the source to play.
3
Adjust the volume.
4
Adjust the sound as you want (see pages 16 – 19).
To drop the volume in a moment
Press FUNC (function) for more than 1 second while listening to any source. “ATT” starts
flashing on the display, and the volume level will drop in a moment.
To resume the previous volume level, press the button for more than 1 second again.
To turn off the power
Press and hold OFF/ 0until “SEEYOU” appears on the display.
CD
CD
changer
FM
AM
LINE or
**
*
Volume level meter
EN02-05.KD-LX3[J]/f 99.3.9, 10:08 AM5
6
ENGLISH
2
1-
2
1-
1
RADIO OPERATIONS
Listening to the radio
You can use either automatic searching or manual searching to tune into a particular station.
Searching a station automatically: Auto search
1

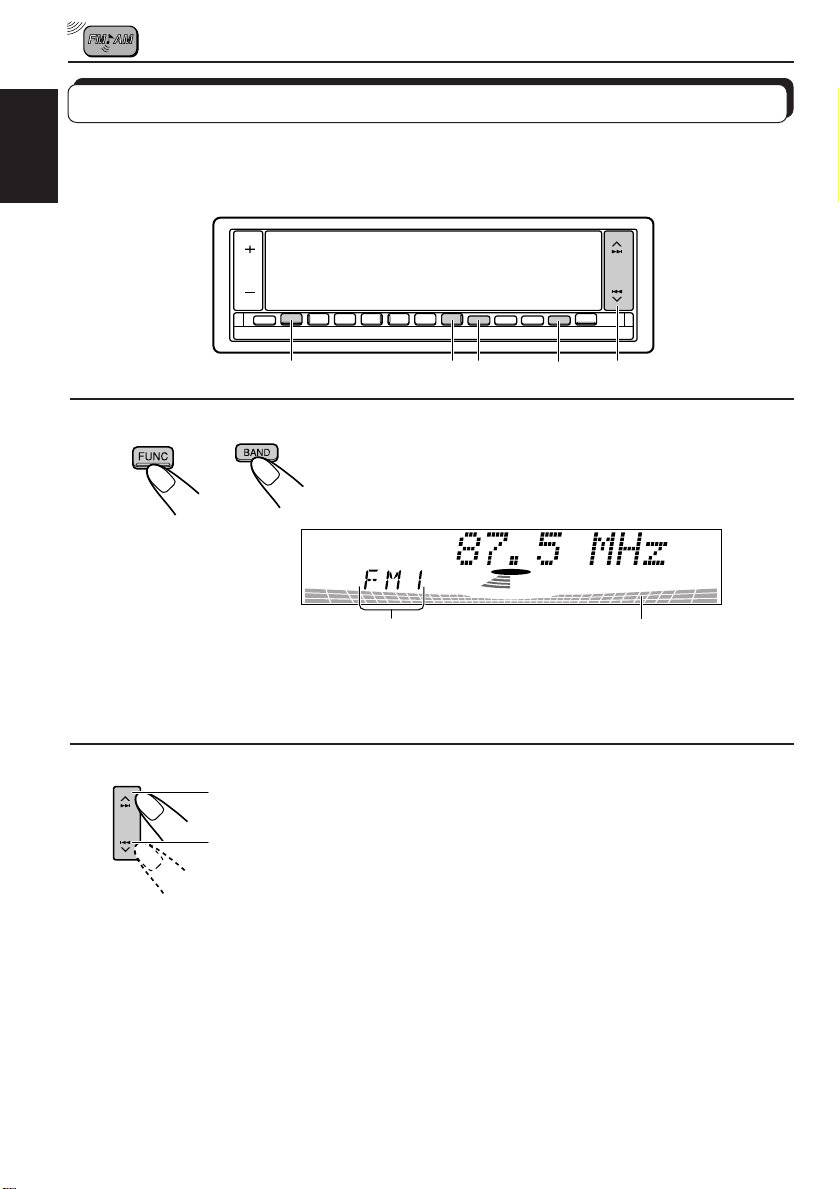

Select the band.
1Press FUNC to select the tuner as the source.
2Press BAND to select the band (FM1, FM2, FM3 or AM).
Note:
This receiver has three FM bands (FM1, FM2, FM3).You can use any one of them to listen
to an FM broadcast.
2
Start searching a station.
When a station is received, searching stops.
To stop searching before a station is received, press the same button you have pressed
for searching.
To tune in FM stations only with strong signals
This function works only while searching FM stations, including SSM preset (see page 8).
1Press MODE.
“MODE” appears on the lower part of the display, and the number buttons can work as
different function buttons.
2Press LO (Local), while “MODE”is still on the display, so that the LOCAL indicator lights up
on the display.
Each time you press the button, the LOCAL indicator lights up and goes off alternately.
LO MODE
To search stations of
higher frequencies
To search stations of
lower frequencies
12
Level meter (see page 25)Selected band (then clock time:
see page 25) appears.
EN06-10.KD-LX3[J]/f 99.3.9, 10:08 AM6
7
ENGLISH
Searching a station manually: Manual search
MODEMONO
2, 31
1
Select the band (FM1, FM2, FM3 or AM) you want.
Note:
This receiver has three FM bands (FM1, FM2, FM3). You can use any one of them to listen
to an FM broadcast.
2
Press and hold ¢or 4until “M” (Manual)
starts flashing on the display.
3
Tune into a station you want while
“M” is flashing.
• If you release your finger from the button, the
manual mode will automatically turn off after
5 seconds.
When an FM stereo broadcast is hard to receive:
1Press MODE while listening to an FM stereo broadcast (the ST indicator lights up while
receiving an FM stereo broadcast).
“MODE” appears on the lower part of the display, and the number buttons can work as
different function buttons.
2Press MONO (monaural), while “MODE” is still on the display, so that the MO indicator
lights up on the display.
The sound you hear becomes monaural but reception will be improved (the ST indicator
goes off).
Each time you press the button, the MO indicator lights up and goes off alternately.
To tune into stations
of higher frequencies
To tune into stations
of lower frequencies
EN06-10.KD-LX3[J]/f 99.3.9, 10:08 AM7
8
ENGLISH
1
Select the FM band number (FM1, FM2 or FM3) you
want to store FM stations into.
2
Press and hold both buttons for more than
2 seconds.
Local FM stations with the strongest signals are searched and stored automatically in the
band number you have selected (FM1, FM2 or FM3).These stations are preset in the number
buttons — No. 1 (lowest frequency) to No. 6 (highest frequency).
When automatic preset is over, the station stored in number button 1 will be automatically
tuned in.
Storing stations in memory
You can use one of the following two methods to store broadcasting stations in memory.
• Automatic preset of FM stations:SSM (Strong-station Sequential Memory)
• Manual preset of both FM and AM stations
FM station automatic preset: SSM
You can preset 6 local FM stations in each FM band (FM1, FM2 and FM3).
21
“SSM” appears, then disappears when automatic
preset is over.
FM1 FM2 FM3 AM
EN06-10.KD-LX3[J]/f 99.3.9, 10:08 AM8
9
ENGLISH
Manual preset
You can preset up to 6 stations in each band (FM1, FM2, FM3 and AM) manually.
EXAMPLE: Storing an FM station of 88.3 MHz into the preset number 1 of the FM1 band
12
3
1
Select the FM1 band.
2
Tune into a station of 88.3 MHz.
See page 6 to tune into a station.
3
Press and hold the number button (in this example, 1)
for more than 2 seconds.
4
Repeat the above procedure to store other stations into other
preset numbers.
Notes:
• A previously preset station is erased when a new station is stored in the same preset number.
• Preset stations are erased when the power supply to the memory circuit is interrupted (for example,
during battery replacement). If this occurs, preset the stations again.
FM band number and“MEMO”
appears alternately for a while.
EN06-10.KD-LX3[J]/f 99.3.9, 10:08 AM9
10
ENGLISH
Tuning into a preset station
You can easily tune into a preset station.
Remember that you must store stations first. If you have not stored them yet, see pages 8
and 9.
1
Select the band (FM1, FM2, FM3 or AM) you want.
2
Select the number (1 – 6) for the preset station you want.
21
When using this unit in an area other than North or South America:
You need to change the AM/FM channel intervals. See “To change the AM/FM channel
intervals” on page 26.
EN06-10.KD-LX3[J]/f 99.3.9, 10:08 AM10
Tabla de contenidos
Idiomas:
Otros manuales de Sistema estéreo para automóvil de JVC
JVC
JVC KW-XG70HM Manual de usuario
JVC
JVC KD-G505 Manual de usuario
JVC
JVC KD-DV6102 Manual de usuario
JVC
JVC KD-SH707 Manual de usuario
JVC
JVC KD-LHX557 Manual de usuario
JVC
JVC EXAD KW-AVX826 Guía
JVC
JVC KW-R900BTJ Manual de usuario
JVC
JVC KD-SX885 Guía de inicio rápido
JVC
JVC KD-R516 Guía
JVC
JVC KD-AVX2 - DVD Player With LCD Monitor Guía
