ENGLISH

Thank you for purchasing a JVC product.

Please read all instructions carefully before operation, to ensure your complete understanding and to

obtain the best possible performance from the unit.

CONTENTS

How to reset your unit .............................. 2

LOCATION OF THE BUTTONS ........... 3

Control panel ............................................ 3

BASIC OPERATIONS ...................... 4

Turning on the power ............................... 4

Setting the clock ....................................... 5

RADIO OPERATIONS ..................... 6

Listening to the radio ................................ 6

Storing stations in memory ...................... 7

Tuning in to a preset station ..................... 8

TAPE OPERATIONS ....................... 9

Listening to a cassette ............................. 9

BEFORE USE

*For safety....

• Do not raise the volume level too much, as this will

block outside sounds, making driving dangerous.

• Stop the car before performing any complicated

operations.

*Temperature inside the car....

If you have parked the car for a long time in hot

or cold weather, wait until the temperature in the

car becomes normal before operating the unit.

SOUND ADJUSTMENTS .................. 10

Adjusting the sound ................................. 10

Turning on/off the super bass function ..... 10

Selecting preset sound modes ................. 11

Storing your own sound adjustments ....... 11

DETACHING THE C0NTROL PANEL ..... 12

CD CHANGER OPERATIONS ............. 13

Playing CDs ............................................. 13

Selecting CD playback modes ................. 14

TROUBLESHOOTING ..................... 15

MAINTENANCE ............................ 16

SPECIFICATIONS .......................... 17

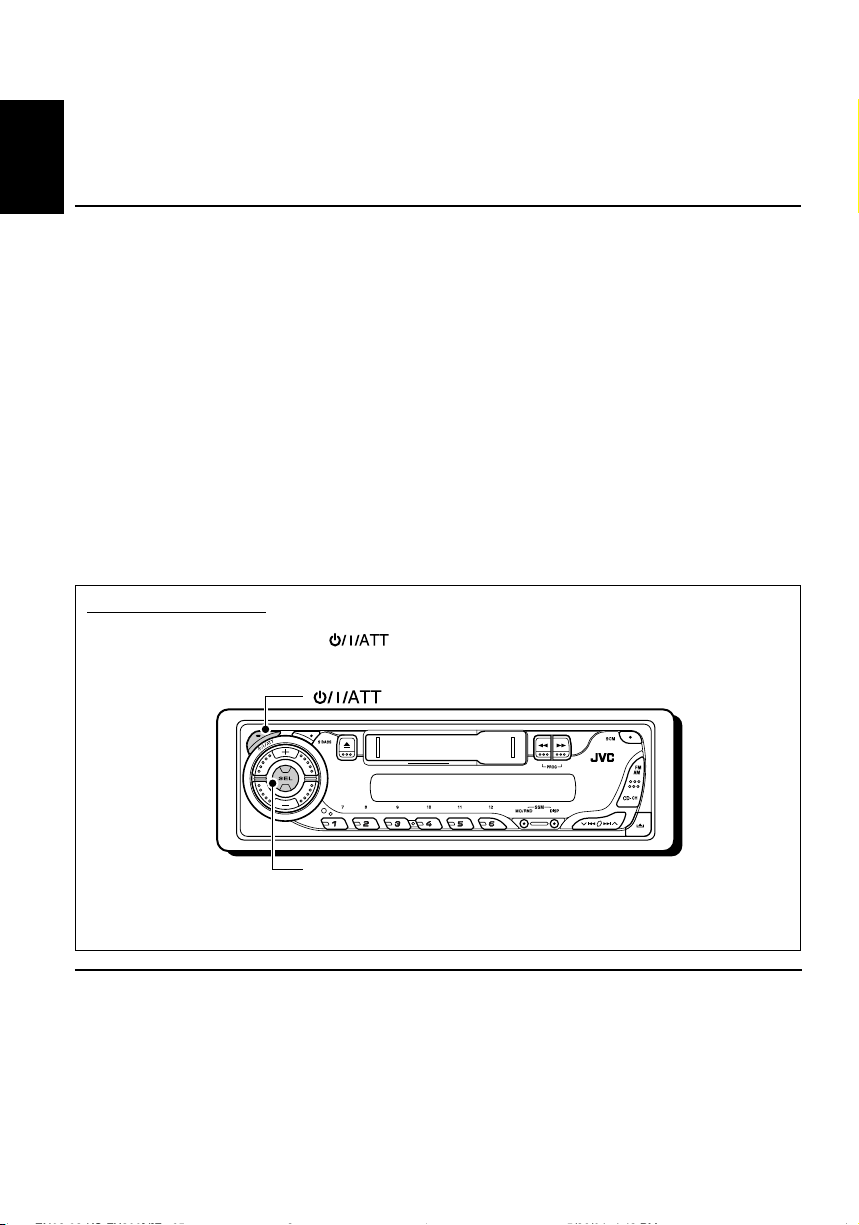

How to reset your unit

While holding SEL (select), press (standby/on/attenuator) button for more than 2 seconds.

This will reset the built-in microcomputer.

Note:

Your preset adjustments—such as preset channels or sound adjustments—will also be erased.

SEL (select)

(standby/on/attenuator)

EN02-03-KS-FX300[J]F.p65 5/26/04, 4:43 PM2

ENGLISH

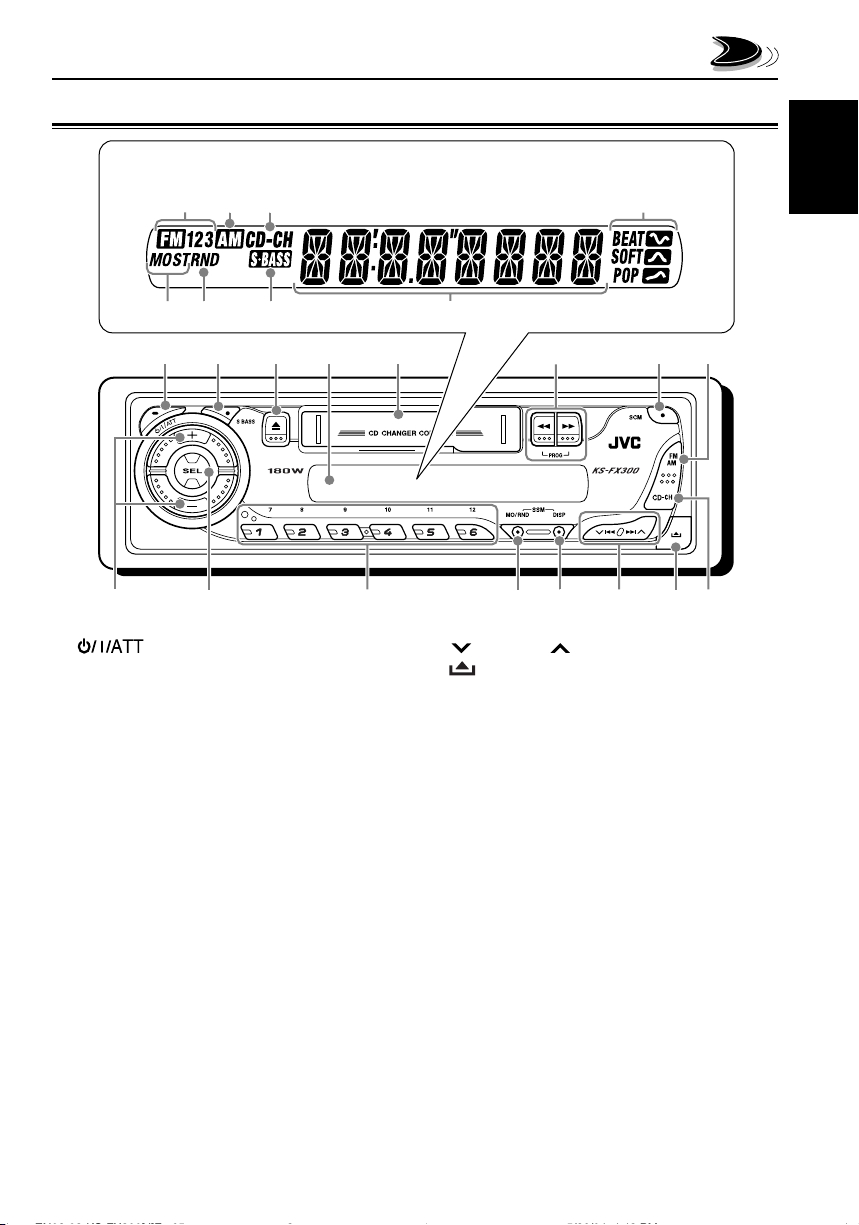

LOCATION OF THE BUTTONS

Control panel

1(standby/on/attenuator) button

2S BASS (super bass) button

30(eject) button

4Display window

5Cassette compartment

61/ ¡PROG (program) button

7SCM (sound control memory) button

8FM AM button

9+/– buttons

pSEL (select) button

qNumber buttons

wMO/RND (monaural/random) button

• Also functions as SSM buttons when pressed

together with DISP (display) button.

• RND (random) functions only when connecting

to a CD changer.

eDISP (display) button

• Also functions as SSM buttons when pressed

together with MO/RND (monaural/random)

button.

Display window

uFM band indicators

FM1, FM2, FM3

iAM band indicator

oCD-CH (CD changer) indicator

;Sound mode indicators

BEAT, SOFT, POP

aTuner reception indicators

MO (monaural), ST (stereo)

sRND (random) indicator

• Used only when connecting to a CD changer.

dS.BASS (super bass) indicator

fMain display

12 3 4 5 6 7 8

9 q w e r t y

as f

o ;

Display window

r4/ ¢buttons

t(control panel release) button

yCD-CH (CD changer) button

EN02-03-KS-FX300[J]F.p65 5/26/04, 4:43 PM3

ENGLISH

BASIC OPERATIONS

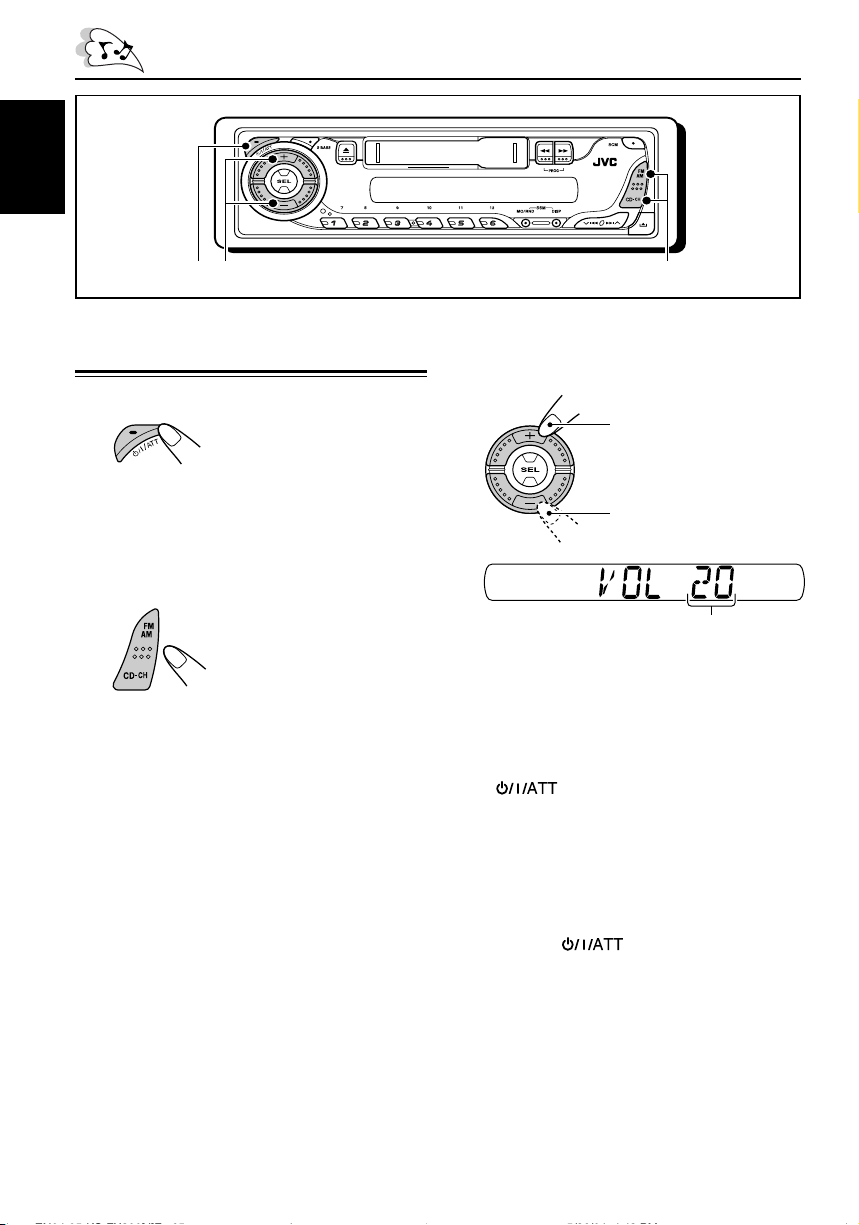

Turning on the power

Turn on the power.

Note on One-Touch Operation:

When you select a source in step

below, the

power automatically comes on. You do not have

to press this button to turn on the power.

Select the source.

To operate the tuner (FM or AM),

see pages 6 – 8.

To play a tape,

see page 9.

To operate the CD changer,

see pages 13 – 14.

Adjust the volume.

Adjust the sound as you want.

(See pages 10 and 11.)

To drop the volume in a moment

Press briefly while listening to any

source. “ATT”starts flashing on the display, and

the volume level will drop in a moment.

To resume the previous volume level, press the

button briefly again.

To turn off the power

Press and hold for more than one

second.

“SEE YOU”appears, then the unit turns off.

To increase the volume

To decrease the volume

Volume level appears.

EN04-05-KS-FX300[J]F.p65 5/26/04, 4:43 PM4

ENGLISH

Setting the clock

Press and hold SEL (select) for more

than 2 seconds.

“CLOCK H”or “CLOCK M”

appears on the display.

Set the hour.

1Select “CLOCK H”(hour) if not shown on

the display.

2Adjust the hour.

Set the minute.

1Select “CLOCK M”(minute).

2Adjust the minute.

Finish the setting.

To check the current clock time or change the

display mode

Press DISP (display) repeatedly.

Each time you press the button,

the display mode changes as

follows:

•During tuner operation:

•During tape operation:

•During CD Changer operation:

Frequency Clock

Play mode (TAPE) Clock

Clock

Elapsed playing time

Disc number

EN04-05-KS-FX300[J]F.p65 5/26/04, 4:43 PM5

ENGLISH

RADIO OPERATIONS

Listening to the radio

You can use either automatic searching or manual

searching to tune in to a particular station.

Note:

When a cassette is in the cassette compartment, you

cannot select the tuner. Be sure to eject the cassette

from the cassette compartment to listen to the radio.

Searching for a station automatically:

Auto search

Select the band (FM1 – 3, AM).

Note:

This receiver has three FM bands (FM1, FM2,

FM3). You can use any one of them to listen to

an FM broadcast.

Start searching for a station.

When a station is received, searching stops.

FM1 FM2 FM3

Selected band appears.

Lights up when receiving an FM stereo

broadcast with sufficient signal strength.

To search for stations of

higher frequencies

To search for stations of lower frequencies

To stop searching before a station is received,

press the same button you have pressed for

searching.

Searching for a station manually:

Manual search

Select the band (FM1 – 3, AM).

Note:

This receiver has three FM bands (FM1, FM2,

FM3). You can use any one of them to listen to an

FM broadcast.

Press and hold ¢or 4

until “M” (manual) starts flashing on

the display.

FM1 FM2 FM3

EN06-08-KS-FX300[J]F.p65 5/26/04, 4:44 PM6

ENGLISH

Tune in to a station you want while

“M” (manual) is still flashing.

• If you release your finger from the button,

the manual mode will automatically turns

off after 5 seconds.

• If you hold down the button, the frequency

keeps changing (in 200 kHz intervals for

FM and 10 kHz intervals for AM) until you

release the button.

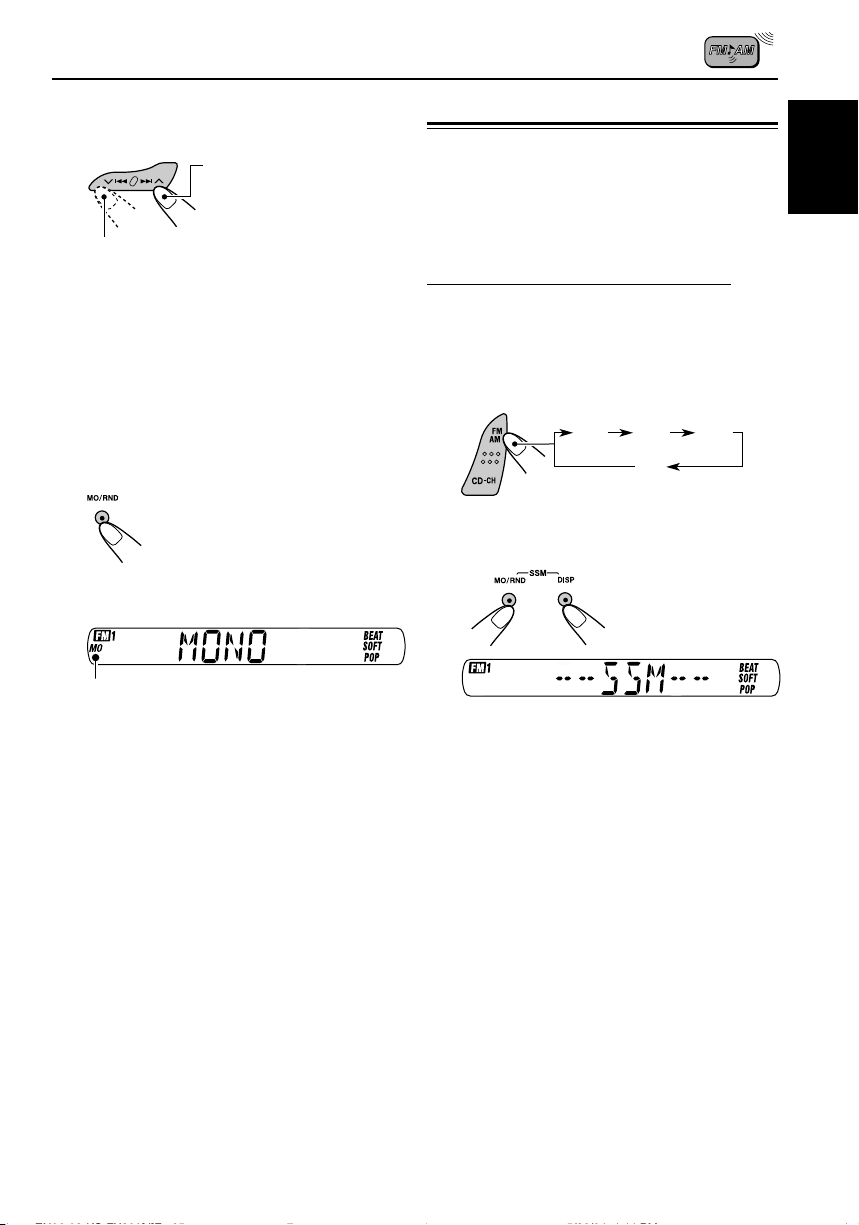

When an FM stereo broadcast is hard to

receive:

Press MO/RND (monaural/

random), while listening to an FM

stereo broadcast.

Each time you press the button,

the MO indicator lights up and

goes off alternately.

When the MO indicator is lit on the display, the

sound you hear becomes monaural but the

reception will be improved.

To restore the stereo effect, press the same

button again.

To tune in to stations of

higher frequencies

To tune in to stations of lower frequencies

MO (monaural) indicator

Storing stations in memory

You can use one of the following two methods to

store broadcasting stations in memory.

• Automatic preset of FM stations: SSM (Strong-

station Sequential Memory)

• Manual preset of both FM and AM stations

FM station automatic preset: SSM

You can preset 6 local FM stations in each FM

band (FM1, FM2, and FM3).

Select the FM band (FM1 – 3) you

want to store FM stations into.

Press and hold both buttons for

more than 2 seconds.

Local FM stations with the strongest signals are

searched and stored automatically in the band

number you have selected (FM1, FM2, or FM3).

These stations are preset in the number buttons

—No.1 (lowest frequency) to No.6 (highest

frequency).

When automatic preset is over, the station stored

in number button 1 will be automatically tuned in.

FM1 FM2 FM3

“SSM” appears, then disappears when

automatic preset is over.

EN06-08-KS-FX300[J]F.p65 5/26/04, 4:44 PM7

ENGLISH

Manual preset

You can preset up to 6 stations in each band

(FM1, FM2, FM3, and AM) manually.

Ex.: Storing FM station of 92.5 MHz into the

preset number 1 of the FM1 band.

Select the band (FM1 – 3, AM) you

want to store stations into (in this

example, FM1).

Tune in to a station (in this example,

of 92.5 MHz).

Press and hold the number button

(in this example, 1) for more than 2

seconds.

Repeat the above procedure to store

other stations into other preset

numbers.

FM1 FM2 FM3

To tune in to stations of

higher frequencies

To tune in to stations of lower frequencies

Preset number flashes for a while.

Notes:

• A previously preset station is erased when a new

station is stored in the same preset number.

• Preset stations are erased when the power supply to

the memory circuit is interrupted (for example,

during battery replacement). If this occurs, preset

the stations again.

Tuning in to a preset station

You can easily tune in to a preset station.

Remember that you must store stations first. If

you have not stored them yet, see “Storing

stations in memory” on pages 7 and 8.

Select the band (FM1 – 3, AM).

Select the number (1 – 6) for the

preset station you want.

FM1 FM2 FM3

EN06-08-KS-FX300[J]F.p65 5/26/04, 4:44 PM8

ENGLISH

TAPE OPERATIONS

Listening to a cassette

You can play back type I(normal) tapes.

Turn on the power.

Note on One-Touch Operation:

If a cassette is already in the cassette

compartment, tape play starts automatically.

However, it is not recommended to leave the

cassette in the compartment when turning off the

power. It may damage the tape head and the

cassette.

Insert a cassette into the cassette

compartment.

When one side of the tape

reaches its end during

play, the other side of the

tape automatically starts

playing. (Auto Reverse)

Select the tape direction.

Press both buttons at the

same time.

Each time you press both

buttons, the tape direction

changes alternately—

forward ()and

reverse ( ).

To stop play and eject the cassette

Press 0.

Tape play stops, the cassette automatically ejects

from the cassette compartment. The source

changes to the previously selected one.

• You cannot change the source if the cassette is

still in the cassette compartment.

To change the source, you must eject the

cassette first.

• You can also eject the cassette by pressing 0

while the unit is turned off.

To fast wind a tape

Press in ¡or 1.

The tape will be wound in the direction of the

arrows ( or ).

To restart playback, lightly press the other

button which is not pressed in (1or ¡).

Tape direction

EN09-09-KS-FX300[J]F.p65 5/26/04, 4:44 PM9

ENGLISH

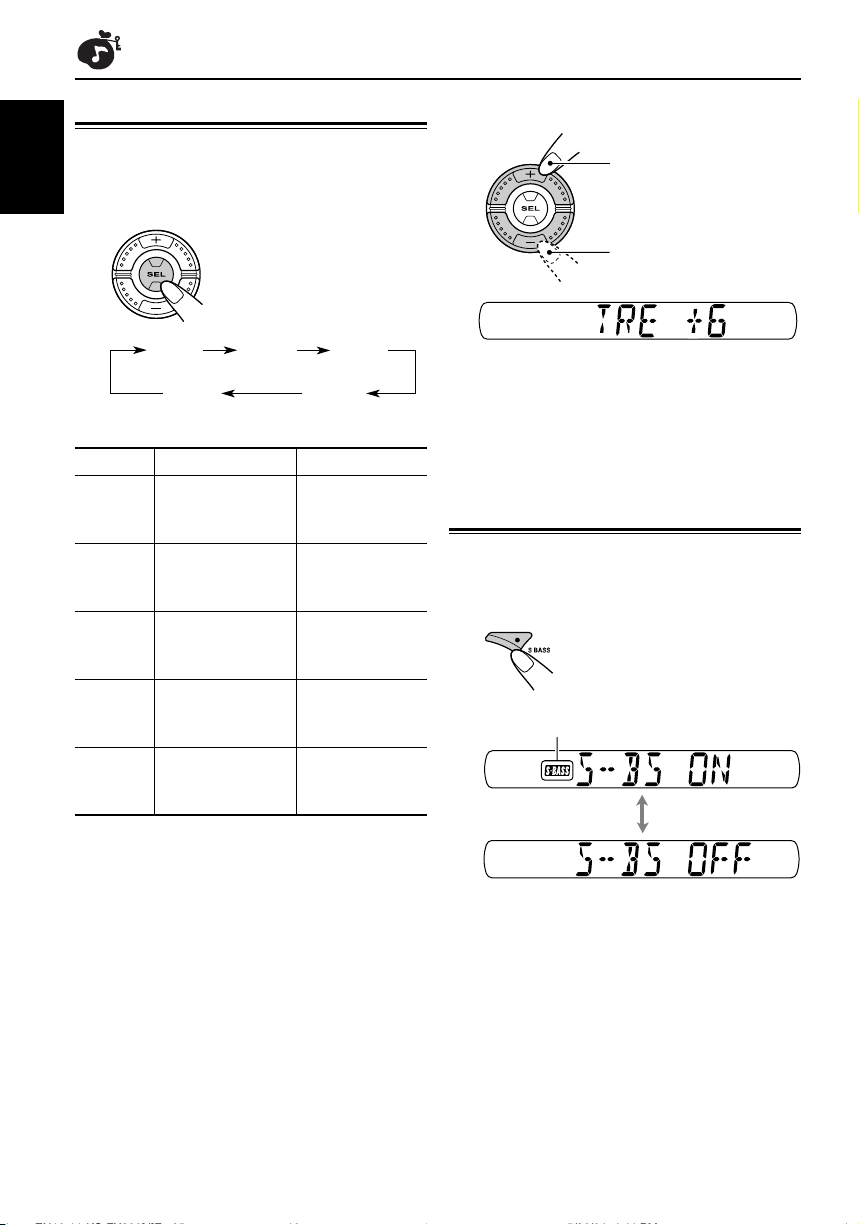

SOUND ADJUSTMENTS

Adjusting the sound

You can adjust the sound characteristics to your

preference.

Select the item you want to adjust.

Each time you press the

button, the adjustable items

change as follows:

Indication To do: Range

BAS Adjust the bass. –6 (min.)

(Bass) |

+6 (max.)

TRE Adjust the treble. –6 (min.)

(Treble) |

+6 (max.)

FAD*1Adjust the front R6 (Rear only)

(Fader) and rear speaker |

balance. F6 (Front only)

BAL Adjust the left L6 (Left only)

(Balance) and right speaker |

balance. R6 (Right only)

VOL*2Adjust the volume. 00 (min.)

(Volume) |

50 (max.)

*1If you are using a two-speaker system, set the fader

level to “00.”

*2Normally, the + and – buttons work as the volume

control buttons. So you do not have to select “VOL”

to adjust the volume level.

VOL

(volume)

BAS

(bass) TRE

(treble) FAD

(fader)

BAL

(balance)

Adjust the level.

Repeat steps

and

to adjust the

other items.

Turning on/off the super bass

function

The super bass function allows you to maintain

the richness and fullness of the bass sound

regardless of how low you set the volume.

Each time you press the button,

the function turns on and off

alternately.

To decrease the level

To increase the level

Ex.: When you select “TRE”(treble)

S.BASS indicator

EN10-11-KS-FX300[J]F.p65 5/26/04, 4:44 PM10

Otros manuales para KS-FX300

Tabla de contenidos

Idiomas:

Otros manuales de Receptor de coche de JVC

JVC

JVC KD-T922BT Manual de usuario

JVC

JVC KW-ADV792 - Arsenal 2-DIN 7" TouchScreen DVD/MP3/CD... Manual de usuario

JVC

JVC KD-SH9105 Manual de usuario

JVC

JVC KD-AVX2 - DVD Player With LCD Monitor Manual de usuario

JVC

JVC KW-R500 Manual de usuario

JVC

JVC KD-LX555R Manual de usuario

JVC

JVC Car Cassette Deck KS-F500 Manual de usuario

JVC

JVC kd-s5058 Manual de usuario

JVC

JVC KD-S721R Manual de usuario

JVC

JVC KD731BT Manual de usuario

JVC

JVC KD-X50BT Manual de usuario

JVC

JVC KD-X40 Manual de usuario

JVC

JVC KD-AR760 - Arsenal CD Receiver Manual de usuario

JVC

JVC KD-X152M Manual de usuario

JVC

JVC KD-DB53 Manual de usuario

JVC

JVC KD-DB902BT Manual de usuario

JVC

JVC KD-G465 Manual de usuario

JVC

JVC KD-SV3706 Manual de usuario

JVC

JVC KD-G735 Manual de usuario

JVC

JVC KD-R601 Guía

JVC

JVC GET0641-001A Manual de lista de piezas

JVC

JVC KW-NSX600 Manual de usuario

JVC

JVC KD-A615 Manual de usuario

JVC

JVC KW-AVX710 - DVD Player With LCD Monitor Guía

Manuales populares de Receptor de coche de otras marcas

Motorola

Motorola VWA63 Manual de usuario

Nextar

Nextar D3201 Manual de usuario

Alpine

Alpine CDE-163BT Manual de usuario

Pioneer

Pioneer DEH-P645R Manual de usuario

Axxera

Axxera XDMA7600 Instrucciones de funcionamiento

XM OnyX Manual de usuario

Sound Storm

Sound Storm STM93R Manual de usuario

Soundstream

Soundstream VIR-5000 Manual de usuario

Avson

Avson MKT Platform Manual de usuario

Sony

Sony MEX-1HD - Audio Library System Manual de usuario

Pioneer

Pioneer DVH-P500UB Manual de usuario

Blaupunkt

Blaupunkt SANTIAGO CR 87 Manual de usuario

Sony

Sony CDX-4160 - Cd Receiver Manual de usuario

XFIRE AUDIO

XFIRE AUDIO BMW42S Manual de usuario

VDO

VDO CD 2253 Manual de usuario

Volvo

Volvo 13 84 580 Manual de usuario

ZENEC

ZENEC ZE-160DVD Manual de usuario

Medion

Medion Car Audio Manual de usuario
