2ENGLISH

Thank you for purchasing a JVC product.

Please read all instructions carefully before operation, to ensure your complete understanding and

to obtain the best possible performance from the unit.

IMPORTANT FOR LASER PRODUCTS

1.CLASS 1 LASER PRODUCT

2.CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave

all servicing to qualified service personnel.

3.CAUTION: Visible and/or invisible class 1M laser radiation when open. Do not view directly with

optical instruments.

4.REPRODUCTION OF LABEL: CAUTION LABEL, PLACED OUTSIDE THE UNIT.

[European Union only]

Warning:

If you need to operate the unit while driving,

be sure to look around carefully or you may be

involved in a traffic accident.

For safety...

• Do not raise the volume level too much, as

this will block outside sounds, making driving

dangerous.

• Stop the car before performing any

complicated operations.

Temperature inside the car...

If you have parked the car for a long time in

hot or cold weather, wait until the temperature

in the car becomes normal before operating

the unit.

How to read this manual

The following icons/symbols are used to

indicate:

Press and hold the button(s)

until the desired operation

begins.

Turn the control dial.

Turn the control dial

to make a selection,

then press to confirm.

( XX) Reference page number

<XXXX> Menu setting item

Continued on the next page

[Hold]

EN02-09_KD-R616_001A_3.indd 2EN02-09_KD-R616_001A_3.indd 2 11/24/09 5:17:00 PM11/24/09 5:17:00 PM

3ENGLISH

CONTENTS

2 How to read this manual

3 How to attach/detach the control

panel

3 How to reset your unit

3 How to forcibly eject a disc

Canceling the display

demonstration

4 Setting the clock

5 Preparing the remote controller

(RM-RK50)

6 Basic operations

7 Listening to the radio

9 Listening to a disc

10 Listening to the USB device

11 Using Bluetooth® devices

13 Using a Bluetooth mobile phone

14 Using a Bluetooth audio player

16 Listening to the iPod/iPhone

18 Listening to the other external

components

19 Selecting a preset sound mode

20 Menu operations

26 More about this unit

29 Maintenance

30 Troubleshooting

34 Specifications

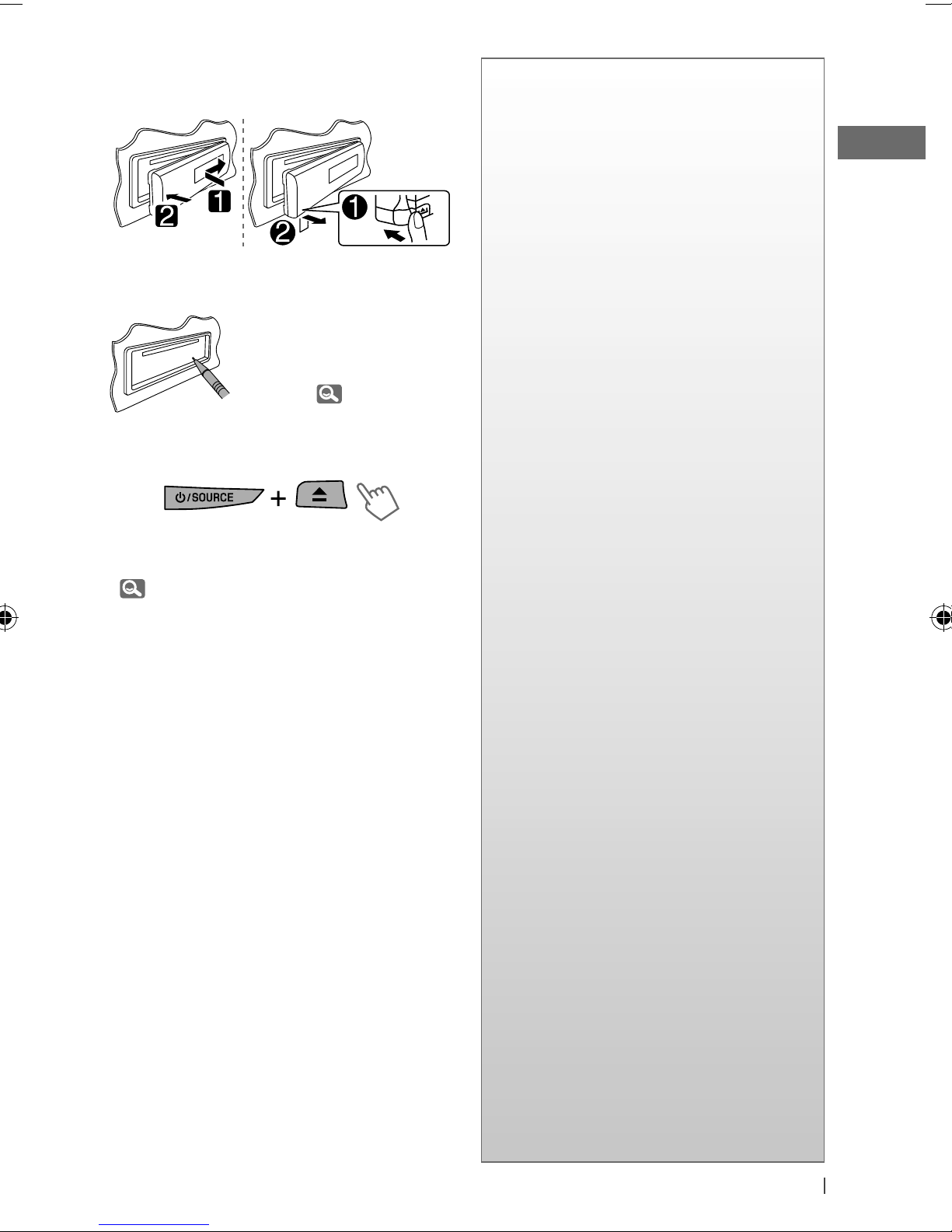

How to attach/detach the control

panel

How to reset your unit

Your preset adjustments

will also be erased (except

the registered Bluetooth

device). ( 11)

How to forcibly eject a disc

• You can forcibly eject the loaded disc even

if the disc is locked. To lock/unlock the disc,

• Be careful not to drop the disc when it ejects.

• If this does not work, reset your unit.

[Hold]

EN02-09_KD-R616_001A_3.indd 3EN02-09_KD-R616_001A_3.indd 3 11/24/09 5:17:00 PM11/24/09 5:17:00 PM

4ENGLISH

1 Turn on the power.

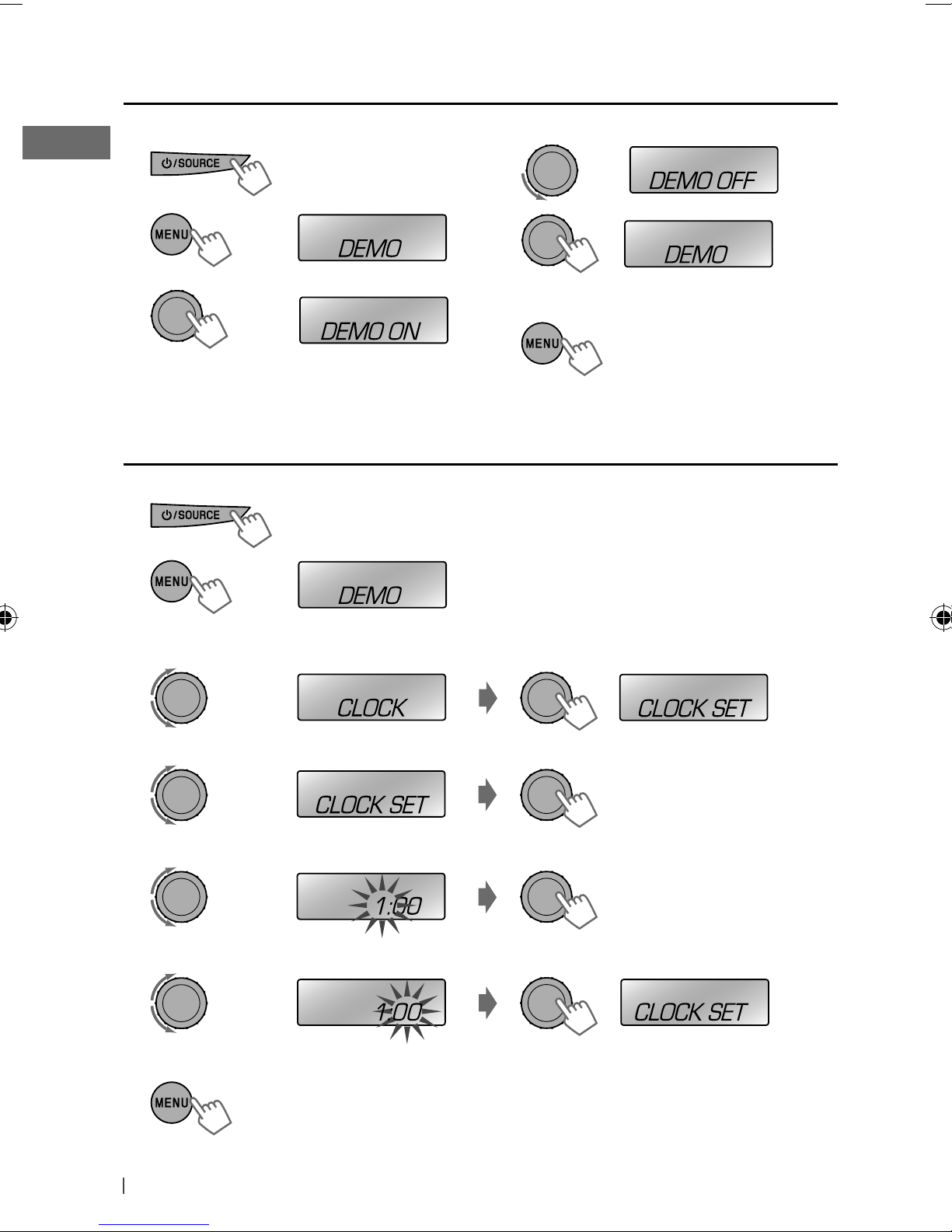

Setting the clock

1 Turn on the power.

3 Select <CLOCK>.

4 Select <CLOCK SET>.

5 Adjust the hour.

6 Adjust the minute.

7 Finish the procedure.

4 Select <DEMO OFF>.

6 Finish the procedure.

Canceling the display demonstration

(Initial setting)

[Hold]

(Initial setting)

[Hold]

EN02-09_KD-R616_001A_3.indd 4EN02-09_KD-R616_001A_3.indd 4 11/24/09 5:17:01 PM11/24/09 5:17:01 PM

5ENGLISH

Warning (to prevent accidents and

damage):

• Do not install any battery other than CR2025

or its equivalent.

• Do not leave the remote controller in a place

(such as dashboards) exposed to direct

sunlight for a long time.

• Store the battery in a place where children

cannot reach.

• Do not recharge, short, disassemble, heat the

battery, or dispose of it in a fire.

• Do not leave the battery with other metallic

materials.

• Do not poke the battery with tweezers or

similar tools.

• Wrap the battery with tape and insulate when

throwing away or saving it.

This unit is equipped with the steering wheel

remote control function.

Before operating, connect an exclusive remote

adapter (not supplied) which matches your car

to the steering wheel remote input terminal on

the rear of the unit.

• For details, refer also to the instructions

supplied with the remote adapter.

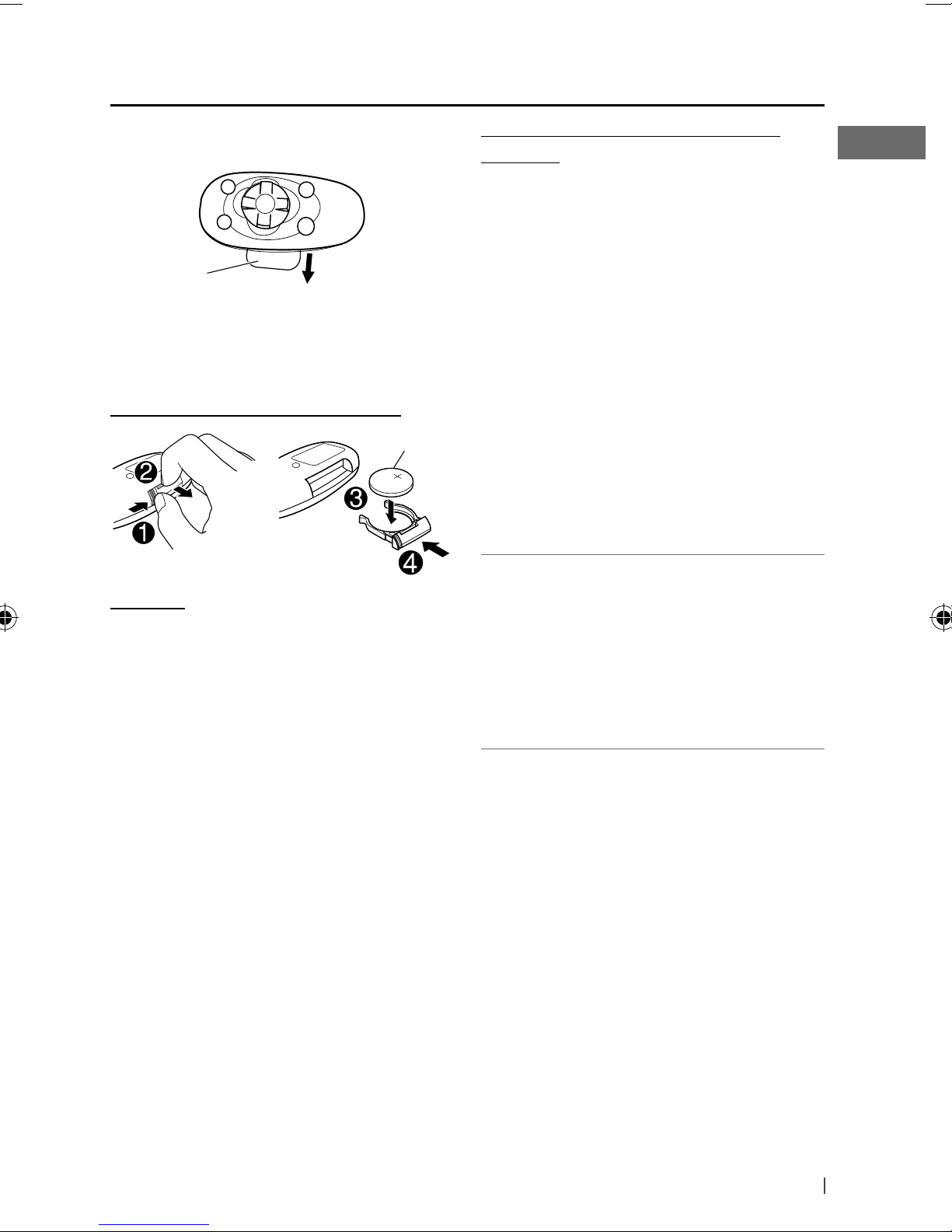

Preparing the remote controller (RM-RK50)

When you use the remote controller for the first

time, pull out the insulation sheet.

If the effectiveness of the remote controller

decreases, replace the battery.

Replacing the lithium coin battery

CR2025

Caution:

• Danger of explosion if battery is incorrectly

replaced. Replace only with the same or

equivalent type.

• Battery shall not be exposed to excessive heat

such as sunshine, fire, or the like.

Insulation sheet

EN02-09_KD-R616_001A_3.indd 5EN02-09_KD-R616_001A_3.indd 5 11/24/09 5:17:01 PM11/24/09 5:17:01 PM

6ENGLISH

Basic operations

Control dial

Ejects the disc Loading slot USB (Universal Serial Bus) input jack

Display window

Auxiliary

input jack

Detaches the panel

When you press or hold the following button(s)...

Main unit Remote

controller General operation

Turns on.

• When the power is on, pressing /I/ATT on the remote controller

also mutes the sound or pauses. Press /I/ATT again to cancel

muting or resume playback.

Turns off if pressed and held.

Selects the available sources (if the power is turned on).

• If the source is ready, playback also starts.

Adjusts the volume level.

— Selects items.

—

• Mutes the sound while listening to a source. If the source is “CD,”

“USB” or “USB-IPOD,” playback pauses. Press the control dial again

to cancel muting or resume playback.

• Confirms selection.

Selects the sound mode.

• Enters tone level adjustment directly ( 19) if pressed and held

EQ/BASS-TRE on the main unit.

Remote sensor

• DO NOT expose to bright sunlight.

EN02-09_KD-R616_001A_3.indd 6EN02-09_KD-R616_001A_3.indd 6 11/24/09 5:17:01 PM11/24/09 5:17:01 PM

7ENGLISH

Manual search

“M” flashes, then press

the button repeatedly.

When an FM stereo broadcast is

hard to receive

]

<TUNER>

]

<MONO>

]

Reception improves, but stereo effect

will be lost.

To restore the stereo effect, repeat the same

procedure to select <MONO OFF>.

Automatic presetting (FM)—

SSM (Strong-station Sequential Memory)

You can preset up to 18 stations for FM.

While listening to a station...

]

<TUNER>

]

<SSM>

]

<SSM 01 – 06> / <SSM 07 – 12> /

“SSM” flashes and local stations with

the strongest signals are searched and

stored automatically.

To preset another 6 stations, repeat the above

procedure by selecting one of the other 6 SSM

setting ranges.

Main unit Remote

controller General operation

—• Enters <COLOR> setting directly ( 24).

•

Enters <COLOR SETUP> setting directly ( 25) if pressed and held.

— Returns to the previous menu.

—Power off : Checks the current clock time.

Power on : Changes the display information.

[Hold]

Listening to the radio

]

“FM” or “AM”

“ST” lights up when receiving an FM stereo broadcast

with sufficient signal strength.

EN02-09_KD-R616_001A_3.indd 7EN02-09_KD-R616_001A_3.indd 7 11/24/09 5:17:02 PM11/24/09 5:17:02 PM

8ENGLISH

Manual presetting (FM/AM)

You can preset up to 18 stations for FM and 6

stations for AM.

Ex.: Storing FM station of 92.50 MHz into preset

number “04.”

]

“92.50MHz”

“PRESET MODE” flashes.

]

Selects preset number “04.”

“P04” flashes and “MEMORY” appears.

Selecting a preset station

Changing the display information

Station name *

Frequency

Clock

(back to the beginning)

* If no title is assigned to a station, “NO NAME”

appears for a few seconds.

Using the remote controller

∞

: Changes the preset

stations

: Searches for stations

[Hold]

Title assignment

You can assign titles up to 30 station

frequencies (FM and AM) using 8 characters

(maximum) for each title.

• If you try to assign titles to more than 30

station frequencies, “NAME FULL” appears.

Delete unwanted titles before assignment.

]

“FM” or “AM”

]

Show the title entry screen.

]

Select a character.

]

Move to the next (or previous)

character position.

5Repeat steps 3and 4until you have

finished entering the title.

To erase the entire title, press and hold

DISP

after step 2, then press the control dial.

Available characters

ABCDEFGH I

JKLMNOPQR

STUVWXYZ0

123456789

—/ <> Space

[Hold]

EN02-09_KD-R616_001A_3.indd 8EN02-09_KD-R616_001A_3.indd 8 11/24/09 5:17:02 PM11/24/09 5:17:02 PM

9ENGLISH

Stopping playback and ejecting

the disc

“NO DISC” appears.

Press /

SOURCE

to listen to

another playback source.

Prohibiting disc ejection

To cancel the prohibition, repeat the same

procedure.

Selects folder of the MP3/WMA

Selects track

Fast-forwards or

reverses the track

Selecting a track/folder

For MP3/WMA discs, select the desired folder,

then the desired track by repeating the control

dial procedures.

• If the MP3/WMA disc contains many tracks,

you can fast search (±10, ±100, ±1000)

through the disc by turning the control dial

quickly.

• To return to the previous menu, press

BACK

Caution on volume setting:

Discs produce very little noise compared

with other sources. Lower the volume before

playing a disc to avoid damaging the speakers

by the sudden increase of the output level.

Selecting the playback modes

You can use only one of the following playback

modes at a time.

]

“REPEAT”

“RANDOM”

REPEAT

TRACK RPT : Repeats current track

FOLDER RPT : Repeats current folder

RANDOM

FOLDER RND : Randomly plays all tracks

of current folder, then

tracks of next folders

ALL RND : Randomly plays all tracks

To cancel repeat play or random play, select

“RPT OFF” or “RND OFF.”

Listening to a disc

]

Turn on the power.

All tracks will be played repeatedly until you change

the source or eject the disc.

[Hold]

EN02-09_KD-R616_001A_3.indd 9EN02-09_KD-R616_001A_3.indd 9 11/24/09 5:17:02 PM11/24/09 5:17:02 PM

10 ENGLISH

Listening to the USB device

This unit can play MP3/WMA files stored on a USB mass storage class device.

You can connect a USB mass storage class device such as a USB memory, Digital Audio Player,

etc. to the unit.

• You can also connect an Apple iPod/iPhone to the USB input jack. For details of the operations,

16 – 17.

]

Turn on the power.

All tracks will be played repeatedly until you change the

source or detach the USB device.

Caution on volume setting:

USB devices produce very little noise compared

with other sources. Lower the volume before

playing a USB to avoid damaging the speakers

by sudden increase of the output level.

If you have turned off the power (without

detaching the USB device)...

Pressing

/SOURCE

turns on the power and

playback starts from where it has been stopped

previously.

• If a different USB device is currently attached,

playback starts from the beginning.

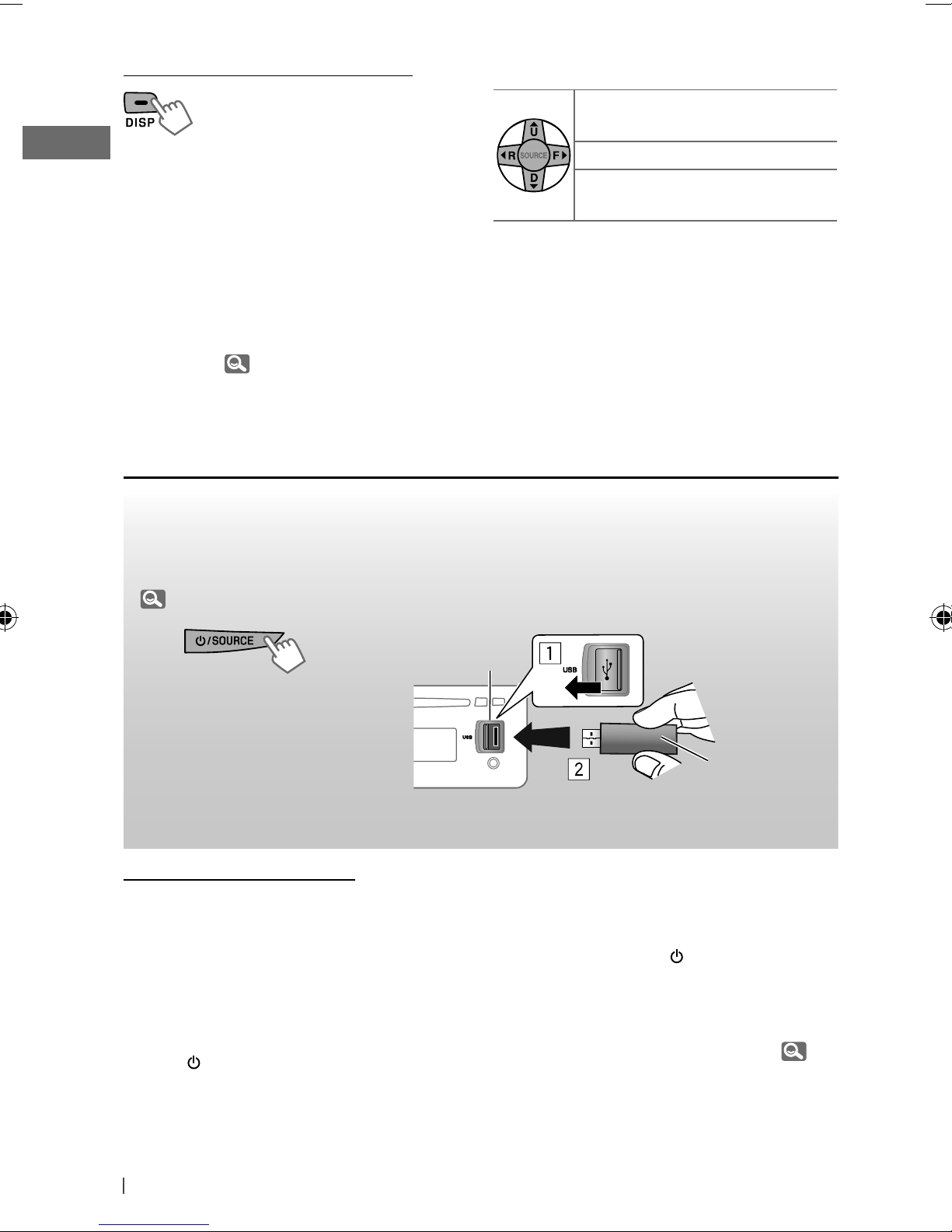

USB input jack

USB memory

Changing the display information

Disc title/Album name/performer (folder

name)*

Track title (file name)*

Current

track number with the elapsed playing time

Current track number with the clock

time

(back to the beginning)

* If the current disc is an audio CD, “NO NAME”

appears.

If an MP3/WMA file does not have Tag

information or <TAG DISPLAY> is set to

<TAG OFF> ( 20), folder name and file name

appear.

Using the remote controller

∞

: Selects folder of the

MP3/WMA

: Selects track

[Hold]

: Fast-forwards or

reverses the track

Stop playing and detaching the

USB device

Straightly pull it out from the unit.

“NO USB” appears. Press

/SOURCE

to listen to

another playback source.

You can operate the USB device in the same

way you operate the files on a disc. ( 9)

EN10-19_KD-R616_001A_3.indd 10EN10-19_KD-R616_001A_3.indd 10 11/24/09 5:17:10 PM11/24/09 5:17:10 PM

Otros manuales para KD-R616

Tabla de contenidos

Manuales populares de Receptor de coche de otras marcas

Motorola

Motorola VWA63 Manual de usuario

Nextar

Nextar D3201 Manual de usuario

Alpine

Alpine CDE-163BT Manual de usuario

Pioneer

Pioneer DEH-P645R Manual de usuario

Axxera

Axxera XDMA7600 Instrucciones de funcionamiento

XM OnyX Manual de usuario

Sound Storm

Sound Storm STM93R Manual de usuario

Soundstream

Soundstream VIR-5000 Manual de usuario

Avson

Avson MKT Platform Manual de usuario

Sony

Sony MEX-1HD - Audio Library System Manual de usuario

Pioneer

Pioneer DVH-P500UB Manual de usuario

Blaupunkt

Blaupunkt SANTIAGO CR 87 Manual de usuario

Sony

Sony CDX-4160 - Cd Receiver Manual de usuario

XFIRE AUDIO

XFIRE AUDIO BMW42S Manual de usuario

VDO

VDO CD 2253 Manual de usuario

Volvo

Volvo 13 84 580 Manual de usuario

ZENEC

ZENEC ZE-160DVD Manual de usuario

Medion

Medion Car Audio Manual de usuario
