ENGLISH

Thank you for purchasing a JVC product.

Please read all instructions carefully before operation, to ensure your complete understanding and to obtain the best

possible performance from the unit.

IMPORTANT FOR LASER PRODUCTS

1. CLA 1 LA ER PRODUCT

2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave all servicing to

qualified service personnel.

3. CAUTION: Visible and/or invisible class 1M laser radiation when open. Do not view directly with optical

instruments.

4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED OUT IDE THE UNIT.

How to reset your unit

• Your preset adjustments will also be erased.

How to forcib y eject a disc

• Be careful not to drop the disc when it ejects.

• If this does not work, reset your unit.

Warning:

If you need to operate the unit while driving, be

sure to look ahead carefully or you may be involved

in a traffic accident.

Caution on vo ume setting:

Discs produce very little noise compared with other

sources. Lower the volume before playing a disc

to avoid damaging the speakers by the sudden

increase of the output level.

[European Union only]

EN02-07_KD-G335[U_UH]1.indd 2EN02-07_KD-G335[U_UH]1.indd 2 8/30/06 5:22:00 PM8/30/06 5:22:00 PM

ENGLISH

How to use the M MODE button

If you press M MODE, the unit goes into functions

mode, then the number buttons and ¢/4

buttons work as different function buttons.

Ex.: When number button 2 works as

MO (monaural) button.

To use these buttons for their origina functions

again after pressing M MODE, wait for 5 seconds

without pressing any of these buttons until the

functions mode is cleared or press M MODE again.

Detaching the contro pane

Attaching the contro pane

CONTENTS

Contro pane .................................. 4

Remote contro er — RM-RK50 ........... 5

Getting started ................................ 6

Basic operations ................................................... 6

Radio operations ............................. 7

Disc operations ................................ 8

Playing a disc in the unit ..................................... 8

Sound adjustments .......................... 10

Genera settings — PSM .................. 11

Maintenance ................................... 13

More about this unit ........................ 14

Troub eshooting .............................. 16

Specifications .................................. 17

For safety...

• Do not raise the volume level too much, as this will

block outside sounds, making driving dangerous.

• top the car before performing any complicated

operations.

Temperature inside the car...

If you have parked the car for a long time in hot or cold

weather, wait until the temperature in the car becomes

normal before operating the unit.

EN02-07_KD-G335[U_UH]1.indd 3EN02-07_KD-G335[U_UH]1.indd 3 8/30/06 5:22:03 PM8/30/06 5:22:03 PM

ENGLISH

u RND (random) button

i M MODE button

o (control panel release) button

; Disc information indicators—

TAG (Tag information), (trac /file), (folder)

a DISC indicator

s Playbac mode / item indicators—RND (random),

(disc), (folder), RPT (repeat)

d Tuner reception indicators—MO (monaural),

ST (stereo)

f S.BASS (super bass) indicator

g EQ (equalizer) indicator

h Tr (trac ) indicator

j Source display / Volume level indicator / Time

countdown indicator

k Main display

l Sound mode (iEQ: intelligent equalizer)

indicators—JAZZ, ROCK, HIP HOP, CLASSIC, POPS,

USER

Parts identification

Display window

Control panel

1 0 (eject) button

2 Loading slot

3 (standby/on/attenuator) button

4 Remote sensor

DO NOT expose the remote sensor to strong light

(direct sunlight or artificial lighting).

5 SOURCE button

6 Display window

7 BAND button

8 EQ (equalizer) button

9 ¢/4 buttons

p Control dial

q SEL (select) button

w DISP (display) button

e MO (monaural) button

r SSM (Strong-station Sequential Memory) button

t Number buttons

y RPT (repeat) button

EN02-07_KD-G335[U_UH]f.indd 4EN02-07_KD-G335[U_UH]f.indd 4 9/13/06 5:19:27 PM9/13/06 5:19:27 PM

ENGLISH

Remote controller — RM-RK50

Installing the lithium coin battery

(CR2025)

im the remote controller directly at the remote

sensor on the unit. Make sure there is no obstacle

in between.

Warning:

• Do not install any battery other than CR2025 or

its equivalent; otherwise, it may explode.

• Do not leave the remote controller in a place

(such as dashboards) exposed to direct sunlight

for a long time; otherwise, it may explode.

• Store the battery in a place where children

cannot reach to avoid ris of accident.

• To prevent the battery from over-heating,

crac ing, or starting a fire:

– Do not recharge, short, disassemble, heat the

battery, or dispose of it in a fire.

– Do not leave the battery with other metallic

materials.

– Do not po e the battery with tweezers or similar

tools.

– Wrap the battery with tape and insulate when

throwing away or saving it.

Main elements and features

1 (standby/on/attenuator) button

• Turns the power on if pressed briefly or

attenuates the sound when the power is on.

• Turns the power off if pressed and held.

2 5 U (up) / D (down) ∞ buttons

• Changes the FM/AM bands with 5 U.

• Changes the preset stations with D ∞.

• Changes the folder of the MP3/WMA discs.

3 VOL – / VOL + buttons

• Adjusts the volume level.

4 SOUND button

• Selects the sound mode (iEQ: intelligent

equalizer).

5 SOURCE button

• Selects the source.

6 2 R (reverse) / F (forward) 3 buttons

• Searches for stations if pressed briefly.

• Fast-forwards or reverses the trac if pressed and

held.

• Changes the trac s if pressed briefly.

EN02-07_KD-G335[U_UH]f.indd 5EN02-07_KD-G335[U_UH]f.indd 5 9/13/06 5:19:30 PM9/13/06 5:19:30 PM

ENGLISH

Basic settings

• See also “General settings — PSM” on pages 11 and

12.

1 Canceling the display demonstrations

Select “DEMO,” then “DEMO OFF.”

2 Setting the clock

Select “ LO K H” (hour), then adjust the hour.

Select “ LO K M” (minute), then adjust the

minute.

3 Finish the procedure.

To check the current clock time while the

power is turned off

lock time is shown on the

display for about 5 seconds. See

also page 12.

Getting started

Basic operations

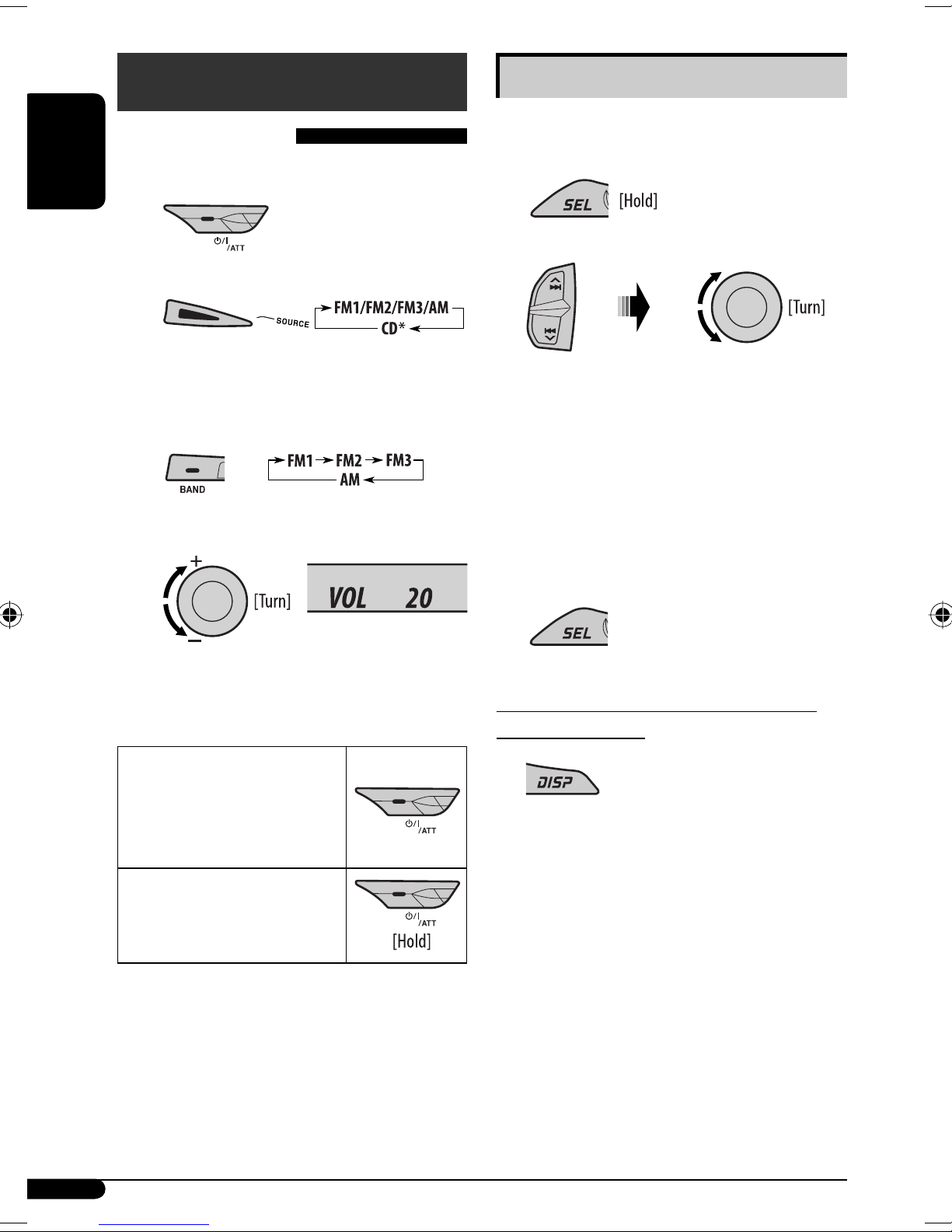

~ Turn on the power.

* You cannot select “CD” as the playback source if

there is no disc in the unit.

! For FM/AM tuner

⁄ Adjust the olume.

@ Adjust the sound as you want. (See

pages 10 and 11.)

To drop the olume in a

moment (ATT)

To restore the sound, press the

button again.

To turn off the power

Volume level appears.

EN02-07_KD-G335[U_UH]f.indd 6EN02-07_KD-G335[U_UH]f.indd 6 9/7/06 2:33:06 PM9/7/06 2:33:06 PM

ENGLISH

When an FM stereo broadcast is hard to

receive

Reception improves, but stereo effect will be lost.

To restore the stereo effect, repeat the same

procedure. “MONO OFF” appears and the MO indicator

goes off.

Storing stations in memory

You can preset si stations for each band.

FM station automatic presetting —

SSM (Strong-station Sequential

Memory

1 Select the FM band (FM1 – FM3 you want to

store into.

“SSM” flashes, then disappears when automatic

presetting is over.

Local FM stations with the strongest signals are

searched and stored automatically in the FM band.

Radio operations

! Start searching for a station.

When a station is received,

searching stops.

To stop searching, press the

same button again.

To tune in to a station manually

In step ! above...

2 Select a desired station frequency.

Lights up when receiving an FM stereo

broadcast with sufficient signal strength.

Lights up when monaural mode is activated.

EN02-07_KD-G335[U_UH]f.indd 7EN02-07_KD-G335[U_UH]f.indd 7 9/13/06 4:49:44 PM9/13/06 4:49:44 PM

ENGLISH

Disc operations

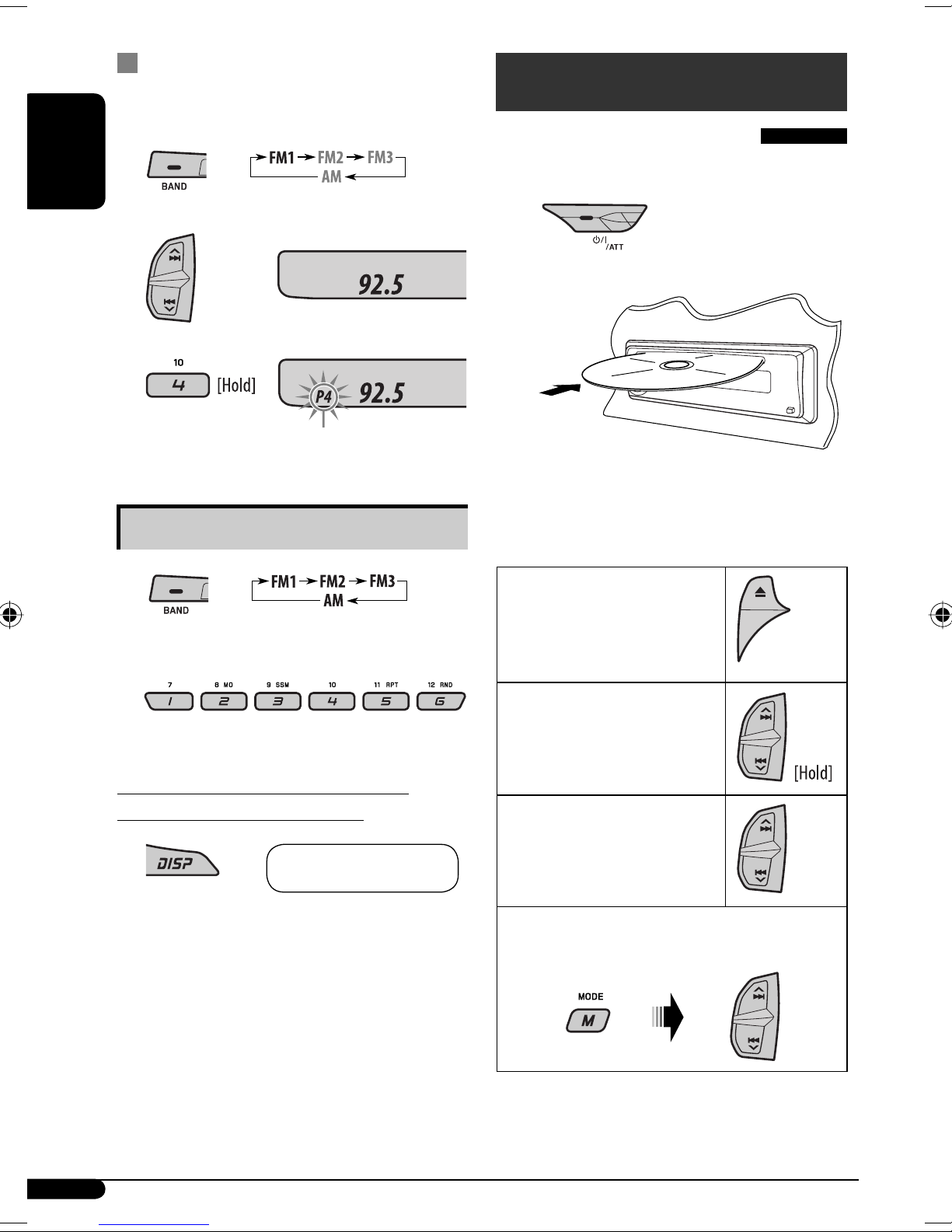

Playing a disc in the unit

~ Turn on the power.

All tracks will be played repeatedly until you

change the source or eject the disc.

To stop play and eject the

disc

• Press SOURCE to listen to

another playback source.

To fast-forward or reverse

the track

To go to the next or

previous tracks

To go to the next or previous folders (only

for MP3 or WM discs)

Manual presetting

E .: Storing FM station of 92.5 MHz into preset number

4 of the FM1 band.

Listening to a preset station

2 Select the preset station (1 – 6) you want.

To check the other information while

listening to an FM or M station

Preset number flashes for a while.

Clock Ô Frequency

EN08-13_KD-G335[U_UH]f.indd 8EN08-13_KD-G335[U_UH]f.indd 8 9/7/06 2:33:17 PM9/7/06 2:33:17 PM

ENGLISH

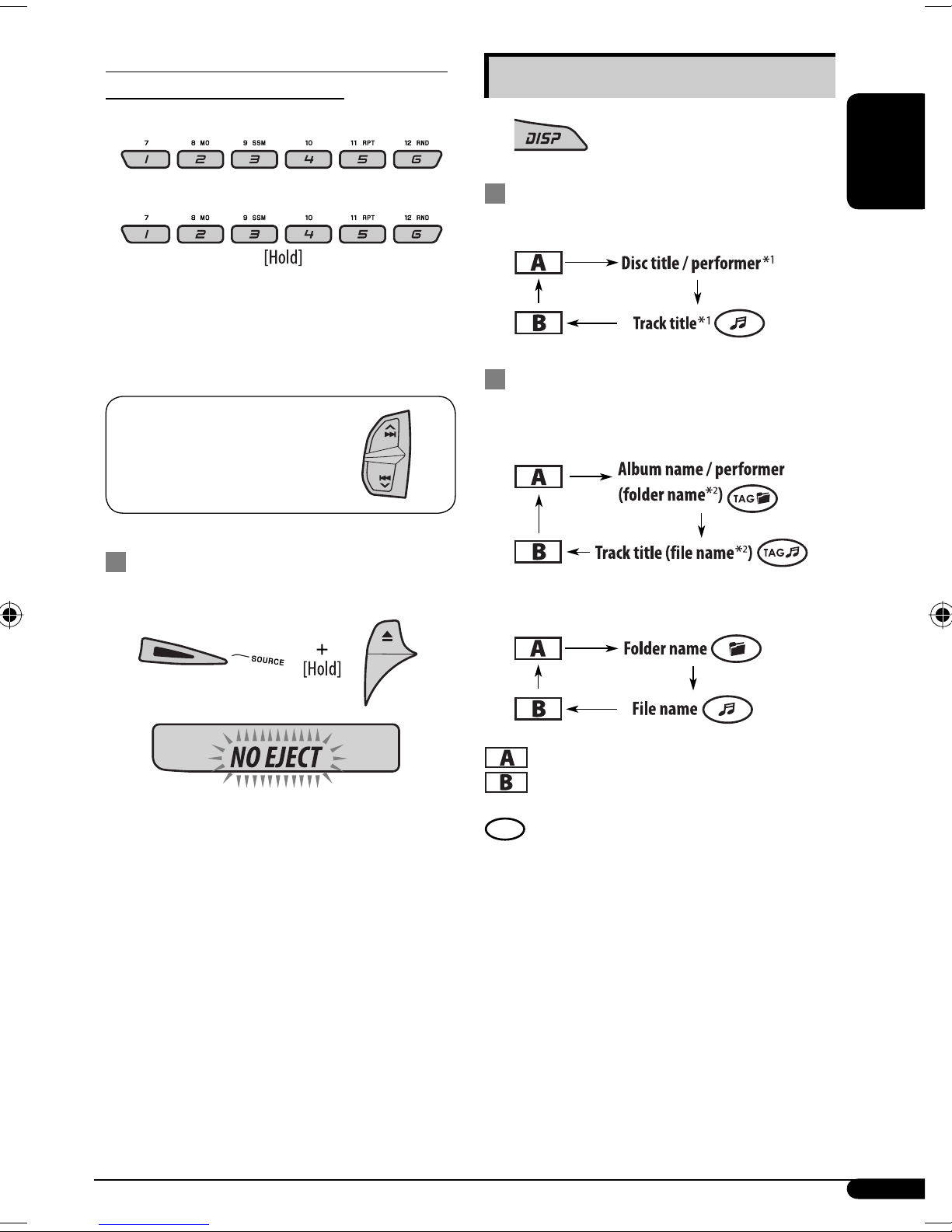

To locate a particular track (for CD) or folder

(for MP3 or WMA discs) directly

To select a number from 01 – 06:

To select a number from 07 – 12:

• To use direct folder access on MP3/WMA discs it

is required that folders are assigned with 2-digit

numbers at the beginning of their folder names—

01 02 03 and so on.

To select a particular track in a

folder (for MP3 or WMA disc):

Prohibiting disc ejection

You can lock a disc in the loading slot.

To cancel the prohibition repeat the same

procedure.

Changing the display information

While playing an audio CD or a

CD Text

While playing an MP3 or a WMA disc

• When “TAG DISP” is set to “TAG ON”

(see page 12)

• When “TAG DISP” is set to “TAG OFF”

: Clock with the current track number

: Elapsed playing time with the current

track number

: Corresponding indicator lights up on the

display

*1 If the current disc is an audio CD, “NO NAME” appears.

*2 If an MP3/WMA fi e does not have Tag information,

fo der name and fi e name appear. In this case, the

TAG indicator wi not ight up.

EN08-13_KD-G335[U_UH]f.indd 9EN08-13_KD-G335[U_UH]f.indd 9 9/13/06 4:50:56 PM9/13/06 4:50:56 PM

ENGLISH

Sound adjustments

You can select a preset sound mode suitable to the

music genre (iEQ: intelligent equalizer).

Indication (For)

BAS*1MID*2TRE*3S.BS*4

USER

(Flat sound) 00 00 00 OFF

ROCK

(Roc or disco music) +03 00 +02 ON

CLASSIC

(Classical music) +01 00 +03 OFF

POPS

(Light music) +02 +01 +02 OFF

HIP HOP

(Fun or rap music) +04 –02 +01 ON

JAZZ

(Jazz music) +03 00 +03 OFF

*1 : Bass; *2 : Middle; *3 : Treble; *4 : Super bass

Ad usting the sound

You can adjust the sound characteristics to your

preference.

Preset values

Selecting the playback modes

You can use only one of the following playbac modes

at a time.

2 Select your desired playback mode.

7 Repeat play

Mode Plays repeatedly

TRK RPT : The current trac .

FLDR RPT * : All trac s of the current folder.

RPT OFF : Cancels.

7 Random play

Mode Plays at random

FLDR RND * : All trac s of the current folder,

then trac s of the next folder and

so on.

DISC RND : All trac s of the current disc.

RND OFF : Cancels.

* Only while playing an MP3 or a WMA disc.

: Corresponding indicator lights up on

the display

EN08-13_KD-G335[U_UH]f.indd 10EN08-13_KD-G335[U_UH]f.indd 10 9/13/06 5:19:51 PM9/13/06 5:19:51 PM

Tabla de contenidos

Otros manuales de Receptor de coche de JVC

JVC

JVC KD-R681 Manual de usuario

JVC

JVC KS-FX300 Manual de usuario

JVC

JVC KD-R306 Manual de usuario

JVC

JVC KD-AHD75BT Manual de usuario

JVC

JVC CD Receiver KD-G441 Manual de usuario

JVC

JVC KD-G285 Manual de usuario

JVC

JVC In-Dash DVD Player KD-R400 Guía

JVC

JVC DVD/CD Receiver KD-DV7308 Manual de usuario

JVC

JVC KWAVX800 - EXAD - DVD Player Guía

JVC

JVC KD-AVX77 - EXAD - DVD Player Manual de usuario

JVC

JVC KW-AVX848 Manual de usuario

JVC

JVC KD-AR370J Manual de usuario

JVC

JVC KD-DB101EX Guía del administrador

JVC

JVC KD-PDR35 Manual de usuario

JVC

JVC KD-S641 Guía de inicio rápido

JVC

JVC KD-G745 Guía

JVC

JVC KD-S895 Guía del administrador

JVC

JVC KD-S71R Manual de usuario

JVC

JVC KD-PDR55 Manual de usuario

JVC

JVC KD-R821BTEY Manual de usuario

JVC

JVC KWAVX800 - EXAD - DVD Player Manual de usuario

JVC

JVC KD-R841BT Manual de usuario

JVC

JVC KD-G646 Manual de usuario

JVC

JVC KD-LH811 Guía

Manuales populares de Receptor de coche de otras marcas

Motorola

Motorola VWA63 Manual de usuario

Nextar

Nextar D3201 Manual de usuario

Alpine

Alpine CDE-163BT Manual de usuario

Pioneer

Pioneer DEH-P645R Manual de usuario

Axxera

Axxera XDMA7600 Instrucciones de funcionamiento

XM OnyX Manual de usuario

Sound Storm

Sound Storm STM93R Manual de usuario

Soundstream

Soundstream VIR-5000 Manual de usuario

Avson

Avson MKT Platform Manual de usuario

Sony

Sony MEX-1HD - Audio Library System Manual de usuario

Pioneer

Pioneer DVH-P500UB Manual de usuario

Blaupunkt

Blaupunkt SANTIAGO CR 87 Manual de usuario

Sony

Sony CDX-4160 - Cd Receiver Manual de usuario

XFIRE AUDIO

XFIRE AUDIO BMW42S Manual de usuario

VDO

VDO CD 2253 Manual de usuario

Volvo

Volvo 13 84 580 Manual de usuario

ZENEC

ZENEC ZE-160DVD Manual de usuario

Medion

Medion Car Audio Manual de usuario
