GR-DVM801

DIGITAL VIDEO CAMERA

LYT0002-0F2A

GR-DVM801

0397MKV*UN*SN



VICTOR COMPANY OF JAPAN, LIMITED

INSTRUCTIONS

ENGLISH

2EN

This unit is produced to comply with Standard

IEC Publ. 65.

Dear Customer,

Thank you for purchasing this Digital Video

Camera. Before use, please read the safety

information and precautions contained in the

following pages to ensure safe use of this

product.

Using This Instruction Manual

•All major sections and subsections are listed in the

Table Of Contents (Zpg. 7).

•Notes appear after most subsections. Be sure to

read these as well.

•Basic and advanced features/operation are

separated for easier reference.

It is recommended that you . . .

..... refer to “Controls, Indications and Connectors”

(Zpgs. 73 – 76) and familiarize yourself with

button locations, etc. before use.

..... read thoroughly the Safety Precautions that

follow. They contain extremely important

information regarding the safe use of your new

camcorder.

You are recommended to carefully read the

cautions on pages 77 and 78 before use.

SAFETY

PRECAUTIONS

CAUTIONS:

nTo prevent shock, do not open the cabinet.

No user serviceable parts inside. Refer

servicing to qualified personnel.

nWhen you are not using the AC Power

Adapter/Battery charger for a long period of

time, it is recommended that you disconnect

the power cord from AC outlet.

WARNING:

TO PREVENT FIRE OR SHOCK

HAZARD, DO NOT EXPOSE

THIS UNIT TO RAIN OR

MOISTURE.

Warning on lithium cell battery

The battery used in this device may present a

fire or chemical burn hazard if mistreated. Do

not recharge, disassemble, heat above 100°C

(212°F) or incinerate.

Replace battery with Panasonic (Matsushita

Electronic), Sanyo or Maxell CR2025; use of

another battery may present a risk of fire or

explosion.

nDispose of used battery properly.

nKeep away from children.

nDo not disassemble and do not dispose of in

fire.

CAUTION (applies to the Docking Station):

TO REDUCE THE RISK OF FIRE, DO NOT

REMOVE COVER (OR BACK). NO USER–

SERVICEABLE PARTS INSIDE. REFER SERVIC-

ING TO QUALIFIED SERVICE

PERSONNEL.

NOTES:

●

The rating plate (serial number plate) and

safety caution are on the bottom and/or the

back of the main unit.

●

The rating plate (serial number plate) of the

AC Power Adapter/Charger is on its bottom.

●

The rating plate (serial number plate) of the

Docking Station is on its bottom.

This camcorder is designed to be used with

PAL-type colour television signals. It cannot be

used for playback with a television of a different

standard. However, live recording and

viewfinder playback are possible anywhere.

Use the BN-V812U battery pack and, to

recharge it, the provided multi-voltage AC

Power Adapter/Charger. (An appropriate

conversion adapter may be necessary to

accommodate different designs of AC outlets in

different countries.)

EN 3

About Batteries

DANGER! Do not attempt to take the batteries

apart, or expose them to flame or excessive heat, as

there is a risk of fire or explosion.

WARNING! Do not allow the battery terminals, or

the battery itself, to come in contact with metals, as

this can result in a short circuit and possibly start a

fire.

•When transporting, make sure the provided

battery cap is attached to the battery. If you

misplace the battery cap, carry the battery in a

plastic bag.

Before recording an important scene . . .

..... make sure you only use cassettes with the Mini

DV mark.

..... remember that this camcorder is not compatible

with other digital video formats.

..... remember that the this camcorder is intended

for private consumer use only. Any commercial

use without proper permission is prohibited.

(Even if you record an event such as a show,

performance or exhibition for personal

enjoyment, it is strongly recommended that you

obtain permission beforehand.)

The Benefits Of Lithium-Ion Batteries

Lithium-ion battery packs are small but possess a

large power capacity. However, when the battery

pack becomes cool in an environment subject to

cold temperatures (below 10°C/50°F), the battery

pack has a characteristic that its usage time

becomes shorter and may cease to function. If this

happens, place the battery pack in your pocket or

other warm, protected place for a short time, then

re-attach it to the camcorder. As long as the battery

pack itself is not cold, it should not affect perform-

ance.

(If you’re using some kind of heating pad, make

sure the battery pack does not come in direct

contact with the pad.)

SAFETY PRECAUTIONS

Do not point the lens or the viewfinder directly into

the sun. This can cause eye injuries, as well as lead

to the malfunctioning of internal circuitry. There is

also a risk of fire or electric shock.

CAUTION! The following notes concern possible

physical damage to the camcorder and to the user.

When carrying, be sure to always attach and use

the provided hand strap. Hold the camcorder firmly

in your hand, with the strap securely around your

wrist. Carrying or holding the camcorder by the

viewfinder can result in dropping the unit, or in a

malfunction.

Take care not to get your finger caught in the

cassette cover. Do not let children operate the

camcorder, as they are particularly susceptible to

this type of injury.

Do not use a tripod on unsteady or unlevel surfaces.

It could tip over, causing serious damage to the

camcorder.

CAUTION! Attaching the camcorder to the Docking

Station, connecting cables (AUDIO/VIDEO,

S-VIDEO, Editing, DC) and leaving the unit on top

of the TV is not recommended, as tripping on the

cables will cause the camcorder to fall, resulting in

damage.

Lithium-ion is vulnerable in colder temperatures.

nThis camcorder is designed exclusively for

the digital video cassette. Only

cassettes marked can be used with this

unit.

4EN

PROVIDED ACCESSORIES

Grip

Battery pack BN-V812U

CAM Stand Sun hood

Hand strap

VIDEO cable (ø 3.5,

camcorder to TV or VCR,

mini-plug 4RCA plug)

AUDIO cable (ø 3.5,

camcorder to TV or VCR,

mini-plug 4RCA plug)

S-VIDEO cable Editing cable DC cord

AUDIO/VIDEO cable

(Docking Station to TV or

VCR, RCA plug 4RCA plug)

Soft camera case

AC Power

Adapter/Charger AA-V80EG

EN 5

JLIP Video Capture Docking Station

GV-DS1 (referred to in the manual as

“Docking Station”)

Use of the JLIP Video Capture Docking

Station enables you to capture video

images from video sources such as

camcorders and VCRs.

Also refer to the JLIP Video Capture

Docking Station's instruction manual.

Lithium battery CR2025 x 2

(one for clock operation and one for

remote control unit)

Cleaning cloth

Remote control unit

RM-V708U or RM-V710U

MiniDV Cassette Tape 30 min (DVM-30)

M-DV30ME

JLIP connection cables x 2,

3.5 mm dia

Computer connection cable,

D-SUB 9-pin

CD-ROM

The CD ROM contains the following

2 software programs:

•JLIP Video Capture

•JLIP Movie Player

6EN

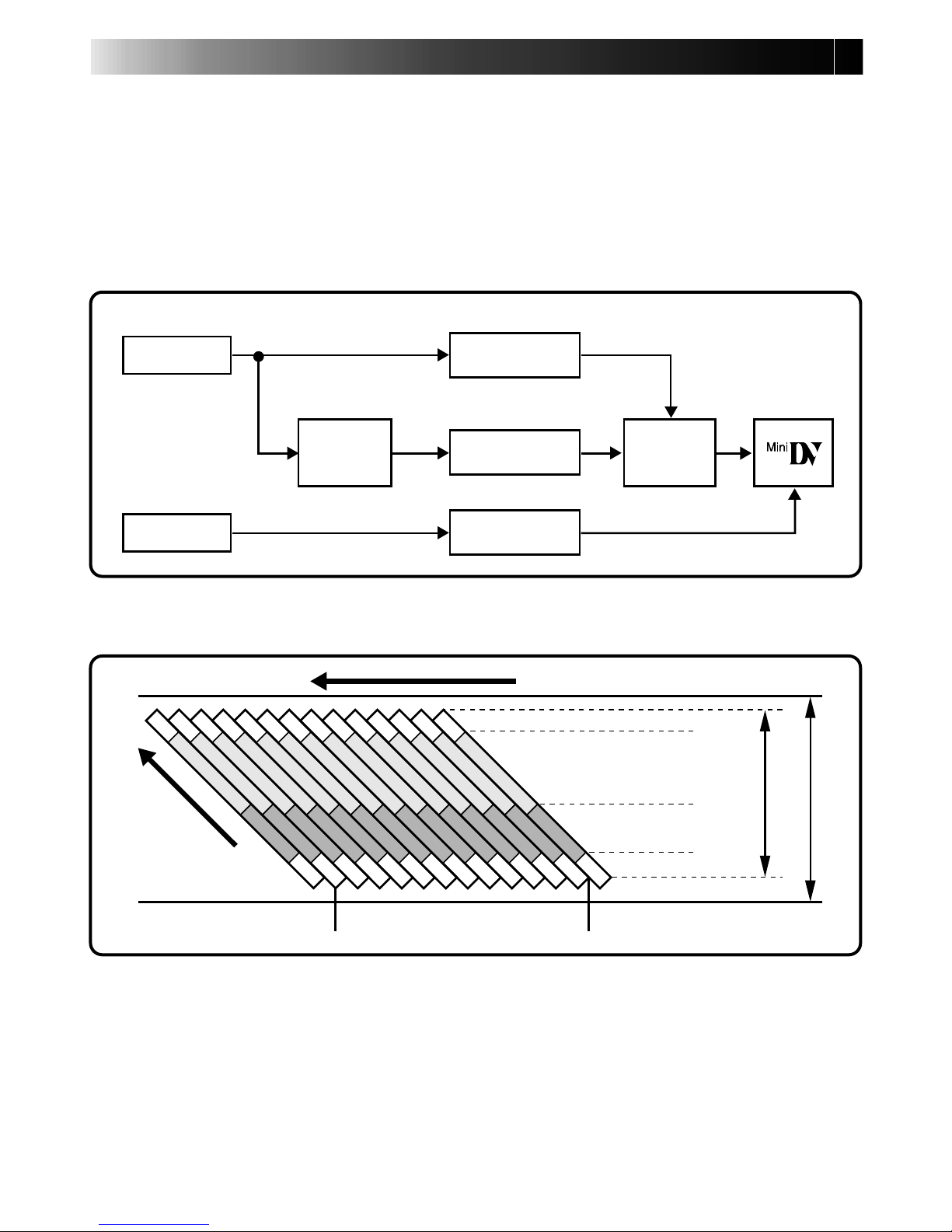

The digital video camera converts incoming audio and video signals into digital form for recording.

A video signal is composed of a luminance signal (Y) and colour signals (R-Y and B-Y). These signals are

identified and recorded digitally (Digital Component Recording). The A/D (Analog to Digital) converter

samples the Y signal at 13.5 MHz, and R-Y and B-Y at 6.75 MHz, and changes them to an 8-bit quantum signal.

Sound sampled at 48 kHz is changed to a 16-bit quantum signal, and sound sampled at 32 kHz is converted

to a 12-bit signal.

NOTE:

The data recorded on a tape is digital, but the output of the this camcorder is analog.

ABOUT DV

3Audio Area

The digital audio signal is recorded here.

4ITI (Insert and Tracking

Information) Area

Insert editing and post-recording editing

tracking signals are recorded here.

1Sub-Code Area

The Time Code and Date/Time data are

written here, separate from the video

data. This enables you to display the date

and time during playback, even if they

weren’t displayed while recording.

2Video Area

The digital video signal is recorded here.

Lens

Mic

A/D

conversion

Chromatic

Analysis

12 tracks/frame

VIDEO

Luminance Signal (Y)

A/D

conversion

A/D

conversion

AUDIO

Recording by

rotating head

helical scan

Tape direction

Sub-Code Area

Video Area

Audio Area

ITI Area

Head tracking direction

5.24 mm

6.35 mm

Signal

compression

Colour Difference

Signal (R-Y/B-Y)

Chrominance (C)

This camcorder separates the data into blocks, writing one block of each data type on each track of the tape.

EN 7

CONTENTS

PROVIDED ACCESSORIES

ABOUT DV

GETTING STARTED

Charging The Battery Pack.................................................................... 8

Installing The Battery Pack ................................................................... 9

Indoor Use..................................................................................... 10

Using The CAM Stand ........................................................................ 10

Clock (Lithium) Battery CR2025 Insertion/Removal .................................... 11

Date/Time Settings .......................................................................... 12

Loading/Unloading A Cassette ............................................................. 13

Recording Mode Setting ..................................................................... 14

Hand Strap Attachment...................................................................... 14

Lens Cover Detachment...................................................................... 14

Sun Hood Attachment ........................................................................ 15

Grip Attachment .............................................................................. 16

Remote Control Unit ......................................................................... 17

RECORDING

Full Auto/Manual Operation................................................................ 18

Basic Recording ............................................................................... 19

Advanced Features ........................................................................... 26

PLAYBACK

Basic Playback ................................................................................ 49

Basic Connections............................................................................. 50

Playback Menu................................................................................ 54

Advanced Features ........................................................................... 56

EDITING

Docking Station ............................................................................... 58

Dubbing ........................................................................................ 58

Brand Setting ................................................................................. 59

Random Assemble Editing ................................................................... 60

For More Accurate Editing ................................................................... 63

Audio Dubbing ................................................................................ 65

Insert Editing.................................................................................. 66

TROUBLESHOOTING

AFTER USE

CONTROLS, INDICATIONS AND CONNECTORS

Main Unit ...................................................................................... 73

LCD Monitor Indications During Recording ................................................ 74

LCD Monitor Indications During Playback ................................................. 75

Warning Indications .......................................................................... 75

JLIP Video Capture Docking Station........................................................ 76

CAUTIONS

SPECIFICATIONS

GLOSSARY OF TERMS

INDEX

8EN

Charging The Battery Pack

You can charge one battery pack at a time, or two consecutively.

GETTING STARTED

SUPPLY POWER TO CHARGER

Plug the AC Adapter/Charger's power cord into

an AC outlet. The power indicator comes on.

ATTACH BATTERY/BATTERIES

Make sure the + – marks are facing down and

aligned with the corresponding marks on the

AC Power Adapter/Charger.

•The Charge Indicator (1 or 2) begins blinking

to indicate charging has started.

CONFIRM STATUS

When the charger indicator stops blinking but

stays lit, charging is finished.

•If two batteries are attached to the charger,

they will be charged in the order that they

were attached.

ATTACH

BLACK

RED

Charge marker

• The charge marker does not move by itself. After

charging or removing a discharged battery, be sure to

set the marker to the predetermined position.

DETACH

DETACH BATTERY/BATTERIES

Slide the battery or batteries in the direction of

the arrow and lift off.

•Remember to unplug the AC Adapter/

Charger's power cord from an AC outlet.

Charger indicator 1

Power lamp

Charger indicator 2

DC jack

AC Power Adapter/

Charger

Power cord

Battery pack BN-V812U

BATTERY ONE TWO

BN-V812U approx. 100 min. approx. 200 min.

CHARGING TIME

Charge Marker

The charge marker makes it easy for you to

differentiate between charged and discharged

batteries. Choose RED or BLACK to mean charged

or discharged, and you'll always know the status of

your batteries.

To AC outlet

EN 9

Installing The Battery Pack

The battery pack does not charge while in the

camcorder. Before installation, make sure the

battery pack has been charged fully.

OPEN BATTERY COVER

1Slide the open switch on the battery cover.

2Pull open the battery cover in the direction

of the arrow.

INSERT BATTERY

Insert the + – end of the battery first.

CLOSE BATTERY COVER

Slide the open switch and close the battery

cover.

NOTES:

●

If you connect the camcorder’s DC cord to the

adapter during battery charging, power is

supplied to the camcorder and charging stops.

●

When using the AC Power Adapter/Charger, be

sure to use the supplied power cord only.

●

The AC Power Adapter/Charger is for use with the

BN-V812U Battery Pack only.

●

When charging the Battery Pack for the first time

or after a long storage period, the Charge

Indicator may not light. In this case, remove the

Battery Pack from the AC Power Adapter/Charger,

then try charging again.

●

Since the AC Power Adapter/Charger processes

electricity internally, it becomes warm during use.

Be sure to use it only in well-ventilated areas.

** Charging Environment

Perform charging where the temperature is between

10° and 30°C. (20°–25°C is the ideal temperature

range for charging.) If the environment is too cold,

charging may be incomplete.

Continuous Shooting

Continuous shooting is possible for approximately

60 minutes, under the following conditions:

•A BN-V812U Battery Pack is in use

•The temperature is approximately 20°C/68°F

However, . . .

•If the temperature is below 10°C/50°F, or

•If zoom or Record/Standby are engaged repeat-

edly, continuous shooting capability is reduced

significantly. Before extended use, it is recom-

mended that you prepare enough battery packs to

cover 3 times the planned shooting time.

Open switch

Battery cover

Battery

BATTERY RECORDING TIME

BN-V812U approx. 60 min.

NOTES:

●

To remove the battery pack, turn the Power Dial

to "OFF", open the battery cover and slide the

battery pack out.

●

Be careful not to drop the battery pack.

10 EN

GETTING STARTED

(Cont.)

Indoor Use

When using the camcorder indoors, you can use

the AC Adapter instead of a battery.

SUPPLY POWER TO ADAPTER

Plug the AC Adapter/Charger's power cord in

to an AC outlet.

SUPPLY POWER TO CAMCORDER

Connect the AC Adapter to the camcorder.

DC-IN

Using The CAM Stand

During Playback

If you leave the camcorder's power on for a long

time while using it on a table top etc., the

camcorder's surface may become hot. Attach it to

the CAM Stand and play back.

During Recording

It is recommended to use the CAM Stand while

shooting from a table top or any other flat surface.

This provides stability to the camcorder.

SUPPLY POWER

Plug the DC cord into the camcorder.

ATTACH TO CAM STAND

Line up Awith a, Bwith b, Cwith c, and

Dwith d. Slide the camcorder in the

direction of the arrow.

•To detach the camcorder, slide it in the

opposite direction of the arrow.

Power cord

AC Power

Adapter/Charger

DC cord

Core Filter Connector is under

this cover

CAM Stand

Lens

Bottom of the camcorder

NOTES:

●

When using the provided DC cord, make sure

you connect the end of the cable with the core

filter to the camcorder. The core filter improves

performance of equipment.

●

When using the AC Power Adapter/Charger, the

“Battery Low” indicator (

pg. 75) may appear.

This is not a malfunction.

To AC outlet

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Videocámara de JVC

JVC

JVC GR-DVP9 Manual de usuario

JVC

JVC Everio GZ-HM30AG Manual de operación y mantenimiento

JVC

JVC GR-AX470EE Manual de usuario

JVC

JVC GYHD110U - Camcorder - 720p Manual de instalación

JVC

JVC Everio LYT2115-002A-M Instrucciones de uso

JVC

JVC GY-HD250 Manual de usuario

JVC

JVC GR-DV4000E Manual del propietario

JVC

JVC GY-HM600E Manual de usuario

JVC

JVC GR-D50KR Manual de usuario

JVC

JVC GY-HD250U - 3-ccd Prohd Camcorder Manual de usuario

JVC

JVC GR-AXM225U Manual de usuario

JVC

JVC Everio GZ-HD500U Manual de operación y mantenimiento

JVC

JVC Everio R GZ-R440U Manual de operación y mantenimiento

JVC

JVC GZ-MS100U - Everio 35x Optical/800x Digital Zoom SDHC... Manual de usuario

JVC

JVC GZ-MG365B - Everio Camcorder - 680 KP Manual

JVC

JVC GR-DV33 Manual de usuario

JVC

JVC Everio GZ-HM670 Manual de operación y mantenimiento

JVC

JVC GY-DV5000 Instrucciones de instalación y funcionamiento

JVC

JVC LYT1426-001B Manual de usuario

JVC

JVC GZ-HD320 - Everio Camcorder - 1080p Manual de usuario

JVC

JVC GR-AX285 Manual de usuario

JVC

JVC GY-HD250 Manual de usuario

JVC

JVC LST0984-001A Manual de usuario

JVC

JVC GR-SXM58 Manual de usuario

Manuales populares de Videocámara de otras marcas

Toshiba

Toshiba CAMILEO Z100 Manual de usuario

Panasonic

Panasonic NV-VS40B Manual de usuario

Canon

Canon RC 260 Manual de usuario

Sony

Sony Handycam DCR-DVD7E Manual de usuario

Brinno

Brinno TimeLapse TLC200 Manual de usuario

Panasonic

Panasonic AG-HMC152EN Manual de usuario

Insignia

Insignia NS-DCC5HB09 - Camcorder - 720p Manual de usuario

MYDLINK

MYDLINK DCS-6100LH Manual de usuario

Sony

Sony video Hi8 Handycam CCD-TR555 Manual de usuario

SECURECOM

SECURECOM V-5014B Manual de usuario

Panasonic

Panasonic HDC-SD100 Manual de usuario

Sharper Image

Sharper Image U-VIDEO Manual de usuario

Canon

Canon LEGRIA HV40 Manual de usuario

Sony

Sony Handycam DCR-VX2000 Manual de usuario

RCA

RCA CC616 Manual de usuario

Panasonic

Panasonic NVM40 Manual de usuario

ATIK Cameras

ATIK Cameras Horizon Manual de usuario

Sony

Sony Handycam HDR-CX580V Manual de usuario
