Using This Instruction Manual

•All major sections and subsections are listed in the Table Of Contents on the cover page.

•Notes appear after most subsections. Be sure to read these as well.

•Basic and advanced features/operation are separated for easier reference.

It is recommended that you . . .

..... refer to the Index (墌pgs. 62 – 66) and familiarize yourself with button locations, etc. before use.

..... read thoroughly the Safety Precautions. They contain extremely important information regarding the safe use

of this product.

You are recommended to carefully read the cautions on pages 58 and 59 before use.

NOTES:

●The rating plate (serial number plate) and safety

caution are on the bottom and/or the back of the

main unit.

●The rating information and safety caution of the

ACAdapter are on its upper and lower sides.

WARNING:

TO PREVENT FIRE OR SHOCK

HAZARD, DO NOT EXPOSE THIS

UNIT TO RAIN OR MOISTURE.

Dear Customer,

Thank you for purchasing this digital video camera. Before use, please read the safety information and

precautions contained in the following pages to ensure safe use of this product.

SAFETY PRECAUTIONS

CAUTIONS:

●To prevent shock, do not open the cabinet. No

user serviceable parts inside. Refer servicing to

qualified personnel.

●When you are not using the AC Adapter for a

long period of time, it is recommended that you

disconnect the power cord from AC outlet.

CAUTION:

To avoid electric shock or damage to the unit,

first firmly insert the small end of the power

cord into the AC Adapter until it is no longer

wobbly, and then plug the larger end of the

power cord into an AC outlet.

When the equipment is installed in a cabinet or on a shelf, make sure that it has sufficient space on all sides

to allow for ventilation (10 cm or more on both sides, on top and at the rear).

Do not block the ventilation holes.

(If the ventilation holes are blocked by a newspaper, or cloth etc. the heat may not be able to get out.)

No naked flame sources, such as lighted candles, should be placed on the apparatus.

When discarding batteries, environmental problems must be considered and the local rules or laws

governing the disposal of these batteries must be followed strictly.

The apparatus shall not be exposed to dripping or splashing.

Do not use this equipment in a bathroom or places with water.

Also do not place any containers filled with water or liquids (such as cosmetics or medicines, flower vases,

potted plants, cups etc.) on top of this unit.

(If water or liquid is allowed to enter this equipment, fire or electric shock may be caused.)

CAUTIONS:

●This camcorder is designed to be used with PAL-type colour television signals. It cannot be used for

playback with a television of a different standard. However, live recording and LCD monitor/viewfinder

playback are possible anywhere.

●

Use the JVC BN-V408U/V416U/V428U battery packs and, to recharge them or to supply power to the

camcorder from anAC outlet, use the provided multi-voltageACAdapter and Power Cord. (An appropriate

conversion adapter may be necessary to accommodate different designs of AC outlets in different countries.)

Do not point the lens or the viewfinder directly into the sun. This can cause eye injuries, as well as lead to the

malfunctioning of internal circuitry. There is also a risk of fire or electric shock.

CAUTION!

The following notes concern possible physical damage to the camcorder and to the user.

When carrying, be sure to always securely attach and use the provided shoulder strap. Carrying or holding the

camcorder by the viewfinder and/or the LCD monitor can result in dropping the unit, or in a malfunction.

Take care not to get your finger caught in the cassette holder cover. Do not let children operate the camcorder, as

they are particularly susceptible to this type of injury.

Do not use a tripod on unsteady or unlevel surfaces. It could tip over, causing serious damage to the camcorder.

CAUTION!

Connecting cables (Audio/Video, S-Video, etc.) to the camcorder and leaving the unit on top of the TV is not

recommended, as tripping on the cables will cause the camcorder to fall, resulting in damage.

䡲This camcorder is designed exclusively for the digital video cassette. Only cassettes marked

“ ” can be used with this unit.

Before recording an important scene . . .

.... make sure you only use cassettes with the Mini DV mark .

.... remember that this camcorder is not compatible with other digital video formats.

.... remember that this camcorder is intended for private consumer use only.Any commercial use

without proper permission is prohibited. (Even if you record an event such as a show, performance or

exhibition for personal enjoyment, it is strongly recommended that you obtain permission beforehand.)

SAFETY PRECAUTIONS

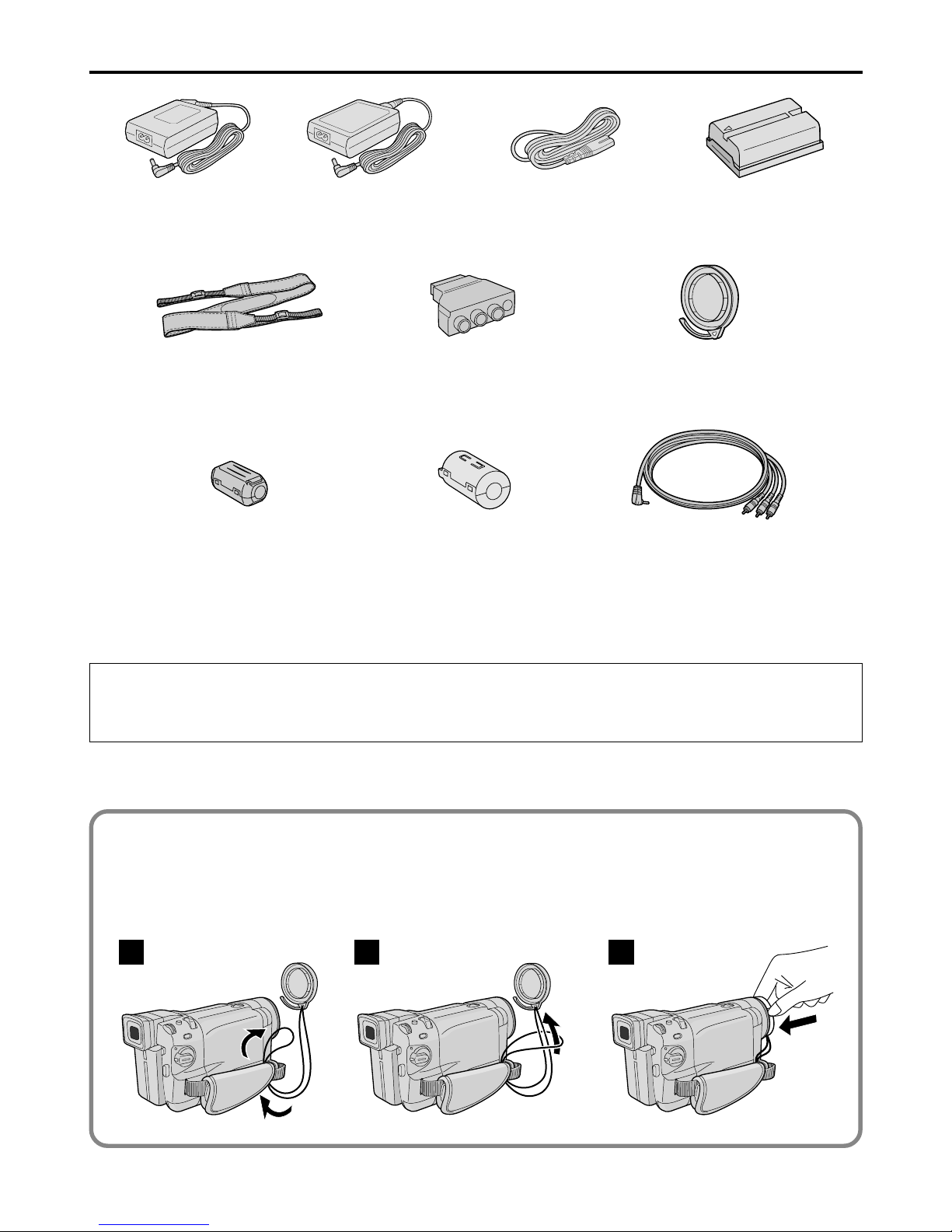

PROVIDED ACCESSORIES

NOTE:

In order to maintain optimum performance of the camcorder, provided cables may be equipped with one or more

core filter. If a cable has only one core filter, the end that is closest to the filter should be connected to the camcorder.

Audio/Video Cable

(ø3.5 mini-plug to

RCA plug)

Shoulder Strap

Battery Pack

BN-V408U

AC Adapter AP-V10EG,

AP-V11EG or AP-V12EG

Lens Cap

(See below for

attachment)

Power Cord

Cable Adapter

How To Attach The Lens Cap

To protect the lens, attach the provided lens cap to the camcorder as shown in the illustration.

NOTE:

To confirm the lens cap is on correctly make sure the cap is flush to the camera.

Core Filter x 1

(for PC Connection cable

provided with optional

HS-V16KITE software;

墌pg. 6 for attachment)

Core Filter x 1

(for optional S-Video cable

墌pg. 6 for attachment)

1 2 3

Automatic Demonstration takes place when “DEMO

MODE”is set to “ON”(factory-preset).

䡲Automatic Demonstration starts when there is no operation for

about 3 minutes after the Power Switch is set to “

AUTO

”or

“

MANUAL

”and no cassette is in the camcorder.

䡲Performing any operation during the demonstration stops the

demonstration temporarily. If no operation is performed for more

than 3 minutes after that, the demonstration will resume.

䡲“DEMO MODE”remains “ON”even if the camcorder power is

turned off.

䡲To cancel Automatic Demonstration:

1. Set the Power Switch to “

MANUAL

”while pressing down the

Lock Button located on the switch and press the MENU/

BRIGHT wheel in. The Menu Screen appears.

2. Rotate the MENU/BRIGHT wheel to select “SYSTEM”

and press it. The SYSTEM Menu appears.

3. Rotate the MENU/BRIGHT wheel to select “DEMO MODE”

and press it. The Sub Menu appears.

4. Rotate the MENU/BRIGHT wheel to select “OFF”and press it.

5. Rotate the MENU/BRIGHT wheel to select “RETURN”,

and press it twice. The normal screen appears.

NOTE:

If you do not detach the Lens Cap, you cannot see the actual changes of the

Automatic Demonstration activated on the LCD monitor or viewfinder.

AUTOMATIC DEMONSTRATION

MODEDEMO –ON

OFF

MENU/BRIGHT Wheel

Sub Menu

Lock Button

Power Switch

How ToAttach The Core Filter

Attach the Core Filter(s) (if provided with your model 墌pg. 5) to an optional cable(s). The Core Filter

reduces interference.

Release the

stoppers on both

ends of the Core

Filter.

Run the cable through the Core Filter, leaving approx.

3 cm of cable between the cable plug and the Core Filter.

Wind the cable once around the outside of the Core Filter

as shown in the illustration.

•Wind the cable so that it is not slack.

NOTE:

Take care not to damage the cable.

Close the Core Filter until it

clicks shut.

3 cm

Stopper

䡲When connecting cables, attach the end with the Core Filter to the camcorder.

Wind once

GETTING STARTED

CONTENTS

Power..................................................8 – 9

Grip Adjustment ......................................... 10

Viewfinder Adjustment.................................. 10

Shoulder Strap Attachment ............................. 10

Tripod Mounting.......................................... 10

Date/Time Settings...................................... 11

Loading/Unloading A Cassette ......................... 12

Recording Mode Setting................................. 13

Battery pack

BN-V408U

BN-V416U (optional)

BN-V428U (optional)

Charging time

approx. 1 hr. 30 min.

approx. 3 hrs.

approx. 5 hrs.

Power

This camcorder’s 2-way power supply system lets

you choose the most appropriate source of power. Do

not use provided power supply units with other

equipment.

CHARGING THE BATTERY PACK

1Tilt the viewfinder upward 1. With the arrow on

the battery pack pointing downward, push the battery

pack slightly against the battery pack mount 2, then

slide down the battery pack until it locks in place 3.

2Set the Power Switch to “OFF”. Connect the AC

Adapter to the camcorder 4, then connect the Power

Cord to the ACAdapter 5.

3Plug the Power Cord into anAC outlet 6.

The CHARGE lamp on the camcorder blinks to

indicate charging has started.

4When the CHARGE lamp stops blinking but stays

lit, charging is finished. Unplug the Power Cord from

the AC outlet. Disconnect the AC Adapter from the

camcorder.

To Detach The Battery Pack . . .

.....Press BATT. RELEASE and pull out the battery

pack.

NOTES:

●If the protective cap is attached to the battery pack,

remove it first.

●During charging, the camcorder cannot be operated.

●Charging is not possible if the wrong type of battery is

used.

●When charging the battery pack for the first time or

after a long storage period, the CHARGE lamp may not

light. In this case, remove the battery pack from the

camcorder, then try charging again.

●If the battery operation time remains extremely short

even after having been fully charged, the battery is

worn out and needs to be replaced. Please purchase a

new one.

●Using the optional AA-V40EG AC Power Adapter/

Charger, you can charge the BN-V408U/V416U/V428U

battery pack without the camcorder. However, it cannot

be used as an AC adapter.

GETTING STARTED

(cont.)

To AC outlet

Battery pack

AC Adapter

CHARGE Lamp

To DC

connector

BATT. RELEASE Button

Power Switch

For other notes, 墌pg. 52

ATTENTION

Before detaching the power source, make sure that

the camcorder’s power is turned off. Failure to do so

can result in a camcorder malfunction.

NOTES:

●Recording time is reduced significantly under the

following conditions:

•Zoom or Record-Standby mode is engaged

repeatedly.

•The LCD monitor is used repeatedly.

•The playback mode is engaged repeatedly.

●Before extended use, it is recommended that you

prepare enough battery packs to cover 3 times the

planned shooting time.

USING THE BATTERY PACK

Perform step 1of “CHARGING THE BATTERY

PACK”(墌pg. 8).

Approximate recording time

USING AC POWER

Use the AC Adapter (connect as shown in the

illustration).

NOTES:

●The provided AC Adapter features automatic voltage

selection in the AC range from 110 V to 240 V.

●For other notes, 墌pg. 52.

About Batteries

DANGER! Do not attempt to take the batteries apart,

or expose them to flame or excessive heat, as it may

cause a fire or explosion.

WARNING! Do not allow the battery or its terminals

to come in contact with metals, as this can result in a

short circuit and possibly start a fire.

The Benefits Of Lithium-Ion Batteries

Lithium-ion battery packs are small but have a large

power capacity. However, when one is exposed to

cold temperatures (below 10°C), its usage time

becomes shorter and it may cease to function. If this

happens, place the battery pack in your pocket or

other warm, protected place for a short time, then re-

attach it to the camcorder. As long as the battery pack

itself is not cold, it should not affect performance.

(If you’re using a heating pad, make sure the battery

pack does not come in direct contact with it.)

Battery pack

BN-V408U

BN-V416U

(optional)

BN-V428U

(optional)

BN-V840U

(optional)

BN-V856U

(optional)

LCD monitor on

1 hr.

2 hrs.

3 hrs. 30 min.

5 hrs.

7 hrs.

Viewfinder on

1 hr. 15 min.

2 hrs. 30 min.

4 hrs. 20 min.

6 hrs. 10 min.

8 hrs. 40 min.

INFORMATION

The extended-use battery pack kit is a set composed of a battery pack and AC Power Adapter/Charger:

VU-V840 KIT: BN-V840U battery pack & AA-V15EGAC Power Adapter/Charger

VU-V856 KIT: BN-V856U battery pack & AA-V80EGAC Power Adapter/Charger

Read the kit's instruction manual before using.

Also, by using the optional JVC VC-VBN856U DC Cord, it will be possible to connect BN-V840U or BN-V856U

battery packs to the camcorder and supply power directly to the camcorder.

Lithium-ion is vulnerable in colder temperatures.

To DC connector

To AC outlet

AC Adapter

GETTING STARTED

(cont.)

Grip Adjustment

1Separate the Velcro strip.

2Pass your right hand through the loop and grasp

the grip.

3Adjust your thumb and fingers through the grip, to

easily operate the Recording Start/Stop button and

Power Switch and Power Zoom Lever. Be sure to

fasten the Velcro strip to your preference.

Viewfinder Adjustment

1Set the Power Switch to “

AUTO

”or “

MANUAL

”

while pressing down the Lock Button located on the

switch.

2Turn the Dioptre Adjustment Control until the

indications in the viewfinder are clearly focused.

Shoulder Strap Attachment

1Make sure the battery pack is removed. Following

the illustration, thread the strap through the eyelet 1,

then fold it back and thread it through the buckle 2.

Repeat the procedure to attach the other end of the

strap to the other eyelet 3located under the Grip

Strap. Confirm the strap is not twisted.

Tripod Mounting

CAUTION

When attaching the camcorder to a tripod, extend its

legs to stabilise the camcorder. It is not advised to

use small sized tripods. This may cause damage to

the unit by falling over.

1To attach the camcorder to a tripod, align the

direction stud and screw to the mounting socket and

stud hole on the camcorder. Then tighten the screw

clockwise. Some tripods are not equipped with studs.

PAUSE

Dioptre

Adjustment Control

Power Switch

Recording

Start/Stop button

Power

Zoom Lever

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Videocámara de JVC

JVC

JVC GR-AX11EG Manual de usuario

JVC

JVC Everio GZ-HD620 Manual de operación y mantenimiento

JVC

JVC GS-TD1BUS Instrucciones de uso

JVC

JVC GC-FM2 Manual de operación y mantenimiento

JVC

JVC GR-AX270 Manual de usuario

JVC

JVC GZ-EX355 Everio Manual de usuario

JVC

JVC GR-AX767UM Manual de usuario

JVC

JVC GR-DX55 Manual de usuario

JVC

JVC GY-HD100U - 3-ccd Prohd Camcorder Manual de usuario

JVC

JVC Pro 3-CCD Manual de usuario

JVC

JVC GY-DV550U Manual de usuario

JVC

JVC EVERIO GZ-HM440US Manual de usuario

JVC

JVC GR-SXM248 Manual de usuario

JVC

JVC GR-SX950 Manual de usuario

JVC

JVC GR-D338AH Manual de usuario

JVC

JVC GR-DVX 2LTD Manual de usuario

JVC

JVC GR-AX670 Manual de usuario

JVC

JVC Everio GZ-VX855AG Manual de operación y mantenimiento

JVC

JVC Everio GZ-RY980 Manual de operación y mantenimiento

JVC

JVC GR-D30UB Manual de usuario

JVC

JVC Everio GZ-MS215 Manual de operación y mantenimiento

JVC

JVC Everio GZ-R318 Manual de usuario

JVC

JVC GZ-HM330SEK Manual de operación y mantenimiento

JVC

JVC GZ-MS100U - Everio 35x Optical/800x Digital Zoom SDHC... Manual de usuario

Manuales populares de Videocámara de otras marcas

Toshiba

Toshiba CAMILEO Z100 Manual de usuario

Panasonic

Panasonic NV-VS40B Manual de usuario

Canon

Canon RC 260 Manual de usuario

Sony

Sony Handycam DCR-DVD7E Manual de usuario

Brinno

Brinno TimeLapse TLC200 Manual de usuario

Panasonic

Panasonic AG-HMC152EN Manual de usuario

Insignia

Insignia NS-DCC5HB09 - Camcorder - 720p Manual de usuario

MYDLINK

MYDLINK DCS-6100LH Manual de usuario

Sony

Sony video Hi8 Handycam CCD-TR555 Manual de usuario

SECURECOM

SECURECOM V-5014B Manual de usuario

Panasonic

Panasonic HDC-SD100 Manual de usuario

Sharper Image

Sharper Image U-VIDEO Manual de usuario

Canon

Canon LEGRIA HV40 Manual de usuario

Sony

Sony Handycam DCR-VX2000 Manual de usuario

RCA

RCA CC616 Manual de usuario

Panasonic

Panasonic NVM40 Manual de usuario

ATIK Cameras

ATIK Cameras Horizon Manual de usuario

Sony

Sony Handycam HDR-CX580V Manual de usuario
