SERVICE MANUAL

2003/04

DIGITAL VIDEO CAMERA

86730200304

GR-D20EK,GR-D20E

,GR-D20E

,GR-D21EK,

GR-D40EK,GR-D40E

,GR-D40E

SPECIFICATION

Camcorder

General

Digital Video Camera

Connectors

AC Adapter

For disassembling and assembling of MECHANISM ASSEMBLY, refer to the SERVICE MANUAL No.86700 (MECHANISM ASSEMBLY).

PAL

Power supply : DC 11.0 V (Using AC Adapter)

DC 7.2 V (Using battery pack)

Power consumption

LCD monitor off, viewfinder on : Approx. 3.4 W

LCD monitor on, viewfinder off: Approx. 4.7 W

Dimensions (W x H x D) : 69 mm x 94 mm x 143 mm

(with the LCD monitor closed and the viewfinder pushed

back in)

Weight : Approx. 525 g

Operating temperature : 0°C to 40°C

Operating humidity : 35% to 80%

Storage temperature : -20°C to 50°C

Pickup : 1/6" CCD

Lens : F 1.6, f = 2.7 mm to 43.2 mm, 16:1 power zoom lens

Filter diameter : Ø37 mm

LCD monitor : 2.5" diagonally measured, LCD panel/TFT active

matrix system

Viewfinder : Electronic viewfinder with 0.24" black/white LCD

Speaker : Monaural

Format : DV format (SD mode)

Signal format : PAL standard

Recording/Playback format : Video: Digital component recording

: Audio: PCM digital recording,

32 kHz 4-channel (12-bit),

48 kHz 2-channel (16-bit)

Cassette : Mini DV cassette

Tape speed : SP : 18.8 mm/s

LP : 12.5 mm/s

Maximum recording time : SP : 80 min.

(using 80 min. cassette) LP : 120 min.

S-Video

Output : Y : 1 V (p-p), 75 Ω, analogue

C : 0.29 V (p-p), 75 Ω, analogue

Input* : Y : 0.8 V (p-p) -1.2 V (p-p), 75 Ω, analogue

C : 0.2 V (p-p) -0.4 V (p-p), 75 Ω, analogue

Video output : 1 V (p-p), 75 Ω, analogue

Video input* : 0.8 V (p-p) -1.2 V (p-p), 75 Ω, analogue

Audio output : 300 mV (rms), 1 kΩ, analogue, stereo

Audio input* : 300 mV (rms), 50 kΩ, analogue, stereo

Output : 4-pin, IEEE 1394 compliant

Input* : 4-pin, IEEE 1394 compliant

USB** :5-pin

EDIT Ø3.5 mm, 2-pole

* GR-D50/D30 only

** GR-D50/D40 only

Power requirement AC 110 V to 240 V ~, 50 Hz/60 Hz

Output : DC 11 V , 1 A

Specifications shown are for SP mode unless otherwise indicated. E & O.E. Design and specifications subject

to change without notice.

GR-D20EK,GR-D20EX,GR-D20EY,GR-D20EZ,GR-D21EK,GR-D40EK,GR-D40EX,GR-D40EY,GR-D40EZ M3D122,M3D124

1-6 (No.86730)

1.Torque driver

Be sure to use to fastening the mechanism and exterior parts

because those parts must strictly be controlled for tightening

torque.

2.Bit

This bit is slightly longer than those set in conventional torque

drivers.

3.Tweezers

To be used for removing and installing parts and wires.

4.Chip IC replacement jig

To be used for replacement of IC.

5.Cleaning cloth

Recommended cleaning cloth to wipe down the video heads,

mechanism (tape transport system), optical lens surface.

2.2 ASSEMBLY AND DISASSEMBLY OF CABINET PARTS

2.2.1 Disassembly flow chart

This flowchart indicates the disassembly step for the cabinet

parts and board assembly in order to gain access to item(s) to be

serviced. When reassembling, perform the step(s) in reverse or-

der.

2.2.2 Disassembly method

NOTE 8a:

Take care not to cut the FPC wire when and after removing the

VF ASSEMBLY.

NOTE 8b:

As for disassembly/assembly of [8]VF ASSEMBLY, see 2.4

ASSEMBLY AND DISASSEMBLY OF [8] VF ASSEMBLY.

NOTE 10a:

Take care not to cut the FPC when and after removing the

MONITOR ASSEMBLY.

NOTE 10b:

As for disassembly/assembly of [10] MONITOR ASSEMBLY,

see 2.5 ASSEMBLY AND DISASSEMBLY OF [10] MONITOR

ASSEMBLY.

NOTE 11a:

Before removing the MONI-BW BOARD ASSEMBLY, check

whether MEMORY CARD is inserted or not. If MEMORY

CARD is inserted, pull out the MEMORY CARD before remov-

ing the MONI-BW BOARD ASSEMBLY.

NOTE 11b:

Since the SPEAKER is soldered to the MONI-BW BOARD AS-

SEMBLY, the SPEAKER should not be separated from the

MONI-BW BOARD ASSEMBLY except when replacing the

SPEAKER.

NOTE 11c:

Take care not to lose the KNOB(SLIDE). When attaching the

KNOB(SLIDE), attach the KNOB(SLIDE) in a proper position.

NOTE 3:

After removing the FRONT COVER ASSEMBLY, OP BLOCK

ASSEMBLY is not covered with anything. Take care not to

damage the OP BLOCK ASSEMBLY when and after removing

the FRONT COVER ASSEMBLY.

[1]

[2]

TOP COVER ASSEMBLY

UPPER ASSEMBLY

(Inc. VF ASSEMBLY,

SPEAKER/MONITOR)

[8] VF ASSEMBLY

[9] COVER(UPPER)

[10] MONITOR ASSEMBLY

[11] MONI-BW BOARD ASSEMBLY

[12] SPEAKER

[3] FRONT COVER ASSEMBLY

(Inc.MIC)

[4]

[5]

[6]

[7]

MIC

COVER(ZOOM)

REAR UNIT

LOWER ASSEMBLY

TOP COVER ASSEMBLY

UPPER ASSEMBLY

(Inc. VF ASSEMBLY,

SPEAKER/MONITOR)

VF ASSEMBLY

COVER(UPPER)

MONITOR ASSEMBLY

MONI-BW BOARD ASSEMBLY

SPEAKER

FRONT COVER ASSEMBLY

(Inc.MIC)

MIC

COVER(ZOOM)

REAR UNIT

LOWER ASSEMBLY

MAIN CN101

MAIN CN103

MONI-BW CN763

MONI-BW CN765

MAIN CN106

MAIN CN104

MAIN CN102

MAIN CN109

MONI-BW CN761

MONI-BW CN762

VF ASSEMBLY -

BL-2.5/3.5 -

MIC -

REAR UNIT -

JACK CN501

ZOOM UNIT -

Fig.C1

Fig.C2-1

Fig.C2-2

Fig.C2-3

Fig.C2-4

Fig.C3

Fig.C4

S1,2(L1)

S2a,2(S2b),3(S2c)

2(S2d),S2e,S2c

L2,CN2a,b

2(S8),L8,CN8a

2(S9),L9

2(S10a),CN10a,2(S10b),L10

2(S11a),2(S11b),4(S11c)

BKT(HINGE),KNOB(SLIDE)

COVER(JACK),S3,L3a,L3b

CN4

S5a,3(S5b),2(L5)

CN6,S6

CN7a,b,S7a,3(S7b)

NOTE 8a

NOTE 8b

NOTE 10a

NOTE 10b

NOTE 11a

NOTE 11b

NOTE 11c

NOTE 3

[1]

[2]

[8]

[9]

/[10]

[11]

/[12]

[3]

[4]

[5]

/[6]

/[7]

CN2a

CN2b

CN8a

CN10a

CN4

CN6

CN7a

CN7b

STEP

No. PART

CONN.

No. Pin No.

CONNECTOR

NOTE

Fig.

No. POINT

Remove the parts marked in .

(No.86730)1-7

Fig.C1 Fig.C2-2

Fig.C2-1

(S1)

[1]

NOTE 8a

NOTE 8b

(S8)

[8]

CN8a

[2]

([8]-[12])

(S2c)

(S2a)

(S2b)

(S2d)

(S2e)

(S2c)

(S2d)

(S2b)

(S2c)

CN2a

CN2b

TOP SIDE

REAR SIDE

BOTTOM SIDE

1-8 (No.86730)

Fig.C2-3 Fig.C3

Fig.C2-4

(S10a)

NOTE 10a

(S10a)

(S9)

0.147N.m(1.5kgf.cm)

L10

[10]

[9]

CN10a

(S10b)

NOTE 10b

L.CASE SIDE

(S3)

CN4

L3a

OP BLOCK ASSEMBLY

NOTE 3

L3b

[4]

[3]([4])

(S4)

(S3)

COVER

(JACK)

(S11a)

(S11b)

(S11a)

(S11b)

[12]

NOTE11b

BKT(HINGE)

[11]

NOTE11c

KNOB(SLIDE)

(S11c)

26(S11c)

NOTE 11a

(No.86730)1-9

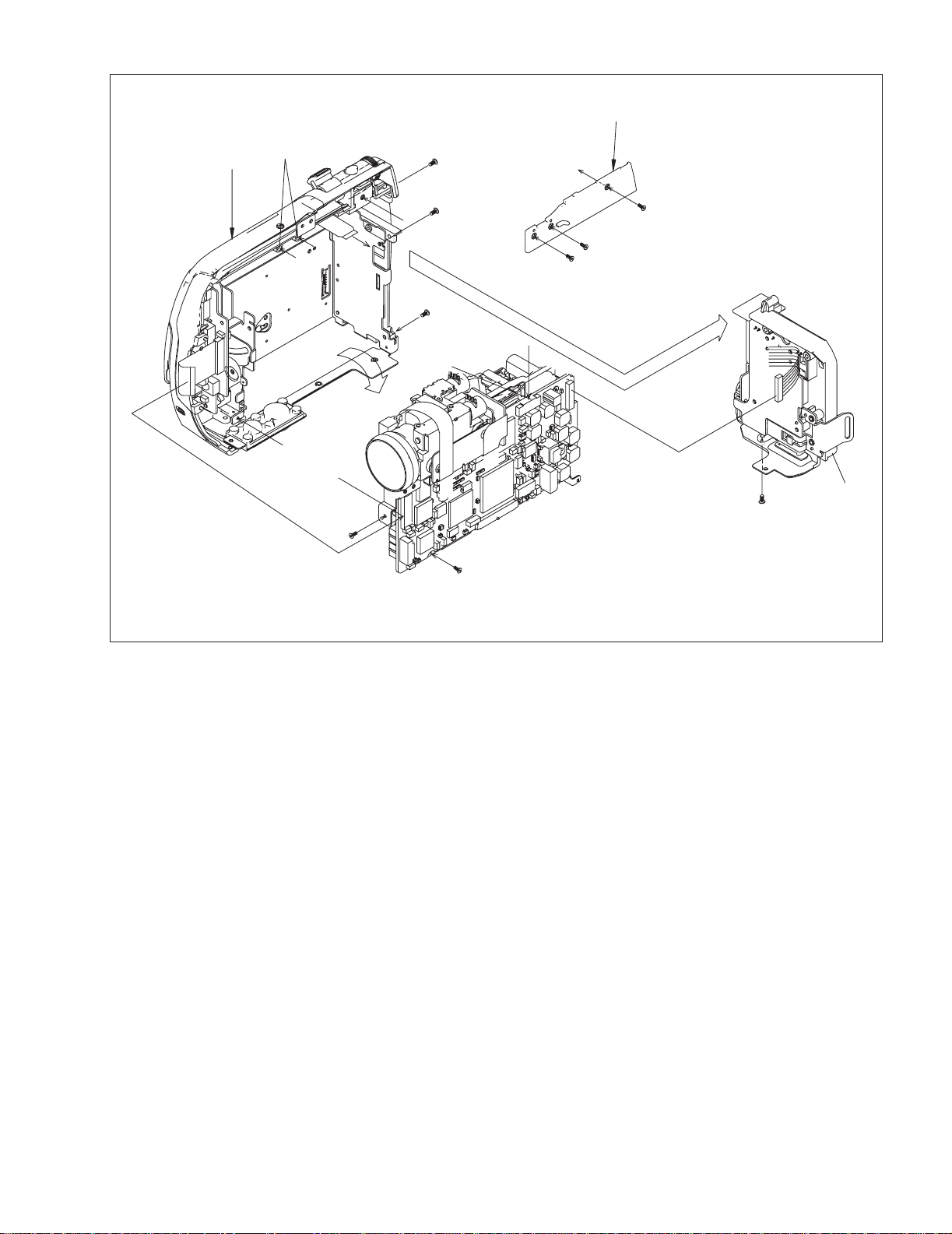

Fig.C4

[6]

(S6)

(S7a)

(S7b)

(S5b)

(S7b)

(S5a)

CN7a

CN7b

CN6

[5]

[7] L5 f

1-10 (No.86730)

2.3 ASSEMBLY AND DISASSEMBLY OF CAMERA SECTION AND BOARD ASSEMBLY

2.3.1 Disassembly flow chart

This flowchart indicates the disassembly step for the cabinet

parts and board assembly in order to gain access to item(s) to be

serviced. When reassembling, perform the step(s) in reverse or-

der.

NOTE:

Please see Service Manual No. 86700 (MECHANISM ASSY).

2.3.2 Disassembly method

NOTE 2:

As for disassembly/assembly of [2] OP BLOCK ASSEMBLY,

see 2.6 ASSEMBLY AND DISASSEMBLY OF [2] OP BLOCK

ASSEMBLY.

Fig.D1

Fig.D2

[1]

[2]

MAIN BOARD ASSEMBLY

[5] CCD BOARD ASSEMBLY

[3]

[4]

PREMDA BOARD ASSEMBLY

MECHANISM ASSEMBLY

OP BLOCK ASSEMBLY

MAIN BOARD ASSEMBLY

OP BLOCK ASSEMBLY

/ CCD BOARD ASSEMBLY

PREMDA BOARD ASSEMBLY

MECHANISM

MAIN CN108

MAIN CN107

MAIN CN111

MAIN CN110

PREMDA CN406

PREMDA CN405

PREMDA CN404

PREMDA CN402

PREMDA CN403

PREMDA CN407

OP BLOCK ASSEMBLY CN501

CCD CN5001

PREMDA CN408

PREMDA CN401

SENSOR -

CAPSTAN MOTOR -

DRUM MOTOR -

HEAD -

LOADING MOTOR -

ROTARY ENCODER -

Fig.D1

Fig.D2

Fig.D3

CN1a,b,2(S1),CN1c,d

S2,L2

2(S3a),L3,SHIELD COVER(PR)

CN3a,b,c,d,e,f,2(S3b)

3(S4),BKT(MECHA)

NOTE 2

[1]

[2]/[5]

[3]

[4]

CN1a

CN1b

CN1c

CN1d

CN3a

CN3b

CN3c

CN3d

CN3e

CN3f

STEP

No. PART

CONN.

No. Pin No.

CONNECTOR

NOTE

Fig.

No. POINT

Remove the parts marked in .

ASSEMBLY

(S1)

CN1c

CN1d

CN1a

CN1b

[1]

(S2)

[2]

([5])

NOTE[2]

(No.86730)1-11

Fig.D3

(S3a)

PREMDA BOARD ASSEMBLY

(S3b)

(S4)

0.069N.m (0.7kgf.cm)

0.078N.m (0.8kgf.cm)

(S4)

(PR)

SHIELD COVER

[4]

BKT(MECHA)

CN3a

CN3b CN3c CN3e

CN3f

CN3d

[3]

(S4)

1-12 (No.86730)

2.4 ASSEMBLY AND DISASSEMBLY OF [8]VF ASSEMBLY

2.4.1 Disassembly of VF ASSEMBLY

(1) Remove the EYE CUP.

(2) Remove the four screws (1 to 4) and then remove the COV-

ER (VF).

(3) Remove the two screws (5 and 6) and then remove the

FPC BOARD from the hook attaching the FPC BOARD.

NOTE 8a:

During the procedure, be careful not to damage the FPC.

When attaching the SW BOARD ASSEMBLY, attach the

SW BOARD ASSEMBLY so that the SW BOARD AS-

SEMBLY comes upwards.

(4) Remove the four screws (7 to 10), and then pull out and re-

move the FPC from the VF HINGE ASSEMBLY.

NOTE 8b:

During the procedure, be careful not to damage the FPC

and the SWITCH.

(5) Remove the five screws (11 to 15).

(6) Remove the UPPER CASE(VF) R.

(7) Remove the UPPER CASE(VF) F and then pull out the

LENS SA and the LCD UNIT ASSEMBLY with the FPC.

NOTE 8c:

In attaching the LCD UNIT ASSEMBLY, put the projec-

tions of the LCD UNIT ASSEMBLY in the slots of the

BOTTOM CASE(VF). Put the STOPPER of the FPC in-

side the BOTTOM CASE(VF). In attaching the UPPER

CASE(VF) F and the UPPER CASE(VF) R, attach the

UPPER CASE(VF) F first and then the UPPER

CASE(VF) R and be careful to keep the FPC inside the

BOTTOM CASE(VF).

2.4.2 Disassembly of the LENS SA

(1) Remove the LEVER(LENS).

(2) Remove the SHEET(LENS).

(3) Remove the LENS ASSEMBLY from the GUIDE

LENS(VF).

NOTE 8d:

Be careful not to lose the SPRING(LENS).

Fig.2-4-2

Fig.2-4-1

SHEET(LENS)

LENS ASSEMBLY

LEVER(LENS)

SPRING(LENS)

NOTE8d:

GUIDE LENS(VF)

LCD UNIT ASSEMBLY

FPC

(L8a)

(S8b)

NOTE8a

FPC

EYE CUP

(S8a)

COVER(VF)

EYE CUP

(S8a)

(S8c)

VF HINGE

ASSEMBLY

(S8c)

FPC

NOTE8b

(S8c)

UPPER CASE(VF)F

UPPER CASE(VF)R

LCD UNIT

L8c

ASSEMBLY

NOTE8c

BOTTOM CASE(VF)

L8b

LENS SA

FPC

(No.86730)1-13

2.5 ASSEMBLY AND DISASSEMBLY OF [10]MONITOR ASSEMBLY (CABINET PARTS)

2.5.1 Disassembly of MONITOR ASSEMBLY (2.5 INCH)

NOTE:

Be careful in removing or handling the monitor assembly, es-

pecially not to soil or scratch the monitor screen during the dis-

assembly procedure.

(1) While removing the four screws (1 to 4) in numerical order

and then disengaging the four hooks (L10a-L10d) in alpha-

betical order, open and remove the MONITOR COVER

ASSEMBLY.

(2) Remove the SENSOR BOARD ASSEMBLY from the

MONITOR CASE.

(3) Disconnect the FPC in the connectors CN10a and CN10b

in this order, and then remove the MONI.HINGE ASSEM-

BLY.

(4) Disconnect the FPC of the LCD MODULE from the connec-

tor CN10c.

(5) Remove one screw (5) and then remove the BL BOARD

ASSEMBLY together with the BACK LIGHT ASSEMBLY.

NOTE 10a:

It depends on the inch size of the monitor assembly

whether the backlight is supplied as an assembly or as

separated parts.

In replacing the backlight assembly, see the Parts List.

NOTE 10b:

Since the BACK LIGHT ASSEMBLY is soldered to the

BL BOARD ASSEMBLY, the BACK LIGHT should not be

separated from the BL BOARD ASSEMBLY except

when replacing them.

(6) Remove the DIFF.SHEET.

(7) Remove the LCD FRAME together with the LCD MODULE.

(8) Remove the SHIELD CASE.

Fig.2-5-1

DIFF. SHEET

NOTE10a

BACK LIGHT

NOTE10b

BL-2.5 BOARD

ASSEMBLY

MONITOR

CASE

L10g

SHIELD CASE

L10f

(S10a)

L10b

CN10b

SD10b

SD10a

L10e

CN10a

CN10c

L10a

L10d

L10c

MONITOR COVER

ASSEMBLY

(S10b)

(S10a)

LCD FRAME

LCD MODULE

MONI.HINGE

ASSEMBLY

SENSOR BOARD

ASSEMBLY

:0.069N.m (0.7kgf.cm)

:0.098N.m (1.0kgf.cm)

1-14 (No.86730)

2.6 ASSEMBLY AND DISASSEMBLY OF [2]OP BLOCK ASSEMBLY

/ CCD BOARD ASSEMBLY (CAMERA SECTION AND BOARD ASSEMBLY)

2.6.1 Precautions

(1) Take care in handling the CCD IMAGE SENSOR, OP LPF

and lens components when performing maintenance etc.,

especially with regard to surface contamination, attached

dust or scratching. If fingerprints are present on the surface

they should be wiped away using either a silicon paper,

clean chamois or the cleaning cloth.

(2) The CCD IMAGE SENSOR may have been shipped with a

protective sheet attached to the transmitting glass. When

replacing the CCD IMAGE SENSOR, do not peel off this

sheet from the new part until immediately before it is

mounted in the OP BLOCK ASSEMBLY.

(3) The orientation of the OP LPF is an important factor for

installation. If there is some marking on the OP LPF, be

sure to note it down before removing and to reassemble it

very carefully as it was referring to the marking.

2.6.2 Disassembly of CCD BOARD ASSEMBLY and CCD

BASE ASSEMBLY

(1) Unsolder the CCD BOARD ASSEMBLY by the 14 points

(SD2) and then remove it.

(2) Remove the two screws (1, 2) and remove the CCD BASE

ASSEMBLY.

(3) Remove the SPACER.

(4) Remove the SHEET.

(5) Remove the OP LPF.

2.6.3 Assembly of CCD BASE ASSEMBLY and CCD

BOARD ASSEMBLY

(1) Set the OP LPF to the OP BLOCK ASSEMBLY so that the

OP side touches the OP BLOCK ASSEMBLY.

NOTE 2a:

Pay careful attention to the orientation of the OP LPF.

(2) Set the SHEET to the OP LPF not to come off the right

position.

(3) Attach the SPACER to the OP BLOCK ASSEMBLY.

(4) Fasten them together with the two screws (1, 2).

(5) Set the CCD BOARD ASSEMBLY in the CCD BASE

ASSEMBLY, and then solder it by the 14 points (SD2).

2.6.4 Replacement of service repair parts

The service repair parts for the OP BLOCK ASSEMBLY are as

listed below.

Before replacement of these parts, remove the BRACKET (OP

BLOCK ASSEMBLY) as required.

Take special care not to disconnect any of the FPC wires or

cause any damage due to soldering (excessive heating).

(1) FOCUS MOTOR

(2) ZOOM MOTOR

(3) IRIS MOTOR UNIT

NOTE 2b:

When replacing the FOCUS MOTOR or the ZOOM MOTOR,

solder the FPC at a space of about 1 mm above the terminal

pin.

NOTE 2c:

The IRIS MOTOR UNIT includes the FPC ASSEMBLY and

two sensors.

Fig.2-6-1

(S2a)

(SD2)

side

CCD

side

Blue

OP LPF

OP BLOCK

ZOOM MOTOR

SHEET

OP LPF

SPACER

CCD BASE ASSEMBLY

CCD BAORD

ASSEMBLY

SENSOR

IRIS MOTOR UNIT

FOCUS MOTOR

0.078N.m (0.8kgf.cm)

0.118N.m (1.2kgf.cm)

(S2b)

(S2c)

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Videocámara de JVC

JVC

JVC GR-D90 Manual de usuario

JVC

JVC GZMG40US - Everio Camcorder - 1.33 MP Guía del administrador

JVC

JVC Everio GZ-MG750BEK Manual de operación y mantenimiento

JVC

JVC GR-D850 Manual de usuario

JVC

JVC GR-DV4000E Manual del propietario

JVC

JVC GR-D91 Manual de usuario

JVC

JVC 0797TOV*UN*VP Manual de usuario

JVC

JVC GR-DF540 Manual de usuario

JVC

JVC GZ-MG27U - Everio Camcorder - 680 KP Manual de usuario

JVC

JVC GR-D350EW Manual de usuario

JVC

JVC Everio GZ-MG750B Instrucciones de uso

JVC

JVC GR-SZ5000 Manual de usuario

JVC

JVC GY-HM790CHU Manual de usuario

JVC

JVC Connected Cam GY-HC550U Manual de usuario

JVC

JVC GZ-EX210BUA Manual de usuario

JVC

JVC Everio GZ-HD520AS Manual de operación y mantenimiento

JVC

JVC GZX900US - Everio Camcorder - 1080i Instrucciones de uso

JVC

JVC GR-SXM330 Manual de usuario

JVC

JVC GR-D371U Manual de usuario

JVC

JVC YU30052-513-2 Manual de usuario

JVC

JVC GR-FXM42EK Manual de usuario

JVC

JVC GR-DX107 Manual de usuario

JVC

JVC GR-D71 Manual de usuario

JVC

JVC GR-DV3 Manual de usuario

Manuales populares de Videocámara de otras marcas

Toshiba

Toshiba CAMILEO Z100 Manual de usuario

Panasonic

Panasonic NV-VS40B Manual de usuario

Canon

Canon RC 260 Manual de usuario

Sony

Sony Handycam DCR-DVD7E Manual de usuario

Brinno

Brinno TimeLapse TLC200 Manual de usuario

Panasonic

Panasonic AG-HMC152EN Manual de usuario

Insignia

Insignia NS-DCC5HB09 - Camcorder - 720p Manual de usuario

MYDLINK

MYDLINK DCS-6100LH Manual de usuario

Sony

Sony video Hi8 Handycam CCD-TR555 Manual de usuario

SECURECOM

SECURECOM V-5014B Manual de usuario

Panasonic

Panasonic HDC-SD100 Manual de usuario

Sharper Image

Sharper Image U-VIDEO Manual de usuario

Canon

Canon LEGRIA HV40 Manual de usuario

Sony

Sony Handycam DCR-VX2000 Manual de usuario

RCA

RCA CC616 Manual de usuario

Panasonic

Panasonic NVM40 Manual de usuario

ATIK Cameras

ATIK Cameras Horizon Manual de usuario

Sony

Sony Handycam HDR-CX580V Manual de usuario
