Juralco Bannette Awning System
JURALCO BANNETTE
AWNING SYSTEM
ISSUE 4-23 v1
Page 2
Issue 4-23 v1
www.juralco.co.nz ph (09) 478 8018
Juralco Bannette Awning System
Juralco Bannette Awning System
Juralco Aluminium Building Products Ltd designs and distributes specialist aluminium
joinery systems through a national network of franchised fabricators and agents.
For more than 25 years we have been at the forefront of specialist aluminium door and
window products suitable for New Zealand joinery and building methods. Our
comprehensive product range includes security and insect screens, balustrades and gates,
shutters and awnings, shower screens, wardrobe doors and organisers and internal doors.
The Juralco Bannette Awning is a compact, ready-to-install, system designed for outside
use anywhere protection is needed from sun or rain. All of the components are made of
aluminium alloy or powder coated/galvanised steel forming a highly-resistant, lightweight,
rust-proof construction. The awning is designed to adapt to all types of openings regardless
of the dimensions. Installation is straightforward. Bannette awnings operation is either
manual or by a tubular electric motor, fitted with remote control. A wide range of attractive
mildew and UV resistant 100% acrylic fabrics are available, all with a 5 year guarantee.
Bannette Drop Arm Shade Awning
All pages © Copyright Juralco Aluminium Building Products Ltd, 2023
New from Jan 2023. Important instructions for Powder Coatings near Salt Water
The new standard Dulux powder coating systems used by Juralco are:
® ®
- Duralloy (to be phased out) for structures greater than 100m from high tide and up to 3 stories high. Duralloy has a 10 yr warranty.
® ® ®
- Duralloy Plus (full Duralloy colour range) for structures greater than 10m from high tide and up to 3 stories high. Duralloy Plus has a 15 yr warranty.
® ®
- Duratec for prestigious residential and commercial developments over 10m from high tide and over 3 stories high. Duratec has a 25yr warranty.
For all other applications contact Juralco for alternative systems.
® ® ®
Note - Powder coated prices listed in Juralco price books are for Duralloy or Duralloy Plus systems. If the Duratec system is required it
®
must be specified upon placement of the order and will incur a surcharge – Duratec prices on application.
lmportant instructions for Powder Coating - Attachment to structures
PVC Tape or similar material spacer must be used to separate powder coated aluminium items from all concrete and steel structures.
Failure to do so can lead to the chemicals in the structure affecting the powder coating layer on the aluminium, leading to corrosion.
Powder Coating Warranty
The Dulux powder coating warranty period is conditional upon the surface being maintained in accordance with the Dulux ‘Care and Maintenance
Instructions’. Contact your installer for a copy, download from Dulux or refer to the back page of this manual.
.
Page 3
Issue 4-23 v1
www.juralco.co.nz ph (09) 478 8018
Juralco Bannette Awning System
Juralco Bannette Awning System - General and Index
General Description - Pages 3 - 7
- There are two Juralco Bannette Awning systems - A Drop Arm shade awning and a vertical Drop Down curtain system.
- The Drop Arm system is available as a single unit up to 5mt wide.
- The Drop Down system is available as a single unit up to 4mt wide, and comes in three types.
- The basic Clear Drop system, no side guides. The horizontal drop bar is secured to the floor.
- The Clear Drop Zipped system, has side guides and side zippers. The sides and top are permanently installed into a face or reveal
mounted extrusion. The Clear Panel can be unzipped at each side and manually rolled up.
Retained with clear plastic straps. No floor clips needed. Draught proof.
- Typical applications include Decks, Bars, Shops, Terraces, or anywhere needing protection from the sun, wind or unexpected rain showers.
- Standard finishes - Aluminium Extrusions - Natural anodised. Cast aluminium items Bright Polished.
Bannette Drop Arm Shade Awning - Pages 8 - 11
The awning is supplied pre assembled with all necessary brackets, awning roll and two arm units.
- Axle Assembly - Roller tube axle. Mounting brackets and axle holders.
- Awning fabric - Many styles available, all mildew, UV resistant and Scotchguard treated.
- Arms - Supplied with spring loaded arms to more evenly tension the fabric cover, and control movement in windy conditions.
Four arm lengths from 750mm to 1500mm, mounting bracket attached.
- Drive - Manual - A gearbox fitted to the end of the roller tub assists the operator to raise/lower the curtain.
- Drive - Motorised - An inline tubular motor raises or lowers the awning automatically. Switch or remote wireless controls available.
- Wind - As for all Awnings, care must be taken when installing in Wind prone areas. A Volo wind sensor is strongly recommended.
Bannette Clear Drop Down Awning - Pages 12 - 14
- The awning is supplied pre assembled with all necessary brackets, awning roll and tie downs.
- Axle Assembly - Roller tube axle. Mounting brackets and axle holders.
- Awning fabric - Clear plastic, or Fabric with sewn border in a selection of colours or a standard awning material.
- Tie Downs - A variety of clips are available.
- Drive - Manual - A gearbox fitted to the end of the roller tube assists the operator to raise/lower the curtain.
The Banette Clear Drop Down Zipped Awning - Pages 15 - 16
- The awning is supplied complete with all necessary extrusion, awning roll and tie ups.
- Awning fabric - Clear plastic, or Fabric with sewn border in a selection of colours.
- Track Extrusion - A selection of, Natural anodized only, Black or White.
- Tie Ups - Clear Plastic straps and mounted clips. A variety of clips are available.
Building Consent Guide - Page 17
Bannette Drop Arm Shade Awning
Gearbox or Motor
Bannette Clear Drop Shade Awning
Gearbox only
Bannette Clear Drop Zipped Shade Awning
Manual only
Page 4
Issue 4-23 v1
www.juralco.co.nz ph (09) 478 8018
Juralco Bannette Awning System
Juralco Bannette Awning System - General Descriptions
Bannette Drop Arm Awning
General
The Juralco Bannette Drop Arm awning consists of :
Mounting /Roller Tube Brackets, made of cast aluminium suitable
for face or ceiling installation. Supports the ends of the Roller Tube.
Operation by means of a gearbox/handle, R1/7 and R1/13
gearbox, or tubular motor (with or without manual override).
Roller tube, 2mm wall aluminium extrusion 80mm dia,with a groove
to fix the awning fabric. One end equipped with the operating system
and the other mounted with a circular shaft.
Arms, made of extruded aluminium profile connected to an
aluminium pivot bracket. A tension spring integrated into the bracket
guarantees a perfect tension of the fabrics in all positions.
Arm dimensions 1500 mm only
Front profile, from extruded aluminium, 45mm sq cross section to
which are connected the arms, the fabrics cover and a valance.
Awning Fabric - Dickson or Planosol fabric ranges.
A selection of many fabrics in various colourways.
Awning fabrics will withstand wind, rain and pollution.
The fabrics are colour durable and resistant to most common
chemicals, mildew, and UV degradation; all have a minimum
five-year guarantee.
Finishes, Cast aluminium parts - bright Polished. Aluminium
extrusions - natural anodised.
OPTIONS.
Controls for the tubular motor; switch or wireless controls can be
mounted alongside or at a remote location. Also available are remote
wind actuated controls.
Mounting/Roller Tube Brackets
For Face or Ceiling Fix
Manual Gearbox
or Motorised
Roll Tube and
Awning Roll
Front Profile
Arms and
Arm bracket
Refer page 7 for Fabric information
Note: It is recommended that eyelets are fitted to the front edge of the fabric, to promote draining.
Bannette Drop Arm
Overall Width, max 5.9mt
Page 5
Issue 4-23 v1
www.juralco.co.nz ph (09) 478 8018
Juralco Bannette Awning System
Eye Strap
and Spring Clip

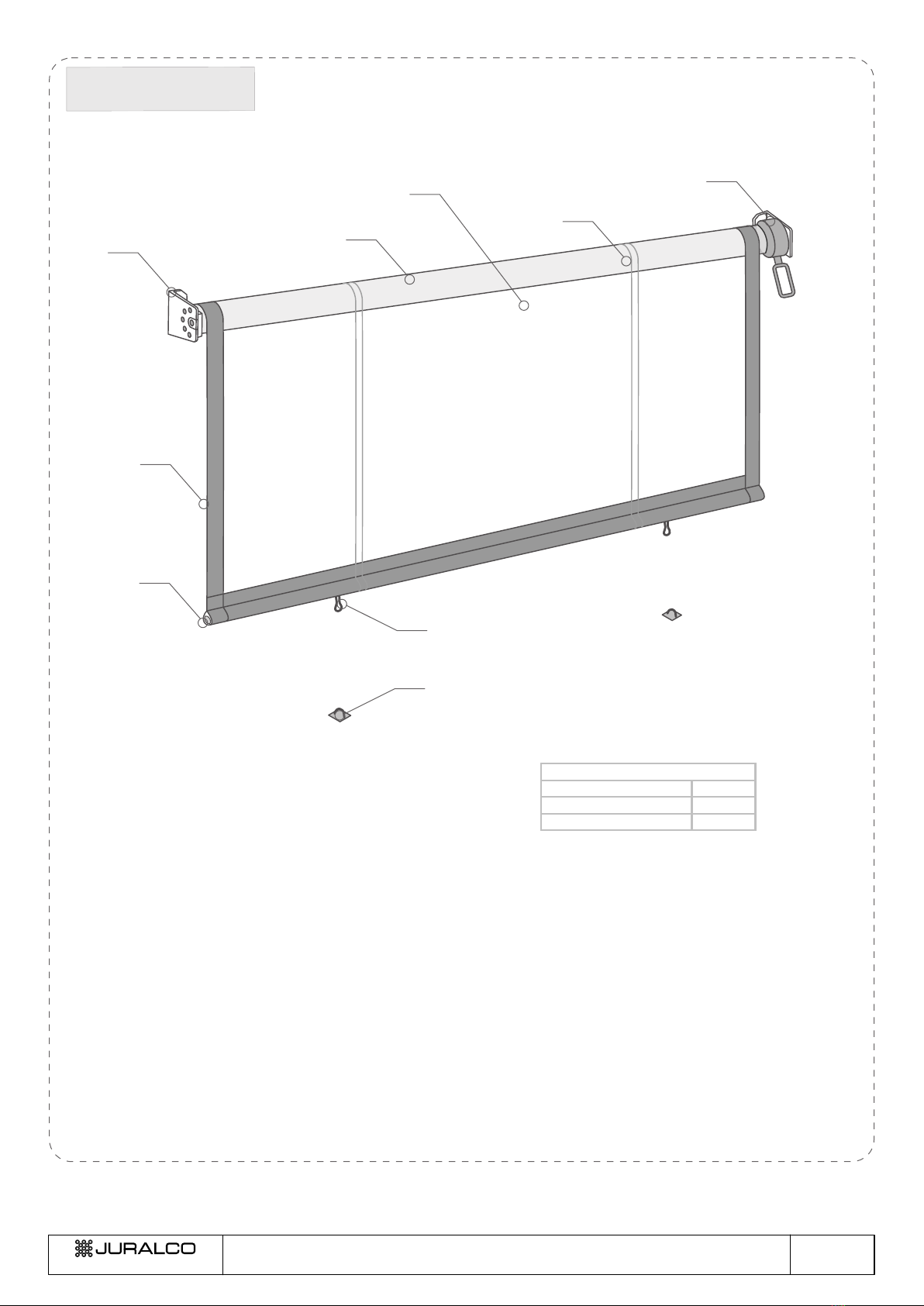

Bannette Drop Down Awning
General
The Juralco Bannette Clear Drop awning consists of :
Mounting /Roller Tube Brackets, made of cast aluminium suitable
for face or soffit installation. Supports the ends of the Roller Tube.
Operation by means of a R1:7 gearbox/handle,only
Roller tube, 2mm wall aluminium extrusion 80mmdia,with a groove
to fix the awning fabric. One end equipped with the operating system
and the other mounted with a circular shaft.
Front profile, from extruded aluminium, 32mm dia to which are
connected the drop tube clips.
Awning, either a clear plastic panel, complete with sewn in coloured
border, or a standard awning material.
Awning Fabric - Dickson, Planosol or Solarview fabric ranges.
A selection of many fabrics in various colourways.
Awning fabrics will withstand wind, rain and pollution.
The fabrics are colour durable and resistant to most common
chemicals, mildew, and UV degradation; all have a minimum
five-year guarantee.
Finishes, Cast aluminium parts - powder coated Grey. Aluminium
extrusions - natural anodised.
PVC Joints, Max PVC width 1350mm. Wider curtains will have
welded vertical PVC joins. Joins may only be vertical - horizontal joins
void PVC manufacturers warranty.
Mounting/Roller Tube Brackets
Manual
Gearbox
Roll Tube and
Awning Roll
Awning material
Border
Drop Tube
Juralco Bannette Awning System - General Descriptions
Eye Pad or Flush Clip
Welded PVC
joints
No side guides, as shown below.
Overall Width, max 4mt
Overall Drop, max 3mt
Sq meterage, max 10sq mt
Bannette Clear Drop
Refer page 7 for Fabric information
Page 6
Issue 4-23 v1
www.juralco.co.nz ph (09) 478 8018
Juralco Bannette Awning System
Juralco Bannette Awning System - General Descriptions
Bannette Clear Drop Down
Zipped Awning - General
The Juralco Bannette Clear Drop Zipped awning consists of :
Clear Drop Zipped Extrusion, JDA 11079 made of aluminium
suitable for face or soffit installation. Installed on 3 x sides.
Awning has ropes sown in the Top and both sides. These are
permanently attached to the extrusion.
Awning, either a clear plastic panel, complete with sown in coloured
border, or a standard awning material.
Awning Fabric - Clear PVC only
Finishes, Cast aluminium parts - powder coated Grey. Aluminium
extrusions - natural anodised.
PVC Joints, Max PVC width 1350mm. Wider curtains will have
welded vertical PVC joins. Joins may only be vertical - horizontal joins
void PVC manufacturers warranty.
Side guides and zipper, as shown below
Manual lift/drop only.
Plastic Tie ups are used to hold curtain roll in the raised position
Overall Width, max 4mt
Overall Drop, max 3mt
Sq meterage, max 10sq mt
Bannette Clear Drop
Side Zipper
Welded PVC
joints
Awning material
Clear PVC
Clear Drop Zipped
Extrusion
Clear Drop Zipped
Extrusion
Clear Drop
Zipped
Extrusion
Side Zipper
Refer page 7 for Fabric information
(Bolt track)
(Bolt track)
Page 7
Issue 4-23 v1
www.juralco.co.nz ph (09) 478 8018
Juralco Bannette Awning System
Juralco Bannette Awning System - Fabric Descriptions
Fabric Range
Clear PVC Film
- A Thick hard wearing transparent PVC film. Principal use; for Clear Drop and Clear Drop Zipped
Can be joined (vertical joints only) to 4mt wide max.
- Sewn on 50mm borders, Black or White
Clear Drop Material
Thickness
Spec
Polished, Flexible, Clear PVC Film x 1350mm wide
0.75mm
No Cadmium formulation. Incorporates UV Inhibitor
Planosol Awning Fabric
Planosol is manufactured from 100% acrylic fibre and will retain a light fastness rating of 6-8 on a 1-8 scale.
Planosol is very tightly woven, with minimal light transmission, resulting in excellent UV protection. It has Ultraviolet Protection
factor of 50+, maximum value granted for percentage of protection against UV ray and SPF 100. Planosol fabric will remain rot
resistant for 5 years under normal exposure conditions.
Dickson Orchestra Awning & Outdoor Canvas
The outdoor fabric of choice when it comes to solar protection, offering long- term protection against UV rays, heat, glare and
inclement weather. Its solution-dyed Sunacryl acrylic fibres and special Cleangard treatment give it exceptional long-term colour
fastness and superior resistance to tearing, water damage and dirt.
Sunacryl, 100% solution-dyed acrylic: the colour is locked right into the very core of the fibres during manufacture (in contrast to
the traditional yarn-dying process whereby colours are applied to the finished yarn and remain on the surface). Dyed all the way
through, this type of yarn ensures exceptionally long-lasting, ultra vivid colours.
0
Page 8
Issue 4-23 v1
www.juralco.co.nz ph (09) 478 8018
Juralco Bannette Awning System
Juralco Bannette Awning Systems - Drop Arm Awning Extrusions, Components
45
FRONT BAR
JDA/110 71/4/NAT
JDA/110 71/5.82/NAT
45
80 dia
JBA/403 0385 - 1500mm
Available, also cut down as
750mm, 1000mm and 1250mm arms
Gearbox Handle Bannette Drop Arms,
Sprung Loaded
Set = Pair, 1 x RH, 1 x LH
Front Profile Arm Bracket
fits into extrusion
Shade Awning Extrusions
Gearbox Handle
Clip, Pt No
JDA/402 6500
JDA/403 0431 - 1200mm
JDA 592 4/403 0 - 1 00mm
/403 0593 - 1600mmJDA
/403 0595 - 2000mmJDA
ROLLER TUBE, 78/80mm dia
JDA/110 74/4
JDA/110 74/5.82
Page 9
Issue 4-23 v1
www.juralco.co.nz ph (09) 478 8018
Juralco Bannette Awning System
Juralco Bannette Awning System - Drop Arm Awning Components
Roller Tube Support
JBA/403 1542
Gearbox, 1/7 reduction
JDA/403 6607
Front Profile with
Spring
JBA/403 0491
80mm dia,13mmsq shaft
Roller Tube End Cap
JDA/403 1325
Front Profile
End Cap, Pt No
JDA/314 05/PC
80mm dia,12mm dia shaft
Roller Tube End Cap
JDA/403 1326
16.5
82
37
66
75
100
Mount Holes
9mm dia
Drop Arm Measuring
Awning on site Check List:
1 - Check the desired width and installation area,
making sure there are no obstructions.
2 - Check that the Mounting brackets have secure
fixing points.
3 - Check the desired coverage making sure there
are no obstructions.
4 - Check the stowed position.
5 - Check the desired awning material.
6 - Check the desired method of operation.
Manual, 1:7 gearbox.
Motor, choice of switch or wireless controls.
Motor, optional extra sensor for wind.
7 - Check width, max overall = 5mt
Bracket
Spacing
1500mm
max
Projection
1500mm max
Arm Length
Extended
Stowed
1 - Carefully unpack and check for damage. Note - BE VERY CAREFUL THE AWNING IS NOT ACCIDENTLY CUT during unpacking.
2 - Check the awning, making sure it has been made to site measurements.
3 - Mark out Roller Tube Mounting Bracket positions on Wall/Ceiling. Install. Note - Brackets must be firmly mounted into the building structure.
4 - Mark Arm Bracket positions on wall. Must be compatible with stowing position and vertically below the Roller brackets above. Install.
5 - Insert the Awning/Roller tube 13mm dia axle into the bearing. Attach the Gearbox or Motor to the other bracket.
6 - Set limits on motor if used. Follow manufacturers instructions.
7 - Insert and tighten all screws.
8 - Test the awning opens and closes easily.
9 - Always clean off all fingermarks, leave the site clean and tidy.
Drop Arm
Awning Installation
Note: Prior to delivering to site, unpack and check all items
Juralco Bannette Awning System - Drop Arm Awning Measuring, Installation
Standard angles
90 and 120 deg
Page 10
Issue 4-23 v1
www.juralco.co.nz ph (09) 478 8018
Juralco Bannette Awning System
Tubular Motors
JNICE ERA M 3017 and 5012
Tubular Motors 45mm dia
Mechanical Limit switches
Motor 3017 - 30Nm, 17rpm
Motor 5012 - 50Nm, 12rpm
Nice
Tubular Motors
JNICE ERA PLUS 3017 and 5012
Tubular Motors 45mm dia
Push button Limit switches
Built in Receiver
Motor 3017 - 30Nm, 17rpm
Motor 5012 - 50Nm, 12rpm
Nice
For 45mm dia Motors
Compact aluminium
support. 2 x holes M6 at
48 and 60mm CL
Juralco Bannette Awning System - In Line Motors and Controls
Drive Wheel and Crown
JNICE/45ROUND78
JNICE/WIND/S
Volo Wind Sensor
Wind Sensor threshold has
3 wind speed settings
15, 30, 45 Kph
Motor Remote
Control Sensors
JNICE/NEMOVIBE
Vibration Sensor
NEMO VIBE does not require any additional
connections because it is battery powered.
It screw attaches to the front of the awning.
During windy conditions, a signal (adjustable)
is sent via radio sensor to the motor mounted
in the awning, which then retracts the awning.
WAX
Table top or
Wall mount transmitter with magnetic
attachment to WWW Wall bracket
Standard Housings for Wireless Modules (above)
WWW Wall bracket for magnetic
attachment to WAX transmitter
Manual
Switch Controls Wall Controls
3 position Rotary Wall Switch
Up - Off - Close
Cover Plate - Part No SSW 770 CPSM
Switch - Part No SSW 770 RSB
Wireless Modules
Modules are available in the following
configurations for Open, Stop, Close
operations, either in single or
multi group mode.
WM001G - 1 x Single or Multigroup
WM002G - 2 x Single or Multigroup
WM003G - 3 x Groups in Single or Multigroup
WM006G - 6 x Groups in Single or Multigroup
Wireless
Remote Controls
Motor Mount Brackets
JNICE/BRKT/ERAM
Otros manuales de Accesorios de Juralco
