JUNO JH094C7 Manual de usuario
JH094C7
User Manual
Oven
Benutzerin‐
formation
Backofen
CONTENTS
Safety information 2
Safety instructions 3
Product description 6
Before first use 6
Daily use 7
Clock functions 10
Using the accessories 10
Additional functions 11
Hints and tips 11
Care and cleaning 21
Troubleshooting 24
Installation 26
Energy efficiency 27
Subject to change without notice.
SAFETY INFORMATION
Before the installation and use of the appliance, carefully read
the supplied instructions. The manufacturer is not responsible
for any injuries or damages that are the result of incorrect
installation or usage. Always keep the instructions in a safe
and accessible location for future reference.
Children and vulnerable people safety
•This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
the use of the appliance in a safe way and understand the
hazards involved.
•Do not let children play with the appliance.
•Keep all packaging away from children and dispose of it
appropriately.
•Keep children and pets away from the appliance when it
operates or when it cools down. Accessible parts are hot.
•If the appliance has a child safety device, this should be
activated.
•Children shall not carry out cleaning and user maintenance
of the appliance without supervision.
•Children aged 3 years and under must be kept away from
this appliance when it is in operation at all times.
2
General Safety
•Only a qualified person must install this appliance and
replace the cable.
•The control panel must be connected to specified heating
unit with matching colours of connectors, to avoid possible
hazard.
•WARNING: The appliance and its accessible parts become
hot during use. Care should be taken to avoid touching
heating elements. Children less than 8 years of age shall be
kept away unless continuously supervised.
•Always use oven gloves to remove or put in accessories or
ovenware.
•Before maintenance cut the power supply.
•Ensure that the appliance is switched off before replacing
the lamp to avoid the possibility of electric shock.
•Do not use a steam cleaner to clean the appliance.
•Do not use harsh abrasive cleaners or sharp metal scrapers
to clean the glass door since they can scratch the surface,
which may result in shattering of the glass.
•If the mains power supply cable is damaged, it must be
replaced by the manufacturer, its Authorised Service Centre
or similarly qualified persons to avoid an electrical hazard.
•To remove the shelf supports first pull the front of the shelf
support and then the rear end away from the side walls.
Install the shelf supports in the opposite sequence.
•The means for disconnection must be incorporated in the
fixed wiring in accordance with the wiring rules.
SAFETY INSTRUCTIONS
Installation
WARNING! Only a qualified
person must install this
appliance.
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Follow the installation instruction
supplied with the appliance.
• Always take care when moving the
appliance as it is heavy. Always use
safety gloves and enclosed footwear.
• Do not pull the appliance by the handle.
• The kitchen cabinet and the recess must
have suitable dimensions.
• Keep the minimum distance from the
other appliances and units.
• Make sure that the appliance is installed
below and adjacent safe structures.
3
• Parts of the appliance carry current.
Close the appliance with furniture to
prevent touching the dangerous parts.
• The sides of the appliance must stay
adjacent to appliances or to units with
the same height.
• The appliance is equipped with an
electric cooling system. It must be
operated with the electric power supply.
Electrical connection
WARNING! Risk of fire and
electrical shock.
• All electrical connections should be
made by a qualified electrician.
• The appliance must be earthed.
• Make sure that the electrical information
on the rating plate agrees with the
power supply. If not, contact an
electrician.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to the
mains plug and to the mains cable.
Should the mains cable need to be
replaced, this must be carried out by our
Authorised Service Centre.
• Do not let mains cables touch or come
near the appliance door, especially when
the door is hot.
• The shock protection of live and
insulated parts must be fastened in such
a way that it cannot be removed without
tools.
• Connect the mains plug to the mains
socket only at the end of the installation.
Make sure that there is access to the
mains plug after the installation.
• If the mains socket is loose, do not
connect the mains plug.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
• Use only correct isolation devices: line
protecting cut-outs, fuses (screw type
fuses removed from the holder), earth
leakage trips and contactors.
• The electrical installation must have an
isolation device which lets you
disconnect the appliance from the mains
at all poles. The isolation device must
have a contact opening width of
minimum 3 mm.
• This appliance complies with the E.E.C.
Directives.
Use
WARNING! Risk of injury, burns
and electrical shock or
explosion.
• This appliance is for household use only.
• Do not change the specification of this
appliance.
• Make sure that the ventilation openings
are not blocked.
• Do not let the appliance stay unattended
during operation.
• Deactivate the appliance after each use.
• Be careful when you open the appliance
door while the appliance is in operation.
Hot air can release.
• Do not operate the appliance with wet
hands or when it has contact with water.
• Do not apply pressure on the open door.
• Do not use the appliance as a work
surface or as a storage surface.
• Open the appliance door carefully. The
use of ingredients with alcohol can
cause a mixture of alcohol and air.
• Do not let sparks or open flames to
come in contact with the appliance
when you open the door.
• Do not put flammable products or items
that are wet with flammable products in,
near or on the appliance.
• Do not use microwave function to
preheat the oven.
WARNING! Risk of damage to
the appliance.
• To prevent damage or discoloration to
the enamel:
– do not put ovenware or other
objects in the appliance directly on
the bottom.
– do not put aluminium foil directly on
the bottom of the appliance.
4
– do not put water directly into the hot
appliance.
– do not keep moist dishes and food
in the appliance after you finish the
cooking.
– be careful when you remove or
install the accessories.
• Discoloration of the enamel has no effect
on the performance of the appliance.
• Use a deep pan for moist cakes. Fruit
juices cause stains that can be
permanent.
• This appliance is for cooking purposes
only. It must not be used for other
purposes, for example room heating.
• Always cook with the oven door closed.
Care and cleaning
WARNING! Risk of injury, fire,
or damage to the appliance.
• Before maintenance, deactivate the
appliance and disconnect the mains
plug from the mains socket.
• Make sure the appliance is cold. There is
the risk that the glass panels can break.
• Replace immediately the door glass
panels when they are damaged. Contact
the Authorised Service Centre.
• Be careful when you remove the door
from the appliance. The door is heavy!
• Clean regularly the appliance to prevent
the deterioration of the surface material.
• Clean the appliance with a moist soft
cloth. Only use neutral detergents. Do
not use any abrasive products, abrasive
cleaning pads, solvents or metal objects.
• If you use an oven spray, obey the safety
instructions on the packaging.
• Do not clean the catalytic enamel (if
applicable) with any kind of detergent.
Internal light
• The type of light bulb or halogen lamp
used for this appliance is only for
household appliances. Do not use it for
house lighting.
WARNING! Risk of electrical
shock.
• Before replacing the lamp, disconnect
the appliance from the power supply.
• Only use lamps with the same
specifications.
Disposal
WARNING! Risk of injury or
suffocation.
• Disconnect the appliance from the mains
supply.
• Cut off the mains electrical cable close
to the appliance and dispose of it.
• Remove the door catch to prevent
children or pets from becoming trapped
in the appliance.
Service
• To repair the appliance contact an
Authorised Service Centre.
• Use original spare parts only.
5

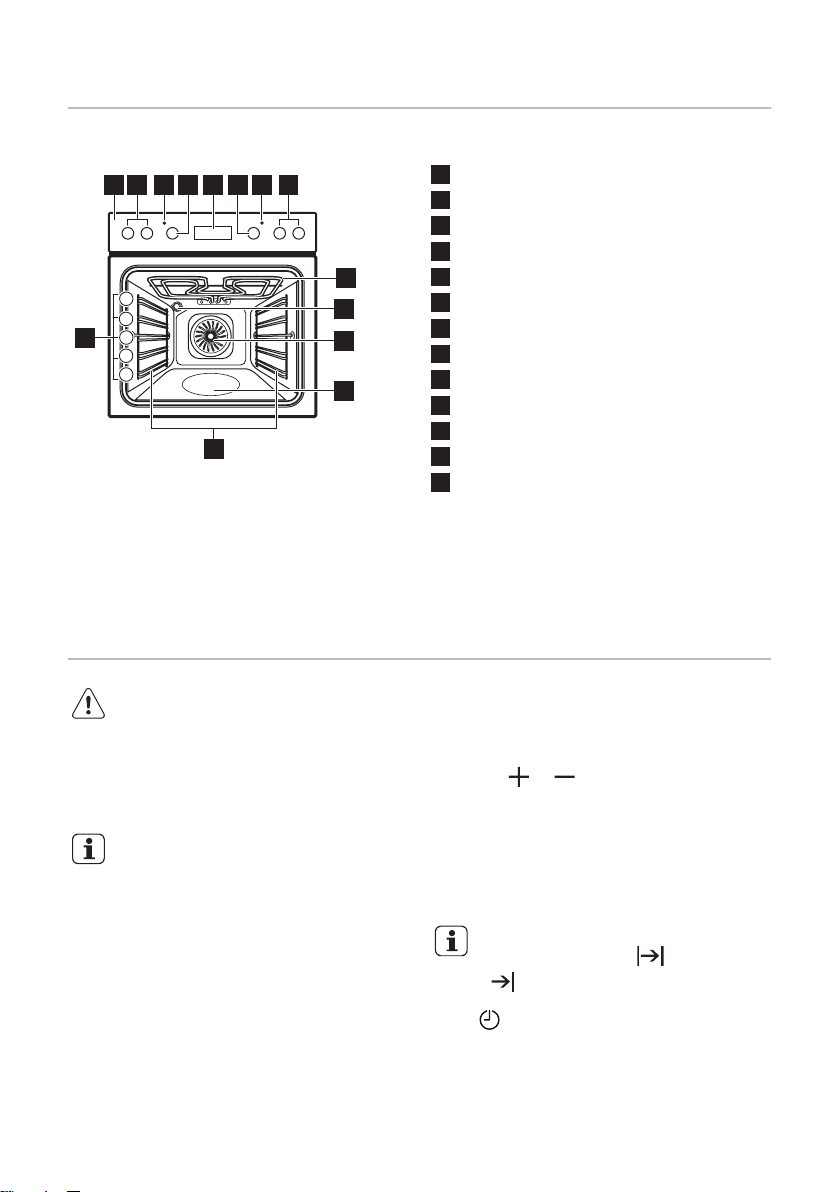

PRODUCT DESCRIPTION
General overview
9
8
13 10
11
12
5
4
1
2
3
531 4 76 22
1Control panel
2Knobs for the hob
3Power lamp / symbol
4Knob for the oven functions
5Electronic programmer
6Knob for the temperature
7Temperature indicator / symbol
8Heating element
9Lamp
10 Fan
11 Cavity embossment
12 Shelf support, removable
13 Shelf positions
Accessories
•Wire shelf
For cookware, cake tins, roasts.
•Combi pan
For cakes and biscuits. To bake and
roast or as a pan to collect fat.
BEFORE FIRST USE
WARNING! Refer to Safety
chapters.
Initial Cleaning
Remove all accessories and removable
shelf supports from the appliance.
Refer to "Care and cleaning"
chapter.
Clean the appliance and the accessories
before first use.
Put the accessories and the removable
shelf supports back to their initial position.
Setting the time
You must set the time before you operate
the oven.
The indicator for the Time of day function
flashes when you connect the appliance to
the electrical supply, when there was a
power cut or when the timer is not set.
Press the or button to set the correct
time.
After approximately five seconds, the
flashing stops and the display shows the
time of day you set.
Changing the time
You cannot change the time of
day if the Duration or End
function operates.
Press again and again until the indicator
for the Time of Day function flashes.
To set a new time, refer to "Setting the
time".
6
Preheating
Preheat the empty appliance before first
use.
For True Fan Cooking PLUS
function refer to "Activating the
True Fan Cooking PLUS
function".
1. Set the function and the maximum
temperature.
2. Let the appliance operate for 1 hour.
3. Set the function and set the
maximum temperature.
4. Let the appliance operate for 15
minutes.
5. Set the function and set the
maximum temperature.
6. Let the appliance operate for 15
minutes.
Accessories can become hotter than usual.
The appliance can emit an odour and
smoke. This is normal. Make sure that the
airflow in the room is sufficient.
DAILY USE
WARNING! Refer to Safety
chapters.
Retractable knobs
To use the appliance, press the control
knob. The control knob comes out.
Activating and deactivating the
appliance
It depends on the model if
your appliance has lamps,
knob symbols or indicators:
• The lamp comes on when
the appliance operates.
• The symbol shows whether
the knob controls one of the
cooking zones, the oven
functions or the temperature.
• The indicator comes on when
the oven heats up.
1. Turn the knob for the oven functions to
select an oven function.
2. Turn the knob for the temperature to
select a temperature.
3. To deactivate the appliance turn the
knobs for the oven functions and
temperature to the off position.
Oven functions
Oven function Application
Off position The appliance is off.
Light To activate the lamp without a cooking function.
7
Oven function Application
True Fan Cook-
ing PLUS
To add humidity during the cooking. To get the right colour
and crispy crust during baking. To give more juiciness dur-
ing reheating.
True Fan Cook-
ing / Defrost
To bake on up to three shelf positions at the same time
and to dry food. Set the temperature 20 - 40 °C lower than
for Top / Bottom Heat.
This function can be used for defrosting frozen foods, such
as vegetables and fruits. The defrosting time depends on
the amount and size of the frozen food.
Top / Bottom
Heat
To bake and roast food on one shelf position.
Top Heat To brown bread, cakes and pastries. To finish cooked
dishes.
Bottom Heat To bake cakes with crispy bottom and to preserve food.
Fast Grilling To grill flat food in large quantities and to toast bread.
Turbo Grilling To roast larger meat joints or poultry with bones on one
shelf position. Also to make gratins and to brown.
Pizza Setting To bake food on one shelf position for a more intensive
browning and a crispy bottom. Set the temperature 20 -
40 °C lower than for Top / Bottom Heat.
Activating the True Fan Cooking
PLUS function
This function allows to have an
improvement of humidity during the
cooking.
WARNING! Risk of burns and
damage to the appliance.
Released humidity can cause burns:
• Open the appliance door with care after
the True Fan Cooking PLUS operation.
Refer to “Hints and tips”
chapter.
1. Open the oven door.
2. Fill the cavity embossment with tap
water.
The maximum capacity of the cavity
embossment is 250 ml.
CAUTION! Fill the cavity
embossment with water only
when the oven is cold.
3. Put food in the appliance and close the
oven door.
4. Set the True Fan Cooking PLUS
function: .
5. Turn the knob for the temperature to
select a temperature.
CAUTION! Do not refill the
cavity embossment with
water during cooking or
when the oven is hot.
6. To deactivate the appliance, turn the
knobs for the oven functions and
temperature to the off position.
8
7. Remove water from the cavity
embossment. WARNING! Make sure that
the appliance is cool before
you remove the remaining
water from the cavity
embossment.
Display
A B C
A. Function indicators
B. Time display
C. Function indicator
Buttons
Button Function Description
MINUS To set the time.
CLOCK To set a clock function.
PLUS To set the time.
Knobs for the cooking zones
You can operate the hob with the knobs for
the cooking zones. Refer to the hob user
manual.
You must read the Safety
chapters in the hob user
manual.
Heat settings
Knob indication Function
0 Off position
1 - 9 Heat settings
Double zone switch
1. Turn the knob to a necessary heat
setting.
2. To complete the cooking process, turn
the knob to the off position.
Using the double zone (if
applicable)
To activate the double zone,
turn the knob clockwise. Do not
turn it through the stop position.
1. Turn the knob clockwise to position 9.
2. Turn the knob slowly to the symbol
until you can hear a click. The two
cooking zones are on.
3. To set the necessary heat setting refer
to "Heat settings".
9
CLOCK FUNCTIONS
Clock functions table
Clock function Application
Time of day To set, change or check the time of day.
Minute Minder To set countdown time. This function has no effect on the opera-
tion of the appliance.
Duration To set the cooking time of the oven.
End To set the time of day when the oven should deactivate.
You can use the functions
Duration and End at the
same time to set the time for
how long the appliance should
operate and when the appliance
should deactivate. This lets you
activate the appliance with a
delay in time. First set the
Duration and then the End
.
Setting the clock functions
For Duration and End , set an oven
function and temperature of cooking. This is
not necessary for the Minute Minder .
1. Press again and again until the
indicator for the necessary clock
function starts to flash.
2. Press or to set the time for the
necessary clock function.
The clock function operates. The display
shows the indicator for the clock function
you set.
For the Minute Minder function
the display shows the time left.
3. When the time ends the indicator of the
clock function flashes and an acoustic
signal sounds. Press a button to stop
the signal.
4. Turn the knob for the oven functions
and the knob for the temperature to the
off position.
With the Duration and End
functions, the appliance
deactivates automatically.
Cancelling the clock functions
1. Press the again and again until the
necessary function indicator flashes.
2. Press and hold .
The clock function goes out after some
seconds.
USING THE ACCESSORIES
WARNING! Refer to Safety
chapters.
Inserting the accessories
Wire shelf:
Push the shelf between the guide bars of
the shelf support and make sure that the
feet point down.
10
Tabla de contenidos
Idiomas:
Otros manuales de Horno de JUNO
JUNO
JUNO JH070A2 Manual de usuario
JUNO
JUNO JB070A9 Manual de usuario
JUNO
JUNO JH030A9 Manual de usuario
JUNO
JUNO JH084C1 Manual de usuario
JUNO
JUNO JH070A2 Manual de usuario
JUNO
JUNO JB071B2 Manual de usuario
JUNO
JUNO JB071B2 Manual de usuario
JUNO
JUNO JBD167D2 Manual de usuario
JUNO
JUNO JB121D0 Manual de usuario
JUNO
JUNO JG030A9 Manual de usuario
JUNO
JUNO JB030A9 Manual de usuario
JUNO
JUNO ELZG 1480 ELT EBH Manual de usuario
JUNO
JUNO JB084C1 Manual de usuario
JUNO
JUNO JB131D8 Manual de usuario
JUNO
JUNO JB071B1 Manual de usuario
JUNO
JUNO JH084C1 Manual de usuario
JUNO
JUNO JB136D8 Manual de usuario
JUNO
JUNO JB121D0 Manual de usuario
JUNO
JUNO JEB900E Manual técnico
JUNO
JUNO JB096B5 Manual de usuario
