Installing the JCS 1200 Mounting Hardware for a Front-Mount or Center-Mount

Open-Frame Rack

If you are installing the JCS 1200 platform in a front-mount or center-mount

open-frame rack, you must first install the large mounting shelf on the rack. The

small mounting shelf is not needed.

For information about the holes in which you insert mounting screws (and cage-nuts

if needed) to install the mounting hardware in an open-frame rack (an Xindicates a

mounting hole location), see Rack Mounting Hole Locations for the JCS 1200 Platform.

The hole distances are relative to one of the standard U divisions on the rack. For

reference, the bottom of all mounting shelves is at 0.04 in. (0.02 U) above a U division.

To install the large mounting shelf (see Figure 1 on page 2):

1. If the rack rails require cage nuts, install cage nuts into the holes specified for

the large shelf on the rear side of the rack rails.

2. If the rack rails require cage nuts, install cage nuts into the holes specified for

the chassis on the front side of the rack rails

3. On the rear of each rack rail, partially insert a mounting screw into the highest

hole specified for the large shelf.

4. Install the large shelf on the rack. Hang the shelf over the mounting screws using

the keyhole slots located near the top of the large shelf flanges.

5. Partially insert screws into the open holes in the ears of the large shelf.

6. Tighten all the screws completely.

7. Attach the mounting brackets to the sides of the chassis:

■If you plan to front-mount the chassis in an open-frame rack, attach the

front-mounting brackets using six of the mounting screws provided.

■If you plan to center-mount the chassis in an open-frame rack, attach the

center-mounting brackets using the eight mounting screws provided.

Installing the JCS 1200 Mounting Hardware for a Front-Mount or Center-Mount Open-Frame Rack ■1

Figure 1: Installing the JCS 1200 Mounting Hardware for an Open-Frame Rack

Related Topics ■Rack Mounting Hole Locations for the JCS 1200 Platform

■Installing the JCS 1200 Platform Using a Lift

■Lifting the JCS 1200 Platform into the Rack or Cabinet

2■Installing the JCS 1200 Mounting Hardware for a Front-Mount or Center-Mount Open-Frame Rack

Otros manuales para JCS1200

4

Tabla de contenidos

Otros manuales de Hardware de red de Juniper

Juniper

Juniper WXC 590 Manual de usuario

Juniper

Juniper SSR1400 Manual de usuario

Juniper

Juniper EX9200 Series Manual de usuario

Juniper

Juniper CTP2000 Series Guía de inicio rápido

Juniper

Juniper 16-PORT GIGABIT ETHERNET XPIMS Manual de usuario

Juniper

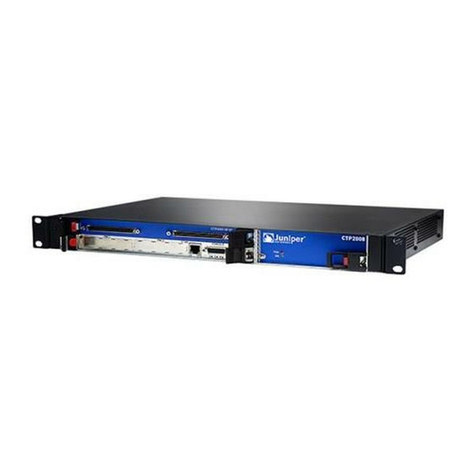

Juniper CTP2000 Series Instrucciones de instalación

Juniper

Juniper MX150 Manual de usuario

Juniper

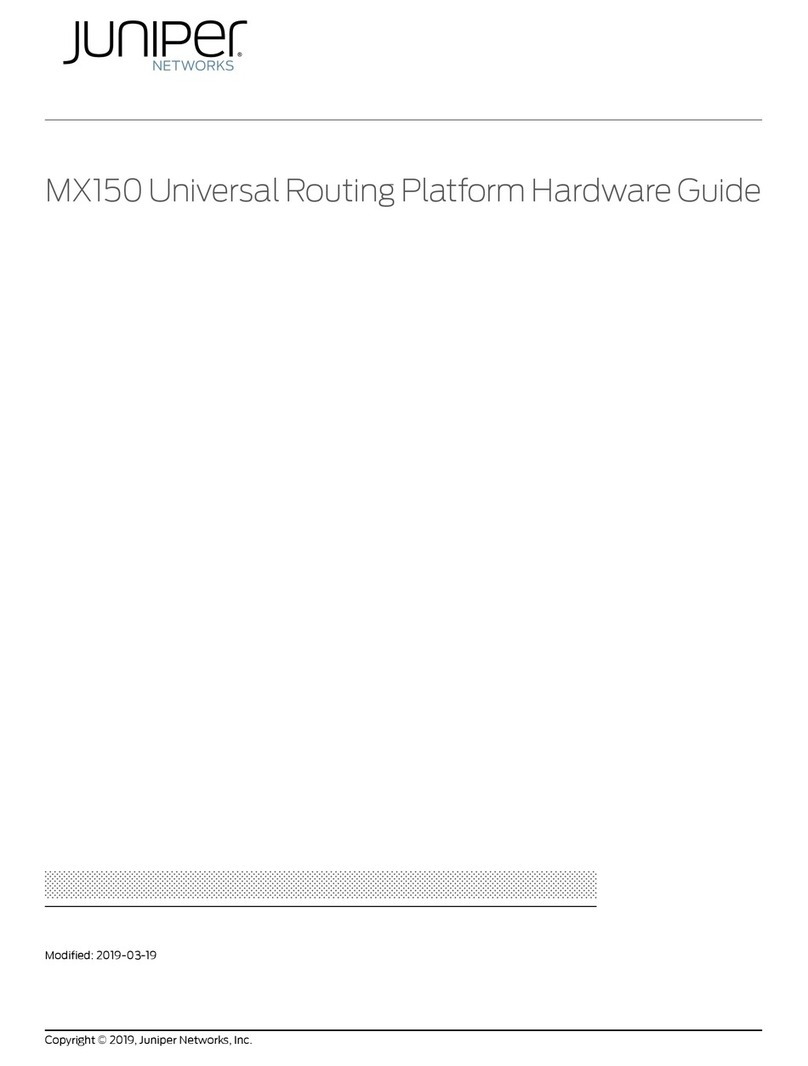

Juniper MX150 Instrucciones de instalación

Juniper

Juniper SRX300 Series Manual de usuario

Juniper

Juniper SRX5600 Manual de usuario

Juniper

Juniper NETSCREEN-5XP Manual de usuario

Juniper

Juniper WX 1800 Manual de usuario

Juniper

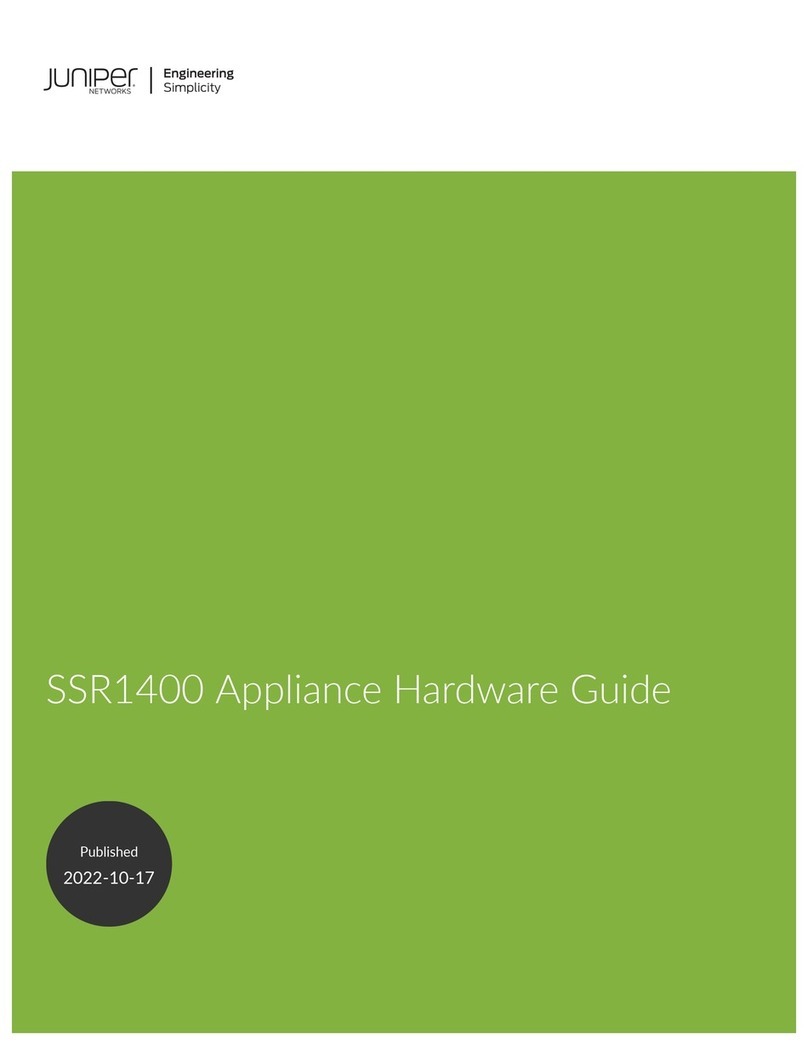

Juniper SSR1400 Instrucciones de instalación
