Julabo FT200 Manual de usuario

19514616-V4.doc 02.05.2016

English

Operating manual

Immersion Coolers

FT200 FT400 FT900

Flow-Through Cooler

FD200

FT900

FT 400

1.951.4616-V4 05/16

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

2.4. Technical specifications

FT200 FD200

Temperature range

°C

-20 … +30

10 … +30

Cooling capacity

(medium ethanol)

°C

+20 0 -30

0.25 0.15 0.04

+20 +10

0.22 0.18

Refrigerant

R134a

Recommanded flow rate

l/min

-----

2 - 3

Freezing protection

°C

-----

Immerson probe (Lxdia.)

9x4

-----

Connection tubing (L)

120

-----

Dimensions (WxLxH)

18x27x39

Weight

Ambient temperature

°C

5 ... 35

Mains power connection

V/Hz

190-253 /50

230/50

Current draw (at 230 V)

2,0

Mains power connection

V/Hz

103-127 / 60

115 / 60

Current draw (at 115 V)

3,0

FT400

FT900

Temperature range

°C

-40 ... +30

-90 ... +30

Cooling capacity

(medium ethanol)

°C

+20 +10 -20 -40

0.45 0.36 0.14 0.03

+20 +10 -40 -80

0.30.27 0.2 0.07

Cooling compressor 1-stage 2- stage

Refrigerant

R404A

R404A/R23

Immerson probe (Lxdia.)

12x5

65x1.5 (flexible)

Connection tubing (L)

120

160

Dimensions (WxLxH)

20x30x43

38x55x60

Weight

Ambient temperature

°C

5 ... 35

Mains power connection

V/Hz

230 / 50

230 / 50/60

Current draw (at 230 V)

3,0

6,0

Mains power connection

V/Hz

115 / 60

Current draw (at 115 V) A 4,0 7,0

Note:

All measurements have been carried out at:

rated voltage and frequency; ambient temperature 20 °C;

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

Operator responsibility – Safety instructions

Environmental conditions according to IEC 61 010-1:

Use indoors only.

Altitude up to 2000 m - normal zero.

Ambient temperature: see Technical specifications

Humidity:

Max. relative humidity 80% for temperatures up to +31 °C,

linear decrease down to 50% relative humidity at a temperature of +40 °C

Max. mains voltage fluctuations of ±10% are permissible.

Protection class according to IEC 60 529 IP21

The unit corresponds to Class I

Overvoltage category II

Pollution degree 2

Caution:

The unit is not for use in explosive environment.

EMC requirements according to EN 61326-1

Information about the used refrigerants

The Regulation (EU) No. 517/2014 on fluorinated greenhouse gases applies to all

systems which contain fluorinated refrigerants and replaces (EC) 842/2006.

The aim of the Regulation is to protect the environment by reducing emissions of fluorinated

greenhouse gases.

Among other things it regulates the emission limits, use and recovery of these substances. It

also contains requirements for operators of systems which require / contain these

substances to function.

Under Regulation 517/2014, the operator of a system of this nature has the following duties:

•The operator must ensure that the equipment is checked at regular intervals for leaks.

•These intervals depend on the CO2equivalent of the system. This is calculated from

the refrigerant fill volume and type of refrigerant. The CO2equivalent of your system is

shown on the model plate.

•The operator undertakes to have maintenance, repair, service, recovery and recycling

work carried out by certified personnel who have been authorized by JULABO.

•All such work must be documented. The operator must keep records and archive them

for at least five years. The records must be submitted to the relevant authority on

request.

Refer to the text of the Regulation for further information.

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

Operating instructions

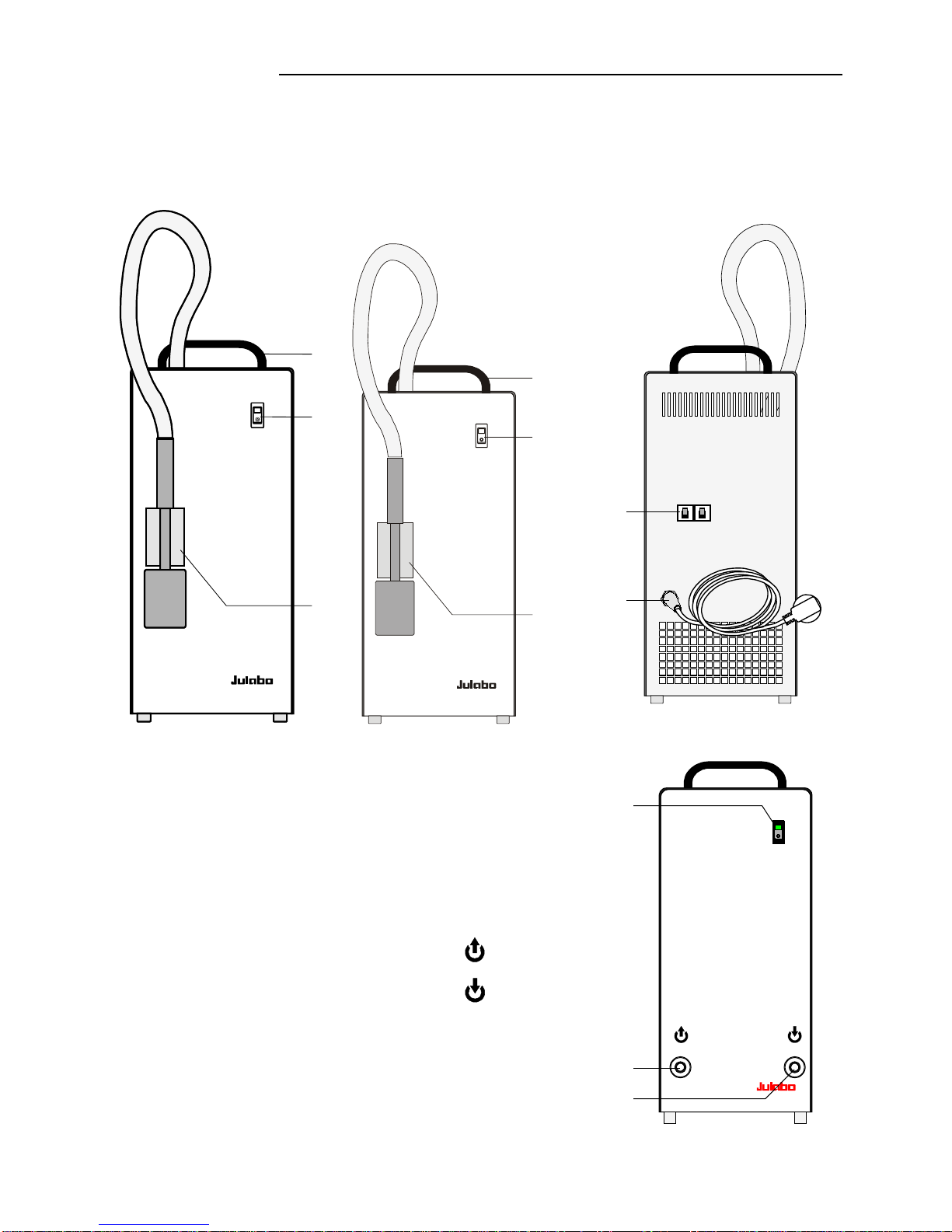

3. OPERATING CONTROLS AND FUNCTIONAL ELEMENTS

FT400 FT200

FT 400

Rear view

1 Mains switch, illuminated

2 Cooling control light

3 Clamp for immersion probe

7 Removable ventilation grid

8 Castor with locking lever

9 Tube connection -discharge

10 Tube connection -intake

11 Mains power cable with plug

12 Safety cutouts: Mains fuses 10 A

FD200

FD 200

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

OPERATING CONTROLS AND FUNCTIONAL ELEMENTS

FT900

Rear view

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

4. Safety notes for the user

4.1. Explanation of safety notes

In addition to the safety warnings listed above, warnings are posted

throughout the manual. These warnings are designated by an exclamation

mark inside an equilateral triangle. “Warning of a dangerous situation

(Attention! Please follow the documentation).”

The danger is classified using a signal word.

Read and follow these important instructions.

Warning

Describes a possibly highly dangerous situation. If these instructions are not

followed, serious injury and danger to life could result.

Caution:

Describes a possibly dangerous situation. If this is not avoided, slight or minor

injuries could result. A warning of possible property damage may also be

contained in the text.

Notice:

Describes a possibly harmful situation. If this is not avoided, the product or

anything in its surroundings can be damaged.

4.2. Explanation of other notes

Note!

Draws attention to something special.

Important!

Indicates usage tips and other useful information.

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

Safety notes for the user

4.3. Safety instructions

Follow the safety instructions to avoid personal injury and property damage. Also,

the valid safety instructions for workplaces must be followed.

•Only connect the unit to a power socket with an earthing contact (PE –

protective earth)!

•The power supply plug serves as a safe disconnecting device from the

line and must always be easily accessible.

•Place the unit on an even surface on a base made of nonflammable

material.

•Do not stay in the area below the unit.

•Make sure you read and understand all instructions and safety

precautions listed in this manual before installing or operating your unit.

•Do not touch the immersion probe if it is frosted.

•Do not bend the tube connection of the immersion probe

•Keep the air intake and exhaust grids free of obstructions. (Maintain a

sufficient distance from all surrounding surfaces!)

•Do not move the unit from the position where it was set up during

operation.

•Always turn off the unit and disconnect the mains cable from the power

source before performing any service or maintenance procedures, or

before moving the unit.

•Always turn off the unit and disconnect the mains cable from the power

source before cleaning the unit.

•Transport the unit with care.

•Sudden jolts or drops may cause damage in the interior of the unit.

•Observe all warning labels.

•Never remove warning labels.

•Never operate units with damaged mains power cables.

•Repairs are to be carried out only by qualified service personnel.

•There are thermal dangers: Touchable parts of the probe can be very

cold. Therefore, exercise particular caution when touching these parts.

Use gloves.

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

5. Preparations

5.1. Installation

•Place the unit on an even surface on a pad made of non-

flammable material.

•Press down the castor levers on model FT900.

•The instrument should be set up at a frost-proof and dry location.

•The place of installation should be large enough and provide

sufficient air ventilation to ensure the room does not warm up

excessively because of the heat the instrument rejects to the

environment. (Max. permissible ambient temperature: 35 °C).

For a fault (leakage) in the refrigeration system, the standard EN

378 prescribes a certain room space to be available for each kg of

refrigerant.

> For 0.25 kg of refrigerant R134a, 1 m3 of space is required.

> For 0.52 kg of refrigerant R404A, 1 m3 of space is required.

> For 0.68 kg of refrigerant R23, 1 m3 of space is required.

•The ambient temperature must not exceed 35 °C.

•Keep at least 20 cm of open space on the front and rear venting

grids.

•Do not set up the unit in the immediate vicinity of heat sources and

do not expose to sun light.

•Before operating the unit after transport, wait about one hour after

setting it up. This will allow any oil that has accumulated laterally

during transport to flow back down thus ensuring maximum cooling

performance of the compressor.

5.2. Immersion Probe

Avoid touching the immersion probe if it is frosted.

DANGER OF INJURY. Use gloves.

Switch the unit on only if the probe is immersed into the bath fluid.

To prevent the immersion probe (A) from icing, it should be completely

immersed into the bath liquid (B).

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

OPERATING PROCEDURES

Accessory: Clamp for cooler probe FT200/400 - order no. 8 970 400

5.3. Tube connection FD200

•Connect the tubes and secure with tube clamps.

discharge (9)

intake (10)

Recommended flow rate: 2 to 3 l/min

6. OPERATING PROCEDURES

6.1. Power connection

Caution:

•Only connect the unit to a power socket with earthing contact (PE –

protective earth)!

•The power supply plug serves as safe disconnecting device from the line

and must be always easily accessible.

•Never operate equipment with damaged mains power cables.

•Regularly check the mains power cables for material defects (e.g. for

cracks).

•We disclaim all liability for damage caused by incorrect line voltages!

Make sure that the line voltage and frequency match the supply

voltage specified on the type plate.

Deviations of ±10 % are permissible.

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

19514616-V4.doc 02.05.2016

6.2. Switching On

•The immersion cooler is turned on and off with the mains switch.

(1).

The control light in the switch will illuminate.

The immersion probe – as part of the cooling circuit – should not be exposed

to bath temperatures above the working temperature of the immersion cooler.

This would cause damage to the compressor.

Do not immerse a frosted immersion probe into hot bath oil.

DANGER OF INJURY!

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

Otros manuales para FT200

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Accesorios de Julabo

Julabo

Julabo FL1201 Manual de usuario

Julabo

Julabo Eco Series Manual de usuario

Julabo

Julabo Professional Series Manual de usuario

Julabo

Julabo FL1201 Manual de usuario

Julabo

Julabo FT200 Manual de usuario

Julabo

Julabo AWC100 Manual de usuario

Julabo

Julabo AWC100 Manual de usuario

Julabo

Julabo FT402 Manual de usuario

Julabo

Julabo F250 Manual de usuario

Julabo

Julabo FP52-SL Manual de usuario

Julabo

Julabo AWC100 Instrucciones de instalación

Julabo

Julabo FT200 Manual de usuario

Julabo

Julabo SC 2500a Manual de usuario

Julabo

Julabo SC 5000a Manual de usuario

Julabo

Julabo SemiChill Eco Series Manual de usuario

Julabo

Julabo SC 2500w Manual de usuario

Julabo

Julabo FL1201 Manual de usuario

Julabo

Julabo 950002503P3H0 Manual de usuario

Julabo

Julabo SemiChill Eco Series Manual de usuario

Julabo

Julabo FT402 Manual de usuario

Manuales populares de Accesorios de otras marcas

Hillco

Hillco 2810 Manual de usuario

Siemens

Siemens QSA2700D Manual del operador

Contours

Contours ZY024 Manual de usuario

Saivod

Saivod VS621 Manual de usuario

Virtuox

Virtuox VirtuCLEAN 2.0 Manual de usuario

SCE

SCE ENVIRO-THERM SCE-TE170B24VSS Manual de usuario

Z-Wave

Z-Wave HSD-200Z Manual de usuario

turck

turck FMX-IM-2UPLI63FX Manual de usuario

Decagon Devices

Decagon Devices 10HS Manual de usuario

UPPAbaby

UPPAbaby Cup Holder Manual de usuario

Elko

Elko SmartSensor Leakage Wireless Manual de usuario

Grizzly

Grizzly H8371 Manual de usuario

Panasonic

Panasonic HG-T Series Manual de usuario

IFM Electronic

IFM Electronic Efector 250 Series Guía de referencia

DigiDesign

DigiDesign 888/24 I/O Manual de usuario

PROZIS

PROZIS QUAY Manual de usuario

patagonia

patagonia PSI Vest Manual de usuario

SFC Energy

SFC Energy EFOY GO! Manual de usuario
