JOYTECH PY1400ACL Manual de usuario
PY1400ACL
Sliding Gate Opener
User Manual
2017
Dear users,
Thank you for choosing this product. Please read the manual carefully before assembling and using it.
Please do not leave out the manual if you send this product to a third party.
1. Safety Instruction
Please ensure that the using power voltage matches with the supply voltage of gate opener
(AC110V or AC220V); kids are forbidden to touch the control devices or the remote-control unit.
The remote-control unit is controlled by a single button mode. The indicator light on the
remote-control unit will flicker when the button on it is pressed. Main engine and gate can be
unlocked by disengagement wrench and the gate can move with manual operation after
disengagement.
Please ensure that no one is around the main engine or gate when the switch is operated and it is
usually demanded to examine the stability of installation. Please temporarily stop using if the main
engine needs repairing or regulation.
The installation and maintenance of the products must be carried out by professionals.

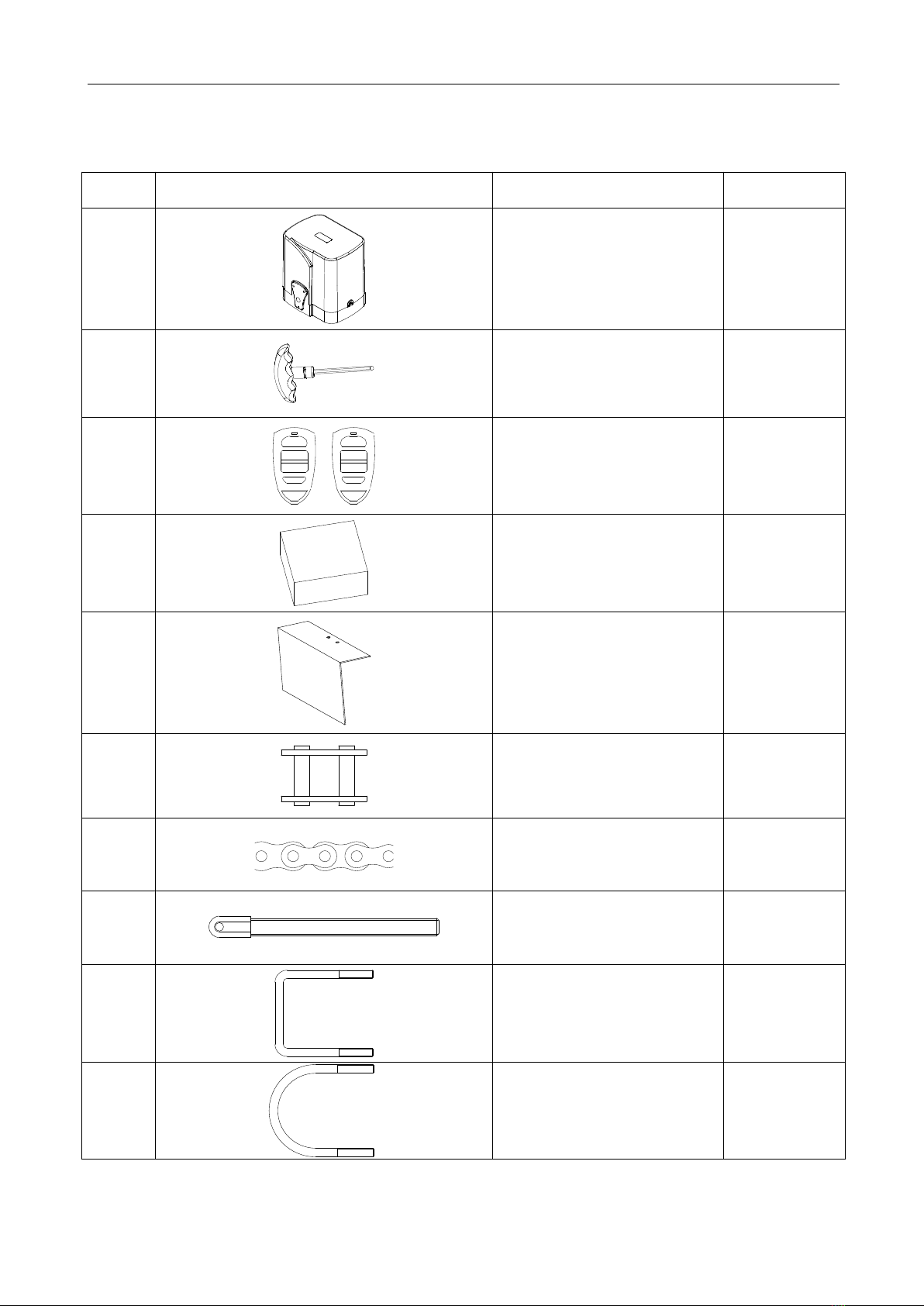

2. Packing List (standard)

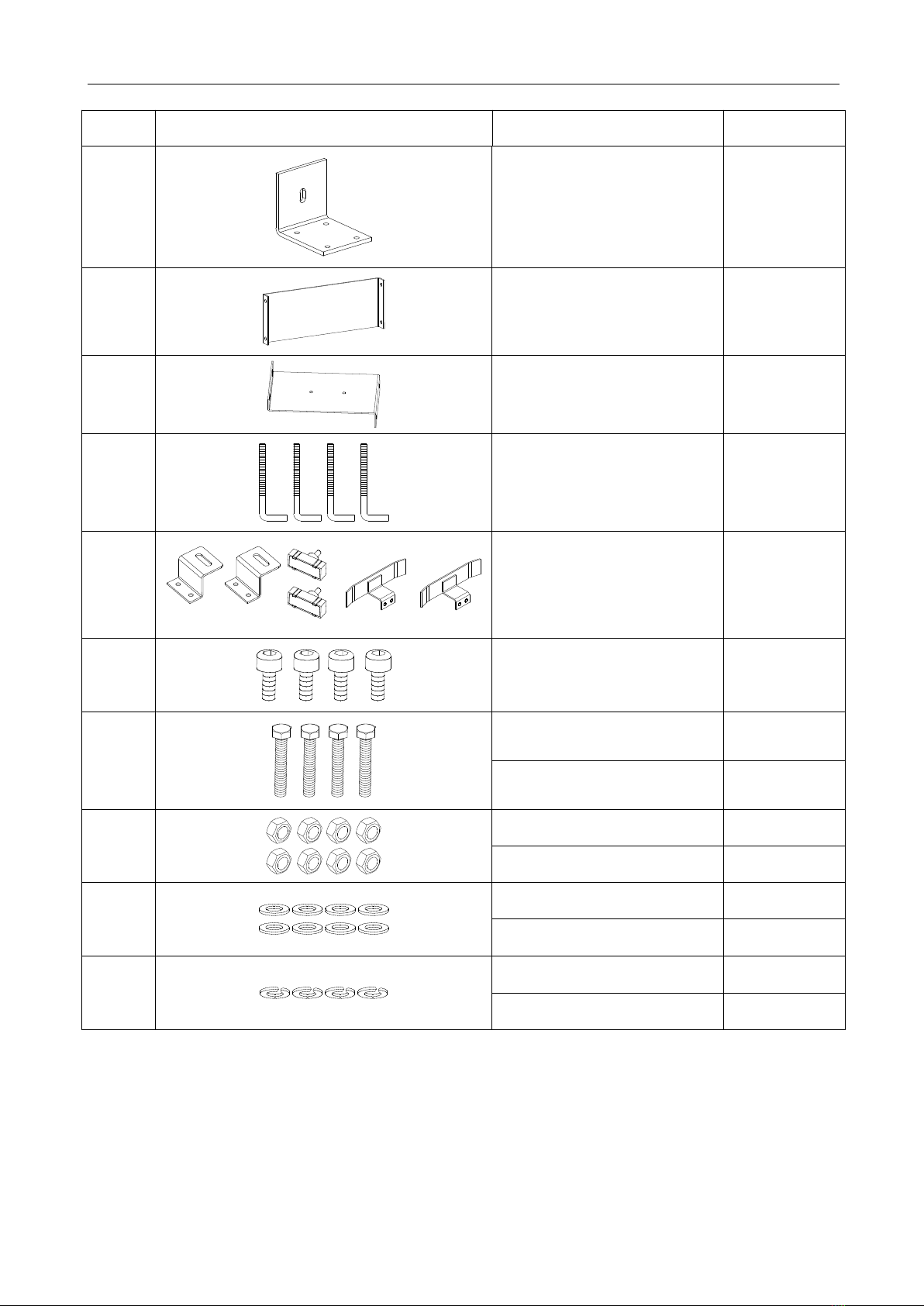

No.
Name
Quantity
1
Main engine
1
2
Manual release bar
1
3
A
B
C
D
A
B
C
D
Remote control
2
4
Mounting accessories box
1
4-1
Sprocket cover
1
4-2
Chain link
2
4-3
Chain
6m
4-4
Tie rod
2
4-5
Square screw
4
4-6
Round screw
4
No.
Name
Quantity
4-7
Door connecting plate
2
4-8
Horizontal mounting plate
2
4-9
Vertical mounting plate
2
4-10
Foundation bolt M8
4
4-11
or
Magnetic or Spring limit
switch block
1
4-12
Inner hexagon screw
M6×20
8
4-13
Hexagon screw M6×65
4
Hexagon screw M8×25
4
4-14
Nut M6
20
Nut M8
16
4-15
Flat washer φ6
20
Flat washer φ8
16
4-16
Spring washer φ6
20
Spring washer φ8
12

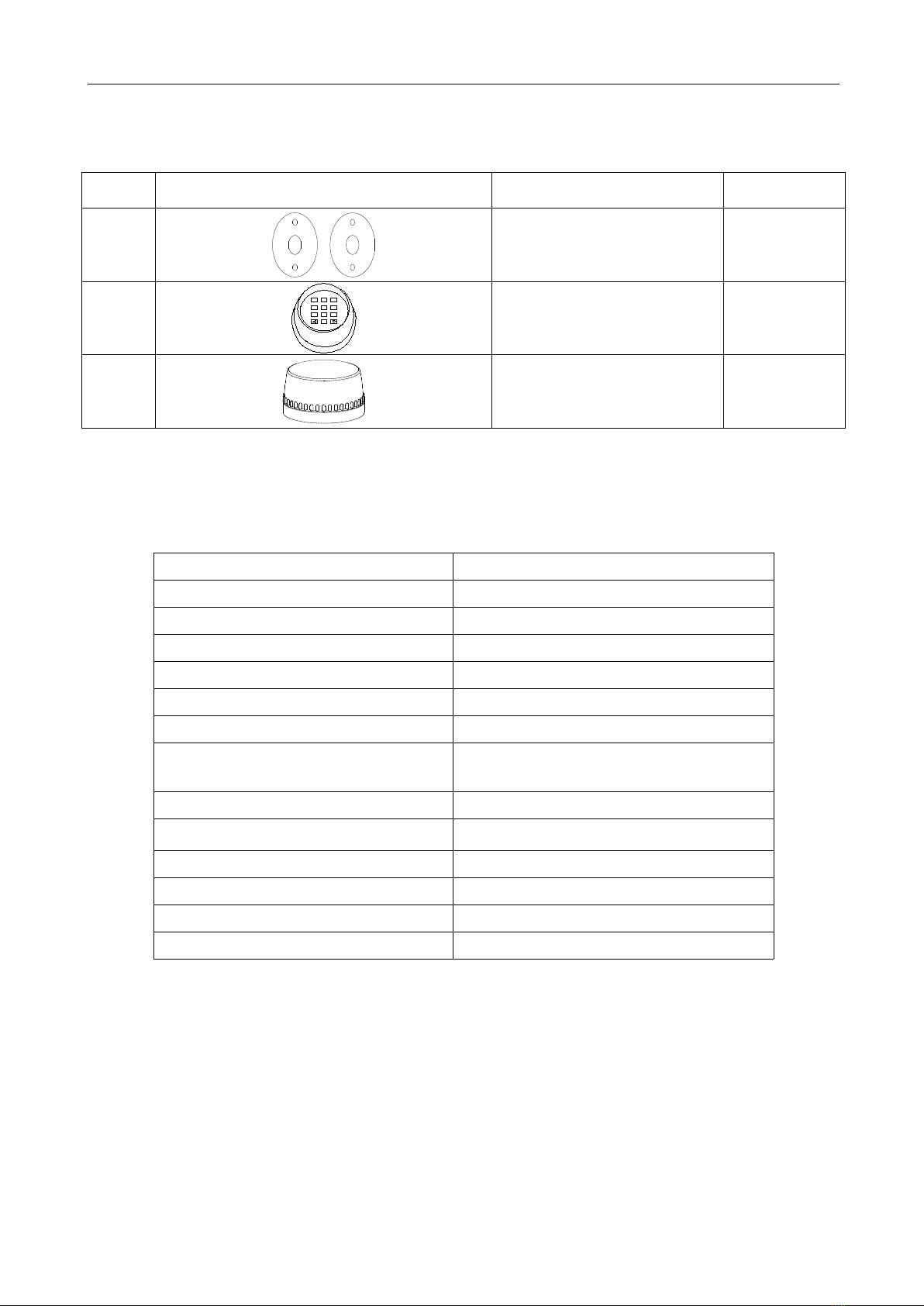

2. Packing List (optional)
No.
Name
Quantity
1
Infrared sensor
1
2
0
8
5 6
97
4
1 2 3
Wireless keypad
1
3
Alarm lamp
1
3. Technical parameters
Model
PY1400ACL
Power supply
220V/50Hz;110V/60Hz
Motor power
500W
Gate moving speed
12m/min
Maximum weight of gate
1400Kg
Remote control distance
≥30m
Remote control mode
Single button mode
Limit switch
Spring limit switch
/ Magnetic limit switch
Noise
≤60dB
Working duty
S2, 15min
Recording of up remote controls
25
Frequency
433.92 MHz
Working temperature
-20°C ~ +70°C
Package weight
26.5Kg
4. Installation
PY800ACL/PY1400ACL sliding gate opener is applicable to gate weight less than 800kg/1400kg,
and length of the sliding gate should be less than 14m/20m. The drive mode adopts the gear and
rack transmission. This gate opener must be installed inside the enclosure or yard for protection.
4.1 Installation drawing
⑤
④
③
②
0
8
5 6
97
4
1 2 3
⑧
①
⑦
⑥
Figure 1
①Gate opener; ②Wireless keypad (optional); ③Gate; ④Infrared sensor (optional);
⑤Alarm lamp (optional); ⑥Safety stop block; ⑦Chain; ⑧Remote control;
4.2 Size of main engine and accessories
4.2.1 Size of main engine
340 288
530
Figure 2
4.2.2 Size of embedded hole
305
139
Figure 3
4.3 Installation procedures
4.3.1 Preparation work before installation
Please ensure that the sliding gate is correctly installed, the gate rail is horizontal, and the gate can
glide back and forth smoothly when moved by hands before installing the gate opener.
Cable installation
Please bury the motor & power cable and controlling cable with PVC tube, and use two PVC tubes
to bury (motor & power cable) and (controlling cable) separately, so as to guarantee normal
operation of the gate opener and protect the cables from damages.
Concrete pedestal
Please cast a concrete pedestal with the size of 550mm x 400mm and depth of 200mm in advance,
so as to firmly install PY800ACL/PY1400ACL gate opener. Please verify whether the distance
between the gate and gate opener is suitable before casting the pedestal.
Embedded screws
Concrete
Power line
Mounting base
Foundation bolt
Figure 4
4.3.2 Main engine installation
a) Dismantle the plastic housing on the main engine before installation and keep relevant fasteners
properly;
b) If select the detachable mounting base, the base should be assembled first as shown in Figure 5;
InnerInner hexagonhexagon screwscrew M6×20M6×20
VerticalVertical mountingmounting platenplaten
HorizontalHorizontal mountingmounting plateplate
NutNut M6M6
SpringSpring washerwasherφ6
FlatFlat washerwasherφ6
Figure 5
c) Assemble the machine engine to the mounting base as shown in Figure 6;
MountingMounting basebase
HexagonHexagon screwscrew M8×25M8×25
FlatFlat washerwasherφ8
SpringSpring washerwasherφ8
NutNut M8M8
Figure 6
d) Please prepare the power line for connecting mounting plate and main engine (the number of
power supply cable core shall not be less than 3 PCS, the sectional area of cable core shall not be
lower than 1.5mm² and the length shall be determined by users according to the field situation) due
to different installation environments;
e) Please unlock the main engine before installation, the unlock method is: take out the key cover,
insert the key, and open the manual release bar till it rotates by 90° as shown in Figure 7. Then turn
the output sprocket and the sprocket can be rotated easily;
Rotate
Figure 7
4.3.3 Chain installation
Close the gate; connect the tie rod with chain through chain link; fasten the tie rod to the door
connecting plate by washers and nuts as shown in Figure 8. If necessary, the elasticity of chain can
be adjusted through the tie rod at both ends as shown in Figure 9 and 10. If necessary, the chain
can be shortened. If it need to be lengthened, make sure to use same type of chain.
ChainChain ChainChain linklink
TieTie rodrod
Figure 8
If door frame is round, please use the round screw as shown in Figure 9:
Gate Round screw
Spring washerφ8
Nut M8
Flat washerφ8
Tie rod
Nut M6
Spring washerφ6
Flat washerφ6
Figure 9
If door frame is square, please use the square screw as shown in Figure 10:
Gate Square screw
Spring washerφ8
Nut M8
Flat washerφ8
Tie rod
Nut M6
Spring washerφ6
Flat washerφ6
Figure 10
