Joovy Groove 356 Manual de usuario

Instruction Manual

Style Numbers 350, 352, 356

Joovy • 2919 Canton Street • Dallas, TX 75226 • (877) 456-5049 • Fax: (214) 761-1774

E-mail: customerservice@joovy.com • Website: www.joovy.com

Page 2 Groove Instruction Manual

!WARNINGS

!Please read this instruction manual completely before using

this stroller. Keep these instructions for future reference.

• Failure to follow these instructions could result in serious injury or death.

• Never leave child unattended.

• Avoid serious injury from falling or sliding out.

• Always use safety harness and ensure that child is positioned according to these

instructions.

• Be certain that the stroller is fully opened, the primary lock is secured in position,

and the wheel brakes are on before allowing children near the stroller.

• The maximum weight of the child that can be seated in the stroller is 55 lbs.

• Use of the stroller with a child weighing more than 55 pounds will cause excessive

wear and stress on the stroller and may cause a hazardous unstable condition.

• Never allow a child to step on the footrest or the leg support to get into or out of

the stroller.

• Do not use the stroller on stairways or escalators.

• Hanging purses, shopping bags, parcels, diaper bags or other accessory items

from the handle bars or any other parts of the stroller may change the balance of

the stroller and cause a hazardous unstable condition.

• The maximum weight that can be carried in the storage basket is 5 pounds.

Excessive weight may result in a hazardous unstable condition.

• The total weight of contents in the zippered pocket and cup holders should be

less than 2 pounds. Excess weight may cause a hazardous unstable condition.

• Never allow your stroller to be used as a toy.

• Discard all packaging materials properly. Do not allow children to play with

them.

• Check your stroller for loose rivets, snaps, worn parts, and torn material or

stitching on a regular basis.

• Discontinue use of the stroller should it malfunction or become damaged.

Please do not return this product to the store

If you experience any difculty with the assembly or use of this product, or if you have a

question regarding these instructions, please contact our Customer Service Department at

(877) 456-5049 between the hours of 8:30 am and 5:00 p.m. Central Time.

Please note: Styles and colors may vary.

Groove Instruction Manual Page 3

Assembling and Using your Stroller

!To ensure safe operation of your stroller, please

follow these instructions carefully

Unpacking the Product

• Carefully remove stroller and all parts from the box and plastic bag.

• Remove the cardboard packing materials from the ends of the frame.

• Identify the parts: stroller (with reversible all-season seat pad), canopy (attached

upside down to stroller legs), storage bag (with rain cover, additional seat, additional

harness, additional canopy, and additional shoulder harness covers), and documents

with the pictures in Figure 1.

• Remove the plastic coverings from the foam handles and any other areas of the

product and discard.

• Discard all packaging materials properly. Do not allow children to play with them.

!CAUTION

Adult assembly is required for this product.

No Tools Required

Figure 1

Page 4 Groove Instruction Manual

Figure 2 Figure 3

Front Wheel Locks

The front wheels can be either in

swivel mode or locked mode.

• To put each front wheel set into its

locked mode, pull up on the locking

lever until an audible click is heard.

Rotate the wheel set until it locks

automatically, when in the straight

position, and another audible click is

heard. See Figure 4.

• To unlock the wheels and put them

into swivel mode, push down on the

lever until an audible click is heard to

disengage the lock. Figure 4

Unfolding the Stroller

• Keep children away from stroller while unfolding.

• Orient the stroller with the handle bars closest to you.

• If necessary, release the locking latch located on the right side by lifting the latch

off of the stroller leg. See Figure 2. Then fold this locking latch back into itself

and snap it onto the frame bar handle just underneath where its other end is

already attached.

• Pull up on the handle bars of the stroller until it is upright. Then push down with

your foot on the lower knob of the primary lock at the rear center of the stroller

to engage the lock. See Figure 3.

• Ensure that the stroller is completely opened and the primary lock is secured

before ANY use of the stroller.

Groove Instruction Manual Page 5

Installing and Operating the Canopy

• With the stroller open, clip BOTH sides of the canopy onto the handle tubes just above

the retaining blocks, taking care not to catch any material underneath the clips. See

Figure 5. Attach the hook and loop tabs at the top of the canopy to the handle tubes.

• Pull both side aps over the handle tubes and attach the hook and loop material together

to hold them in place.

• Place the rear apron behind the seat back and attach the female snap on the bottom of

the apron to the male snap on the top of the seat back.

• To open the canopy, pull forward on the front edge of the canopy until it is fully extended.

Once the canopy is extended, push down on BOTH side hinges to lock it in the open

position. See Figure 6.

• The canopy and visor can be adjusted into several positions ranging from fully closed to

fully extended, or any position in between. See Figure 7.

• The visor can be opened (or closed) by pulling (or pushing) it from under the canopy.

• NOTE that the top rear portion of the canopy has a roll back window. To open, pull the

forward edge up, roll the ap back, and secure using the elastic loop attachment.

• To close the canopy, unlock both side hinges and push the front edge of the canopy

toward the rear of the stroller. See Figure 8.

• To remove the canopy, unsnap the snap on the top of the seat back. Remove both side

aps from their hook and loop attachments. Unfasten the hook and loop tabs from the

handle tubes. Pull the clips on the canopy away from the handle tubes. See Figure 9.

Figure 9Figure 8

Figure 5 Figure 6 Figure 7

!WARNING

Possible pinching hazard - Be careful when closing and

opening the side hinges.

Page 6 Groove Instruction Manual

Adjusting the Leg Support

The leg support can be adjusted to two positions – horizontal or all the way down.

• To place the leg support into the horizontal position, pull up on both sides of the

leg support until it is locked into position. See Figure 12.

• Push down on both sides of the leg support to ensure it is secure.

Rear Wheel Brakes

• Before placing any child into the stroller or removing them from the stroller, be

certain that the rear wheel brakes are engaged.

• To engage the rear wheel brakes, push down on one of the brake levers located

on each of the rear wheels. See Figure 10. The stroller may require slight forward

or rearward movement in order to line up the teeth on the brake with each wheel

brake cluster.

• Check that the brakes are properly applied by attempting to push the stroller

backwards and forwards.

• To release the brakes, gently lift up either one of the brake levers. See Figure 11.

!WARNING

Always make sure BOTH wheel brakes are engaged when the stroller is

not being pushed so that the stroller will not roll away. Never leave stroller

unattended, especially on a hill or incline, as the stroller may tip over or

slide.

Figure 10 Figure 11

Groove Instruction Manual Page 7

• To place the leg support into the down position, locate the trigger mechanism

underneath BOTH sides of the leg support on the bottom. Squeeze BOTH triggers

and rotate the leg support down. See Figure 13. Note that the leg support does

not “lock” into this down position but will remain there by gravity only.

!WARNING

Never allow a child to step onto or sit on the leg support. This may cause

the stroller to tip over and injure the child.

Seatback Positioning

The seat has four positions. The fully

upright position should only be used for

a child that is at least 6 months old.

• To place the seat in the upright position,

simply lift up on the seatback until it

locks into the highest position.

• To recline the seat, place your index

nger in the plastic loop on the back of

the seatback. With your thumb, press

down on the red recline button. Slowly

adjust the seatback down to the desired

position and release the recline button.

See Figure 14.

Figure 12 Figure 13

!WARNING

ALWAYS ensure that the seatback is locked into its position.

Push down on the seatback to be sure it is secure.

NEVER adjust the seatback when the child is in the seat.

Figure 14

Page 8 Groove Instruction Manual

!WARNING

Avoid serious injury from falling or sliding out. Always use the safety

harness.

Figure 15 Figure 16 Figure 17

Securing the Child

• Note that there are three height adjustment positions for the shoulder harness

straps. For a younger child, the shoulder harness straps should be positioned

through the lower opening. For a taller child, the shoulder straps should be

positioned through the center or top openings to ensure a good t.

• Make sure that both shoulder straps are attached to the waist strap buckles. See

Figure 15.

• Unlatch the waist/shoulder buckle by squeezing in on both sides of the buckle

latch and removing the male ends of each buckle.

• Carefully place the child in the stroller seat with the shoulder straps over their

shoulders and chest. Then place the crotch strap between the child’s legs.

• Bring the seat belt around the child’s waist and insert the male ends of the waist/

shoulder buckle into the female buckle. Make sure that they snap into place. See

Figure 16. Tighten the waist belt to be snug around the child’s waist.

• NOTE that when using the headrest for a younger child, the shoulder straps

may be positioned through the upper set of slots in the headrest. Unbuckle the

shoulder straps from the waist/shoulder buckle and feed these straps through

these slots, ensuring that the straps are not twisted. Buckle the shoulder straps

onto the waist/shoulder buckle to secure them. When using the headrest for

a taller child, the shoulder straps may be positioned through the lower set of

slots.

• Both the shoulder straps and the waist/crotch straps may be adjusted using the

sliding buckles on these straps. See Figure 17.

Groove Instruction Manual Page 9

Folding the Stroller

• Keep children away from stroller while folding.

• Position the stroller with the handle bars closest to you.

• Place the canopy into its closed position and pull it all the way toward the

back of the stroller as far as it will go.

• To fold, pull UP on the lower knob of the primary lock in the rear center of

the stroller. See Figure 18.

• Push down on the secondary locking lever on the right side of the stroller.

See Figure 19. Note that you need to push down on this lever forcefully to

disengage the lock.

• Push forward on the stroller using the handle bars.

• Once the stroller begins to fold, pull the front leg of the stroller upwards until

the stroller is completely folded. See Figure 20.

• To secure the stroller in the folded position, remove the LOWER section of the

locking latch from its position on the frame bar handle. Snap this section of

the locking latch onto the leg of the stroller. See Figure 21.

Figure 18 Figure 19

Figure 20 Figure 21

Page 10 Groove Instruction Manual

Changing/Removing the

Seat and All-Season Pad

• Remove the canopy from the

stroller.

• Unsnap both snaps on each seat

side ap and the upper rear seat

straps on both sides.

See Figure 22.

• Unsnap the two snaps on the

bottom of the seat.

• Grab both front corners of the seat

and pull the seat forward off of

the leg support posts on both sides.

• Disengage the waist straps

attached to the lower openings of

the plastic support, directly behind

the seat. Feed the strap through

the slot in the metal clip. See Figure

23.

• Pull the waist straps through the

slots in the seat, and the All-Season

Pad, to the front of the seat.

• Unlock the child harness buckle

and pull the crotch strap up through

the slot in the seat bottom, and the

All-Season Pad. See Figure 24.

• Look behind the back of the seat

and locate the shoulder straps.

Loosen one strap and the metal

clip from the plastic support and

feed the strap through the slot in

the metal clip. See Figure 25. Feed

the clip end through the slot in the

plastic support bracket and then

pull this strap through the slot in

the seat, and the All-Season Pad, to

the front of the seat. Repeat for the

other strap.

• Remove the All-Season Pad and

pull the back of the seat up off

of the seatback posts on both

sides.

• The headrest can be washed

separately by pulling the shoulder

straps through the slots in the

headrest to remove them.

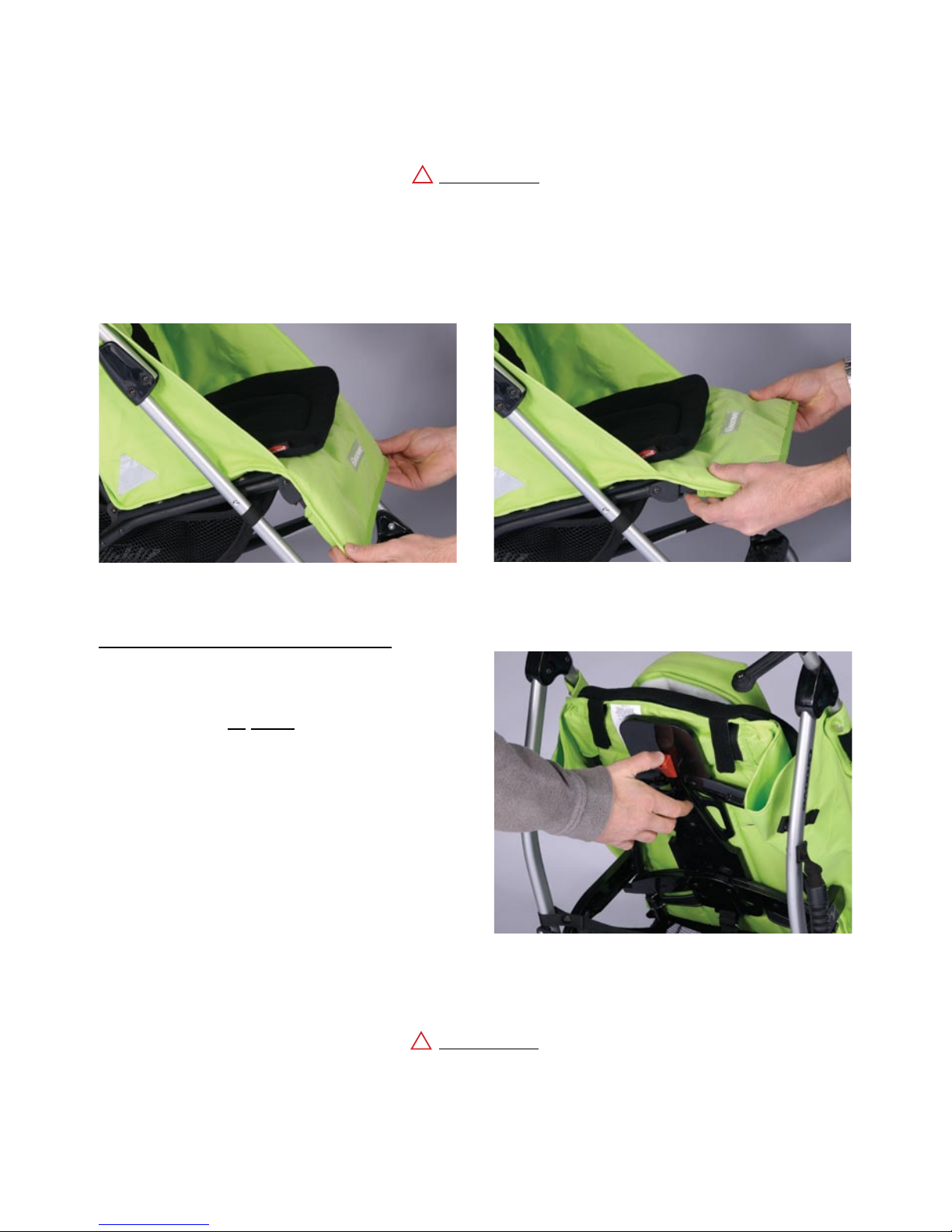

Figure 22

Figure 23

Figure 25

Figure 24

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Paseante de Joovy

Joovy

Joovy Zoom 360 Ultralight Manual de usuario

Joovy

Joovy Caboose 814 Series Manual de usuario

Joovy

Joovy Caboose Ultralight Manual de usuario

Joovy

Joovy Caboose Too Ultralight 0087X Manual de usuario

Joovy

Joovy 809X Manual de usuario

Joovy

Joovy Groove 0080X Manual de usuario

Joovy

Joovy TooFold 0055X Manual de usuario

Joovy

Joovy Caboose 40X Manual de usuario

Joovy

Joovy Big Caboose 43X Manual de usuario

Joovy

Joovy Groove Ultralight 0081X Manual de usuario

Joovy

Joovy Groove Ultralight 0081X Manual de usuario

Joovy

Joovy Caboose Too Ultralight Graphite 817X Manual de usuario

Joovy

Joovy Caboose VaryLight 0039X Manual de usuario

Joovy

Joovy The Big Caboose Stand-On Triple 43X Series Manual de usuario

Joovy

Joovy Ergo Caboose 42X Series Manual de usuario

Joovy

Joovy Groove 0080X Manual de usuario

Joovy

Joovy CocoonX2 Manual de usuario

Joovy

Joovy Caboose VaryLight 804X Manual de usuario

Joovy

Joovy Kooper X2 Manual de usuario

Joovy

Joovy Caboose Ultralight 85X Manual de usuario

Joovy

Joovy Zoom Manual de usuario

Joovy

Joovy 430 Manual de usuario

Joovy

Joovy Caboose Ultralight 45X Series Manual de usuario

Joovy

Joovy Qool 800X Manual de usuario

Manuales populares de Paseante de otras marcas

Hauck

Hauck Priya Trioset Manual de usuario

CHILDHOME

CHILDHOME CWQDN Manual de usuario

Dreamer Design

Dreamer Design Rebound GST Manual de usuario

Britax

Britax STEELCRAFT AGILE Manual de usuario

Graco

Graco 7427 Manual de usuario

Comfort

Comfort COMPASS Manual de usuario

OBaby

OBaby Aura Manual de usuario

Tutek

Tutek Tirso Manual de usuario

Babify

Babify Dual Plus Manual de usuario

Graco

Graco Stroller Manual de usuario

Special Tomato

Special Tomato Jogger Manual de usuario

Chicco

Chicco CORTINA TOGETHER TWO-PASSENGER STROLLER Manual de usuario

Otto Bock

Otto Bock Kimba neo Manual de usuario

Milly Mally

Milly Mally ROYAL Guía de inicio rápido

Hauck

Hauck DUETT 3 PRAM Manual de usuario

BOB

BOB DUALLIE Manual de usuario

Nuna

Nuna Pepp Manual de usuario

Britax

Britax B2 Manual de usuario
