Jonsered CS 2171 Guía

Spare parts

Ersatzteile

Pièces détachées

Reserve onderdelen

Repuestos

Reservdelar

IPL, CS2171, 2011-05

CS2171

JIPL2011_21

ACS2171

CHAIN BRAKE & CLUTCH COVER 1

23242526

Page A CS2171 CHAIN BRAKE & CLUTCH COVER

Position Article Quantity Notes Kit

1 503 20 02-12 4

2 503 75 11-03 1

3 503 21 28-10 1

4 501 87 53-03 1

5 503 20 25-12 1

6 503 71 93-04 1

7 503 43 65-01 1

8 503 83 81-02 1

9 537 00 87-02 1

10 503 77 52-01 1

11 503 70 99-01 1

12 503 79 27-02 1

13 503 75 22-02 1

14 537 07 20-01 1

15 537 07 20-71 1 14

16 537 24 43-01 1 14, 15

17 503 76 29-02 1 14, 15

18 503 89 70-01 1 14, 15

19 503 21 28-10 1 14, 15

20 503 21 28-10 2 14

21 537 04 41-02 1 14

22 537 01 68-01 1 14, 21

23 503 23 00-66 1 14, 21

24 537 07 95-02 1 14, 21

25 503 99 83-01 1 14, 21

26 537 01 74-01 1 14, 21

27 537 07 94-02 1 14, 21

28 503 23 00-63 1 14, 21

29 740 48 07-02 1 14, 21

30 501 51 72-01 1 14

31 503 22 00-01 2

32 503 21 28-10 1

33 503 92 27-01 1 WRAP

34 503 71 97-01 1

35 503 98 74-01 1

CS2171

CLUTCH & OIL PUMP

18 21

Page B CS2171 CLUTCH & OIL PUMP

Position Article Quantity Notes Kit

1 503 52 13-03 1

2 503 62 49-01 1 1

3 503 52 15-01 1 1

4 503 23 00-04 2 1

5 501 61 58-01 1 1

6 503 81 30-01 1 1

7 503 81 13-01 1 1

8 725 53 29-56 2

9 537 20 78-05 1

10 503 77 43-01 1

11 503 64 47-01 1

12 504 30 00-26 1

13 503 42 67-01 1

14 501 54 41-02 1

15 503 27 21-01 1

16 503 75 24-01 1

17 503 93 24-71 1 3/8"x7T

17 503 93 24-72 1 3/8"x8T

18 501 59 80-02 1 3/8"x7T 17

18 505 30 36-61 1 3/8"x8T 17

19 503 43 20-01 1 3/8" 17

20 503 74 44-01 1

21 537 36 06-01 3

22 503 23 00-59 1

CS2171

CYLINDER COVER

2 3 4

Page C CS2171 CYLINDER COVER

Position Article Quantity Notes Kit

1 503 70 08-06 1

2 503 20 34-25 3 1

3 503 69 60-01 1 1

4 503 69 91-02 2 1

Set of gaskets

503 64 72-01

CS2171

CYLINDER PISTON

2 3 4

Page D CS2171 CYLINDER PISTON

Position Article Quantity Notes Kit

1 503 62 64-73 1

1 503 93 93-72 1 EPA

2 503 69 12-71 1 1

2 503 93 92-71 1 EPA 1

3 503 55 22-01 1 1

4 503 25 56-01 1 1

5 503 71 53-01 1

6 725 53 33-55 4

7 503 23 51-08 1 RCJ 7Y

8 503 96 15-01 1 13

9 503 28 90-42 1 1, 2

9 503 28 90-36 2 EPA 1, 2

10 737 43 12-00 2 1, 2

11 503 77 59-01 1 13

12 503 77 58-02 1

13 503 64 72-01 1 A = Set of gaskets

CS2171

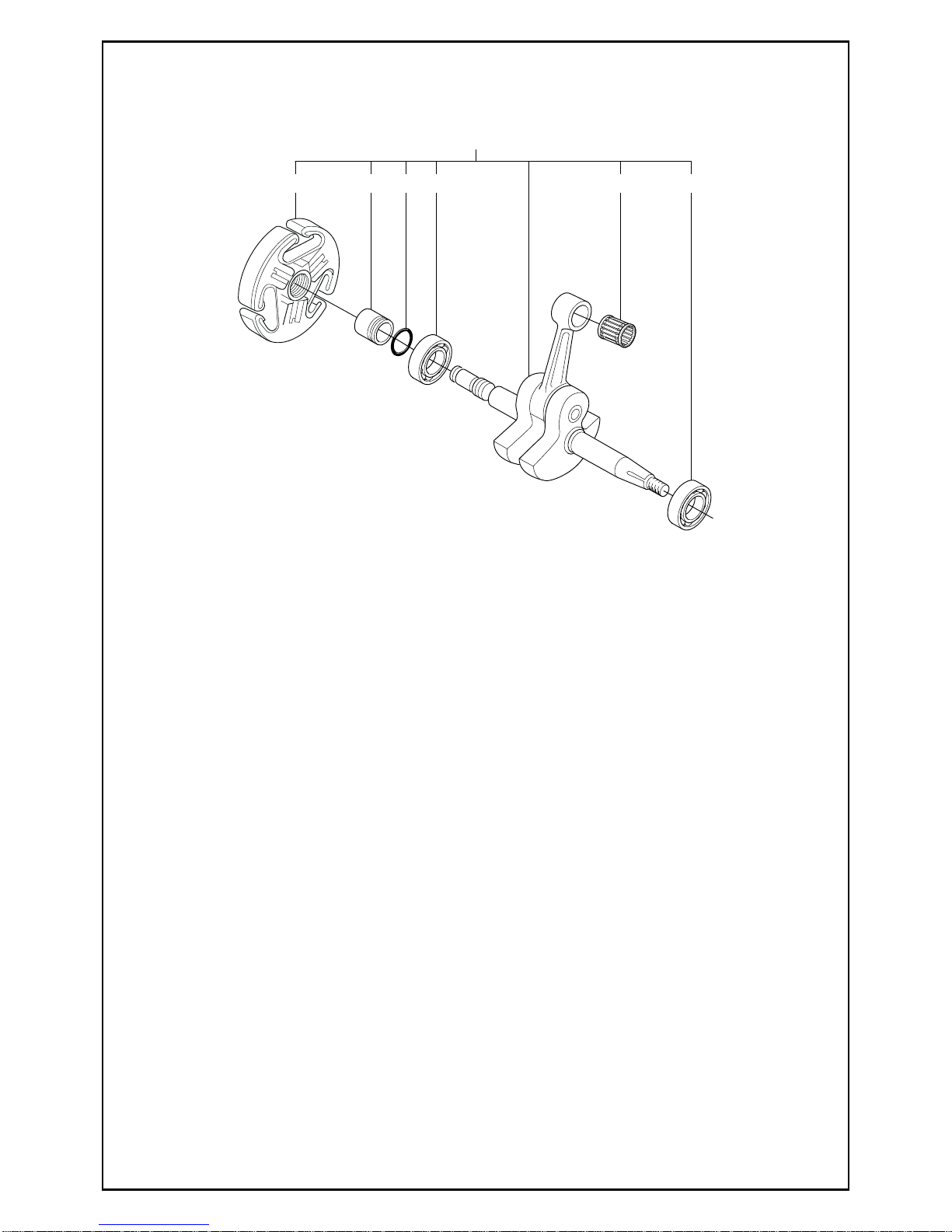

CRANKSHAFT

2 4 5 6 5
