IPL, LT2213, 96041008702, 2010-10

LT2213

ILLUSTRATED PARTS LIST

MFG. ID NO. 96041008702

CUSTOMER CATALOG NO. LT2213

PRODUCT NO. 960 41 00-87

532 43 73-27 Rev. 4

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

KEY PART

NO. NO. DESCRIPTION

410

598

wheel_art_1-tex

WHEELS AND TIRES

KEY PART

NO. NO. DESCRIPTION KEY PART

NO. NO. DESCRIPTION

1 532 05 91-92 Cap Valve Tire

2 532 06 51-39 Stem Valve

3 532 42 52-61 Rim Asm 6" x 3.25 Front

4 532 42 16-52 Tube Front (Service Item Only)

5 532 12 34-10 Tire Front 13 x 5.0-6

6 532 12 49-57 Fitting Grease (Front Wheel Only)

7 532 12 49-59 Bearing Flange (Front Wheel Only)

8 532 17 50-39 Cap Axle Blk 1 50 x 1 00

9 532 10 62-30 Tire Rear 16 x 6 - 5

10 532 00 71-54 Tube Rear (Service Item Only)

11 532 42 52-62 Rim Asm 8" x 5.375 Rear

- - 532 14 43-34 Sealant, Tire (10 oz. Tube)

1 532 40 03-89 Decal, Warning Symbols

2 532 40 11-46 Decal, Warning Service/Fire

3 532 19 68-41 Decal, Warning Engine Symbols

4 532 42 57-16 Decal, Hood Panel

5 532 42 15-43 Decal, V-Belt Schematic

6 532 42 25-97 Decal, Replacement

7 532 18 39-30 Decal, Cover/Belt Guard

8 532 43 74-10 Decal, Engine HP

9 532 14 50-05 Decal, Battery Dnge/Poi

10 532 18 04-32 Decal, Fender DBA

11 532 42 51-12 Decal, Warning

12 532 44 26-47 Decal, Wheel Steering

13 532 14 08-37 Decal, Saddle Brake Parking

14 532 15 97-37 Decal, Brake/Clutch Symbol

15 532 15 97-36 Decal, Chassis Hot Muffler

- - 532 16 25-98 Decal, Load Limit

- - 532 40 95-05 Pad, Footrest, LH

- - 532 41 12-73 Pad, Footrest, RH

- - 532 43 41-95 Manual, Operator's (Euro)

2 2

TRACTOR - - MODEL NO. LT2213 (96041008702), PRODUCT NO. 960 41 00-87

DECALS

FUSE

STARTER

SOLENOID

BATTERY

CLUTCH/BRAKE

(PEDAL UP)

REVERSE SWITCH

(NOT IN REVERSE)

SEAT SWITCH

(NOT OCCUPIED)

SHORTING

CONNECTOR

CHASSIS

HARNESS

IGNITION

UNIT

HOUR

METER

CHASSIS HARNESS

CONNECTOR

(MATING SIDE)

DASH HARNESS

CONNECTOR

(MATING SIDE)

FUEL

LINE

FUEL SHUT-OFF

SOLENOID

(IF SO EQUIPPED)

JUNCTION

CONNECTOR

A2A1

SPARK

PLUGS GAP

(2 PLUGS ON

TWIN CYL. ENGINES)

(OPTIONAL)

NON-REMOVABLE

CONNECTIONS

REMOVABLE

CONNECTIONS

WIRING INSULATED CLIPS

NOTE: IF WIRING INSULATED

CLIPS WERE REMOVED FOR

SERVICING OF UNIT, THEY

SHOULD BE RE-INSTALLED TO

PROPERLY SECURE YOUR

WIRING.

SCH11

IGNITION SWITCH

CIRCUITPOSITION

OFF B+A1

RUN/OVERRIDE

B+S+A1START

M+G+A1

B+A1RUN

“MAKE”

L+A2

ATTACHMENT CLUTCH

(CLUTCH OFF)

BLACK

BLACK /WHITE

BLUE

BLUE BLACK

BLACKBLACK

BLACK

DER

RED

WHITE

GRAY

BLACK

POWER OUTLET

(OPTIONAL)

12V

BLACK

AMMETER

(OPTIONAL)

RED

BLACK

BROWN

HEADLIGHTS

LIGHT SWITCH

ORANGE

LIGHTING SYSTEM OUTPUT

5AMPAC@3600RPM

ALTERNATOR

14 VOLTS AC MIN. @ 3600 RPM (LIGHTS OFF)

DIODE

28 VOLTS AC MIN. @ 3600 RPM

(CHARGING SYSTEM DISCONNECTED)

CHARGING SYSTEM OUTPUT

3 AMP DC @ 3600 RPM

NOTE

YOUR TRACTOR IS

EQUIPPED WITH A SPECIAL

ALTERNATOR SYSTEM.

THE LIGHTS ARE NOT

CONNECTED TO THE

BATTERY, BUT HAVE THEIR

OWN ELECTRICAL SOURCE.

BECAUSE OF THIS, THE

BRIGHTNESS OF THE LIGHTS

WILL CHANGE WITH ENGINE

SPEED. AT IDLE THE LIGHTS

WILL DIM. AS THE ENGINE IS

SPEEDED UP, THE LIGHTS

WILL BECOME THEIR

BRIGHTEST.

TRACTOR - - MODEL NO. LT2213 (96041008702), PRODUCT NO. 960 41 00-87

SCHEMATIC

30 33

79 21

43 27

T02S

With 12V Outlet Option

103

With Service Minder Option

4646

TRACTOR - - MODEL NO. LT2213 (96041008702), PRODUCT NO. 960 41 00-87

ELECTRICAL

KEY PART

NO. NO. DESCRIPTION

1 532 14 49-24 Battery

2 874 76 04-12 Bolt Hex Head 1/4-20 x 3/4

8 532 19 32-28 Box Battery

16 532 17 61-38 Switch Interlock Push-In

21 532 40 02-52 Harness Socket Light w/4152J

22 532 00 41-52 Bulb Light

25 532 41 28-94 Cable Starter

26 532 17 51-58 Fuse

27 873 51 04-00 Nut Keps Hex 1/4-20 unc

28 532 19 88-85 Cable, Ground

29 532 40 15-45 Switch, Seat

30 532 19 33-50 Switch, Ign

33 532 41 19-35 Key/Chain

34 532 11 07-12 Switch Light/Reset

40 532 40 10-98 Harness Ign. Dash

41 817 72 04-08 Screw Thd Cut 1/4-20 x 1/2

42 532 13 15-63 Cover, Terminal

43 532 19 25-07 Solenoid

55 817 06 05-12 Screw Thdrol 5/16-18 x 3/4

71 532 40 04-49 Harness Chassis

79 532 17 52-42 Socket Asm Bulb Twistlock

87 532 19 78-02 Switch Interlock Clutch Cable

90 532 43 53-95 Cover, Terminal Battery

92 532 19 66-15 Harness Pigtail

93 532 19 25-40 Screw Plastite10-14 x 2.0

94 532 19 18-34 Module Reverse

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

TRACTOR - - MODEL NO. LT2213 (96041008702), PRODUCT NO. 960 41 00-87

ELECTRICAL

181

162

196

chassis-tex_TEX LT PRED_29_r1

287

138

153

130

176

150

151

225

176

130

191

297

181

194

68 68

183

236

228

194

180

213

218

189

152 217

235

203

202

176

182

176 176

175

177

303

304

189

312

189 189

189

237

TRACTOR - - MODEL NO. LT2213 (96041008702), PRODUCT NO. 960 41 00-87

CHASSIS AND ENCLOSURES

5 532 42 57-72 Dash

14 532 42 43-32 Hood

18 532 42 65-11 Grille

34 532 19 61-25 Plate Engine

36 817 06 05-12 Screw 5/16-18 x 3/4

37 532 42 47-39 Fender

52 873 68 05-00 Nut Crown Lock 5/16

58 532 41 22-80 Drawbar, Upper

68 817 49 05-08 Screw THDROL 5/16-18 x 1/2

130 532 41 63-58 Screw 10 x .750 BOS Thread

138 532 40 97-30 Cup Holder

150 532 40 02-67 Air Duct

151 532 18 75-68 Bracket Pivot

152 532 19 95-35 Shield Browning

153 532 40 97-40 Lens

162 532 14 24-32 Screw HI-LO 1/4 x 1/2

175 532 19 94-72 Crossmember

176 532 40 07-76 Screw 10-24 x 5/8

177 532 19 52-28 Bushing Steering

180 532 41 46-85 Chassis

181 532 40 47-96 Bushing MNT Fender

182 532 40 71-76 Dash Lower

183 874 52 05-20 Bolt 5/16-18 x 1-1/4

189 817 00 05-12 Screw 5/16-18 x 3/4

191 532 41 65-02 Insert Reflective RH

194 873 90 05-00 Nut Lock Hex Flange 5/16-18

196 532 41 45-79 Console Deck Lift Asm.

202 532 42 33-17 Vent Side Hood RH

203 532 42 33-16 Vent Side Hood LH

213 874 76 05-12 Bolt 5/16-18 x 3/4

217 532 40 91-67 Rod Pivot Hood

218 532 19 63-95 X-Piece Hood Stop

225 532 42 32-28 Bumper Grille

228 532 19 51-61 Stud Fastener

235 532 40 61-29 Spacer Fender

236 873 93 05-00 Nut Lock 5/16-18 unc

237 532 40 37-04 Plug Mount Cargo

287 817 60 04-06 Screw Hex Washead 1/4-20 x 3/8

297 532 40 18-27 Insert Reflective LH

303 532 42 51-51 Chassis Shield French LH

304 532 42 51-52 Chassis Shield French RH

312 532 42 59-26 Shield Drawbar French

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

KEY PART

NO. NO. DESCRIPTION

TRACTOR - - MODEL NO. LT2213 (96041008702), PRODUCT NO. 960 41 00-87

CHASSIS AND ENCLOSURES

185

165 166

64 188

172

125

161

203

184 221

167

160

134

192

157

141

140

139 202

232

175

192 176

178

174

22 166

15 159

195125

158

1183 37

205

155

193

186

189

49 187

190

116

drive-tex_peerless_fender_27

233

275 263

268

287

294

293 291

TRACTOR - - MODEL NO. LT2213 (96041008702), PRODUCT NO. 960 41 00-87

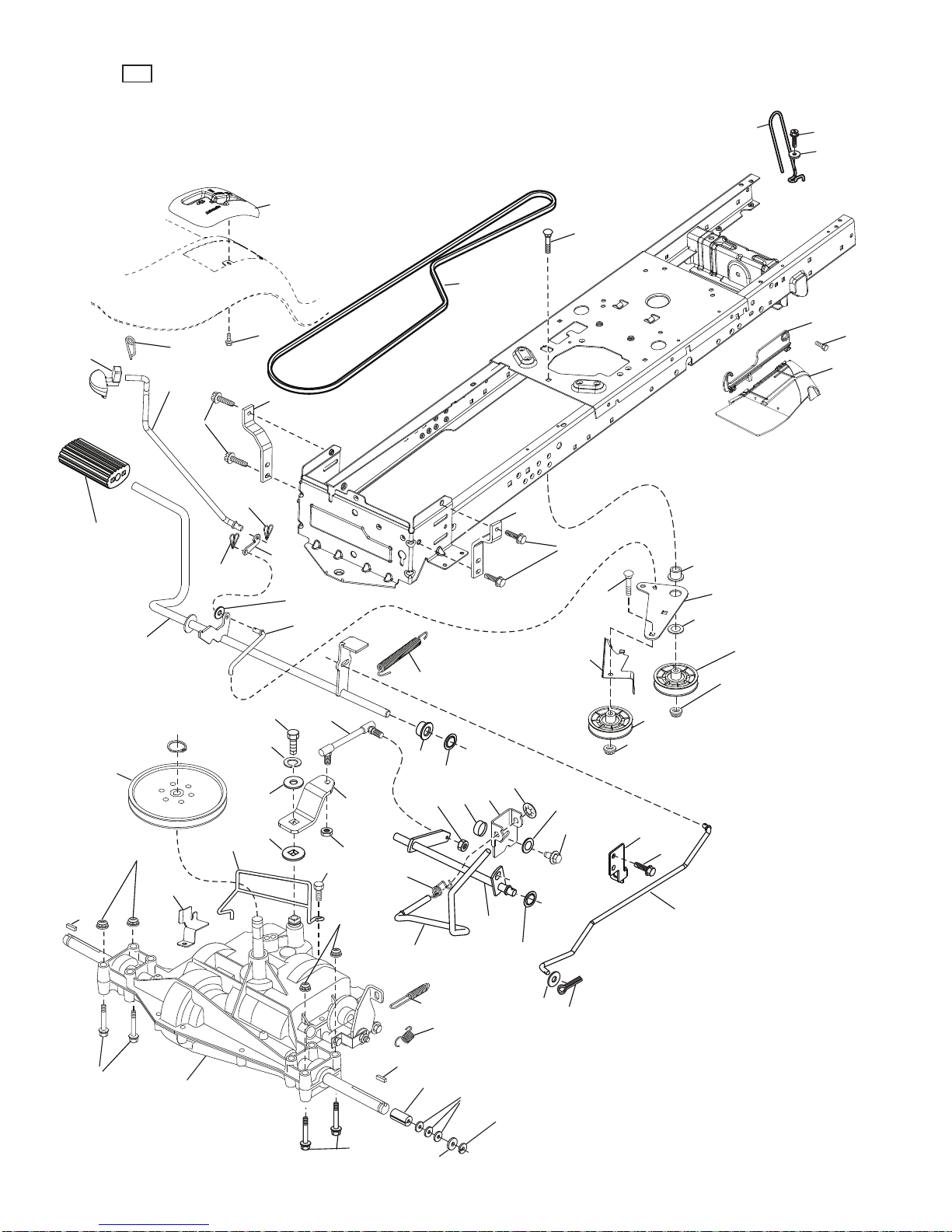

DRIVE

KEY PART

NO. NO. DESCRIPTION KEY PART

NO. NO. DESCRIPTION

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

1 - - - - - - Transaxle, Peerless 206-565

2 532 12 35-83 Key Square

15 819 13 13-16 Washer 13/32 x 13/16 x 16 Ga.

17 532 19 72-97 Spring, Brake

22 532 19 76-60 Rod Shift

23 532 12 12-74 Knob

26 532 19 74-55 Spring Brake Return

29 532 19 72-67 Rod, Brake

33 812 00 00-01 Ring E

35 532 40 10-31 Rod, Brake, Park

37 532 12 17-49 Washer 25/32 x 1-1/4 x 16 Ga.

42 532 12 48-72 Cover, Foot Pedal

49 872 11 06-14 Bolt

50 532 19 43-27 Pulley Idler Flat

51 873 90 06-00 Lock Nut 3/8-16

52 532 19 43-26 Idler V-Groove

56 532 13 82-55 V-Belt, Drive

61 532 16 59-99 Pulley Transaxle

64 532 19 62-00 Shaft Asm. Pedal Brake Control

70 532 41 12-90 Console Shift

73 874 49 05-44 Bolt Hex Flghd 5/16-18 Gr. 5

74 532 14 24-32 Screw Hex Wsh 1/4 x 1/2

116 873 90 05-00 Nut Lock Hex Flange 5/16-18

125 817 00 05-12 Screw 5/16-18 x 3/4

134 532 19 78-57 Asm Shift

139 874 55 04-12 Bolt 1/4-28 unf Gr. 8 w/Patch

140 810 04 04-00 Washer Lock Hvy Helical 1/4

141 819 09 12-10 Washer 9/32 x 3/4 x 10 Ga.

155 812 00 00-28 Ring Retainer

157 532 10 57-01 Washer Plate Shift

158 532 19 43-52 Belt Keeper

159 876 02 04-12 Pin Cotter 1/8 x 3/4

160 532 16 94-84 Retainer Clip

161 532 10 57-09 Spring, Return, Clutch

165 532 19 62-12 Busing Shaft Brake Hand Control

166 532 42 91-64 Nut Push .625

167 532 40 52-57 Latch Brake Parking

172 532 19 76-57 Strap Torque LH

174 532 19 72-89 Nut Push

175 532 19 78-58 Shaft Asm. Shift

176 532 19 62-14 Arm Clevis Rod Shift

178 532 19 74-56 Spring Shift

183 532 13 70-57 Spacer Axle

184 532 40 97-47 Handle Parking Brake

185 872 11 06-22 Bolt 3/8-16 unc x 2-3/4 Gr. 5

186 532 19 43-21 Spacer Retainer

187 819 13 32-10 Washer

188 532 19 43-23 Link Clutch Ground Drive

189 532 19 43-17 Bellcrank Ground Drive

190 532 19 43-18 Keeper Bellcrank Ground Drive

192 532 15 03-60 Nut Lock Center 1/4-28 Fnthd

193 817 06 05-12 Screw 5/16-18 x 3/4

195 532 19 73-32 Bracket Brake Rod

202 532 19 78-59 Link Transaxle

203 819 11 11-16 Washer 11/32 x 11/16 x 16 Ga.

205 532 12 17-48 Washer 25/32 x 1-5/8 16 Ga.

221 532 40 31-87 Retainer Spring Clip Handle

232 874 78 07-16 Bolt Hex 7/16-14 x 1 Gr. 5

233 532 40 52-96 Washer Serrated

263 817 00 06-12 Screw Hexwsh THDR 3/8-16 x 3/4

268 819 13 16-14 Washer 13/32 x 1 x 14 Ga.

275 532 18 24-02 Guard Muffler

287 532 42 16-48 Keeper Pulley Transaxle

291 532 17 01-65 Bolt Shoulder 5/16-18 TT

293 532 42 25-48 Hinge RH

294 532 43 03-03 Guard Asm. RH

TRACTOR - - MODEL NO. LT2213 (96041008702), PRODUCT NO. 960 41 00-87

DRIVE
