Installation Guide
LIGHTING HARDWARE SETUP
EQUIPMENT DAMAGE
WARNING
During the setup of your lighting hardware, it is
critical to ensure that you DO NOT cross-wire
between silver, green-stickered network ports
and black, blue-stickered network ports.
Green-stickered ports CAN ONLY wire to other
green-stickered ports.
Blue-stickered ports CAN ONLY wire to other
blue-stickered ports.
Failure to do so WILL result in damage to the
network ports and void the warranty included
with your CORE Show Player product.
©2018 Jolt Lighting LLC., All rights reserved.
Installation Guide

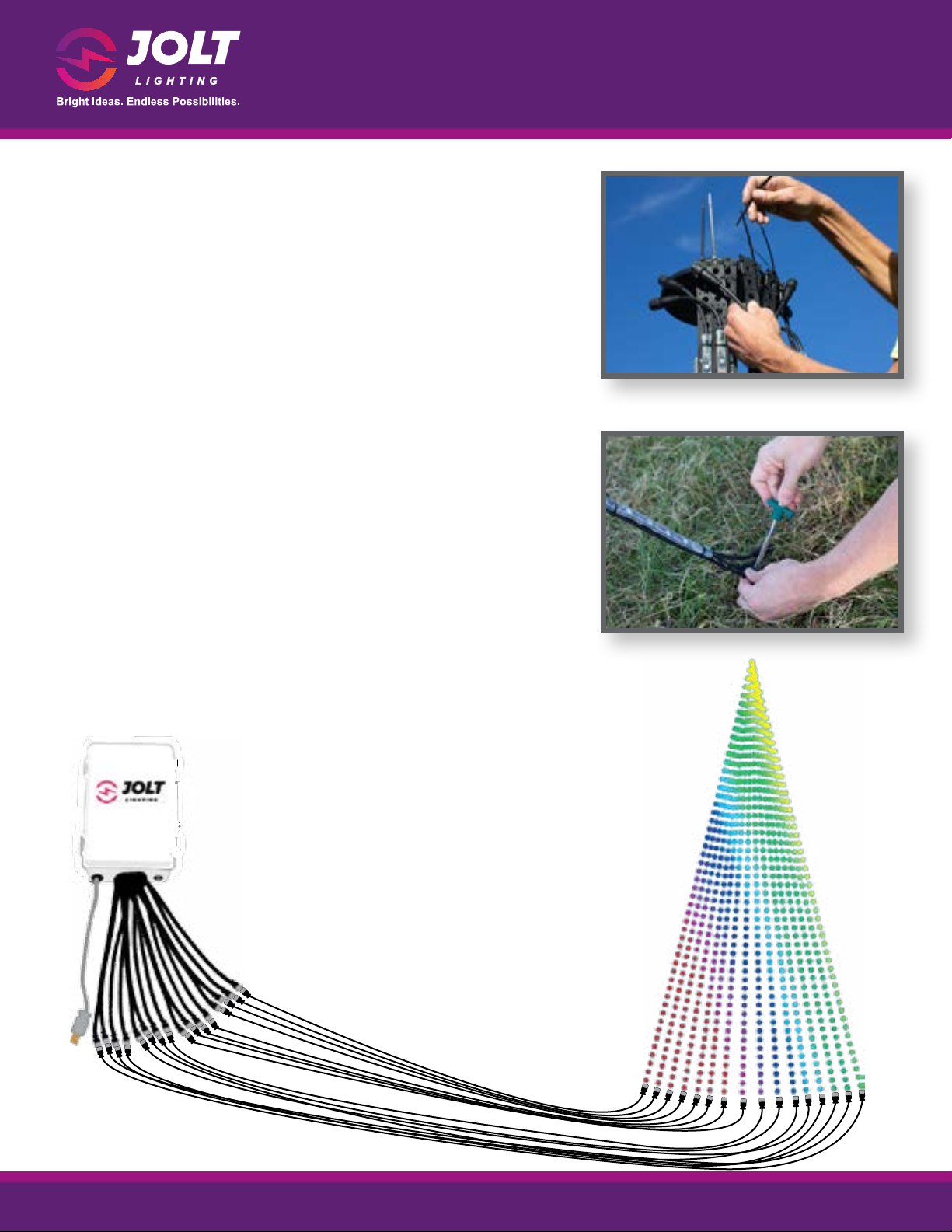

1. Attach Light Strands
Once you have a Mega Tree support pole
in place, zip-tie each light strand to the
tree topper.
2. Stake Light Strands to ground
Using the provided tent stakes, stake
each end of the light strands around
the base of the pole in even intervals,
making a circular base.
3. Plug Lights into Controller
Plug the numbered cords coming out of the
controller into each of the Mega Tree’s light
strand ends. Assign each strand the appropriate
corresponding Controller cord number, working
from left to right as they are laid out.
Continue on in this fashion until all of your RGB
light strings are connected to the controller.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
123456
7
8
910 11 12 13 14 15 16
©2018 Jolt Lighting LLC., All rights reserved.
Installation Guide
4. Connect Network Cable(s)
Connect a network cable from the silver ethernet
(green sticker) in the CORE Show Player enclosure
to either silver input (green sticker) on the RGB
controller enclosure.
5. Connect Audio
Connect an 1/8” audio plug from the headphone
output on the white USB audio adapter inside the
CORE Show Player to your audio playback device.
6. Plug Controller In
Plug in the power cord from the RGB controller
box to a wall outlet or adequately rated extension
cord, followed by the power from your CORE
Show Player.
Wait roughly 90 seconds for your device to
initialize. It will start automatically after the 90
second delay.
