Welcome to Joie™

Congratulations on becoming part of the Joie family! We are so excited

to be part of your journey with your little one. While traveling with Joie

bold™Rbooster you are using a high quality, fully certified safety Group

1/2/3 booster. This product is suitable for use with children weighing

9-36kg (approximately 1– 12 years). Please carefully read this manual and

follow each step to ensure a comfortable ride and best protection for your

child.

Please confirm

This booster is approved to UN ECE regulation 44, 04 series of amend-

ments. This booster can be installed using a 3 point retractable adult seat

belt approved to UN ECE regulation 16 or other equivalent standards.

Booster

! IMPORTANT: KEEP FOR FUTURE REFERENCE. PLEASE READ

CAREFULLY.

Please keep the instruction manual in the storage compartment at the bot-

tom of the booster as right figure.

GB Parts List

Make sure all parts are available before assembly. If any part is missing,

please contact local retailer. No tools are required for assembly.

1 Head Support

Adjustment Lever

2 Head Support

3 Lower Back Support

4 Insert

5 Adjustment Webbing

6 Recline Adjustment

Button

7 Isosafe Releasing Button

8 Side Impact Shield

9 Shoulder Strap

10 Harness Buckle

11 Cupholder

12 Top Tether Strap

13 Tether Strap Adjuster

14 Tether Hook

15 Pocket

16 Isosafe Connector

17 ISOFIX Guides

3 4

WARNING

!Do take care to locate and install the booster so

that it is not liable to become trapped by a move-

able seat or in a door of the vehicle.

!This booster is designed ONLY for child weighing

9-36kg (approximately 1 – 12 years or under).

!Make sure that the straps holding the restraint to

the vehicle should be tight and any straps restrain-

ing the child should be adjusted to the child’s

body. Check to make sure that the straps are not

twisted.

!After your child is placed in this booster, the safety

belt must be used correctly, and ensure that any

lap strap is worn low down, so that the pelvis is

firmly engaged.

!Replace the booster after an accident of any kind.

An accident can cause unseen damage to the

booster.

!NEVER use a booster if it has damaged or missing

parts. DO NOT use a cut, frayed or damaged

vehicle seat belt.

WARNING

!NEVER leave your child unattended with this

booster.

!Failure to properly use this booster increases the

risk of serious injury or death in a sharp turn,

sudden stop or crash.

!DO NOT use this booster without the soft goods.

!The soft goods should not be replaced with any

besides the ones recommended by the manufac-

turer, because the soft goods constitute an inte-

gral part of the booster performance.

!DO NOT use any load bearing contact points other

than those described in the instructions and

marked on the booster.

!NEVER leave luggage or other objects unsecured

in a vehicle, they are liable to cause injuries in the

event of a collision.

!DO NOT use in any configuration not shown in the

instructions.

5 6

WARNING

!NEVER give this booster to someone else without

also giving them this manual.

!NEVER leave a booster unsecured in your vehicle.

An unsecured booster can be thrown around and

may injure occupants in a sharp turn, sudden stop

or crash. Remove it or make sure that it is securely

belted in the vehicle.

!DO NOT modify your booster or use any accesso-

ries or parts supplied by other manufacturers.

!NEVER use a second-hand booster or a booster

whose history you do not know.

!DO NOT face your booster toward the rear of the

vehicle.

!To avoid burns, never put hot liquids in your

booster’s cupholder.

!DO NOT have your child in swaddled clothes when

using this booster in forward facing mode, be-

cause this may prevent your child from being

properly and securely fastened by the shoulder

harnesses and the harnesses between thighs.

WARNING

!The booster can become very hot if left in the sun.

Contact with these parts can burn your child’s

skin. Always touch the surface of any metal or

plastic parts before putting your child in the

booster.

!According to accident statistics, children are safer

when properly restrained in rear vehicle seating

positions, rather than front seating positions. For a

vehicle with a front passenger air bag, refer to your

vehicle owner’s manual as well as these instruc-

tions for a booster installation.

7 8

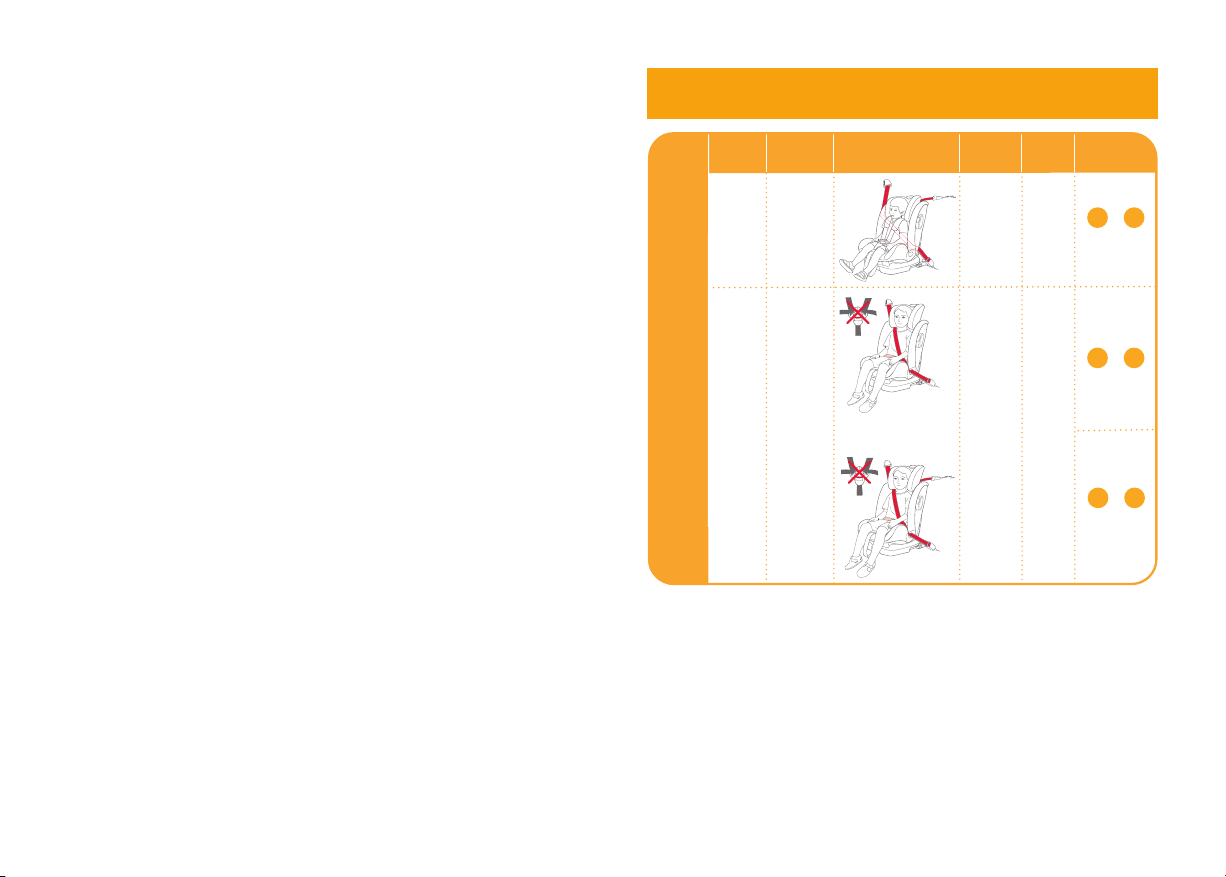

Installation

Mode InstallationReference

Age

Recline

Position

1-3

harness

mode

9-25kg

Child's

Weight

ECE

R44.04

15-36kg

Reference

Images

2 3

+ Top Tether

Approx

1 year

years

Position

1-3

Approx

3 years

years

booster

mode or

+ Top Tether

Choose the Installation Mode

Emergency

In case of emergency or accidents, it is most important to have

your child taken care of with first aid and medical treatment

immediately.

Product Information

Read all the instructions in this manual before using this

product. If in doubt, consult either the booster manufacturer or

the retailer.

1. This booster is a ‘Semi-Universal’ child restraint. It is

approved to UN ECE regulation 44, 04 series of amendments

for general use in vehicles fitted with ISOFIX anchorages

systems.

2. Seat positions in other cars may also be suitable to accept

the booster. Please refer to our vehicle fitting list (on-product

as well as online at our website).

Product Bold R

Suitable for

Child weighing 9-36kg

(approximately 1 – 12 years)

Mass Group Group 1/2/3

Materials Plastics, metal, fabrics

Patent No. Patents pending

910

see images 1- 4

1 2

Concerns on Installation

see images 5

Height Adjustment – for Head Support

see images 6

1. Please adjust the head support

to proper height according to

the child's height.

2. Squeeze the head support

adjustment lever, meanwhile

pull up or push down the head

support until it snaps into one

of the 11 positions.

!Before adjusting the head

support height have your child

lean forward slightly.

Use Cupholder

Check provided car

fitting list for

approved seats for

booster

attachment.

11 12

see images 7- 8

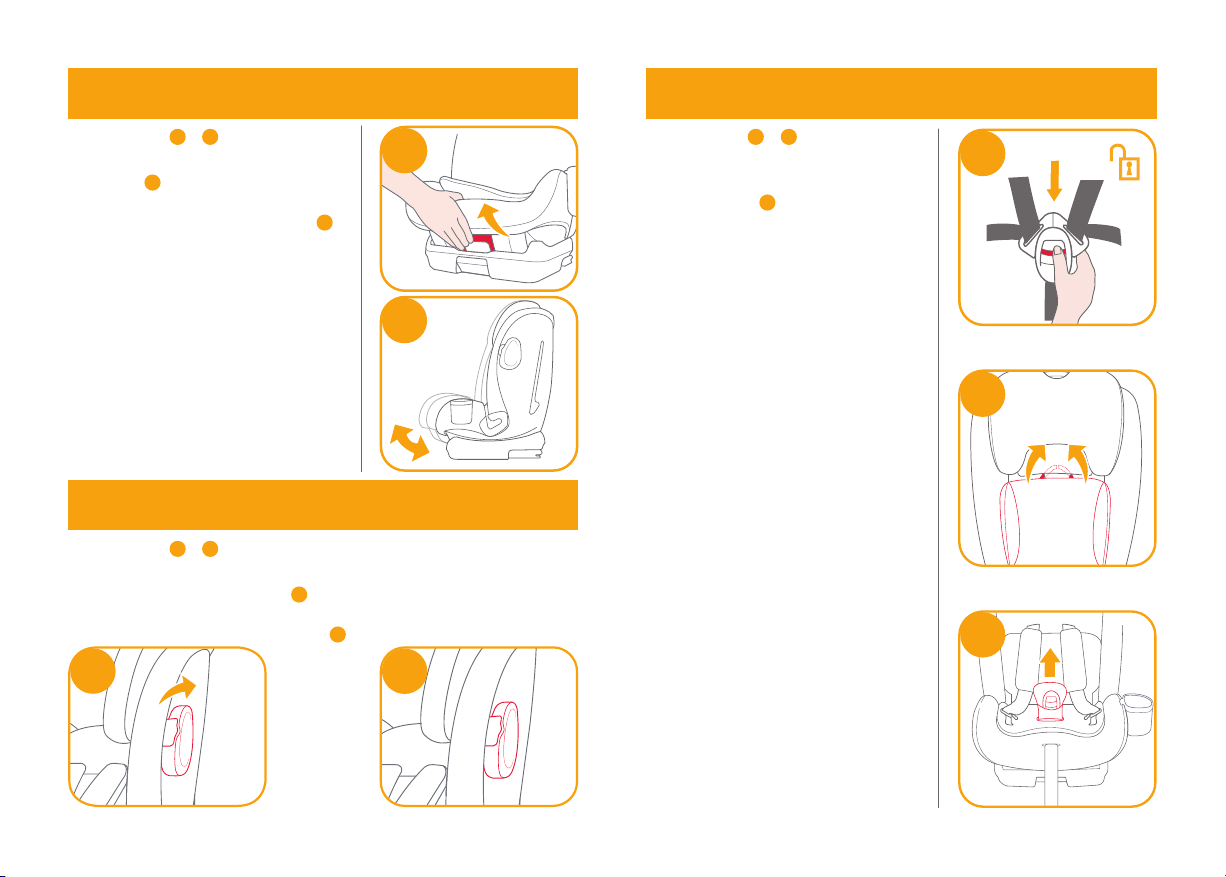

1. Squeeze the recline adjustment

button 7, to adjust the booster

to the proper position. The

recline angles are shown as 8.

2. There are 3 recline positions

for forward facing mode.

see images 9- 10

!Make sure to open the side impact protection shield for

more side impact safety. 9The side impact shield will be

locked in permanently open position after it is opened for

maximum side impact safety. 10

Recline Adjustment

910

Use Side Impact Shield

see images 11 - 16

1. Unlock the buckle of the

harnesses by pressing the

red button. 11

!To ensure the best protection

for the child, always use the

small insert when the child's

shoulder height is lower than

the headrest bottom.

Use Insert

13 14

see images 17 - 22

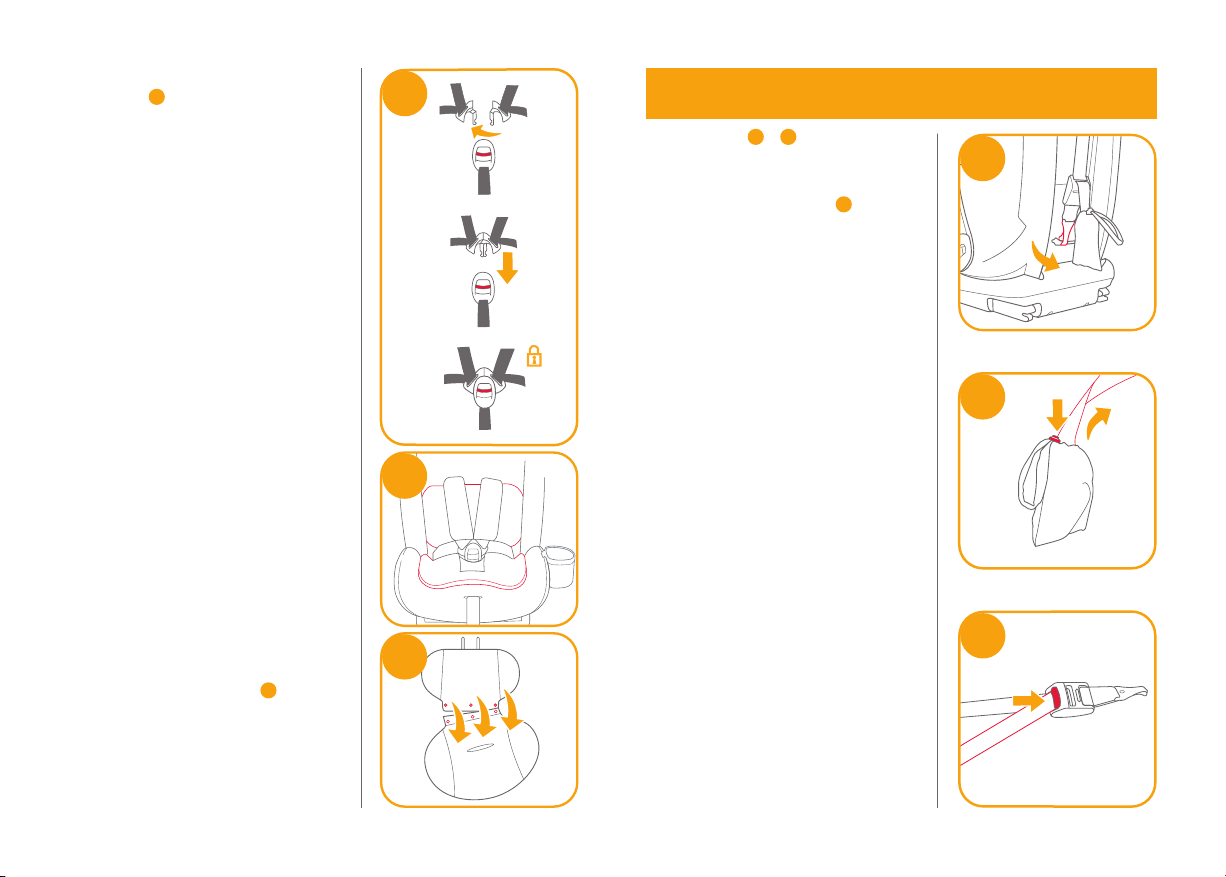

1. To extend top tether for use,

press button on tether adjuster

and pull to lengthen. 19

Use Top Tether

2.Engage the buckle. Please

refer to 14 .

3. When the child's shoulders are

higher than the headrest

bottom without the support

from the small insert, remove

the lower body insert 16 , and

use upper body insert only until

the child does not fit

comfortably.

!This may vary depending on

regions.

15 16

see images 23 - 29

1. If required attach the plastic

guides onto the vehicle ISOFIX

bars. 23

2. Extend the Isosafe connectors

by depressing on the release

button 24 whilst pulling on the

connector. 25

Use Isosafe System

2. Connect the tether hook

securely to the anchorage

fitting. 20

!Use top tether for installation if

vehicle is equipped with a

tether anchorage fitting and

vehicle requirements are met

(see vehicle owner's manual).

!When not in use, top tether

must be properly stored. To

make sure the top tether is

properly stored away, remove

any slack in strap to avoid the

top tether swinging around

when the vehicle is in progress.

21 22

17 18

3. For transporting base, press

Isosafe connectors button 24

and move back Isosafe

connector so it is folded

completely. 29

!Make sure that both Isosafe

connectors are securely

attached to their ISOFIX

anchor points. The colors of

the indicators on both Isosafe

connectors should be

completely green. 26

!Press the Isosafe connectors

button 24 and push the base

back against the vehicle seat

until tight.

Removing the base

1. To remove base from the

vehicle press the release button

24 and pull the base back from

the seat. 27

2. Then press 28 -1 and pull back

on the Isosafe connector. 28 -2

1 2

see images 30 - 34

1. Press the webbing adjustment

button, while pulling out the

shoulder harnesses to the

proper length. 30

2. Press the red button to

disengage the buckle. 31

GROUP 1 (9-18kg) &

GROUP 2 (15-25kg)

With Isosafe system + 3-point-belt + top tether +

harness buckle
