Johnson 1X Manual de usuario
1
Issue date 2017-6-30 Edition 01 Doc No. SM-TM-AF-
020
Revision
date 01
Page 69
Johnson
Approval Review Editor
Kyle Schweitzer Alex Tang
1X & 1XE
T3X & T-1XE3XE
Service Manual
Johnson Industries (Shanghai) Co.,Ltd
2
Contents
CHAPTER 1: SERIAL NUMBER LOCATION
1.1 .Console Overview…………………… …….………………...………….…………………………………...4
1.2 . Serial location/model type apply list………………………………………………………………………...5
CHAPTER 2: CONSOLE INSTRUCTION
2.1. 1X Console Description… ………..……….……………………………………………………………6
2.2 1XE Console Description………………………………………………………………………………...7
2.2. T3XConsole Description………………… ……………………………………………………………...8
2.3. T-1XET3XET3XH Console Description……………………………………………………………….10
2.4 1XE/T-1XE3XE Operation Description………………………………………………………………..11
CHAPTER 3: 1X/T3X CONSOLE SPECIAL MODE
3.1 Special Mode Browse……………………………………………………………………………………..15
3.2 Manage Mode……………………………………………………………………………………………...16
3.3 Engineer Mode…………………………………………………………………………………………….17
3.4 Service Mode………………………………………………………………………………......................18
3.5 Test Mode………………………………………………………………………………………………….18
CHAPTER 4: 1XE & T-1XE3XE CONSOLE SPECIAL MODE
4.1 Initial Setup……………………………..………………………………………………………………….19
4.2 BT Setup…………………………………………………………………………………………………...20
4.3 VA Setup…………………………………………………………………………………………………...21
4.4 Software updating…………………………………………………………………………………….......22
4.5 Special Mode Browse…………………………………………………………………………………….23
4.6 General………………………………………………………………………... ………………………….23
4.7 Workout…………………………………………………………………………………………...……….27
4.8 Setup Default……………………………………………………………………………………………...28
4.9 Update……………………………………………………………………………………………………..28
4.10 Network Setup…………………………………………………………………………………………...29
4.11 Asset Management……………………………………………………………………………………...29
4.12 Weather…………………………………………………………………………………………………..30
4.13 TV………………………………………………………………………………………………………....31
3
Contents
CHAPTER 4: 1XE &T-1XE3XE CONSOLE SPECIAL MODE
4.17 Service…………………………………………………………………………………………………….33
4.18 Errors……………………………………………………………………………………………………...33
4.19 Management……………………………………………………………………………………………..34
4.20 Console Screen Calibration (T-1XE3XE-07) ……………………………………………………….35
CHAPTER 5: TROUBLESHOOTING
5.1 Electrical Diagram…………………………………………………………………………………………36
5.2 Ports Description…………………………………………………………………………………………..39
5.3.Error code…………………………………………………………………………………………………..43
5.4 Console Does Not Light Up……….. …………………………………………………………………….47
5.5 Speed Do Not Display…………………………………………………………………………………….47
5.6 Keypad /heart rate……….………………………………………………………………………………..48
5.7 Safe key ………. …………………………………………………………………………………………..48
5.8. Touch Screen Freeze…………………………………………………………………………………….49
5.9. Touch Screen Distortion………………………………………………………………………………….53
5.10Via Fit Issue (1XE/T-1XE3XE)…………………………………………………………………………..54
5.11 WIFI issue..……………………………………………………………………………………………….62
CHAPTER 6 : MAIN COMPONENT INSTALLATION
6.1 . Wi-Fi Module Install -(1X-04-C) & (T3X-05-C) ……………………………………………………….63
6.1.1. Wi-Fi setup (1X-04-C) & (T3X-05-C)…………………………..……………………………………..64
6.2 BT installation (For 1XE &T-1XE3XE console)………………………………………………………...65
6.2.1 BT setup( For 1XE & T-1XE3XE console)……..……………………………………………………..66
6.3 WIFI installation (For 1XE & T-1XE3XE console)…...………………………………………………...67
6.3.1 WIFI setup (For 1XE & T-1XE3XE console) ...……………………………………………………….68
6.4 VA Installation & Setup (For 1XE &T-1XE3XE console)...………...………………………………….69
4.14 Application………………………………………………………………………………………………..32
4.15 Calibration………………………………………………………………………………………………...32
4.16 Hardware………………………………...……………………………………………………………….33
4
CHAPTER 1: SEARIL NUMBER LOCATION
1.1 CONSOLE OVERVIEW
T3X T-1XE3XE
5
CHAPTER 1: SEARIL NUMBER LOCATION
1.2 serial location/model type apply list
Model Console Model ID
RECUMBENT ( R )
1X/1XE
R1X/R1XE
UPRIGHT ( U ) U1X/U1XE
ELLIPTICAL ( E ) E1X/E1XE
FRAME Console MODEL
T-1X-F T-1X-C T1X
T-1X-F T-1XE3XE T1XE
T-3X-F T-3X-C T3X
T-3X-F T-1XE3XE T3XE
6
CHAPTER 2: CONSOLE INSTRUCTION
2.1 1X CONSOLE DESCRIPTION
A) WORKOUT KEYS: Simple program view and selection buttons.
B) GO: One Touch Start.
C) ENTER : Confirm each program setting.
D) BACK: Go to previous program setting.
E) NUMBER KEYPAD: Enter program settings.
F) UP/DOWN LEVEL: Adjust resistance level.
G) UP/DOWN TIME: Adjust workout time.
H) STOP: Ends workout and shows workout summary data.
I) COOL DOWN: Puts the console into Cool Down mode.
J) TOGGLE DISPLAY: Cycles between 3 or 4 rows of workout information displayed in LED window.
The console will automatically cycle between the workout information if the Toggle Display button is
pushed and held down for 3 seconds.
7
CHAPTER 2: CONSOLE INSTRUCTION

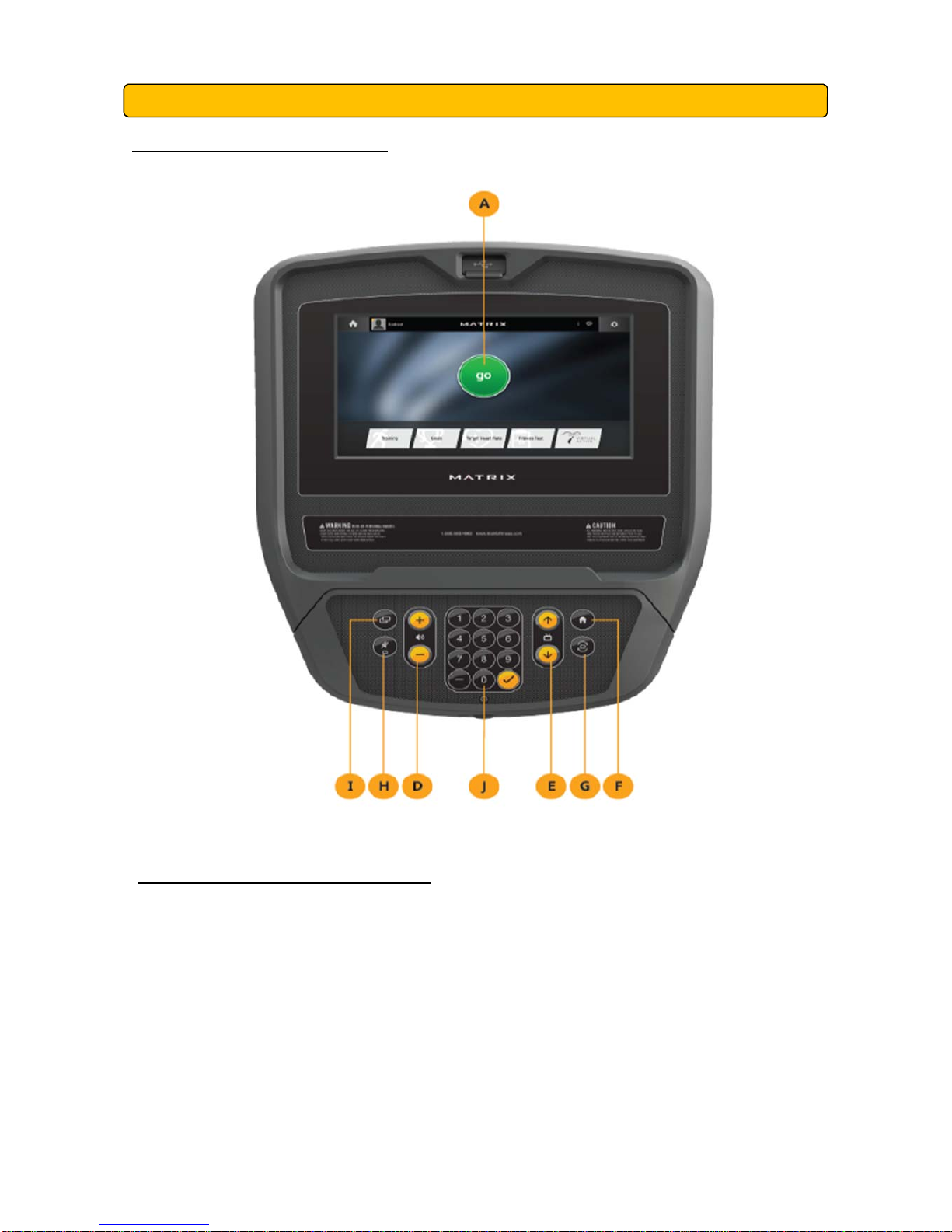

2.2 1XE CONSOLE DESCRIPTION
2.2 1XE CONSOLE DISPLAY DESCRPITON
The Matrix machine is inspected before it is packaged. It is shipped in two pieces: the base and the con-
sole. Carefully unpack the unit and dispose of the box material. Note: There is a thin protective sheet of
clear plastic on the overlay of the console that should be removed before use.
The 1xe has a fully integrated touch screen display. All information required for workouts is explained on
screen. Exploration of the interface is highly encouraged. The information explaining how to program for
various workouts will give an explanation about the contents of each screen on the 1xe.
A) GO: One Touch Start.
B) STOP (displayed on-screen during workout): Ends workout and shows workout summary data.
C) COOL DOWN (displayed on-screen during workout): Puts unit into Cool Down mode. Cool Down
time is dependent on the workout
8
CHAPTER 2: CONSOLE INSTRUCTION
2.2 T3X CONSOLE DESCRIPTION
ENTERTAINMENT BUTTONS
K) TV POWER: Turns connected TV on or off.
L) VOLUME UP/DOWN: Adjusts the volume output through headphones.
M) MUTE: Mutes sound.
N) CC: Turns closed captioning on or off.
O) CHANNEL UP/DOWN: Change channels on the integrated console TV.
P) LAST CHANNEL: Cycle between the current channel and the previous channel.
2.2 T3X CONSOLE DESCRIPTION
9
CHAPTER 2: CONSOLE INSTRUCTION
2.2 T3X CONSOLE DESCRIPTION
A) WORKOUT KEYS: Simple program view and selection buttons. Press Fitness Test button to cycle
through available tests.
B) GO: One Touch Start.
C) ENTER: To confirm each program setting.
D) BACK: Go to previous program setting.
E)NUMBER KEYPAD: Allows for easy number inputs.
F) UP/DOWN INCLINE: Adjust incline and make program selections.
G)UP/DOWN SPEED: Adjust speed and make program selections.
H) UP/DOWN TIME: Adjust workout time.
I) TOGGLE DISPLAY: Cycles between 3 rows of workout information displayed in LED window. The con-
sole will automatically cycle between the workout information if the Toggle Display button is pushed and
held down for 3 seconds.
J) EMERGENCY STOP / IMMOBILIZATION: To stop all functions and immobilize the unit. The emergen-
cy stop on this treadmill must be returned to its original position in order to allow normal operation of the
unit.
K) STOP: Ends workout and shows workout summary data.
L) PAUSE: Pauses workout. Pause duration can be set in manager or engineering mode.
M)
COOL DOWN: Puts treadmill into Cool Down mode. Cool Down time is dependent on the length of the
workout.
10
CHAPTER 2: CONSOLE INSTRUCTION
2.3 T-3XE3XH CONSOLE DESCRIPTION
T1XE/T3XE CONSOLE DESCRIPTION
The Matrix machine is inspected before it is packaged. It is shipped in two pieces: the base and the con-
sole. Carefully unpack the unit and dispose of the box material. Note: There is a thin protective sheet of
clear plastic on the overlay of the console that should be removed before use.
The T1xe/T3xe has a fully integrated touch screen display. All information required for workouts is ex-
plained on-screen. Exploration of the interface is highly encouraged. The information explaining how to
program for various workouts will give an explanation about the contents of each screen on the T1xe/
T3xe.
