1 - Introduction
Congratulations! You have just purchased an excellent grain chopper JF 5D-10D, easy to operate
andmaintain.
Besidesgrainchopper,thismachinecanbeconfiguredtoworkasforagechopper.
Wethankyouforchoiceofamachinereallysuitabletoyourneeds,whichismadebyacompanythat
continuouslysearchesfortheimprovementofitsproducts.
This Manual supplies the instructions for correct operation, preventive maintenance and
informationonhowtocontacttheTechnicalServiceifnecessary.Beforeoperatethemachineforthe
firsttime,readthesafetyinstructionsandallotherinstructionsinthismanual.
In case of any doubt, please contact with any of our Authorized Dealers or with our Post Sale
Department;Wearegoingtobeverygladinhelpingyouonwhateveryouneed.
PostSaleDepartment
Phone ..................................................................................................... (0xx19) 3863-9658
(0xx19) 3863-9642
e-mail ...................................................................................... falecom@jfmaquinas.com.br
Website ............................................................................................... www.jfmaquinas.com
The images displayed in this manual are only for illustrative purposes. Thus to facilitate your
viewing,theimages showcutawayor thesafetyshielding removedfordisplaying itmoreclearly.Do
notoperatethemachineunderanycircumstanceswithouttheserespectiveprotectiveshields.
English
1-Introduction 03
2-Safetyinstructions 06
2.1-Whenreadingtheinstructionsmanual 06
2.2-Whenoperatingthemachine 06
2.3-Whenmakingmaintenanceinthemachine 07
2.4-Transportontruck 07
3-Machinepresentation 08
3.1-Componentsidentification 08
3.2-Operation 09
3.3-Technicalspecifications 10
4-Assemblingprioroperation 12
4.1-Assemblyofthedetachedparts 12
4.2-Assemblingthemachineonthesuport 14
4.3-Assemblingthemotoronthesupport 15
4.4-Cyclone(optionalitem) 16
4.5-Machinelevellingandpositioning 17
5-Adjustsofoperation 18
5.1-TooperatetheJF5D-10Dasgrainchopper 18
5.2-TooperatetheJF5D-10Dinforagechoppermode 20
5.3-Machineworkspeedadjustments 21
6-Stepbystepoperation 22
6.1-Operatingthemachineingrainchoppermode 22
6.2-Operatingthemachineinforagechoppermode 23
7-Maintenanceinstructions 24
7.1-Greaselubricatingpoints 24
7.2-Chopperknivessharpening 25
7.3-Gapadjustmentsbetweenknifeandcounterknife 26
7.4-Counterknifereplacement 27
7.5-Changeofgrinderhammers 28
7.6-Pulleyalignment 30
7.7-Beltstensionadjustmentandreplacements 31
7.8-Machinepreservation 32
8-Detacheditemsthatcomealongwiththemachine 33
9-Troubleshooting 34
10-TechnicalAssistance 35
10.1-Machineserialnumber 35
10.2-Warrantyterm 36
10.3-TechnicalDeliveryvoucher 37
Contents
4
Note:
JF Máquinas Agrícolas Ltda., goal is the constant update and improvement of its
products.keepingitselftherightofinstrucingchangeswithoutpreviousadvice.
5
OPERATION TECHNICAL MANUAL - MILL 5D - 10D
2- Safety Recommendations
2.1- While Reading the Manual
Warning Labels
Seating and Torques
Protectors, Closures and Fairings
ObservetherecommendationsofyourTractor'sManual,forasafeandefficientoperation.
Obs.: You must obey and never discard these labels. In case of repainting, you ought to replace
themwithoriginalitemsasstatedinItem8.
Note:
Itmeansthatadetailwillbepresentedanditmayconcernsoperationorsecurity.
Note:
The machine features several labels containing warnings and/or technical guidance
thatconcernsecurity.
Note:
Whenseatingthe screwspresentedinthismanual,usetorques andkeyspresent inthe
tableofItem AdditionalInformation.
Attention:
It means that your life or parts of your body may be in danger. You must pay
attentiontothissign!
Attention:
YoumustneveroperatetheHarvesterwithoutProtectors,ClosuresandFairings.
1
2.2- When operating the machine
1- The JF 5D - 10D is designed exclusively to
desintegrategrainsandchopforage.
2- When supply the machine, never introduct the hands
intothefeedingchute(1).
3-Inordertoobtainthemaximumefficiencyandqualityof
chopped or designed material, maintain a constant and
uniformfeeding.
4- To more security fasten the machine on a even and
rigidsurface.
English
6
5-Never usethe machineto choptree branchsor another
rigidmaterial.
6- Never attempt to adjust or repair components with the
machinerunning.
7- Do not leave the machine in a place that can be
operatedbychildrenornotqualifypeople.
1
8- The cover belt is not included with the machine when it leaves the factory without a motor
coupled,but itsuse isMANDATORY assafety NR12 (Item12.38. Dangerareas of themachineries
andequipmentsmusthavesafetysystems,characterizedbyfixedcovers,mobilecoversandsafety
devices interconnected to ensure health protection and physical integrity of workers) and NR31
(Item 31.12.12 the rural employer or similar are responsible to maintain the security systems in
perfect condition and operation, which the total or partial withdrawal or neutralization of these
systemswhichendangerthephysicalintegrityofworkersconsideredseriousandimminentrisk).
2.3- When making maintenance in the machine
1-Machinemustbeturnedoffforanytypeofmaintenance.
2-Observethespecificationandamountoflubricanttobeusedonthemachine
2.4- Transport on truck
Whenever you have to transport the machine for longer distances, when there is need for using
publicroads,thetransportmustbedoneontruckortrailler.
Tomoresafety,themachinemustbefixedwithropeonthetruck.
7
OPERATION TECHNICAL MANUAL - MILL 5D - 10D
3- Machine presentation
3.1- Parts identification
1-Grainhopper
2-Feedingnozzle
3-Protectionscreen
4-Upperproductoutput(forage)
5-Deflector(forage)
6-Foragecounterknife
7- Inferior product outlet (desintegrated
grains)
8- Flow adjusting plate to desintegrated
product
9-Foragechopperknifes(2units)
10-Grinderhammers(20units)
11-Machinebase
1
64
5
11
9
10
2
8
7
3
English
8
3.2- Operation
The JF 5D - 10D Mill machine is a simple, strong and
versatile machine, designed to help you on daily animal
feed.
Themachineofferstwooperationtypes:
A-Cerealsmill:corn,sorghum,soybeanetc.
For this function, use the grain chopper (1), lower outlet
(2)andoneof4sives(3).Thecerealsmillingisperformed
byhammers(4),thatrotateinhighspeed.
B- Plants chopper for forage such as corn, grass
(elephantgrass,napieretc)andsugarcane.
For this usage, to use the feeding nozzle (5), upper outlet
(6) and sealing rubber (7). The gring action occurs by the
knives(8)andcounterknife(9).
1
5
9
6
2
8
4
Sieves kit that come along with the machine
(see sieve chart on page 19)
7
3
9
OPERATION TECHNICAL MANUAL - MILL 5D - 10D
3.3- Technical specifications
Models
JF 5D
JF 10D
Drive
Electric motor
Electric motor
Power
7,5 until 10,0 cv
5,5 until 7,5 Kw
10,0 until 15,0 cv
7,5 until 11,0 Kw
Work speed
4.200 until 4.400 rpm
3.800 until 4.000 rpm
Cutting knifes
2 units
2 units
Grinder hammers
20 units
20 units
Pulley diameter which follow the machine
(50 Hz motor)
138 mm
155 mm
Pulley diameter which follow the machine
(60 Hz motor)
115 mm
130 mm
approximated weight
115 kg
130 kg
Dimensions (see pictures next page)
A1 (height without cyclone)
1.380 mm
1.427 mm
A2 (height with cyclone)
1.763 mm
1.763 mm
C1 (lengh without cyclone)
802 mm
912 mm
C2 (lengh with cyclone)
1.858 mm
1.995 mm
L (width with or without cyclone)
1.346 mm
1.374 mm
Note: Electric base heigh = 56 mm
English
10
A1
C1
L
L
A2
C2

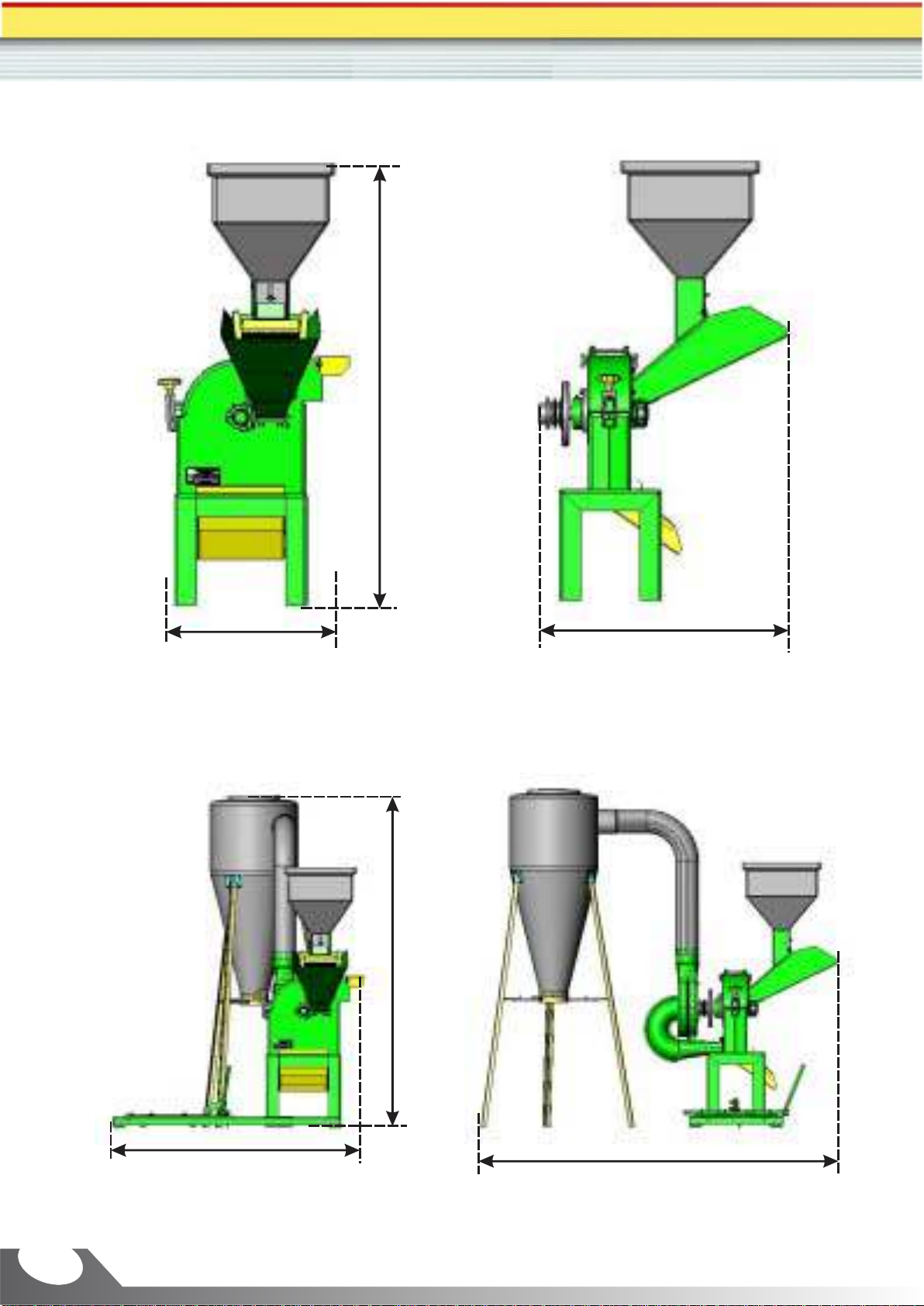

Frontal view without cyclone Right hand side view without cyclone
Frontal view with cyclone Right hand side view with cyclone
