JETWAY MCP78S Manual de usuario

USER'S MANUAL

NVIDIA MCP78S

Based

Mini-ITX M/B For AMD Socket AM2+ Processor

NO.G03-NC62-F

Rev1.0

Release date: May, 2008

Trademark:

* Specifications and Information contained in this documentation are furnished for information use only, and are

subject to change at any time without notice, and should not be construed as a commitment by manufacturer.



Environmental Protection Announcement

Do not dispose this electronic device into the trash while discarding. To minimize pollution

and ensure environment protection of mother earth, please recycle.



iii

USER’S NOTICE .................................................................................................................................. iii

MANUAL REVISION INFORMATION............................................................................................ iii

ITEM CHECKLIST.............................................................................................................................. iii

CHAPTER 1 INTRODUCTION OF AMDCS5536 CHIPSET MOTHERBOARD

1-1 FEATURE OF MOTHERBOARD..................................................................................... 1

1-1-1 SPECICAL FEATURE OF MOTHERBOARD............................................................. 2

1-2 SPECIFICATION.................................................................................................................. 3

1-3 LAYOUT DIAGRAM & JUMPER SETTING................................................................... 5

CHAPTER 2 HARDWARE INSTALLATION

2-1 HARDWARE INSTALLATION STEPS............................................................................. 8

2-2 CHECKING MOTHERBOARD'S JUMPER SETTING.................................................. 8

2-3 INSTALL MEMORY............................................................................................................ 9

2-4 EXPANSION CARDS........................................................................................................... 11

2-4-1 PROCEDURE FOR EXPANSION CARD INSTALLATION............................ 11

2-5 CONNECTORS AND HEADERS ....................................................................................... 12

2-5-1 CONNECTORS....................................................................................................... 12

2-5-2 HEADERS ............................................................................................................... 14

2-6 STARTING UP YOUR COMPUTER ................................................................................. 16

TABLE OF CONTENT



USER’S NOTICE

INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT MAY BE REPRODUCED,

TRANSMITTED OR TRANSLATED INTO ANY LANGUAGE IN ANY FORM OR BY ANY MEANS WITHOUT

WRITTEN PERMISSION OF THE MANUFACTURER.

THIS MANUAL CONTAINS ALL INFORMATION REQUIRED TO USE INTEL 945GM CHIPSET

MOTHER-BOARD SERIES AND WE DO ASSURE THIS MANUAL MEETS USER’S REQUIREMENT BUT WILL

CHANGE, CORRECT ANY TIME WITHOUT NOTICE. MANUFACTURER PROVIDES THIS MANUAL “AS IS”

WITHOUT WARRANTY OF ANY KIND, AND WILL NOT BE LIABLE FOR ANY INDIRECT, SPECIAL,

INCIDENTIALORCONSEQUENTIAL DAMAGES (INCLUDING DAMANGES FOR LOSS OF PROFIT, LOSS OF

BUSINESS, LOSS OF USE OF DATA, INTERRUPTION OF BUSINESS AND THE LIKE).

PRODUCTS AND CORPORATE NAMES APPEARING IN THIS MANUAL MAY OR MAY NOT BE

REGISTERED TRADEMARKS OR COPYRIGHTS OF THEIR RESPECTIVE COMPANIES, AND THEY ARE

USED ONLY FOR IDENTIFICATION OR EXPLANATION AND TO THE OWNER’S BENEFIT, WITHOUT

INTENT TO INFRINGE.

Manual Revision Information

Reversion Revision History Date

1.0 First Edition May, 2008

Item Checklist

5Motherboard

5Cable for IDE Port

5CD for motherboard utilities

5Motherboard User’s Manual

5Back panel(optional)

5DVI to HDMI Connector





Chapter 1

Introduction of the Motherboard

1-1 Feature of motherboard

The motherboard series are designed for the new generation AMD processor family

guaranteed both of the performance and stability of general purpose IPC and dedicated IPC

platform solutions. The MCP78S chipset is fully optimized to provide the variety IPC

platform solutions by featuring the high compatibilities and cost-effective, low power

consumption, high performance, and superior core graphics engine.

The motherboard AMD Socket AM2+ Quad core Opteron&Phenom, with low power

consumption never denies high performance. The embedded AMD Socket AM2+ Quad core

Opteron&Phenom family processor has evolved to meet the specific requirements of extended

temperature applications in telecommunications infrastructure (including wired, wireless, and

BSC/MSC), single board computing, automotive and transportation systems and industrial

control and monitoring.

The motherboard series support HT3.0 and DDRII 400/533/667/800 system RAM Modules

which is expandable to 2.0GB. The motherboard offers ULTRA ATA 133 HDD connectors

and Serial ATA2 with RAID 0 ,1, 5,10，JBOD functions which support up to IDE and four

Serial ATA2 devices to accelerate hard disk drives and guarantee the data security without

failure in advanced computing performance. The motherboard provide two Gigabit Ethernet

LAN for internet or intranet connections, one is PCI-E LAN, the other one is PHY LAN

（optional）. The motherboard series are also integrated Realtek ALC883 8channel Audio

CODEC on system which is fully compatible with Sound Blaster Pro®that gives you the best

sound quality and compatibility.

Embedded 10 USB2.0 functional ports delivering 480Mb/s data transfer rate, these

motherboards meet USB2.0 demands data transport demands which are also equipped with



hardware monitor function on system to monitor and protect your system and maintain your

non-stop business computing.

Targets at High Growth Markets: Digital Home / Digital Office / Digital World

-Personal electronics such as personal video recorders (PVR), set top boxes, home theatres,

digital audio centers, etc.

-Mini PCs / Green clients / Quiet desktop PCs / High density servers

-Home server appliances / Public information/entertainment kiosks / Point-of-Sales

systems / Intelligent displays / Edge networking devices / Hospital monitoring systems /

Municipal control & monitoring systems

1-1.1 Special Feature of motherboard

OC-CON ---（High-polymer Solid Electrolysis Aluminum Capacitors）

The working temperature is from 55 degrees Centigrade below zero to 125 degrees

Centigrade, OC-CON capacitors possess superior physical characteristics that can be while

reducing the working temperature between 20 degrees Centigrade each time, intact extension

10 times of effective product operation lives, at not rising degrees Centigrade of working

temperatures each time a relative one, life of product decline 10% only too.



1-2 Specification

Spec Description

Design ∗Mini ITX form factor 6 layers PCB size: 17.0x17.0cm

Chipset ∗NVIDIA MCP78S single chipset

Embedded CPU

∗Support HT3.0

∗Low Power Consumption

∗Socket AM2+ / AM2 AMD CPU

Memory Socket

∗240-pin DDRII DIMM socket x1

∗Support DDRII 667MHz /DDRII 800MHz system Modules DDR

memory

∗Expandable to 2GB.

Expansion Slots ∗32-bit PCI slot x 1pcs

Integrate IDE ∗One PCI IDE controller that supports PCI Bus Mastering, ATA

PIO/DMA and the ULTRA DMA 133/100/66 functions that

deliver the data transfer rate up to 100 MB/s;

LAN

∗Integrated Realtek RTL8111B/C PCI-E LAN.

∗Integrated Realtek RTL8211B LAN PHY LAN(optional).

∗Support Fast Ethernet LAN function of providing 10Mb/100Mb

/Gigabit Ethernet data transfer rate

Audio

∗Realtek ALC883 8 channel Audio Codec integrated

∗Audio driver and utility included

∗Support SPDIF IN/OUT



BIOS ∗Award 8MB SPI Flash ROM

Multi I/O

∗PS/2 keyboard&Mouse Connector

∗D-Sub 15-pin VGA Conn.

∗USB 2.0 connector x6, USB2.0 header x2

∗Serial port D-Sub x2

∗8-channel Audio connector (Line-out, MIC and SPDIF in/out )

∗DVI Conn.

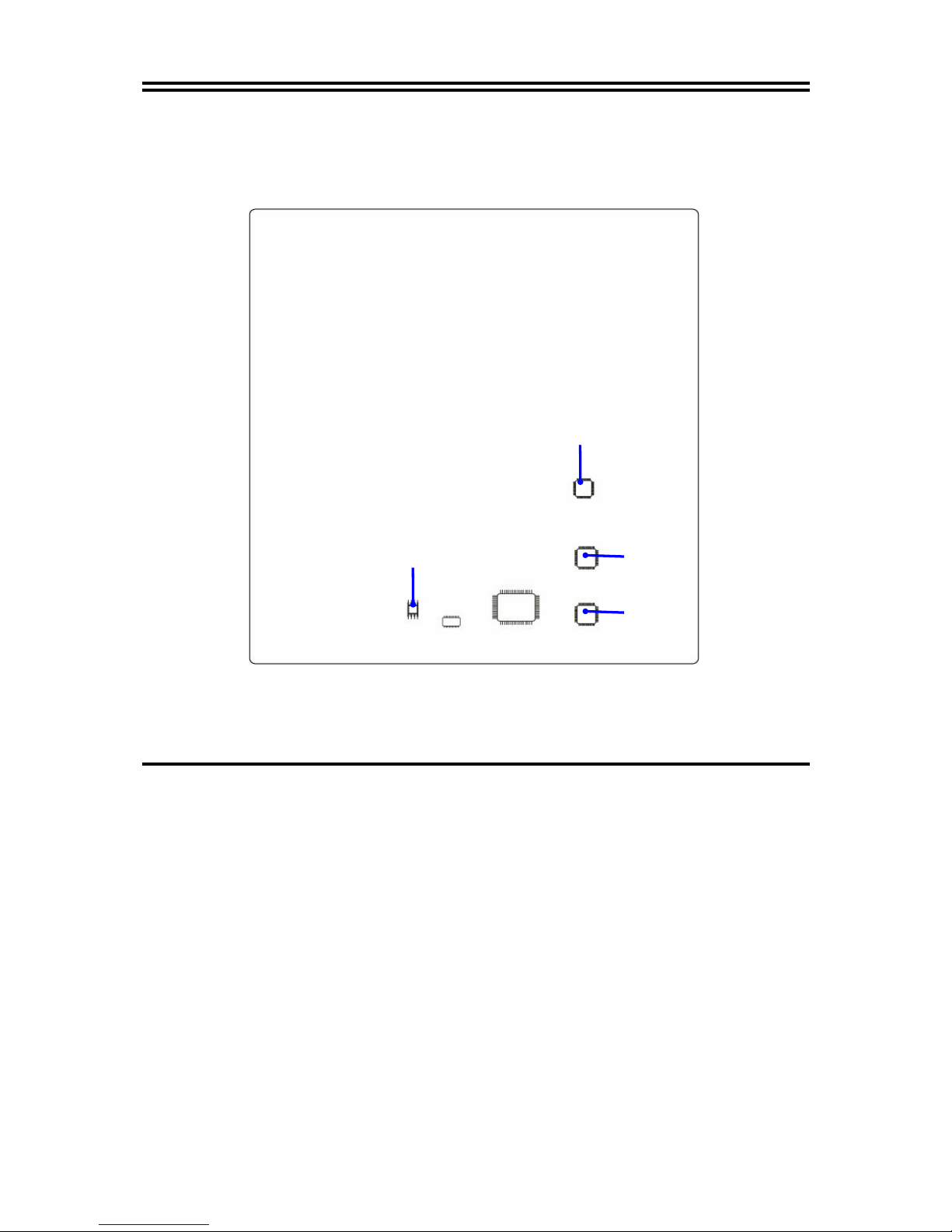

1-3 Layout Diagram & Jumper Setting

MIC-IN

VGA

Connector

RJ45 LAN(optional)

COM

Connector

USB

Connector

board

Connector

USB

Connector

DVI

Connector

Surround

Surrback / SPDIF out

Line-In / SPDIF in



MCP78S Chipset

USBPort

(USB1，USB2)

VGA and DVI

Connector

ATA133

IDE Connector

240pin DDRII

DIMM Socket

USB Port Connector

(optional)

JP1

ATX Power Connector

Keyboard and USB

Connector

PCI Slot

Audio

Connecto

Audio

Connecto

CD IN Connector

CPU FAN

ATX12V Power

Clear CMOS

SYS FAN2

SYS FAN1

SATAII (1,2,3,4) Front Panel

Connector

Spea

Connecto

Power LED

Connector

COM Connector

AMD Socket AM2+

RS232 Power Sel 1

Rs232 Power Sel 2



8MB Flash SPI ROM BIOS

RTL

8211B

LAN

PHY(optional)

ALC 883

AUDIO CODEC

RTL

8111C

PCI-E LAN
