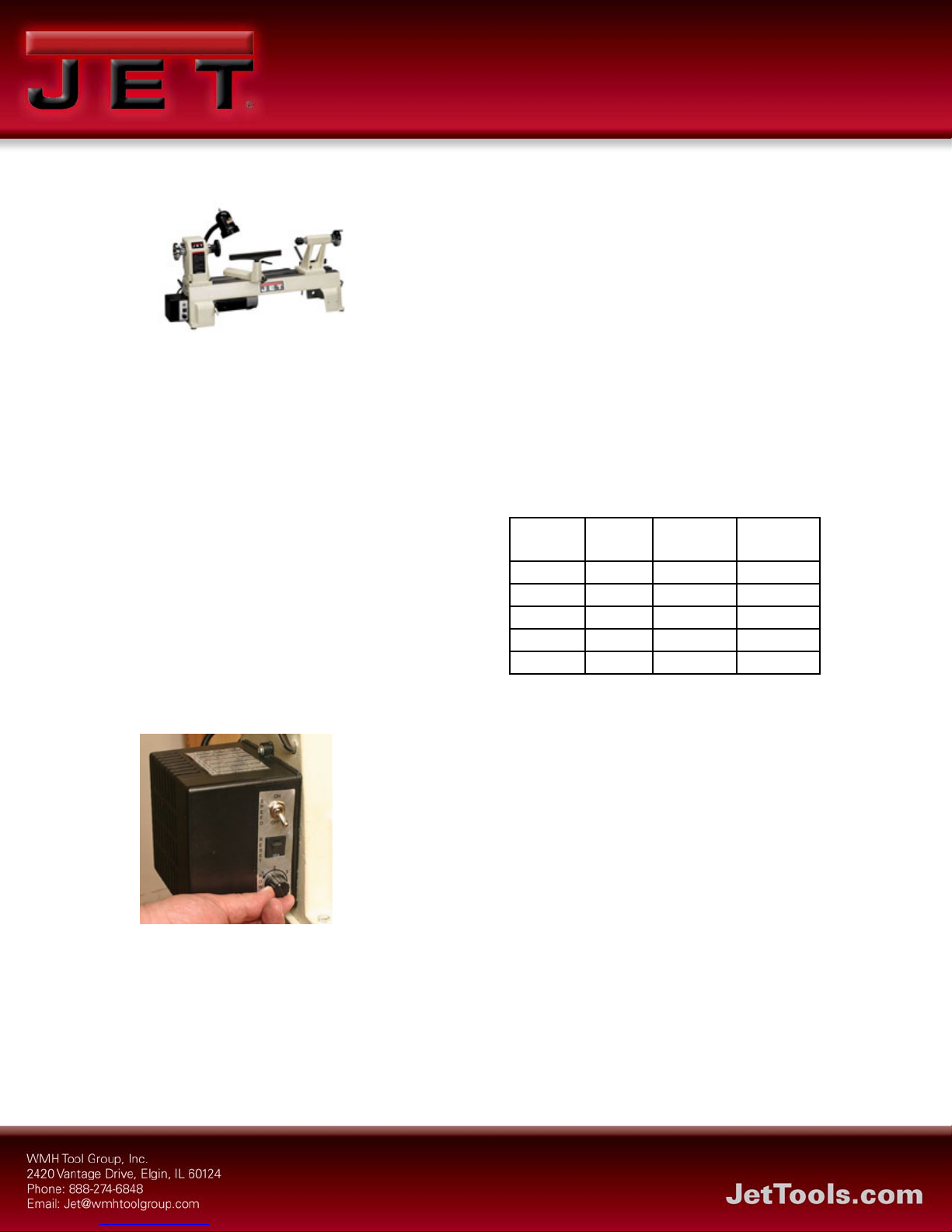

JET JWL-1220VS Variable Speed Lathe

Our JET mini lathes set the industry standard for years.

Now, the new JET JWL-1220VS lathe brings variable

speed to this instantly popular machine. Add the JWL-

1220BE 28” bed extension and the JET JWL-1220VS

50” between centers capacity rivals that of many

larger, more expensive lathes.

The JET JWL-1220VS lathes are built using our time

honored heavy cast iron technology to insure

maximum accuracy and the long-term durability that makes the JET JWL-1220VS Wood

Lathe an even greater value.

Power and Speeds

The JET JWL-1220VS lathe features a

3/4HP motor (115V only) that runs

strong, smooth and consistent. Mounted

directly below the bed, the motor is out of

the way yet easily accessible from the

front for belt tensioning. Tool-free levers

on the front of the JET JWL-1220VS

Wood Lathe make adjusting belt tension quick and easy.

The JWL-1220VS uses a sophisticated electronic speed

control along with finely machined six step pulleys that

together provide total spindle RPM control within a huge

overall speed range of 200 to 4300 RPM! The electronic

speed control dial has 5 numerical dial settings which allow

making very specific RPM settings easy. Pulley position #1

is the largest diameter step on the spindle shaft, #6 the

smallest diameter step. Using the chart above (included on

the machine) one can set the speed as desired.

Changing the belt position on the JET JWL-1220VS Wood

Lathe step pulleys is fast and tool-free. Release the belt

tension using the front-mounted levers and then slip the

The JET JWL-1220VS brings the

versatility of variable speed to this very

popular lathe.

Pulley Position

Low Mid High

1 / 2 3 / 4 5 / 6

1 200/330 500/760 1100/1800

2 270/450 700/1000 1500/2400

3 340/560 900/1300 2000/3000

4 410/680 1000/1600 2300/3600

Speed

5 470/800 1200/1800 2700/4300

The variable speed controls are

powerful but simple to operate.

drive belt onto the new pulley positions through the two spring-

loaded access doors. Re-tension the belt and the JET JWL-

1220VS is ready for use.

Indexing / Spindle Lock

Another new feature on the JET JWL-1220VS series lathes is 24-

position indexing that makes it possible to do many fluting or

drilling operations with consistent spacing and exceptional

accuracy. A specially designed, spring-loaded button above the

handwheel can be depressed to temporarily lock the spindle for

removing thread-on accessories such as a chuck. That same

button can be screwed in to lock the spindle in any of the 24

positions, freeing your hands for other operations.

Standardized Versatility

The JET JWL-1220VS lathe

is designed to be compatible

with a huge range of

common accessories. The

spindle and tailstock accept

tooling with the popular #2

Morse taper. The spindle

nose exterior has the popular

1 X 8 threads. These

attachment sizes are virtually

standard in woodturning and

mean you can use tooling

and accessories you already

have. They also make finding specialized accessories in the future easy and economical.

Included Accessories

The JET JWL-1220VS comes with a full set of popular accessories. A four-wing spur

drive, quality ball bearing live center, knockout rod, 10” tool rest, 6” tool rest and 3”

diameter faceplate are standard equipment. We also include quality safety goggles.

The indexing button can be

held in manually for

removing threaded-on

accessories or it can be

screwed in to free your

hands for fluting or drilling

operations.

The JWL-1220VS comes with a handy tool rack and cord wrap (left) in

addition to the other accessories. The handy work light (right) makes

working with smaller turnings easier and safer.

Bed Extension

Adding the JWL-1220BE 28” (#708377) bed extension

expands the JET JWL-1220VS between center capacity to

nearly 50“, exceeding that of many full-sized 12” lathes! The

3/4hp motor has the power needed to handle those long

pieces.

The JWL-1220BE 28” bed extension comes with the

necessary hardware for installation but goes a step further to

make this process easy. A hanging plate on the mating end of

the extension makes aligning it to the JET JWL-1220VS bed

much easier when a second set of hands are not available.

The mating face also has hex head socket screws pre-

installed that make aligning the JWL-1220BE 28” bed extension perfectly much easier.

Even the rubber-cushioned feet on the bed extension are adjustable to be sure your newly

configured JET JWL-1220VS is stable on irregular surfaces.

Stand

We offer the JWL-1220S

(#708378) Adjustable Stand

that makes your JET JWL-

1220VS a rock-solid, stand-

alone machine. Built from

heavy walled square steel

tubing with fully welded

plate steel joining plates, the

JWL-1220S is beautifully

finished to retain its good looks while resisting corrosion for many years to come.

The JWL-1220S comes with rubber tipped adjustable leveling feet to dampen vibrations

and resist moving. The lathe mounting plates are adjustable so spindle height can be set

to between 43 and 45” above the floor for maximum comfort.

The 28” bed extension and

3/4HP motor allow turning

pieces up to 50” long, a capacity

rivaling far more expensive

machines.

The stand features wide-stance, rubber-tipped feet (left) that adjust for

irregular floors. The mounting plates (right) are adjustable up and down to

fine-tune spindle height for comfort.

Stand Extension

A specially designed extension kit JWL1220SE (#708379)

enlarges the JWL-1220S adjustable stand to accommodate the

JET JWL-1220VS when equipped with the JWL-1220SE bed

extension. Made from the same materials as the JWL-1220S

stand, all of the required parts and fasteners are included to make

this conversion easy without sacrificing stability.

The stand extension kit

includes a new center post,

extension bar and mounting

platform to accommodate

the bed extension.
