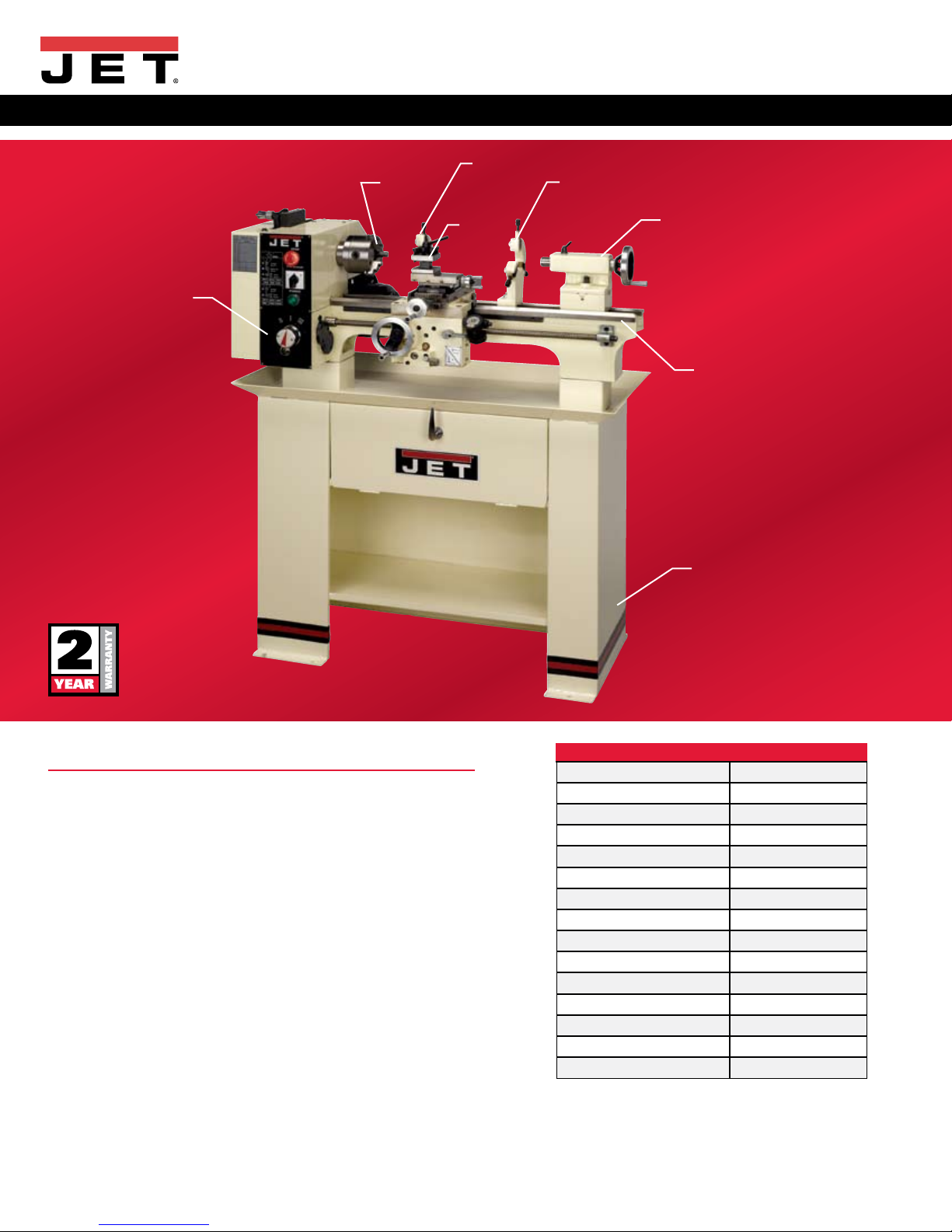

9" X 20" BELT DRIVE BENCH LATHE
Our newest lathe includes an enclosed gear box, reverse
threading capabilities and backlash adjustments provided
throughout the carriage. With features like a 25/32" spindle
bore, a MT#3 tailstock and 6 spindle speeds you’ll be able
to turn some surprisingly hefty projects! If you’re thinking
of making parts for models, engines or even for repairs
around the home or shop, this is the
lathe to own!
Shown with Optional Stand
jettools.com
9" X 20" BELT DRIVE BENCH LATHE
•
Spindle supported by precision tapered roller bearings
•
Hardened and ground bedways
•
Power longitudinal feed allows threading and reverse threading
•
Enclosed gearbox
•
Standard 1-1/2 X 8TPI spindle mount allows for many aftermarket accessories
•
Reversing switch included for added versatility
•
Backlash adjustments provided throughout the carriage
•
Tailstock is adjustable for taper cuts
•
Quick change gearbox provides wide range of inch and metric threads
STANDARD EQUIPMENT
•
4" 3 jaw chuck with threaded back plate
•
7" 4 jaw chuck with threaded back plate
•
Face plate
•
Four way tool post
•
Single tool post
•
Steady and follow rest
•
Metric Change gears
•
Centers
•
Threading dial
•
Tool box and tools
9" X 20" BELT DRIVE BENCH LATHE
Optional
Stand
STOCK NUMBER 321376
Model Number BD-920W
Motor 3/4 HP, 1 Ph, 115V only
Swing over bed (in) 8-3/4
Swing over cross slide (in) 5-1/2
Distance between centers (in) 20
Spindle bore (in) 25/32
Spindle mount (in X TPI) 1-1/2 X 8
Spindle Taper MT-3
Spindle speeds 6
Spindle speed range (RPM) 130 – 2000
Longitudinal feeds 27
Longitudinal feed range (in/rev) .005 - .011
Inch threads 27
Inch thread range (TPI) 8 – 56
Net weight (lbs) 235
Enclosed
Quick
Change
Gear Box
3 Jaw
Chuck
Adustable
Tailstock
4 Way
Tool
Post
Hardened
and Ground
Bedways
Follow
Rest
Steady
Rest
